MaxTrac 510100 Extended Brake Lines 1982-2004 S-10 Sonoma

Add the Brake Line Length Needed for MaxTrac Lift Spindles

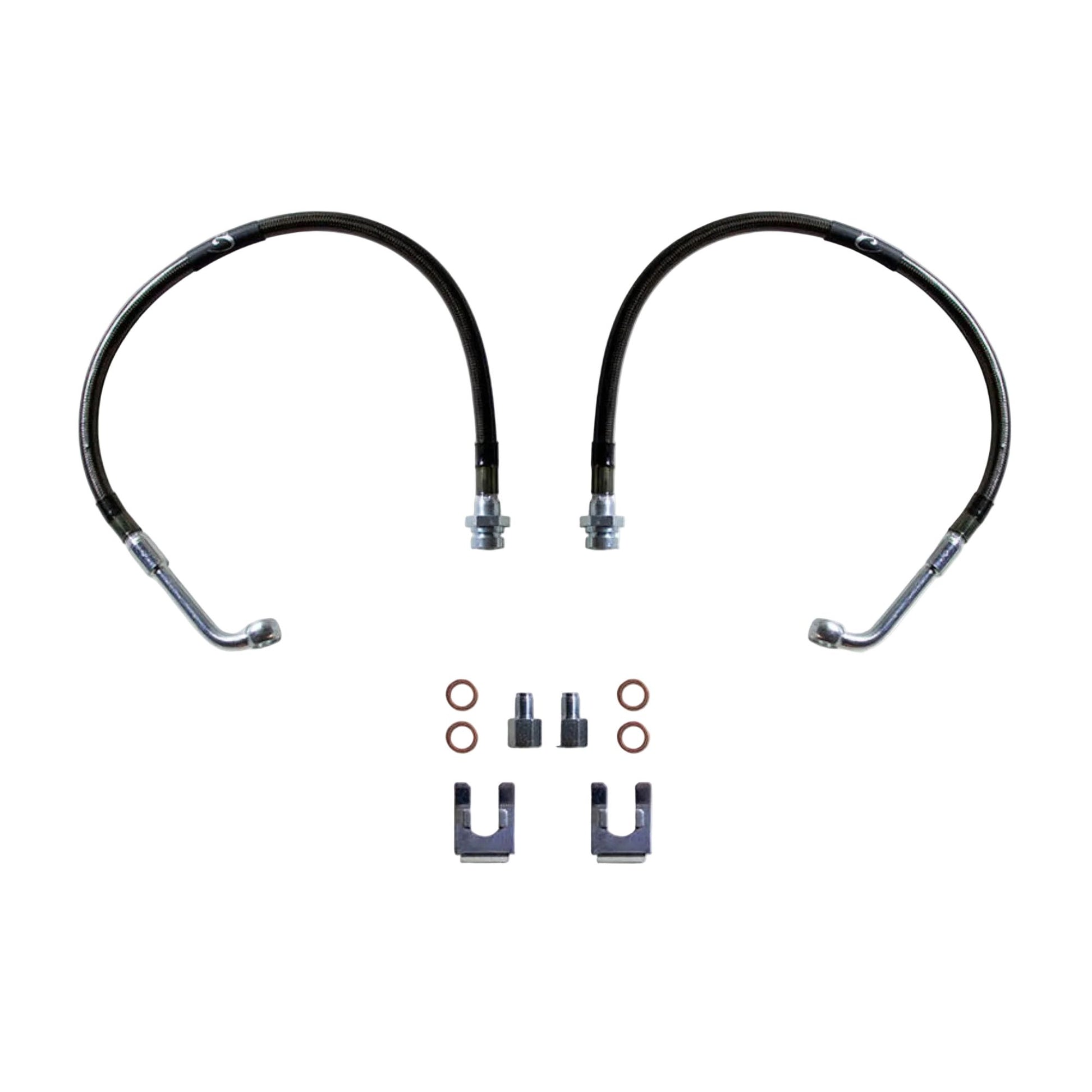

Give your lifted 1982–2004 Chevrolet S-10 or GMC Sonoma 2WD the additional front brake line length required with the MaxTrac 510100 Extended Front Brake Lines. Designed specifically for use with MaxTrac lift spindles, these 19-inch stainless steel braided lines provide a durable replacement for applications where the factory brake hoses do not provide sufficient length.
Each line uses a five-layer construction combining Teflon, Kevlar, vinyl, and stainless steel materials. The pair is D.O.T. compliant and includes a threaded adapter to accommodate the fitment split across the 1982–2004 model-year range.

Key Features

19" Extended Length

Each front brake line measures approximately 19 inches long, providing additional hose length for compatible lifted S-10 and Sonoma suspension applications.

Designed for MaxTrac Lift Spindles

Intended specifically for use with MaxTrac front lift spindles, making these lines an important supporting component for compatible spindle lift installations.

5-Layer Construction

Built with a five-layer design consisting of Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl outer layer for strength and protection.

Stainless Steel Braided

Stainless steel reinforcement provides a durable braided construction suited for modified front suspension applications.

D.O.T. Compliant

Manufactured as D.O.T.-compliant brake lines for compatible automotive brake system applications.

Threaded Adapter Included

A threaded adapter is supplied to accommodate the fitting differences found within the 1982–2004 vehicle year range.

What's Included

(2) 19" extended front brake lines
Threaded year-range adapter
MaxTrac 510100 brake line set

Vehicle Fitment

Fits

1982–2004 Chevrolet S-10 2WD
1982–2004 GMC Sonoma 2WD
Applications using compatible MaxTrac lift spindles

Does Not Fit

4WD models

Important Notes

D.O.T. compliant.
Intended for use with MaxTrac lift spindles.
Brake lines measure approximately 19" long.
Uses a five-layer Teflon, Kevlar, vinyl, stainless steel, and vinyl construction.
Includes a threaded adapter for the model-year fitting split.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 510100
UPC: 706199413996
Kit Type: Lift / Level
Product Type: Extended Front Brake Lines
Position: Front
Drive Type: 2WD
Length: 19"
Construction: 5-Layer
Reinforcement: Stainless Steel Braided
Compliance: D.O.T. Compliant
Material: Steel
Color: Grey
Finish: Grey Vinyl
Sold As: Pair
Weight: 1 lb
Dimensions: 9" × 4" × 3"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 510100?

Lift spindles can change the distance the factory front brake hoses need to travel throughout suspension and steering movement. The 510100 provides a 19-inch extended design specifically intended for MaxTrac lift spindle applications, combining stainless steel reinforcement with a multi-layer protective construction and an included adapter for the broad S-10/Sonoma year range.

Perfect For

S-10 spindle lift builds
Sonoma 2WD suspension lifts
MaxTrac lift spindle installations
Extended front brake hose replacement
Mini truck suspension projects
1982–2004 GM compact trucks
