MaxTrac 303430 F-150 2WD 3"/4WD 4" Rear Flip Kit

Lower Your F-150 with a Complete Rear Flip System

Transform the rear stance of your 2009–2014 Ford F-150 with the MaxTrac 303430 Rear Flip Kit. Designed for both drivetrains, this package provides approximately a 3" rear drop on 2WD models or a 4" rear drop on 4WD models while combining the primary axle and leaf-spring components needed for the conversion.
The kit includes axle relocators, hangers, shackles, bump stops, and spring plates, giving you a coordinated rear lowering package without having to source the major flip components individually.

Key Features

3" 2WD / 4" 4WD Rear Lowering

Designed for approximately 3 inches of rear drop on 2WD F-150s and 4 inches on 4WD F-150s.

Axle Relocators Included

Application-specific axle relocators reposition the rear axle relative to the leaf springs as part of the lowering conversion.

Hangers & Shackles

Included rear hangers and shackles work with the axle flip components to establish the intended final ride height.

Spring Plates Included

Heavy-duty spring plates provide essential mounting components for the axle and leaf-spring assembly.

Bump Stops Included

Supplied bump stops help accommodate the reduced suspension clearance created by the lower rear stance.

Complete Rear Flip Package

Combines the major mechanical components for the rear conversion into one application-specific MaxTrac package.

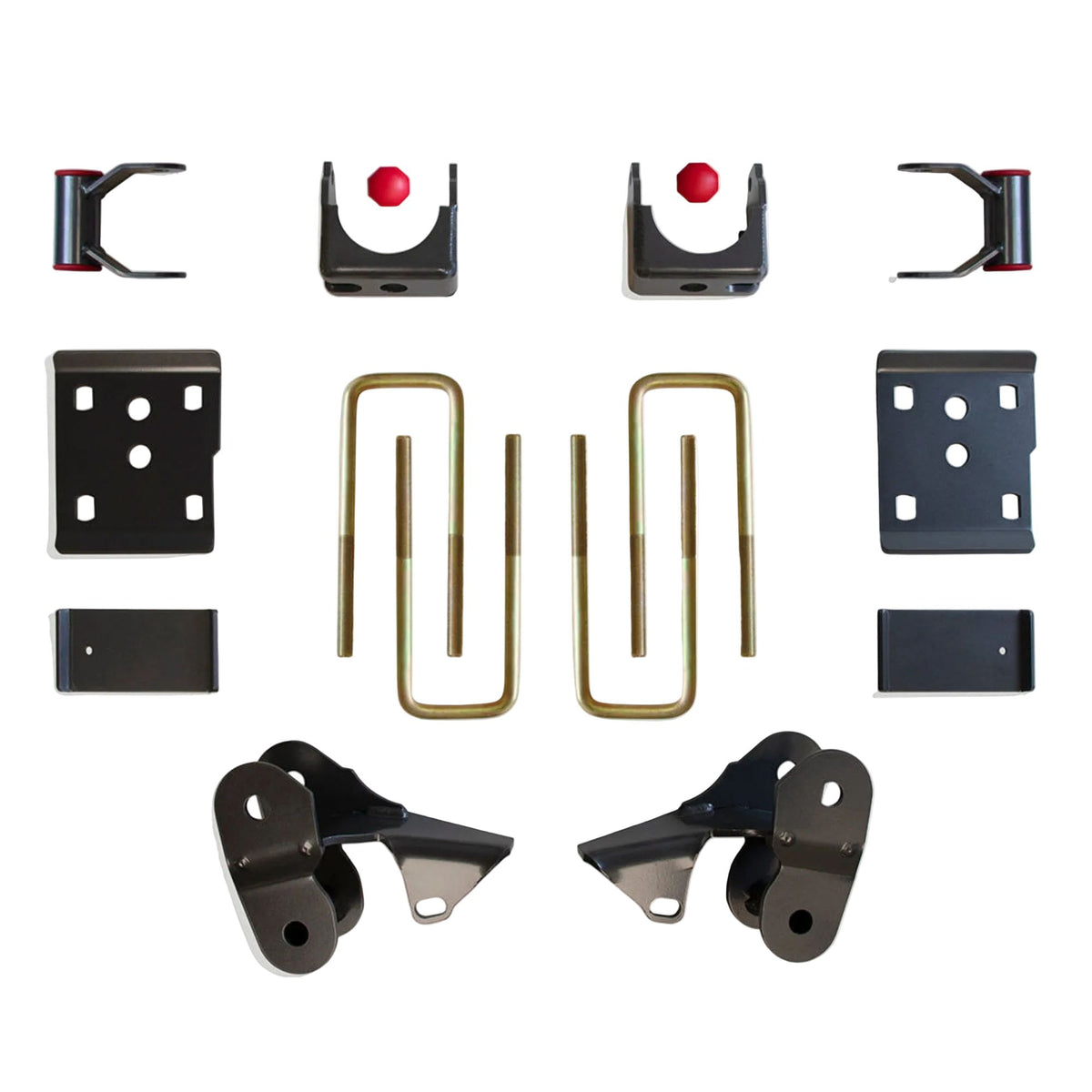

What's Included

Rear axle relocators
Rear hangers
Rear shackles
Rear bump stops
Rear spring plates
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2009–2014 Ford F-150 2WD — approximately 3" rear drop
2009–2014 Ford F-150 4WD — approximately 4" rear drop

Important Notes

2WD applications lower approximately 3" in the rear.
4WD applications lower approximately 4" in the rear.
The supplied MaxTrac specification field lists Lower (Rear): 5", while the product application information identifies this kit as a 3" 2WD / 4" 4WD rear lowering system. Verify the intended final ride height before installation.
Rear shocks are not listed as included with MaxTrac 303430.
This is a rear-only suspension kit; front lowering components are not included.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 303430
UPC: 706199417390
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Flip Kit
Position: Rear
2WD Rear Drop: 3"
4WD Rear Drop: 4"
Manufacturer Spec Field – Lower (Rear): 5"
Drivetrain: 2WD / 4WD
Axle Relocators: Included
Rear Hangers: Included
Rear Shackles: Included
Bump Stops: Included
Spring Plates: Included
Rear Shocks: Not Listed / Not Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 36 lbs
Dimensions: 14" × 12" × 6"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 303430?

The MaxTrac 303430 goes beyond a basic axle flip by combining the axle relocators, hangers, shackles, spring plates, and bump stops required for a more complete rear lowering conversion.
Its drivetrain-specific drop makes it suitable for both 2WD and 4WD F-150 builds, providing a lower street-truck stance while keeping the major rear suspension components together in one package.

Perfect For

2009–2014 F-150 lowering builds
2WD 3" rear drop applications
4WD 4" rear drop setups
Rear axle flip conversions
Leaf spring suspension projects
Lowered street-truck builds
