MaxTrac 303160 F-150 2WD 6" Rear Flip Kit

Bring Your F-150 Down with a Full 6" Rear Drop

Give your 2004–2026 Ford F-150 2WD a dramatically lower rear stance with the MaxTrac 303160 6" Rear Flip Kit. This system repositions the rear axle relative to the leaf springs to achieve approximately 6 inches of rear lowering while using application-specific hardware designed for the F-150 suspension.
The kit includes axle relocators, spring plates, and bump stops, providing the primary components needed for the rear flip conversion. Because a 6" drop significantly reduces suspension travel and frame clearance, shorter rear shocks are required and a C-notch is highly recommended.

Key Features

6" Rear Drop

Engineered to provide approximately 6 inches of rear lowering on compatible 2004–2026 Ford F-150 2WD trucks.

Axle Flip Configuration

Relocates the rear axle relative to the leaf springs, allowing a substantially greater drop than typical shackles or hangers can provide alone.

Axle Relocators Included

Application-specific axle relocators provide the necessary mounting configuration for repositioning the rear axle.

Heavy-Duty Spring Plates

Included spring plates complete an important part of the axle-to-leaf-spring mounting arrangement.

Bump Stops Included

Supplied bump stops accommodate the reduced suspension clearance created by the lowered ride height.

Built for Deep F-150 Lowering

Designed for aggressive street-truck builds where a 6" rear drop is needed to complement a substantially lowered front suspension.

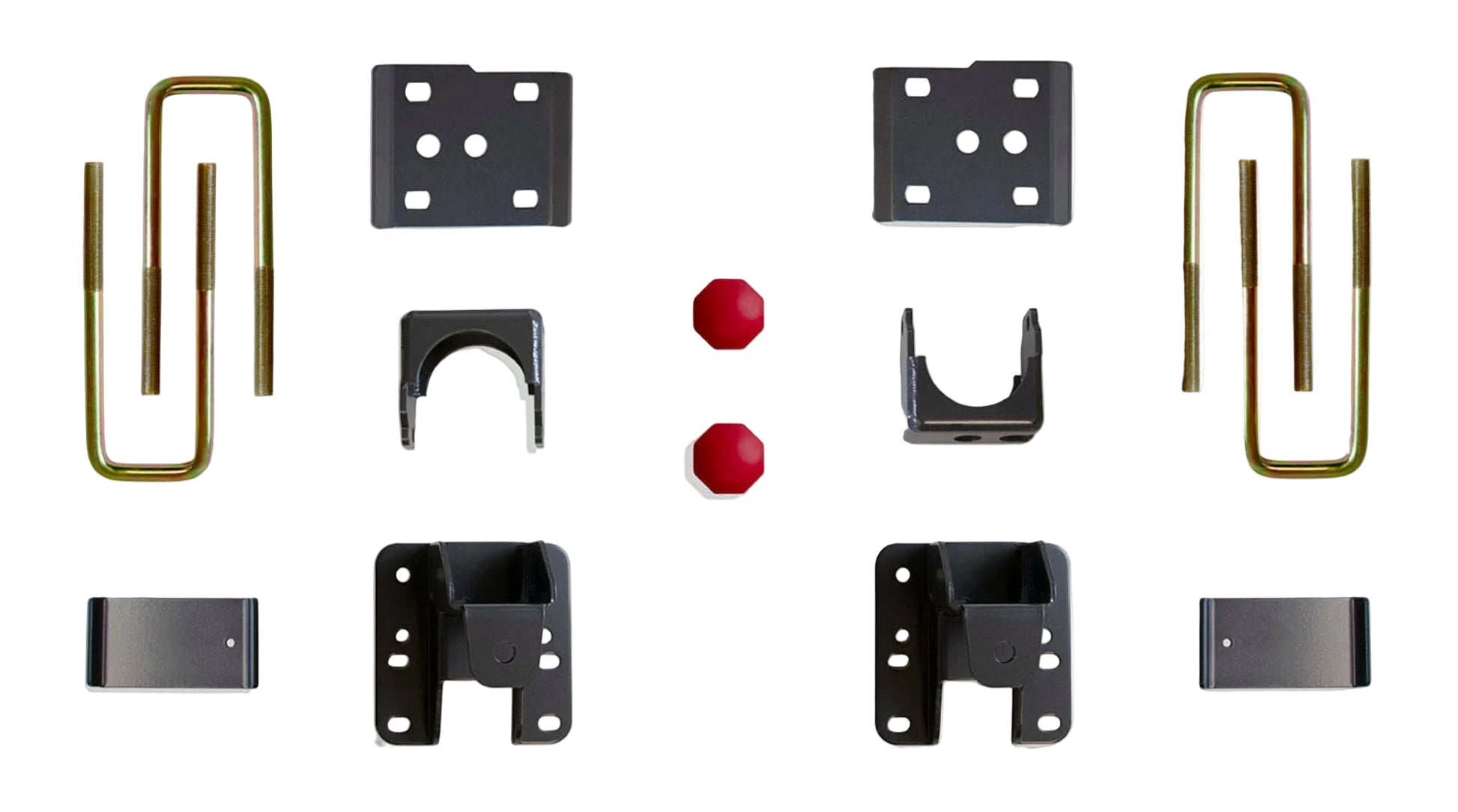

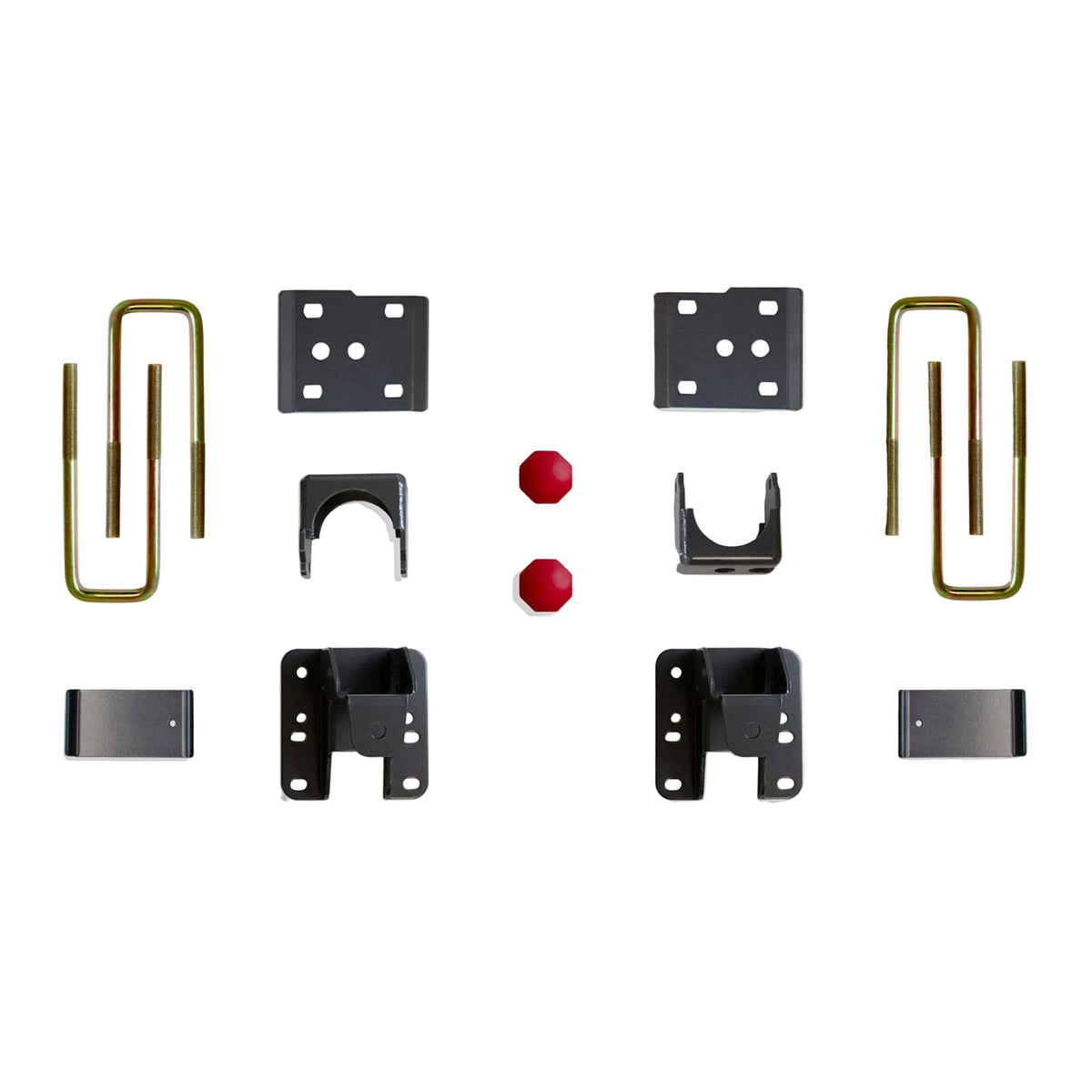

What's Included

Rear axle relocators
Rear spring plates
Rear bump stops
Flip kit mounting components

Vehicle Fitment

Fits

2004–2026 Ford F-150 2WD
Compatible leaf-spring rear suspension applications

Does Not Fit

Hybrid models
Tremor models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Designed for approximately a 6" rear drop on compatible F-150 2WD models.
C-notch is highly recommended with a 6" drop.
Shorter rear shocks are required and not included.
Trucks equipped with a factory rear lift block will receive additional drop equivalent to the height of the factory block when it is removed.
Actual final lowering can vary depending on the truck's original rear suspension configuration.
Does not fit Hybrid, Tremor, CCD suspension, or BlueCruise-equipped models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 303160
UPC: 738283443763
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Axle Flip Kit
Position: Rear
Rear Drop: 6"
Drivetrain: 2WD
Axle Relocators: Included
Spring Plates: Included
Bump Stops: Included
C-Notch: Highly Recommended; Not Included
Shorter Rear Shocks: Required; Not Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 20 lbs
Dimensions: 15" × 7" × 6"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 303160?

The MaxTrac 303160 provides a more comprehensive way to achieve a deep F-150 rear drop than relying on smaller lowering components. By flipping the axle configuration and supplying the required relocators, spring plates, and bump stops, the kit creates the foundation for a properly planned 6" rear lowering setup.
Pair it with correctly sized shorter rear shocks and a suitable C-notch to complete an aggressive lowered F-150 suspension build.

Perfect For

F-150 2WD street trucks
6" rear drop builds
Axle flip conversions
Custom lowered pickups
Leaf spring suspension setups
Aggressive stance applications
