MaxTrac 203440 F-150 4WD 5" Rear Lowering Box Kit

Give Your 4WD F-150 a Deeper 5" Rear Drop

Lower your 2009–2014 Ford F-150 4WD with the MaxTrac 203440 5" Rear Lowering Box Kit. This matched rear suspension package includes a flip kit, rear hangers, bump stops, and two MaxTrac 2400LL-9 rear shocks to provide the primary components needed for a 5" rear drop.

The 203440 is designed to work with the appropriate MaxTrac front lowering components when building a complete 3" front / 5" rear lowering system. If your F-150 is equipped with a factory rear lift block, removing that block can produce additional drop equal to the height of the block.

Key Features

5" Rear Lowering

Provides approximately 5 inches of rear drop on compatible 2009–2014 F-150 4WD applications.

Rear Flip Kit Included

The included axle flip system changes the rear axle-to-leaf-spring relationship to create the primary suspension drop.

Rear Hangers & Bump Stops

Includes matched rear hangers and bump stops for the lowered suspension configuration.

Two MaxTrac 2400LL-9 Rear Shocks

Supplied with two 2400LL-9 rear shocks matched to the lowered rear suspension travel.

Builds a Complete 3"/5" Drop

Designed to work with the appropriate MaxTrac front components to create a complete 3" front / 5" rear F-150 lowering system.

Factory Lift Block Consideration

Trucks equipped with a factory rear lift block will receive additional drop equivalent to the height of the removed block.

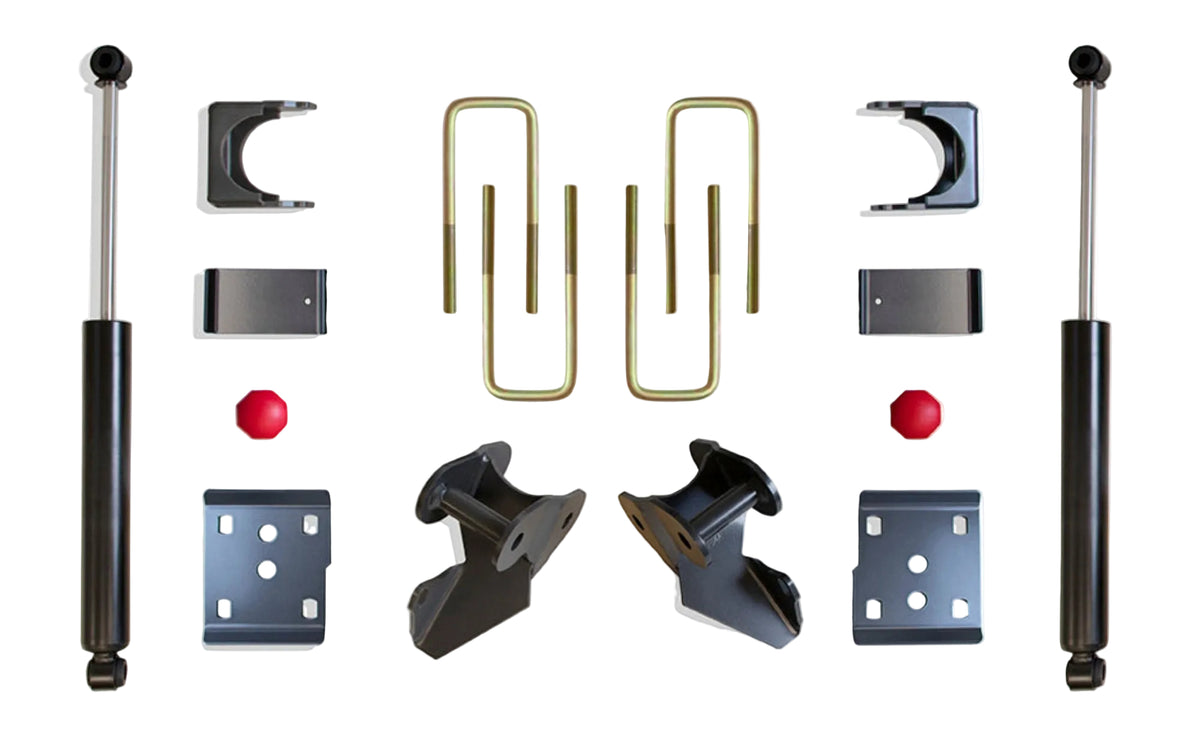

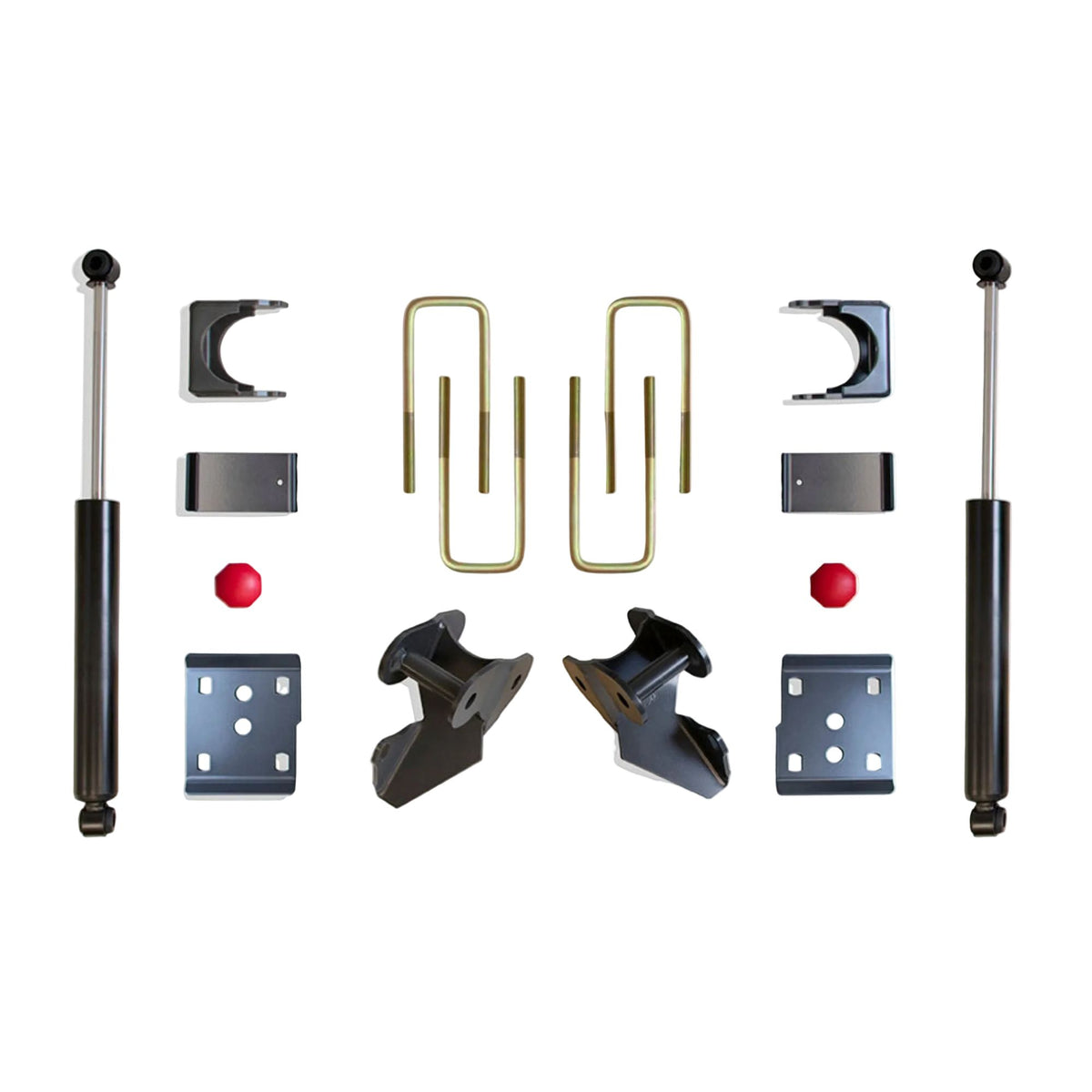

What's Included

Rear axle flip kit (303440)
Rear hangers (Incl)
Rear bump stops (Incl)
(2) MaxTrac rear shocks (2400LL-9)
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2009–2014 Ford F-150 4WD
do you have a 2wd?
Click Here

Important Notes

Provides approximately 5" of rear lowering on compatible 4WD models.
Designed for use with compatible front lowering components to create a complete 3"/5" lowering system.
Models equipped with a factory lift block will receive additional drop equal to the height of the factory block.
Two 2400LL-9 rear shocks are included with this rear box. If ordering the shocks separately, MaxTrac sells them individually, so quantity two is required.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 203440
UPC: 738283446849
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
Drive: 4WD
Rear Drop: 5"
Complete Kit Configuration: 3" Front / 5" Rear
Flip Kit Included: Yes
Hangers Included: Yes
Bump Stops Included: Yes
Rear Shocks Included: Yes
Rear Shock Part Number: 2400LL-9
Rear Shock Quantity: 2
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 45 lbs
Dimensions: 20" × 20" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 203440?

The MaxTrac 203440 combines the primary rear suspension components required for a 5" F-150 4WD drop into one matched package. The axle flip system and rear hangers establish the lowered suspension geometry, while the included 2400LL-9 rear shocks are matched to the reduced ride height.

Pair the 203440 with the appropriate MaxTrac front lowering components to create a complete 3"/5" suspension drop, making this box useful for both rear suspension projects and complete lowered 4WD F-150 builds.

Perfect For

2009–2014 F-150 4WD street trucks
5" rear lowering projects
3"/5" complete drop systems
Rear axle flip conversions
Lowered leaf spring suspension
MaxTrac 2400LL-9 shock setups
