MaxTrac 203430 F-150 2WD 3"/4WD 4" Rear Lowering Kit

Get the Right Rear Drop for Your 2009–2014 F-150

Give your 2009–2014 Ford F-150 a lower rear stance with the MaxTrac 203430 Rear Lowering Box Kit. Designed for both 2WD and 4WD trucks, this complete rear package delivers approximately a 3" drop on 2WD models or a 4" drop on 4WD models.
Rather than supplying only the flip hardware, MaxTrac combines the rear flip kit, hangers, shackles, bump stops, and two 2400LL-9 rear shocks into one coordinated package for a more complete lowering conversion.

Key Features

3" 2WD / 4" 4WD Rear Drop

Application-specific suspension geometry provides approximately 3 inches of rear lowering on 2WD trucks and 4 inches on 4WD trucks.

Complete Rear Flip System

Includes the necessary rear flip kit to reposition the axle as part of the lowering conversion.

Hangers & Shackles Included

Matched rear hangers and shackles work with the flip system to achieve the intended final ride height.

Two 2400LL-9 Rear Shocks

Includes two MaxTrac 2400LL-9 rear shocks matched to the lowered suspension configuration.

Bump Stops Included

Replacement bump stops help accommodate the reduced suspension travel created by the lower rear ride height.

Coordinated Box Kit

Packages the primary rear lowering components and matched shocks together, reducing the need to purchase major pieces separately.

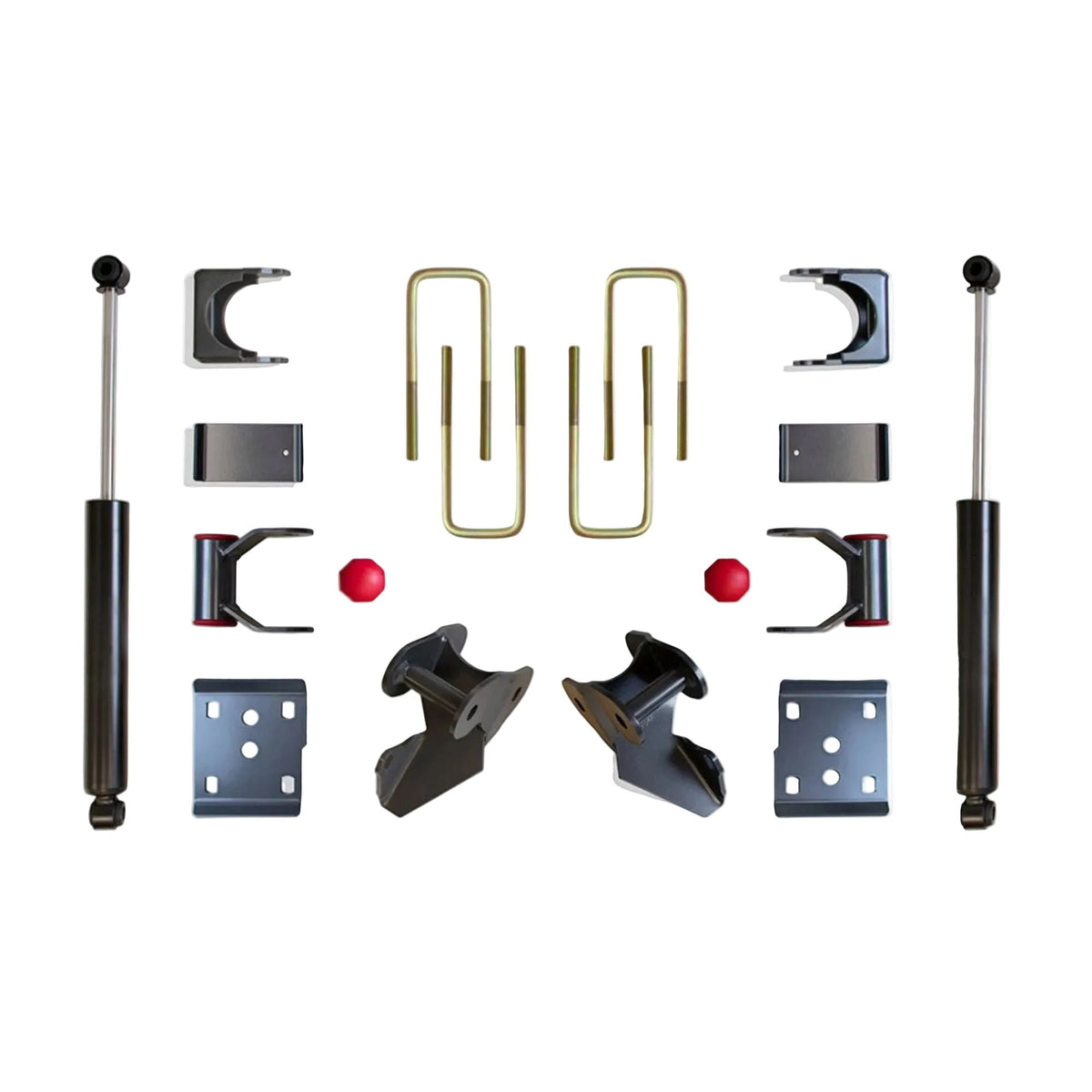

What's Included

Rear flip kit
Rear hangers
Rear shackles
Rear bump stops
(2) MaxTrac 2400LL-9 rear shocks
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2009–2014 Ford F-150 2WD — approximately 3" rear drop
2009–2014 Ford F-150 4WD — approximately 4" rear drop

Important Notes

2WD models lower approximately 3" in the rear.
4WD models lower approximately 4" in the rear.
The supplied MaxTrac specification field lists Lower (Rear): 4", corresponding with the 4WD application.
Includes two MaxTrac 2400LL-9 rear shocks for the lowered suspension.
This is a rear-only lowering package; front lowering components are not included.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 203430
UPC: 706199417406
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
2WD Rear Drop: 3"
4WD Rear Drop: 4"
Drivetrain: 2WD / 4WD
Flip Kit: Included
Rear Hangers: Included
Rear Shackles: Included
Bump Stops: Included
Rear Shocks: 2400LL-9 ×2
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 48 lbs
Dimensions: 20" × 20" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 203430?

The MaxTrac 203430 combines the major components needed to lower the rear of a 2009–2014 F-150 in one package. Its drivetrain-specific configuration provides the appropriate 3" 2WD or 4" 4WD drop, while the included flip kit, hangers, and shackles work together to establish the lowered stance.
MaxTrac also includes two 2400LL-9 rear shocks, giving the truck dampers matched to the reduced ride height without requiring them to be purchased separately.

Perfect For

2009–2014 F-150 lowering projects
2WD 3" rear drop builds
4WD 4" rear drop setups
Street-truck suspension conversions
Rear axle flip applications
Complete rear lowering systems
