MaxTrac 203250 F-150 2WD 5" Rear Lowering Box Kit

Create a Deeper 5" Rear Drop on Your F-150

Bring your 2015–2026 Ford F-150 2WD down to a more aggressive street-truck stance with the MaxTrac 203250 5" Rear Lowering Box Kit. This matched rear suspension package combines a flip kit, lowering shackles, bump stops, and two MaxTrac 2200LL-9 rear shocks to provide a complete 5" rear lowering solution.

The 203250 is designed to pair with the appropriate MaxTrac front lowering components to create a complete 3" front / 5" rear drop. Trucks originally equipped with a factory rear lift block may achieve additional lowering equal to the height of the removed factory block.

Key Features

5" Rear Lowering

Provides approximately 5 inches of rear drop on compatible 2015–2026 F-150 2WD applications.

Rear Flip Kit Included

The included axle flip system changes the rear axle-to-leaf-spring relationship to create the primary suspension drop.

Lowering Shackles Included

Matched rear shackles work with the flip system to achieve the intended suspension height and stance.

Two MaxTrac 2200LL-9 Rear Shocks

Includes two 2200LL-9 rear shocks matched to the lowered rear suspension configuration.

Builds a Complete 3"/5" Drop

Combine this rear box with the appropriate MaxTrac front lowering components to build a complete 3" front / 5" rear lowering system.

Factory Lift Block Consideration

Models equipped with a factory rear lift block will receive additional drop equivalent to the height of the removed block.

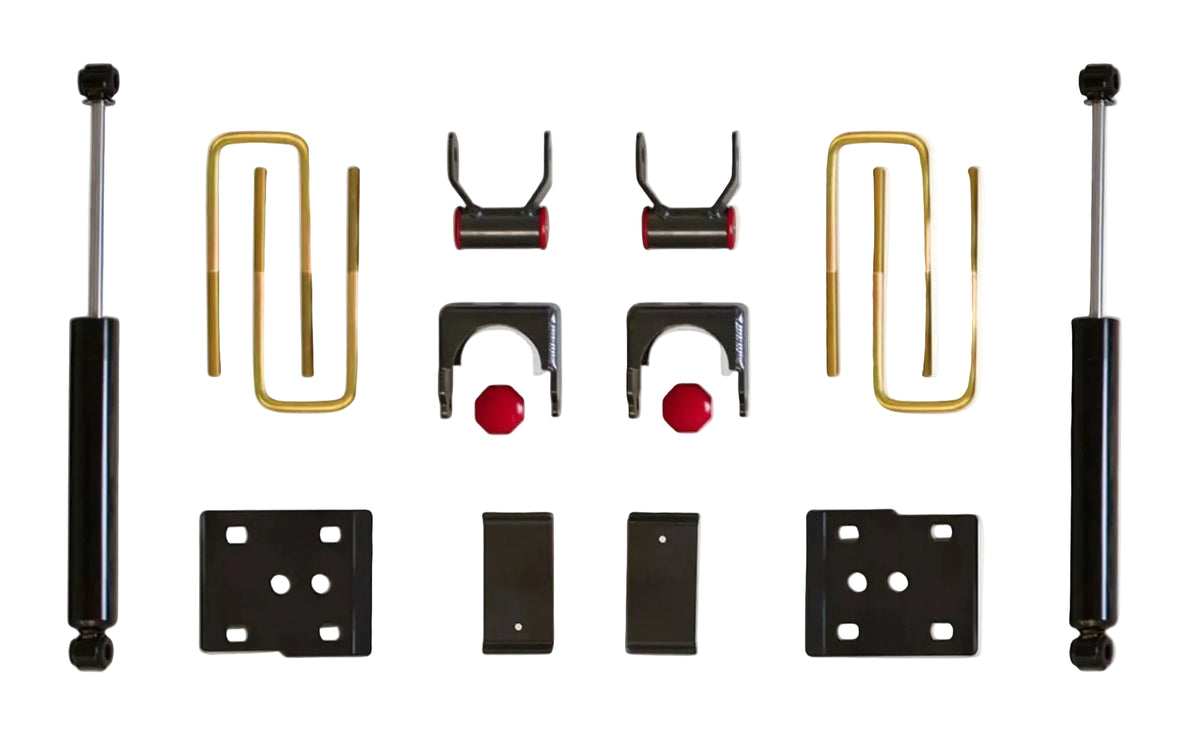

What's Included

Rear axle flip kit (303250)
Rear lowering shackles (Incl)
Rear bump stops (Incl)
(2) MaxTrac rear shocks (2200LL-9)
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2015–2026 Ford F-150 2WD
Compatible standard suspension applications

Does Not Fit

Hybrid models
Tremor models
4wd models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Provides approximately 5" of rear lowering.
Designed for use with compatible front lowering components to create a complete 3"/5" lowering system.
Models equipped with a factory lift block will receive additional drop equal to the height of the factory block.
Does not fit Hybrid models.
Does not fit Tremor models.
Does not fit models equipped with CCD suspension.
Does not fit models equipped with BlueCruise.
Two 2200LL-9 rear shocks are included. If purchasing these shocks separately, MaxTrac sells them individually, so quantity two is required.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 203250
UPC: 738283446832
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
Drive: 2WD
Rear Drop: 5"
Complete Kit Configuration: 3" Front / 5" Rear
Flip Kit Included: Yes
Shackles Included: Yes
Bump Stops Included: Yes
Rear Shocks Included: Yes
Rear Shock Part Number: 2200LL-9
Rear Shock Quantity: 2
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 45 lbs
Dimensions: 20" × 20" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 203250?

The MaxTrac 203250 combines the major rear suspension components required for a 5" F-150 2WD drop into one matched package. The flip system and lowering shackles establish the new rear ride height, while the included 2200LL-9 shocks are matched to the lowered suspension travel.

For a complete truck transformation, pair this rear box with the appropriate MaxTrac front components to create a 3"/5" lowering system. The result is a significantly lower stance without having to source the primary rear components individually.

Perfect For

F-150 2WD street truck builds
5" rear lowering projects
3"/5" complete drop systems
Rear axle flip conversions
Lowering shackle installations
MaxTrac 2200LL-9 shock setups
