MaxTrac 203230 F-150 2WD 3" Rear Lowering Box Kit

Complete the Rear of Your F-150 with a Matched 3" Drop

Bring the rear of your 2015–2026 Ford F-150 2WD down approximately 3 inches with the MaxTrac 203230 Rear Lowering Box Kit. This complete rear suspension package combines a flip kit, hangers, shackles, bump stops, and matched MaxTrac rear shocks to achieve a lower stance without piecing together the major components individually.
Matched 2650LL-9 rear shocks are included to work with the reduced ride height, making the 203230 a practical foundation for a complete lowered F-150 street-truck setup.

Key Features

3" Rear Lowering

Designed to produce approximately a 3-inch rear drop on compatible 2015–2026 Ford F-150 2WD trucks.

Rear Flip Kit Included

The included axle flip components reposition the rear axle relative to the leaf springs as part of the lowering system.

Hangers & Shackles

Matched rear hangers and shackles work with the flip configuration to establish the intended 3" final drop.

Matched MaxTrac Rear Shocks

Includes two MaxTrac 2650LL-9 rear shocks sized for the lowered suspension, eliminating the need to source shorter shocks separately.

Bump Stops Included

Replacement bump stops accommodate the reduced suspension travel associated with the lower rear ride height.

Complete Rear Box Kit

Combines the major rear lowering components into one package for a more coordinated suspension installation.

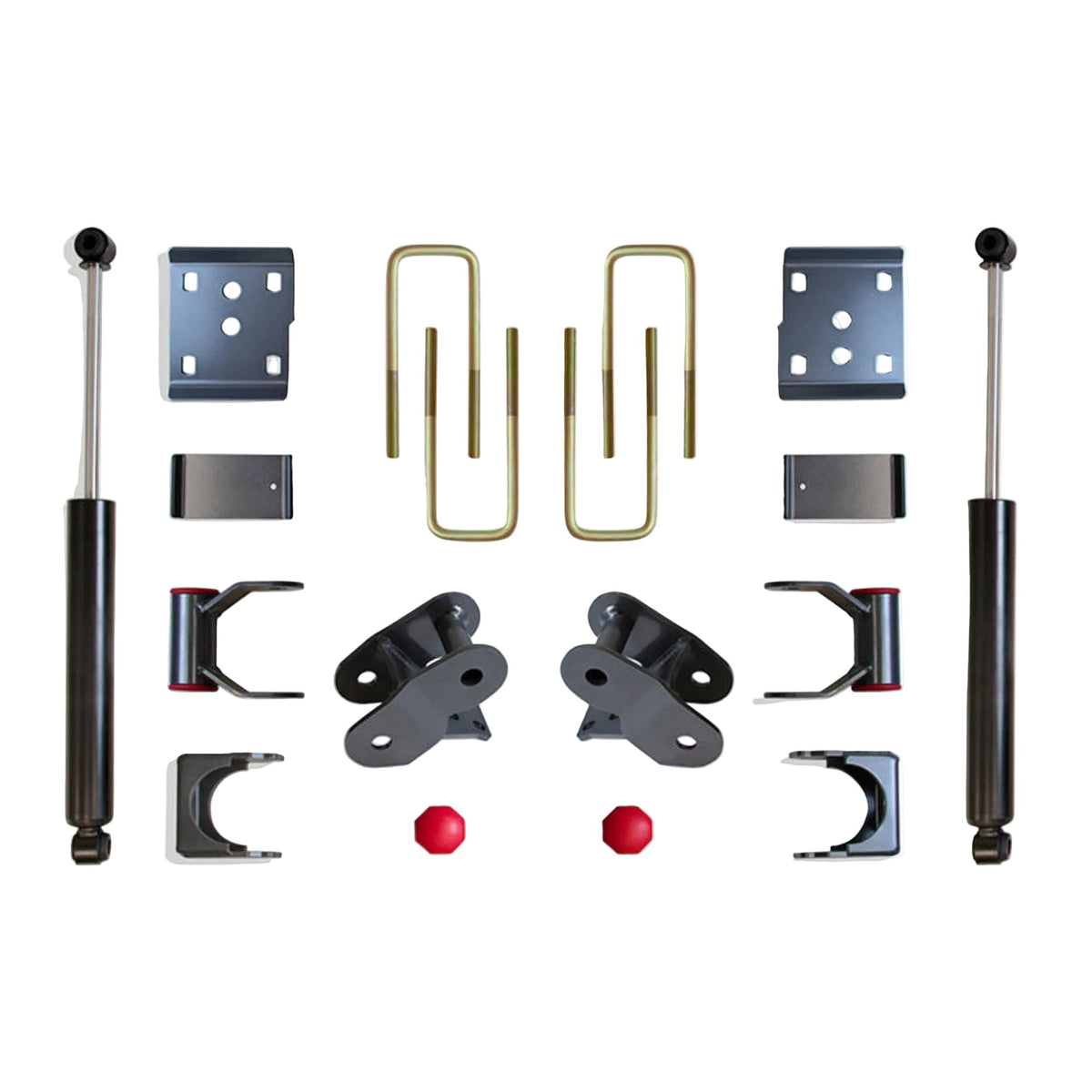

What's Included

Rear flip kit 303160
Rear hangers 3032RH
Rear shackles 713210
Rear bump stops
(2) MaxTrac 2650LL-9 rear shocks
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2015–2026 Ford F-150 2WD

Important Notes

Provides approximately a 3" rear drop on compatible applications.
Includes two 2650LL-9 rear shocks matched to the lowered suspension.
This is a rear-only lowering kit; front lowering components are not included.
Verify all vehicle suspension equipment and configuration before installation.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. MaxTrac states that using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 203230
UPC: 706199417420
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
Rear Drop: 3"
Drivetrain: 2WD
Flip Kit: 303160
Rear Hangers: 3032RH
Rear Shackles: 713210
Bump Stops: Included
Rear Shocks: 2650LL-9 ×2
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 48 lbs
Dimensions: 20" × 20" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 203230?

The MaxTrac 203230 packages the major components required for a coordinated 3" rear F-150 drop instead of supplying only one piece of the lowering system. The flip hardware works together with the hangers and shackles to establish the lowered ride height, while the included bump stops account for reduced suspension travel.
A major advantage is the inclusion of 2650LL-9 MaxTrac rear shocks, giving the suspension dampers matched to the lowered configuration right out of the box.

Perfect For

F-150 2WD lowering projects
3" rear drop applications
Street-truck suspension builds
Rear axle flip conversions
Complete rear lowering setups
Lowered stance upgrades
