MaxTrac 201950ML Silverado/Sierra 1500 5" Rear Lowering Kit

5" Rear Drop for Monoleaf Silverado & Sierra Trucks

Achieve a deeper, more aggressive rear stance on your 2019–2026 Chevy Silverado or GMC Sierra 1500 with the MaxTrac 201950ML 5" Rear Lowering Box Kit. Specifically engineered for trucks equipped with the factory monoleaf single composite rear spring, this package includes a rear axle flip kit, lowering hangers, bump stops, and two MaxTrac 2000LL-4 rear shocks.

Designed for compatible 2WD and 4WD Silverado/Sierra 1500 models, the 201950ML provides the rear suspension components needed for a 5-inch drop. Pair it with the appropriate front lowering components to build a complete 3" front / 5" rear lowering system.

Key Features

5" Rear Lowering

Provides approximately 5 inches of rear drop on compatible 2019–2026 Silverado and Sierra 1500 trucks equipped with factory monoleaf rear suspension.

Monoleaf-Specific Rear Flip Kit

Features a rear axle flip system designed for the single composite rear spring configuration, providing the correct axle relocation components for monoleaf applications.

Rear Lowering Hangers

Includes rear hangers that work with the flip kit to establish the intended lowered ride height.

Two MaxTrac 2000LL-4 Rear Shocks

Supplied with two shortened MaxTrac 2000LL-4 rear shocks matched to the reduced suspension height.

Rear Bump Stops Included

Includes rear bump stops to accommodate the reduced suspension clearance created by the 5" drop.

Designed for Complete 3"/5" Lowering Systems

Engineered to work with compatible front lowering components to create a complete 3" front / 5" rear Silverado/Sierra lowering setup.

USA-Made Steel Construction

Manufactured in the USA using steel components finished in durable grey powder coat for strength and corrosion resistance.

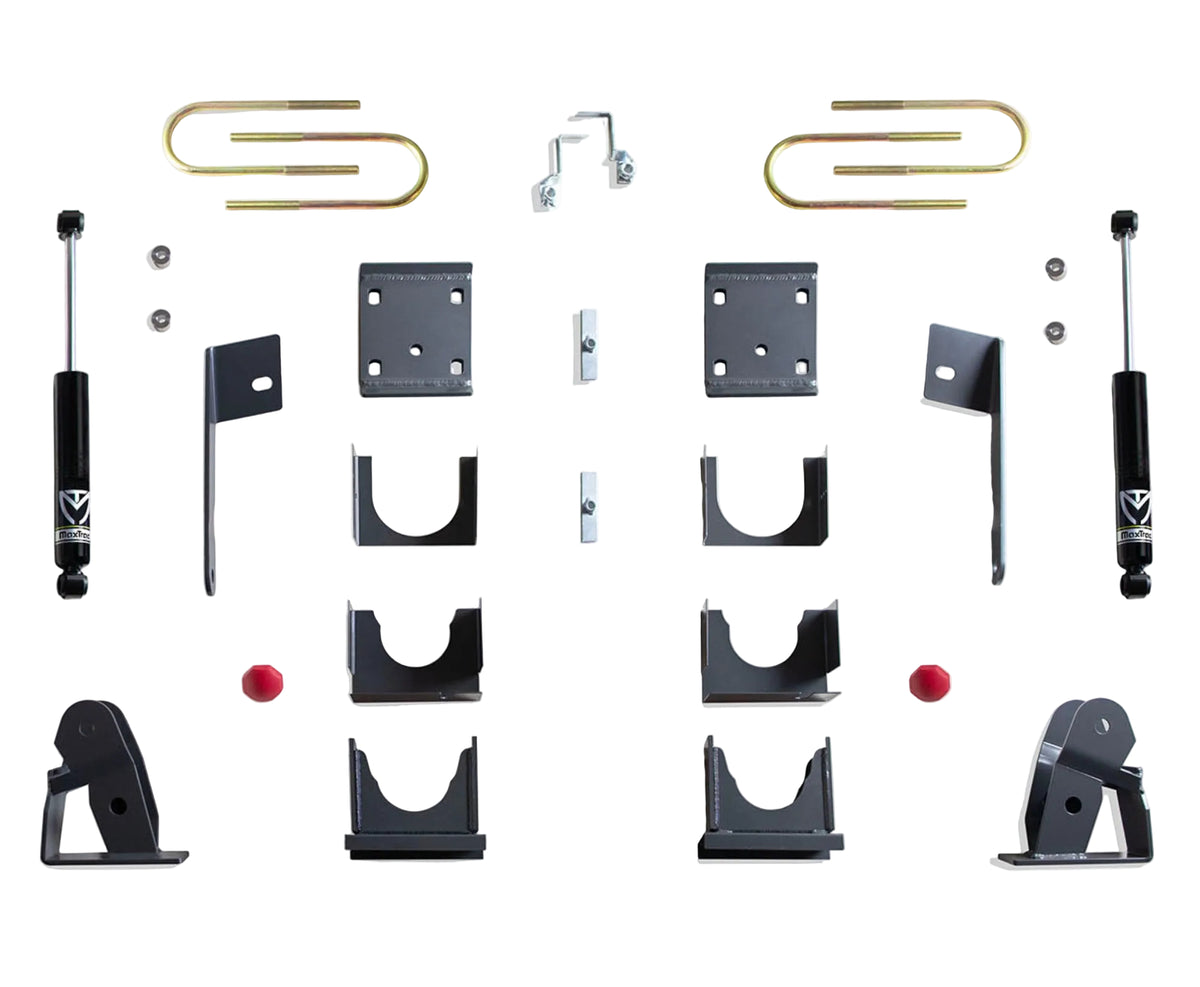

What's Included

Rear axle flip kit
Rear lowering hangers
Rear bump stops
(2) MaxTrac rear shocks — 2000LL-4
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2019–2026 Chevrolet Silverado 1500 2WD — Monoleaf Rear Spring
2019–2026 Chevrolet Silverado 1500 4WD — Monoleaf Rear Spring
2019–2026 GMC Sierra 1500 2WD — Monoleaf Rear Spring
2019–2026 GMC Sierra 1500 4WD — Monoleaf Rear Spring

Does Not Fit

Models equipped with Adaptive Ride Control suspension
Models without the factory single composite monoleaf rear spring
Models equipped with a two-piece driveshaft

Important Notes

MONOLEAF APPLICATION ONLY: Specifically designed for 2019–2026 Silverado/Sierra 1500 trucks equipped with the factory single composite rear spring.
Does not fit Adaptive Ride Control suspension.
Does not fit models equipped with a two-piece driveshaft.
Designed to work with compatible front lowering components to create a complete 3"/5" lowering system.
Shorter rear shocks or shock extenders are required. This kit includes two MaxTrac 2000LL-4 rear shocks. MaxTrac also identifies 401900 shock extenders as an alternative for applicable installations.
If ordering replacement 2000LL-4 shocks separately, purchase quantity two because MaxTrac shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.
Verify the rear spring configuration, driveshaft type, and suspension equipment before ordering.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 201950ML
UPC: 706199417772
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
Rear Drop: 5"
Drive: 2WD / 4WD
Rear Spring Type: Factory Monoleaf / Single Composite
Rear Suspension Components: Flip Kit, Hangers, Bump Stops
Rear Shock Part Number: 2000LL-4
Rear Shock Quantity: 2
Compatible Shock Extender Part Number: 401900 (Alternative, Not Included)
Two-Piece Driveshaft Compatible: No
Adaptive Ride Control Compatible: No
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 60 lbs
Dimensions: 16" × 16" × 8"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 201950ML?

The MaxTrac 201950ML offers a complete rear lowering solution for Silverado and Sierra owners with the factory monoleaf single composite rear suspension.

Unlike rear lowering packages intended for traditional multi-leaf springs, this kit combines the appropriate monoleaf axle flip components, rear hangers, bump stops, and shortened shocks to achieve the intended 5" rear drop.

With two MaxTrac 2000LL-4 rear shocks included, the package eliminates the need to source separate rear shocks for the specified lowering configuration. Its USA-made steel construction and grey powder-coated finish make it a practical foundation for a custom lowered truck.

Perfect For

2019–2026 Silverado 1500 monoleaf lowering
GMC Sierra 1500 single composite rear springs
5" rear drop applications
3"/5" complete lowering projects
Rear axle flip suspension conversions
2WD and 4WD street truck builds
Custom lowered Chevy and GMC pickups
