MaxTrac 200960T Silverado 1500 4wd 6" Rear Drop Kit

Take Your GM Truck Down to an Aggressive 4"/6" Stance

Create a deeper lowered stance with the MaxTrac 200960T 6" Rear Lowering Box Kit, designed primarily for 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 4WD trucks. This package combines the major components required for a 6-inch rear drop, including a rear flip kit, C-notch, torsion keys, and MaxTrac lowering shocks.
Pair the 200960T with compatible front lowering spindles to build a complete 4" front / 6" rear MaxTrac lowering system. The kit also expands beyond the primary 4WD application to select 2004–2006 2WD trucks and 2007 Classic models equipped with torsion-bar front suspension.

Key Features

Aggressive 6" Rear Drop

The included rear axle flip system provides a 6-inch rear lowering configuration, giving the truck a significantly lower stance.

Rear C-Notch Included

A heavy-duty C-notch provides additional axle-to-frame clearance required when lowering the rear suspension this far.

Two 2000LL-4 Rear Shocks

Includes two MaxTrac 2000LL-4 rear shocks designed to work with the reduced suspension height.

Front Torsion Keys

The package also includes torsion keys for compatible torsion-bar front suspension configurations.

Builds a Complete 4"/6" System

Add the appropriate MaxTrac front lowering spindles to complete a 4-inch front / 6-inch rear lowering setup.

Multiple Torsion-Bar Applications

Fits the primary 1999–2006 4WD application while also supporting 2004–2006 2WD torsion-bar trucks and 2007 Classic 2WD/4WD torsion-bar models.

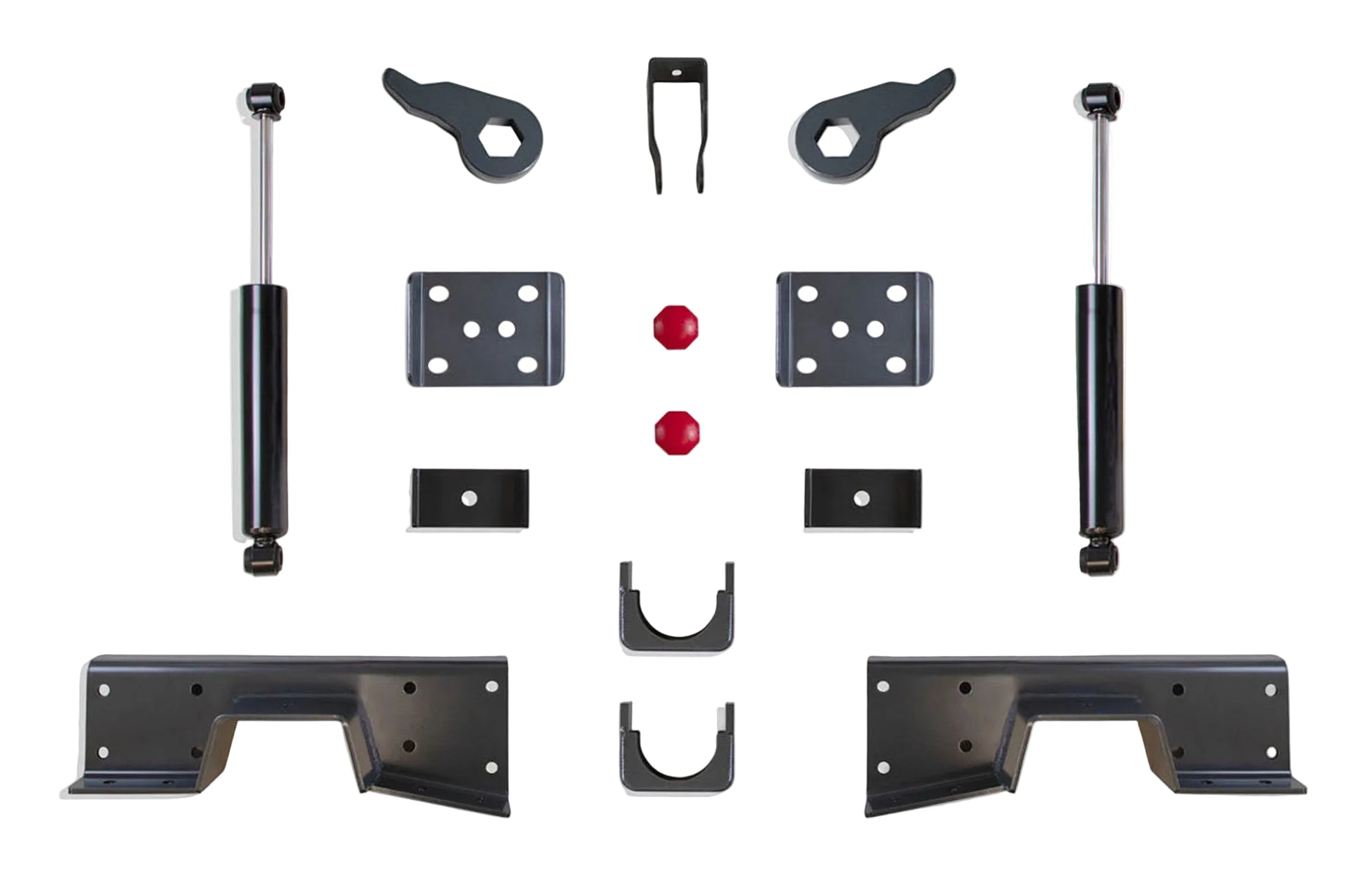

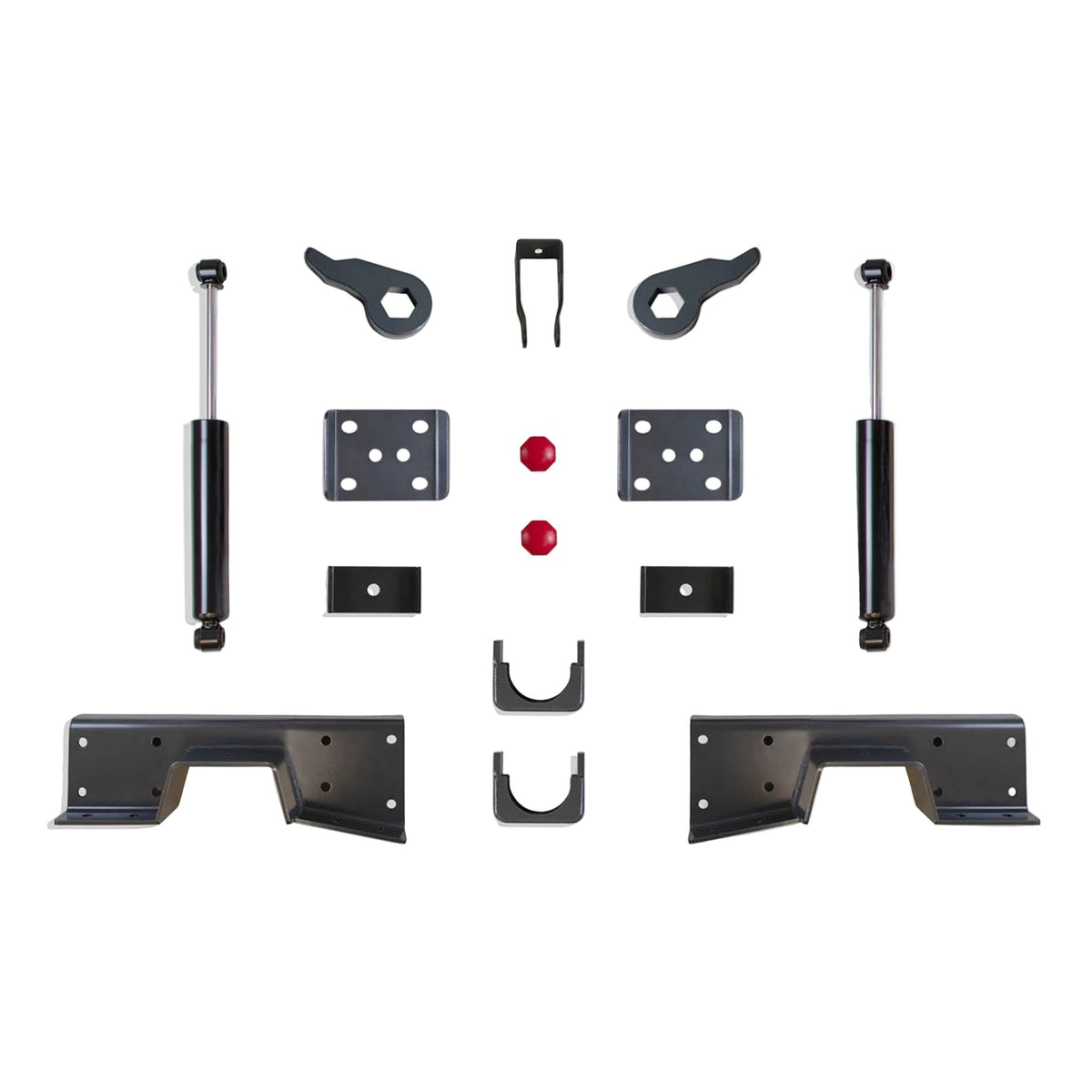

What's Included

Rear flip kit
Rear C-notch
Front torsion keys
(2) MaxTrac 2000LL-4 rear shocks
MaxTrac 200960T lowering box kit

Vehicle Fitment

Fits

1999–2006 Chevrolet Silverado 1500 4WD
1999–2006 GMC Sierra 1500 4WD
2004–2006 Chevrolet Silverado 1500 2WD with torsion-bar suspension
2004–2006 GMC Sierra 1500 2WD with torsion-bar suspension
2007 Silverado 1500 Classic 2WD/4WD with torsion-bar suspension
2007 Sierra 1500 Classic 2WD/4WD with torsion-bar suspension

Important Notes

Provides a 6" rear drop.
Designed to be used with compatible front lowering spindles to create a complete 4"/6" lowering kit.
This box does not include the front lowering spindles.
Also fits 2004–2006 2WD models equipped with torsion-bar suspension.
Also fits 2007 Classic 2WD/4WD models equipped with torsion-bar suspension.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 200960T
UPC: 706199415051
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear / Front Torsion Components
Rear Drop: 6"
Complete Kit Configuration: 4" Front / 6" Rear with Compatible Spindles
Rear Shock Part Number: 2000LL-4
Rear Shock Quantity: 2
Drive Type: 4WD / Select 2WD Torsion-Bar Models
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 53 lbs
Dimensions: 24" × 16" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 200960T?

For a 6-inch rear drop, clearance and properly matched suspension components become especially important. The 200960T combines the flip kit, C-notch, torsion keys, and two 2000LL-4 lowering shocks into one package, providing the core components for the rear of a 4"/6" MaxTrac lowering system.

Perfect For

Silverado 1500 4"/6" drops
Sierra 1500 lowering builds
6" rear axle flip setups
Torsion-bar GM trucks
2007 Classic applications
Aggressive lowered street trucks
