MaxTrac 200950T Silverado 1500 5" Rear Drop Kit

Build the Rear Half of a 3"/5" Lowered GM Truck

Bring your GM truck down to a more aggressive stance with the MaxTrac 200950T 5" Rear Lowering Box Kit. Designed primarily for 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 4WD models, this package combines the major rear suspension components needed to achieve a 5-inch drop, along with torsion keys for the front suspension.
The system includes a rear flip kit, lowering shackles, C-notch, two MaxTrac 2000LL-4 rear shocks, and torsion keys. Pair this box with compatible front lowering spindles to create a complete 3"/5" lowering system. It also supports select 2WD torsion-bar applications and 2007 Classic models.

Key Features

5" Rear Lowering System

The included axle flip components and shackles work together to produce a 5-inch rear drop for the specified Silverado and Sierra applications.

C-Notch Included

A rear frame C-notch provides additional axle-to-frame clearance needed for the lowered suspension configuration.

MaxTrac Rear Shocks

Includes two MaxTrac 2000LL-4 rear shocks matched to the reduced rear suspension height.

Front Torsion Keys Included

Torsion keys are supplied as part of the package for compatible torsion-bar front suspension applications.

Designed for a Complete 3"/5" Drop

Combine the 200950T box with the appropriate front lowering spindles to create MaxTrac's complete 3-inch front / 5-inch rear lowering configuration.

Expanded Torsion-Bar Fitment

In addition to the primary 4WD application, the box also fits 2004–2006 2WD torsion-bar models and 2007 Classic 2WD/4WD trucks with torsion-bar suspension.

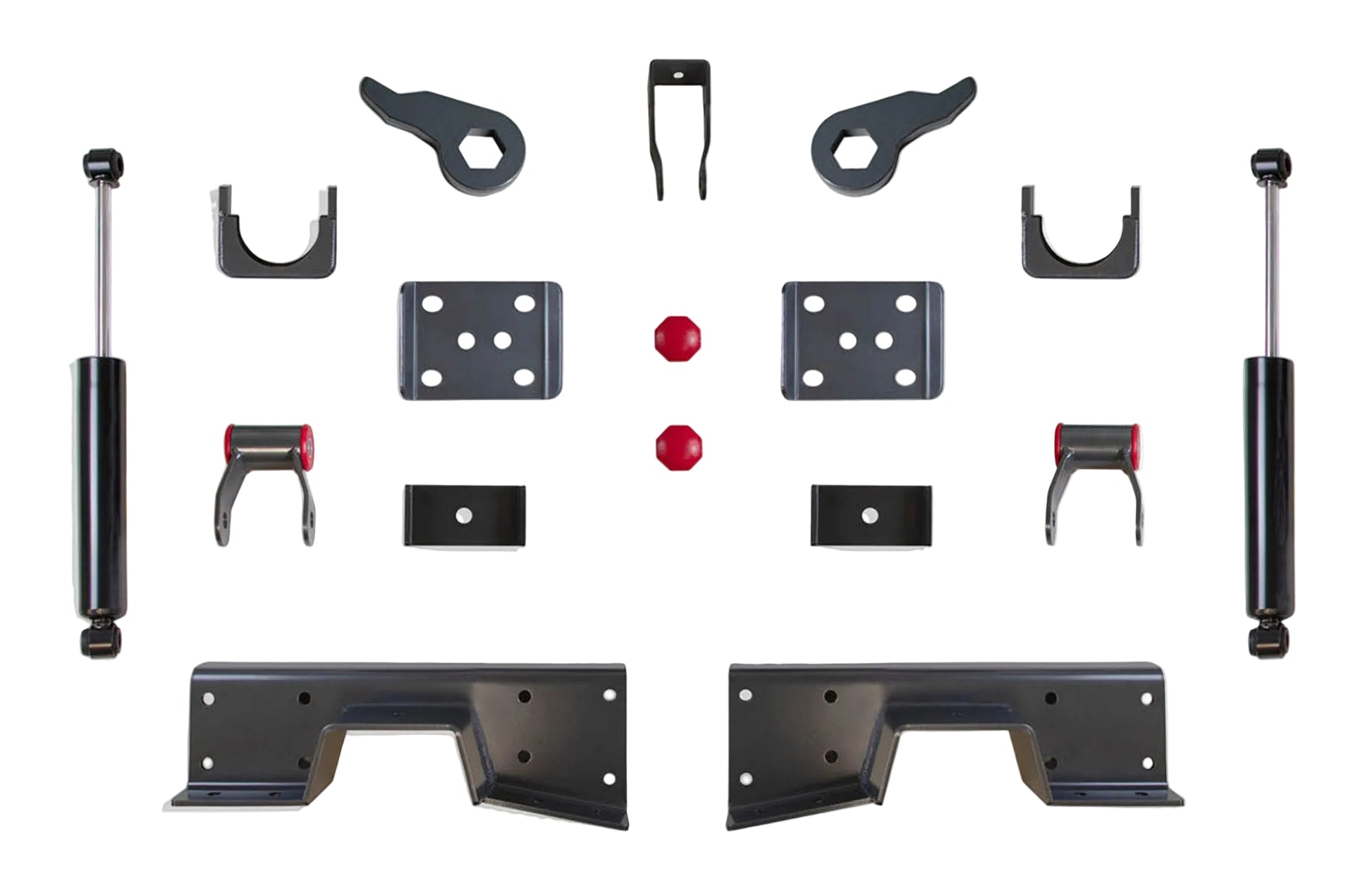

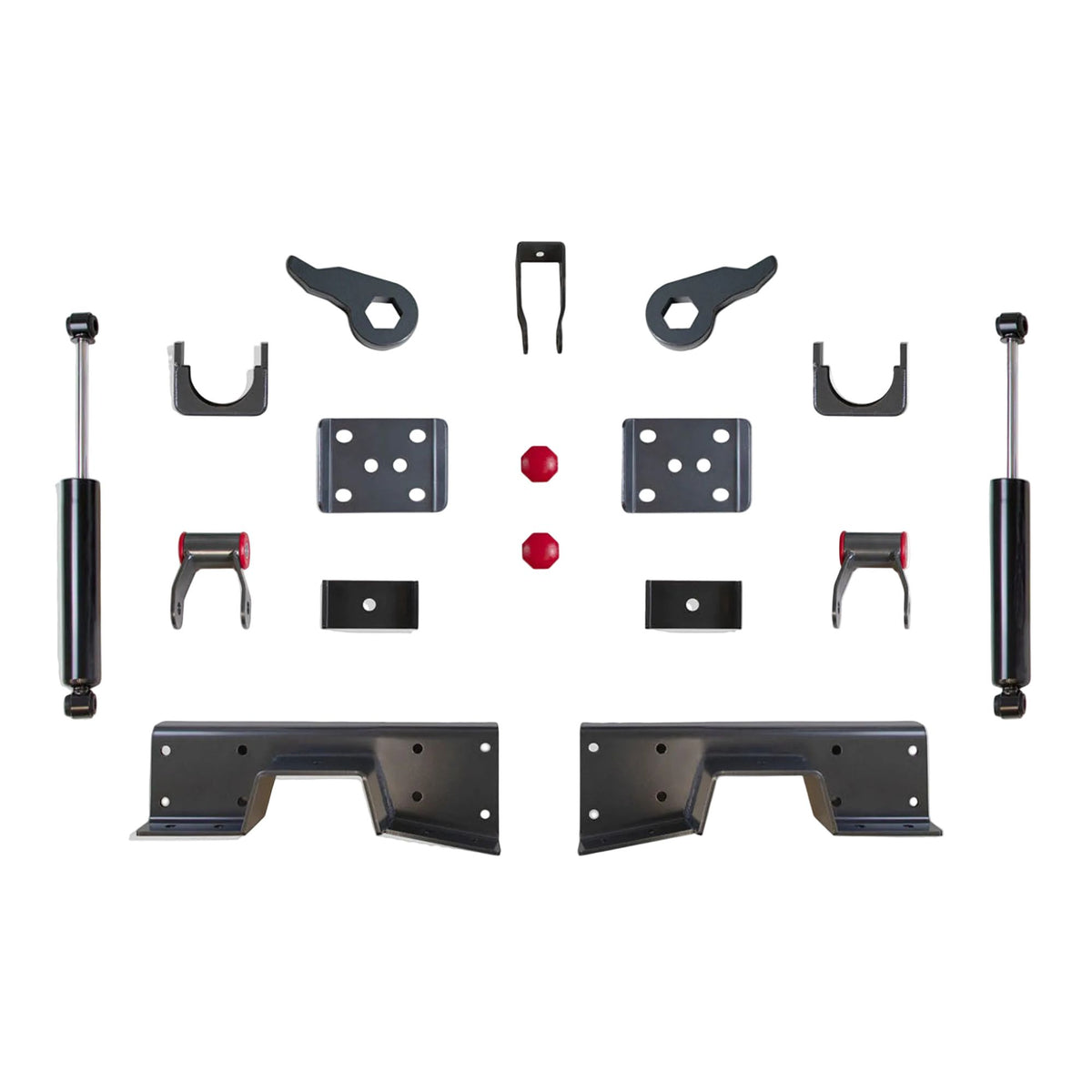

What's Included

Rear flip kit (300950)
Lowering shackles
Rear C-notch (300960C)
Front torsion keys
(2) MaxTrac 2000LL-4 rear shocks
MaxTrac 200950T lowering box kit

Vehicle Fitment

Fits

1999–2006 Chevrolet Silverado 1500 4WD
1999–2006 GMC Sierra 1500 4WD
2004–2006 Silverado/Sierra 1500 2WD with torsion-bar suspension
2007 Silverado 1500 Classic 2WD/4WD with torsion-bar suspension
2007 Sierra 1500 Classic 2WD/4WD with torsion-bar suspension

Important Notes

Provides a 5" rear drop.
Designed to be paired with compatible front lowering spindles to create a complete 3"/5" lowering kit.
Also fits 2004–2006 2WD torsion-bar models.
Also fits 2007 Classic 2WD/4WD models equipped with torsion-bar suspension.
This box is not a complete 3"/5" lowering kit by itself because front lowering spindles are required.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 200950T
UPC: 706199415044
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear / Front Torsion Components
Rear Drop: 5"
Complete Kit Configuration: 3" Front / 5" Rear with Compatible Spindles
Rear Shock Part Number: 2000LL-4
Rear Shock Quantity: 2
Drive Type: 4WD / Select 2WD Torsion-Bar Models
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 55 lbs
Dimensions: 24" × 16" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 200950T?

The 200950T groups the key components required for the rear half of an aggressive GM truck lowering system into one package. With the flip kit, shackles, C-notch, torsion keys, and matched 2000LL-4 shocks included, it simplifies building a compatible 3"/5" MaxTrac setup while providing the necessary rear suspension clearance for the 5-inch drop.

Perfect For

Silverado 1500 lowering builds
Sierra 1500 lowered trucks
3"/5" drop configurations
4WD torsion-bar suspension
2007 Classic GM trucks
Rear axle flip conversions
