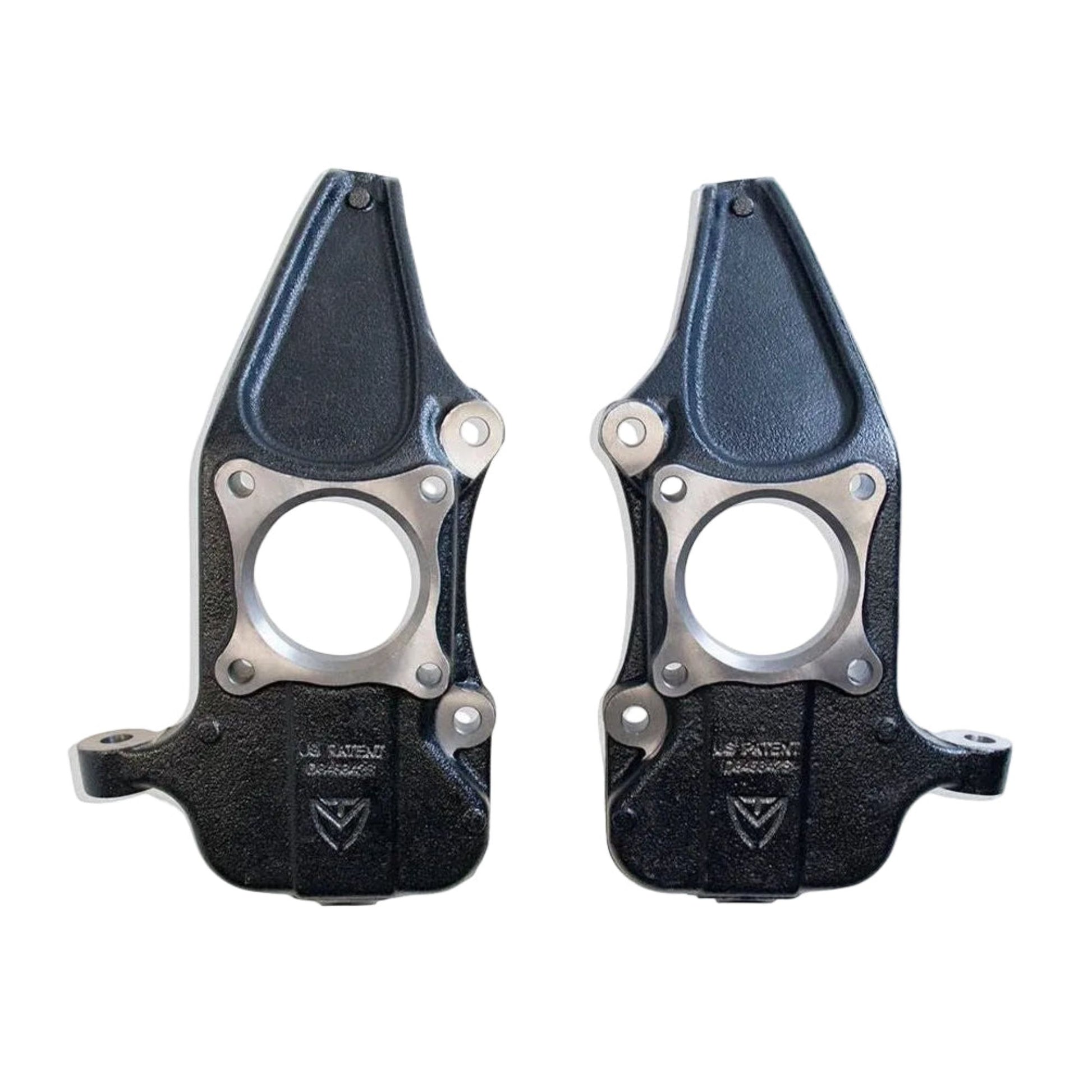

MaxTrac 103420C 2" Lowering Spindles Ford F-150 2WD/4WD

Bring Your F-150 Down 2 Inches with MaxTrac Drop Spindles

Create a cleaner, lower front stance on your 2009–2014 Ford F-150 with the MaxTrac 103420C 2" Lowering Spindles. Built for compatible 2WD and 4WD trucks, these drop spindles provide a 2-inch front lowering amount and are constructed from heavy-duty ductile iron with a protective black E-coat finish.
Wheel clearance is especially important with these spindles. Aftermarket applications require 22" or larger wheels with 6" of backspacing or less, while certain standard-mount factory 20" or larger wheels can also fit when the specified clearance requirements are met.

Key Features

2" Front Drop

Provides approximately 2 inches of front lowering for reduced wheel gap and a more aggressive street-truck profile.

Heavy-Duty Ductile Iron

Manufactured from ductile iron to provide the strength required for full-size F-150 suspension applications.

Black E-Coat Protection

The black E-coated finish provides additional resistance against corrosion, moisture, and normal road exposure.

Fits 2WD & 4WD F-150 Trucks

Designed for compatible 2009–2014 Ford F-150 models in both 2WD and 4WD configurations.

Aftermarket & Factory Wheel Compatibility

Aftermarket wheels must be 22" or larger with 6" backspacing or less. Standard-mount factory 20" or larger wheels can fit, but reverse-mount wheels will not.

What's Included

Pair of 2" front lowering spindles
MaxTrac 103420C spindle set

Vehicle Fitment

Fits

2009–2014 Ford F-150 2WD
2009–2014 Ford F-150 4WD

Important Notes

Aftermarket wheels require 22" diameter or larger with 6" backspacing or less.
Standard-mount factory 20" or larger wheels will fit. Reverse-mount wheels will not fit.
Some factory 22" wheels may contact the spindles at the spokes.
Ball joint trimming may be required for proper clearance.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 103420C
UPC: 706199414610
Kit Type: Lower
Product Type: Lowering Spindles
Front Drop: 2"
Position: Front
Drive Type: 2WD / 4WD
Material: Ductile Iron
Color: Black
Finish: E-Coating
Sold As: Pair
Weight: 66 lbs
Dimensions: 24" × 16" × 8"
Country of Origin: China

Why Choose MaxTrac 103420C Lowering Spindles?

The 103420C provides a purpose-built spindle solution for lowering the front of compatible F-150 trucks by 2 inches. With heavy-duty ductile iron construction and a corrosion-resistant E-coat finish, these spindles are an excellent foundation for a lowered street-truck suspension when paired with the correct wheel configuration.

Perfect For

2009–2014 F-150 lowered builds
2WD and 4WD street trucks
2-inch front drop setups
22" aftermarket wheel applications
Factory 20" standard-mount wheels
Custom suspension projects
