MaxTrac K882464 6.5"/4.5" Lift Kit w/Shocks Fits 2014–2018 Ram 1500 2WD Classic 5-Lug EcoDiesel

Transform your EcoDiesel Ram with the MaxTrac K882464 lift kit. Designed for 2014–2018 Ram 1500 2WD Classic 5-lug EcoDiesel models, this system delivers a 6.5-inch front lift and 4.5-inch rear lift for maximum stance, clearance, and performance.

Engineered with EcoDiesel-specific components and heavy-duty construction, this kit maintains proper suspension geometry while providing the strength needed for larger tires and everyday driving.

Fitment
2014–2018 Dodge Ram 1500 2WD Classic 5-lug EcoDiesel

Requires 17-inch wheels or larger with 5.75-inch backspacing or less

Features
Provides 6.5-inch front lift and 4.5-inch rear lift for aggressive stance
Improves ground clearance for larger tire fitment
Includes ductile iron lift spindles with corrosion-resistant coating
EcoDiesel-specific front lift coils for proper weight support
Rear coil spacers provide stable rear lift and balanced ride
Extended brake lines and brackets maintain proper suspension geometry
Includes front and rear shocks for smooth, controlled ride
Maintains near factory ride quality with bolt-on installation
No cutting or welding required

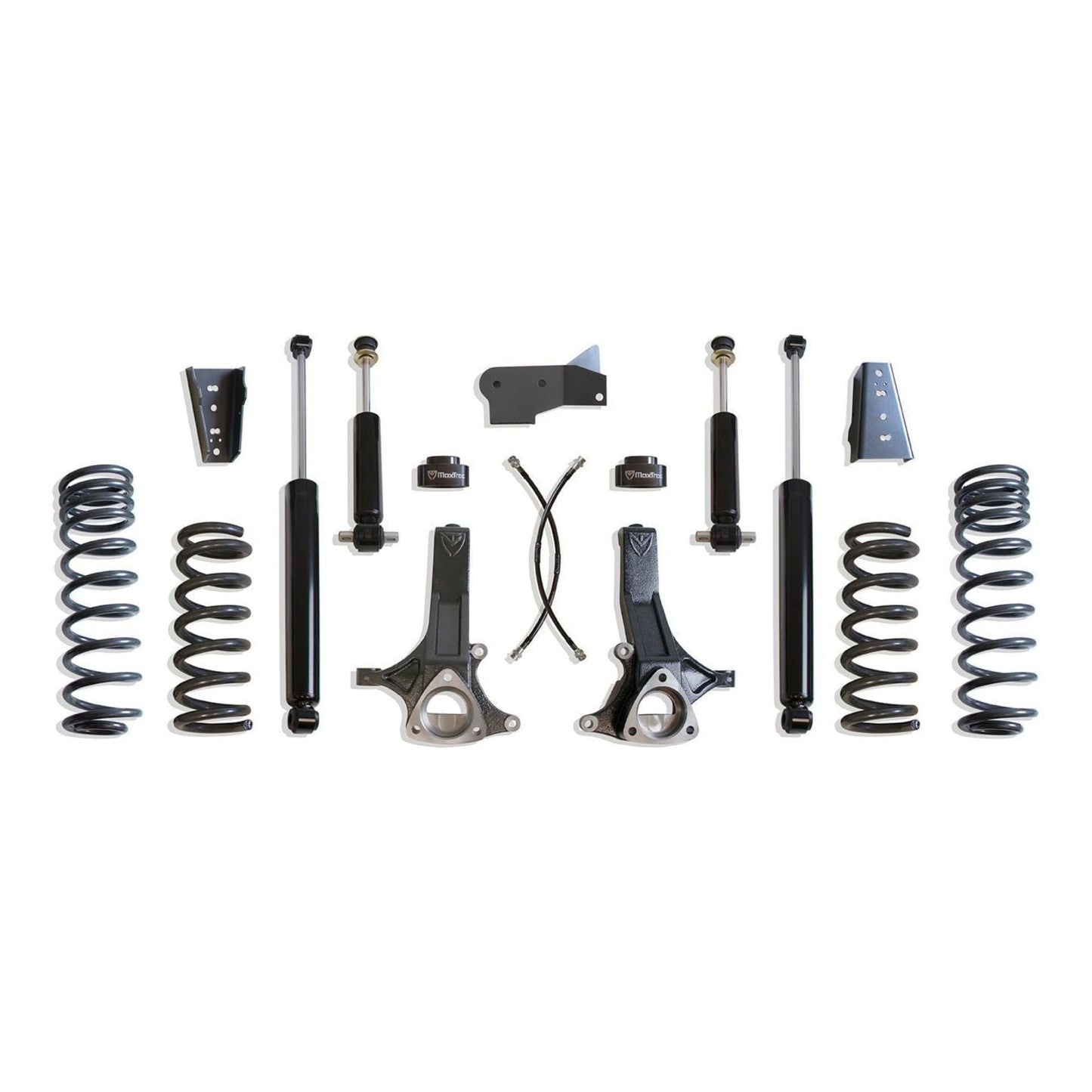

What’s Included
Lift spindles
EcoDiesel front lift coil springs
Rear coil spacers
Track bar bracket and sway bar brackets
Extended brake lines
Front shocks
Rear shocks

Important Notes
Designed for EcoDiesel models only
Requires 17-inch or larger wheels with proper backspacing
Allows fitment of up to 37 by 12.50 inch tires depending on wheel setup and trimming
Models with 2-piece driveshaft require carrier bearing kit part number 612400
Not recommended for wheels wider than 9 inches or with less than 4.5 inches backspacing
Professional alignment is recommended after installation

Specifications
Lift Height 6.5 inches front 4.5 inches rear
Material ductile iron and steel
Finish coated for corrosion resistance
Part Number K882464
