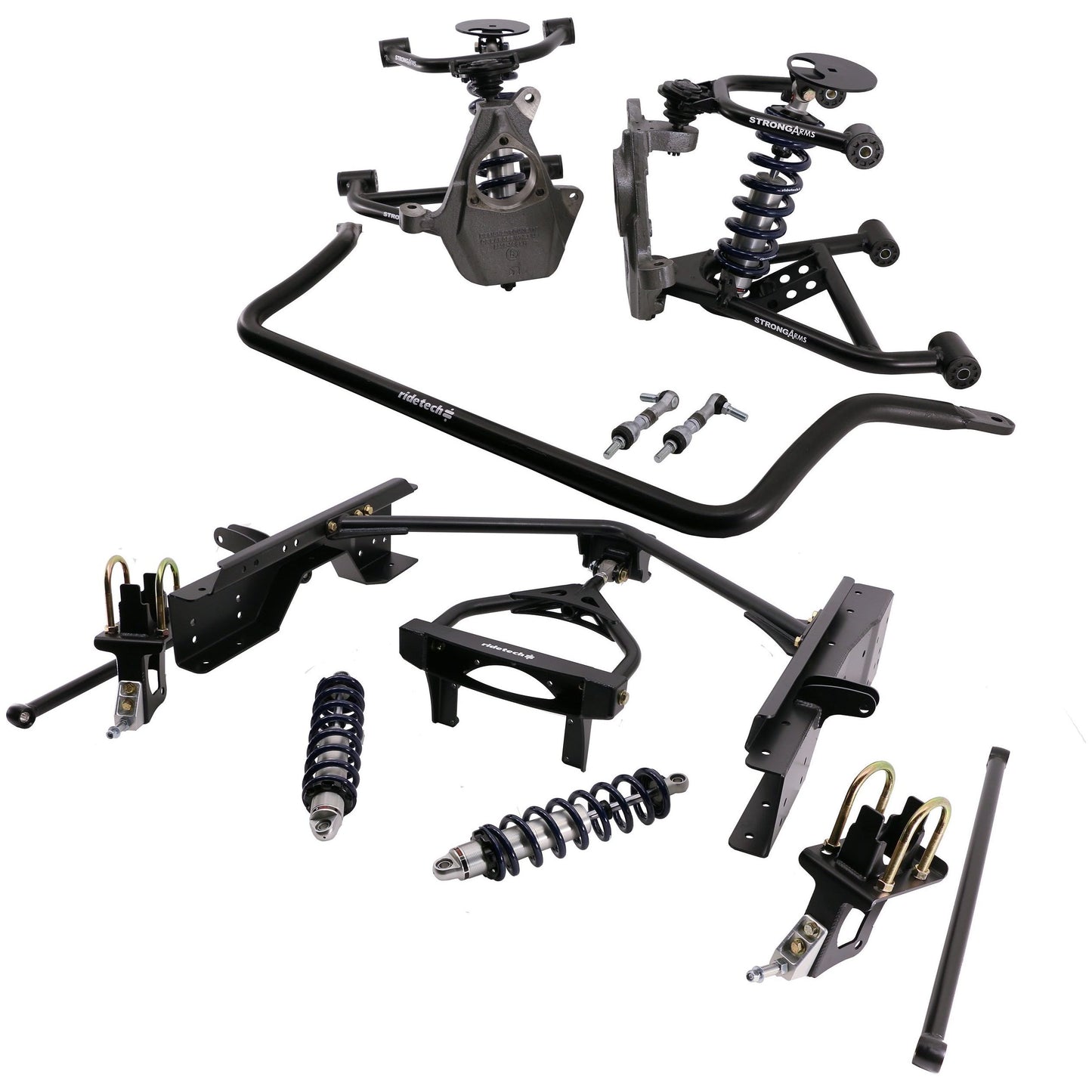

Complete Coilover System w/TQ Triple Adjustable Fits 1999-06 Silverado 1500

Complete CoilOver System for 1999-2006 Silverado & Sierra 1500 2WD. (2007 Classic). Includes front & rear HQ Series CoilOvers, front upper & lower control arms, bolt-on 4 link, drop spindles and front sway bar. Designed to lower your vehicle and improve handling and ride quality.

• Offers a ride height that is approximately 4" lower than stock in the front and 6" in the rear.

• HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in AutoCross or Road Course Racing Consider the?ÿTQ Series coilovers.

• The?ÿUpper StrongArms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. The?ÿLower StrongArms feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction

• A?ÿFront MuscleBar is included to reduce body roll and includes the PosiLink End-links that provide immediate engagement between the chassis and control arms.

• Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer. Fits 17" or larger wheels.

• The?ÿBolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor. Includes patent-pending R-Joint rod ends to eliminate binding and noise.


  • Includes patent-pending R-Joint rod ends to eliminate binding and noise.


  • Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.


  • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.


  • Designed for simple installation with minimal OEM rivet removal.

*Designed for use with 2WD trucks equipped with coil spring style front suspension.

Upgrades:

• TQ Series Shocks-?ÿThe remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment.?ÿ High-speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.
