CoilOver System w/TQ Triple Adjustable Fits 1964-67 GM "A" Body

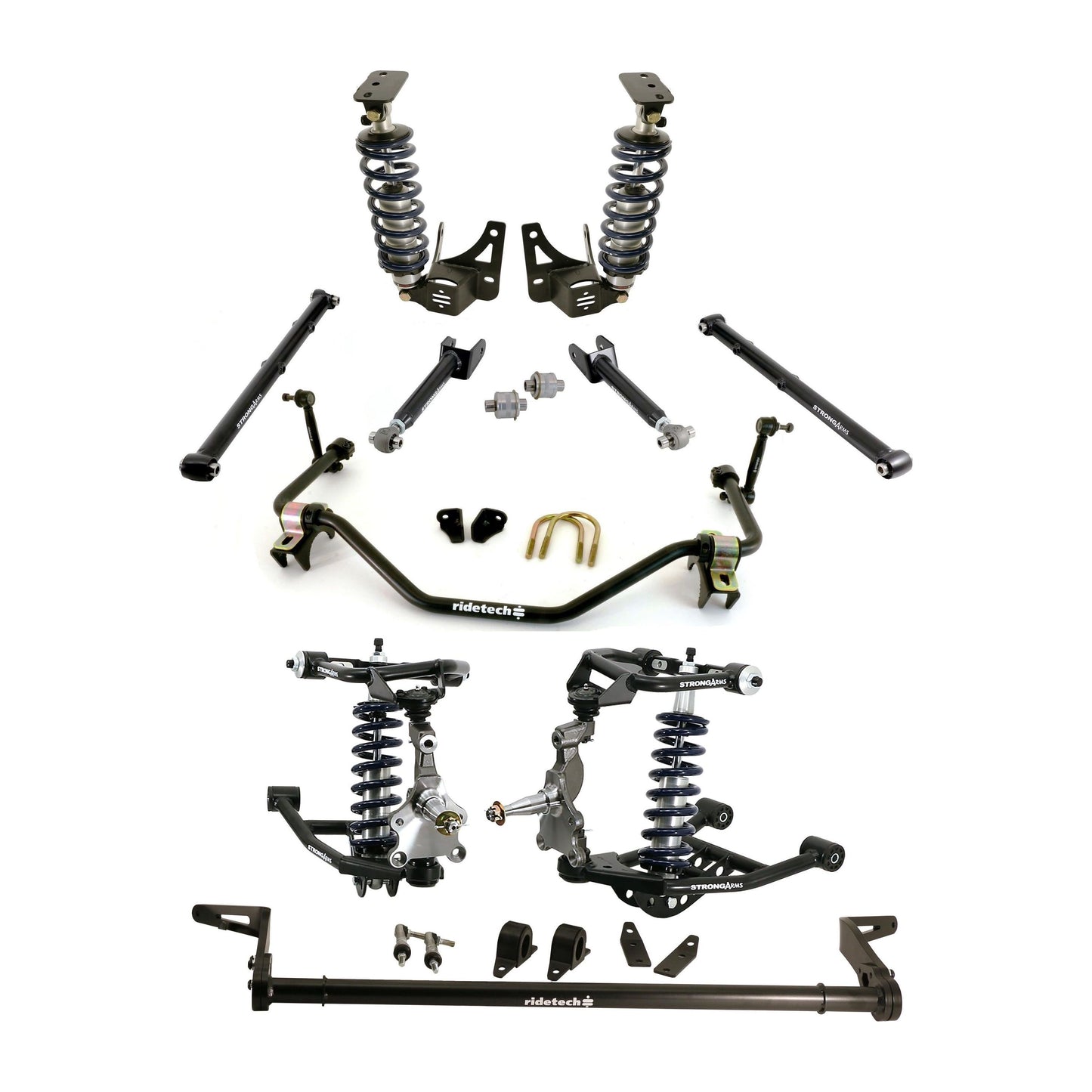

This CoilOver System is specifically designed for the 1964-1967 GM "A" Body Platform and includes everything needed to create modern drivability from vintage muscle. The package contains front upper and lower control arms, tall spindles, front & rear MuscleBars, rear StrongArms and 4 HQ Series CoilOvers. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality. 1964-1967 GM "A" Body includes Chevelle, Cutlass, El Camino, F85, GTO, LeMans, Malibu, Skylark, Special, Sportwagon, Tempest and Vista Cruiser.

• RideTech Tall Spindles?ÿwill induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2ƒ??ƒ?? pin drop which allows for the use of longer shocks creating more suspension travel.

• Upper StrongArms?ÿfeature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

• Lower StrongArms?ÿfeature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction

• HQ Series CoilOvers?ÿutilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob, located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included with the rear coilovers for easy attachment to the frame and to the 10/12 bolt reared or Currie 9".Brackets for a Moser rear end are also available. Interested in AutoCross or Road Course Racing? Consider the?ÿTQ Series CoilOvers.

• Front MucleBar?ÿhelps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms. An adjustable rate?ÿRear MuscleBar?ÿis also included.

• Rear StrongArms provide added strength to help get the power to the pavement and utilize R-Joint Technology?ÿto combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

UPGRADES

• TQ Series Shocks-?ÿThe remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment.?ÿ High speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.
