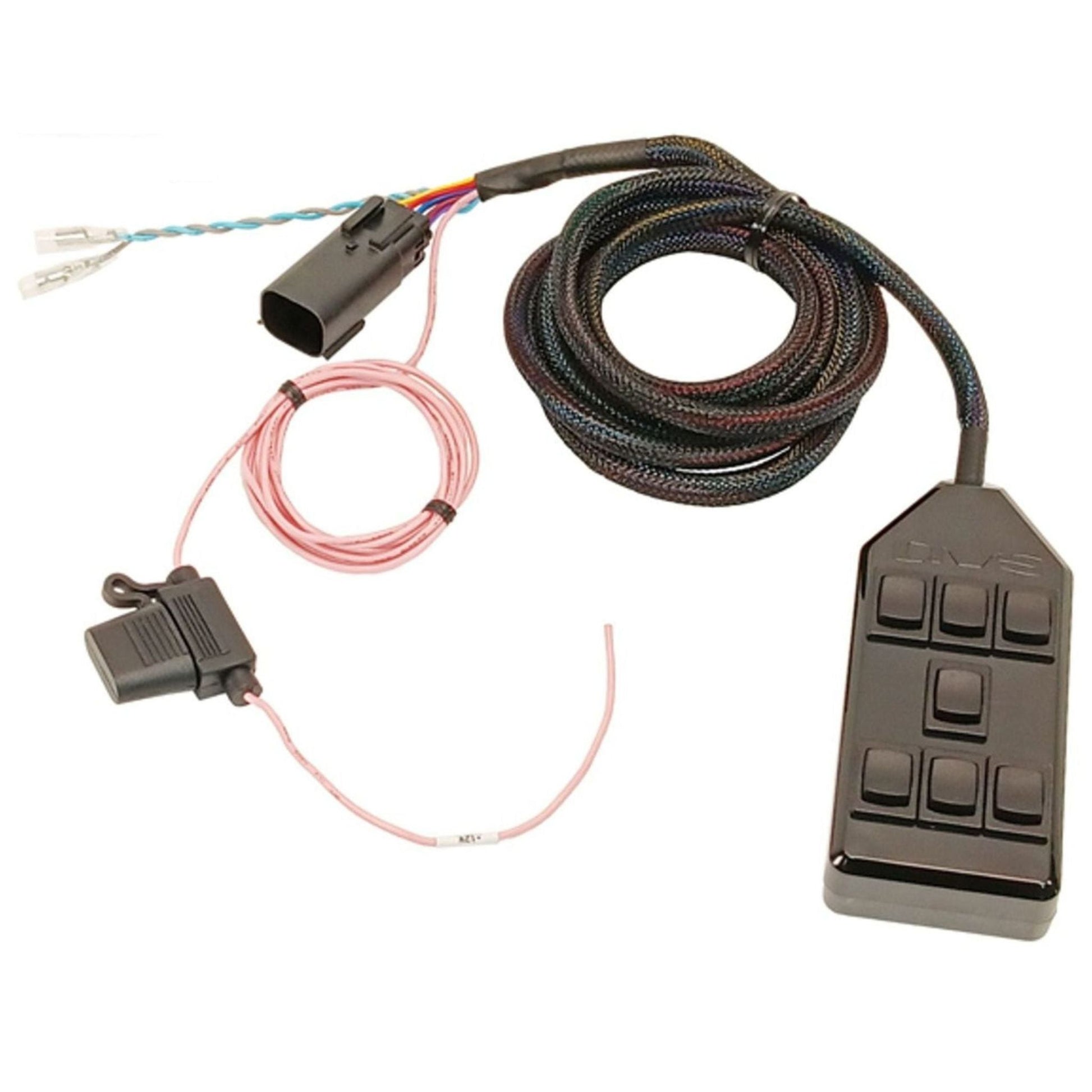

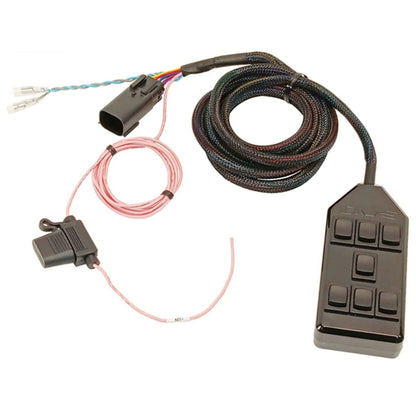

AVS 7 Rocker Switch Box, Black

The AVS 7 Rocker Switch Box in Black (model AVS-ARC-7-BK FS50) is designed to provide comprehensive control over your air bag suspension system. This switch box is compact, user-friendly, and ideal for various applications. Here’s a detailed overview of its features, benefits, and installation instructions:

### Key Features:
1. **Seven Rocker Switches**: Provides individual control for each air bag, allowing for precise adjustments to the front and back suspension.
2. **Compact Design**: With dimensions of 5" x 2" x 1", the switch box is small enough to fit comfortably in most vehicle interiors.
3. **Pre-Assembled 8-Pin Connectors**: These connectors simplify the installation process, ensuring secure and reliable connections.
4. **6-Foot Wire Loom**: The included wire loom offers flexibility in mounting and routing the wires through the vehicle.
5. **+12V Inputs**: Dedicated inputs for remote up and dump functions, enhancing versatility and convenience.
6. **Safety Fuse**: Comes with a 5-amp in-line fuse to protect the electrical circuit from overloads.
7. **Free Shipping**: Available with free shipping to all 50 states, adding value to your purchase.

### Benefits:
- **Easy Installation**: The pre-assembled connectors and included wiring loom make the installation process straightforward.
- **Enhanced Control**: Allows individual control of each air bag, providing more precise and customizable suspension adjustments.
- **Compact and Durable**: The switch box’s compact size and robust construction make it suitable for a variety of vehicle applications.
- **Convenient Monitoring**: The included wiring for remote up and dump options simplifies integration with additional control systems.
- **Reliable Protection**: The in-line fuse ensures the system is protected from electrical faults, enhancing safety and longevity.

### Installation Tips:
1. **Mounting**: Choose a suitable location within the vehicle's cabin for easy access to the switch box. Ensure it is secure and does not interfere with driving.
2. **Wiring Connections**:
   - **8-Pin Connectors**: Connect the pre-assembled 8-pin connectors to the corresponding air bag solenoids or valves.
   - **Power and Ground**: Connect the switch box to a +12V power source and ensure a solid ground connection to the vehicle chassis.
   - **Remote Up and Dump**: Use the designated wires to connect to remote up (typically light blue) and dump (gray) functions.
3. **Fuse Installation**: Install the included 5-amp in-line fuse on the power wire to protect the system from electrical surges.
4. **Testing**: After installation, test each switch to ensure proper operation of the air bags. Verify that each switch controls the correct air bag and that the remote functions work as intended.

### Wiring Diagram:
The switch box should come with a detailed wiring diagram. Here’s a general guide:
- **Power Source (+12V)**: Connect to the vehicle’s battery or another reliable +12V source.
- **Ground (GND)**: Ensure a good ground connection to the vehicle’s chassis.
- **Air Bag Controls**: Connect the wires from the switch box to the solenoids or valves for each air bag.
- **Remote Functions**: Connect the light blue wire for remote up and the gray wire for the dump function to the appropriate controls.

### Maintenance:
- **Regular Inspections**: Periodically check the switch box and wiring for any signs of wear or damage.
- **Keep Contacts Clean**: Ensure all connectors and switches are free of dirt and corrosion to maintain reliable operation.
- **Fuse Check**: If the fuse blows, replace it with the same rating (5 amps) to continue protecting the system.

### Troubleshooting:
- **Non-Functioning Switches**: Verify all connections are secure and the power source is providing +12V. Check the ground connection.
- **Intermittent Operation**: Inspect the wiring for any loose connections or damage. Ensure the in-line fuse is intact.
- **Remote Functions Not Working**: Confirm proper connection and voltage supply to the light blue and gray wires.

The AVS 7 Rocker Switch Box (AVS-ARC-7-BK FS50) offers a reliable and efficient way to manage your air bag suspension system, making it a valuable addition for any vehicle with air suspension. Its ease of installation, comprehensive control, and compact design make it an excellent choice for both enthusiasts and professionals.
