AVS 9 Toggle Switch Box, Black

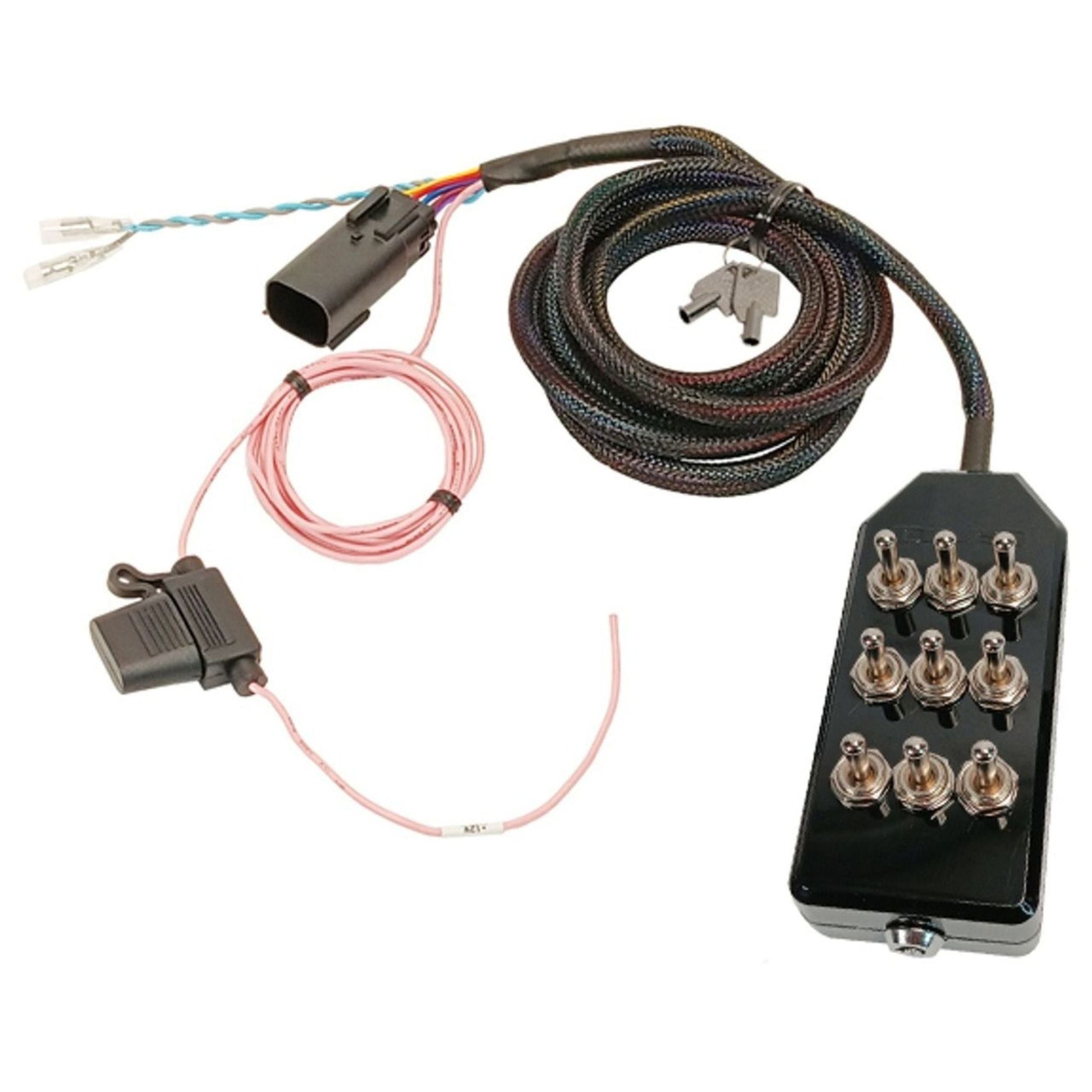

The AVS 9 Toggle Switch Box in Black (model AVS-ARC-T9-BK) is designed to offer complete and precise control over your air bag suspension system. This switch box combines functionality with an old-school lowrider aesthetic, making it a unique addition to your vehicle. Here’s a detailed overview of its features, benefits, and installation instructions:

### Key Features:
1. **Nine Toggle Switches**: Provides full control over the air bag system, including front, back, left side, right side, and individual wheels.
2. **Compact Design**: With dimensions of 5" x 2" x 1", it’s small and easy to integrate into your vehicle’s interior.
3. **Pre-Assembled Female Bullet Connectors**: Simplifies the installation process, ensuring secure and reliable connections.
4. **7-Foot Wire Loom**: Offers flexibility in mounting and routing the wires through the vehicle.
5. **+12V Inputs**: Includes inputs for remote up (light blue) and dump (gray) options, facilitating easy integration with alarms or remote systems.
6. **Safety Fuse**: Comes with a 5-amp in-line fuse to protect the electrical circuit from overloads.

### Benefits:
- **Comprehensive Control**: The nine switches allow for granular adjustments to your air suspension, giving you precise control over each wheel.
- **Easy Installation**: Pre-assembled connectors and a long wire loom make the installation process straightforward.
- **Old-School Aesthetic**: The toggle switches provide a classic lowrider look and feel.
- **Versatile Integration**: The +12V inputs for remote up and dump options enhance compatibility with various remote and alarm systems.
- **Durability and Reliability**: Constructed with robust materials for long-lasting performance.

### Installation Tips:
1. **Mounting**: Select a convenient and accessible location within the vehicle’s cabin to mount the switch box. Ensure it’s secure and doesn’t interfere with driving.
2. **Wiring Connections**:
   - **Female Bullet Connectors**: Connect these pre-assembled connectors to the corresponding male connectors on your air bag solenoids or valves.
   - **Power and Ground**: Connect the switch box to a reliable +12V power source and ensure a solid ground connection to the vehicle chassis.
   - **Remote Up and Dump**: Use the designated light blue and gray wires for the remote up and dump functions.
3. **Fuse Installation**: Install the included 5-amp in-line fuse on the power wire to protect the system from electrical surges.
4. **Testing**: After installation, test each toggle switch to ensure proper operation of the air bags. Verify that each switch controls the intended function and that the remote functions work as expected.

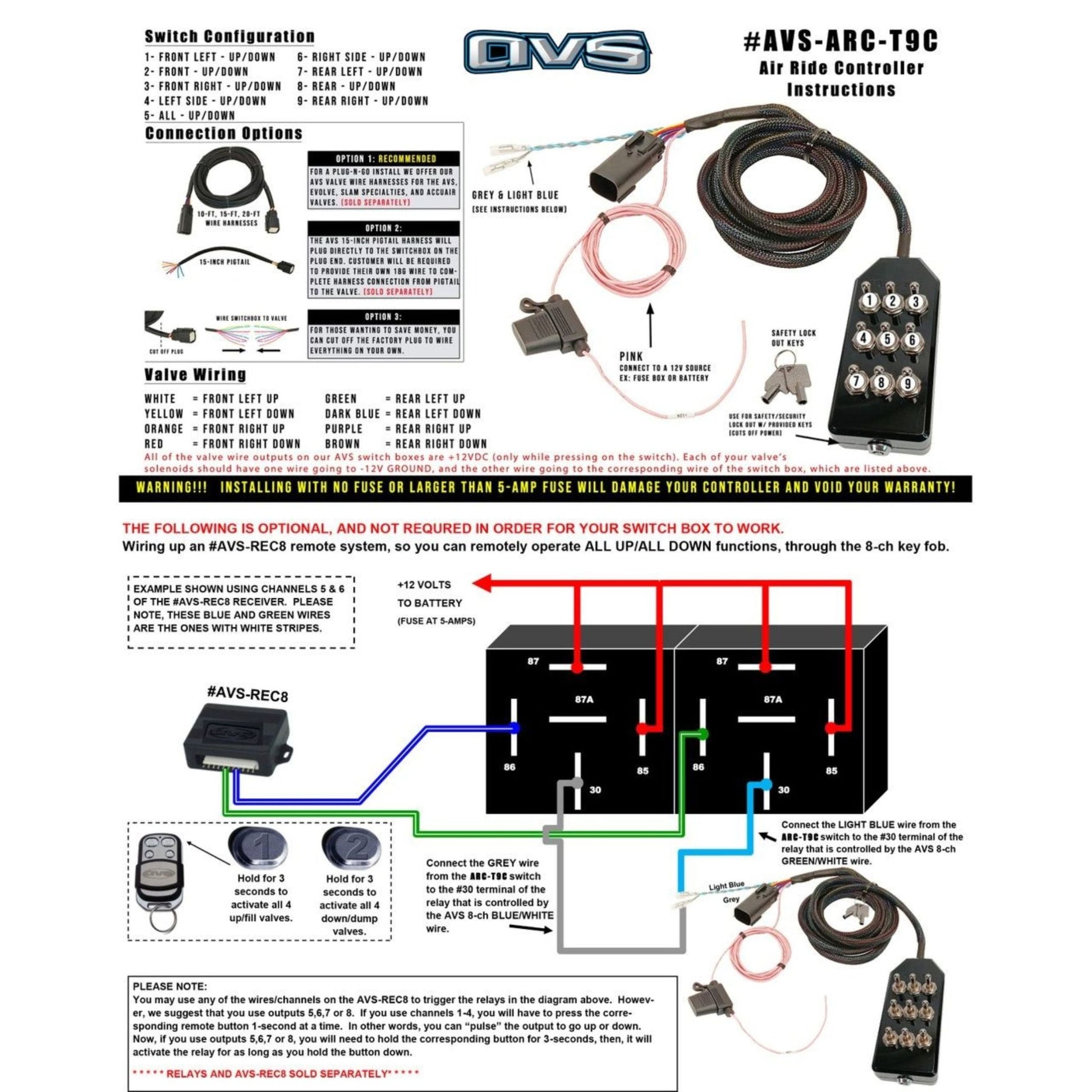

### Wiring Diagram:
The switch box should come with a detailed wiring diagram. Here’s a general guide:
- **Power Source (+12V)**: Connect to the vehicle’s battery or another reliable +12V source.
- **Ground (GND)**: Ensure a good ground connection to the vehicle’s chassis.
- **Air Bag Controls**: Connect the wires from the switch box to the solenoids or valves for each air bag.
- **Remote Functions**: Connect the light blue wire for remote up and the gray wire for the dump function to the appropriate controls.

### Maintenance:
- **Regular Inspections**: Periodically check the switch box and wiring for any signs of wear or damage.
- **Keep Contacts Clean**: Ensure all connectors and switches are free of dirt and corrosion to maintain reliable operation.
- **Fuse Check**: If the fuse blows, replace it with the same rating (5 amps) to continue protecting the system.

### Troubleshooting:
- **Non-Functioning Switches**: Verify all connections are secure and the power source is providing +12V. Check the ground connection.
- **Intermittent Operation**: Inspect the wiring for any loose connections or damage. Ensure the in-line fuse is intact.
- **Remote Functions Not Working**: Confirm proper connection and voltage supply to the light blue and gray wires.

The AVS 9 Toggle Switch Box (AVS-ARC-T9-BK) provides a reliable and efficient way to manage your air bag suspension system, combining comprehensive control with an appealing old-school design. Its ease of installation, extensive control options, and durable construction make it an excellent choice for both enthusiasts and professionals looking to optimize their vehicle's suspension setup.
