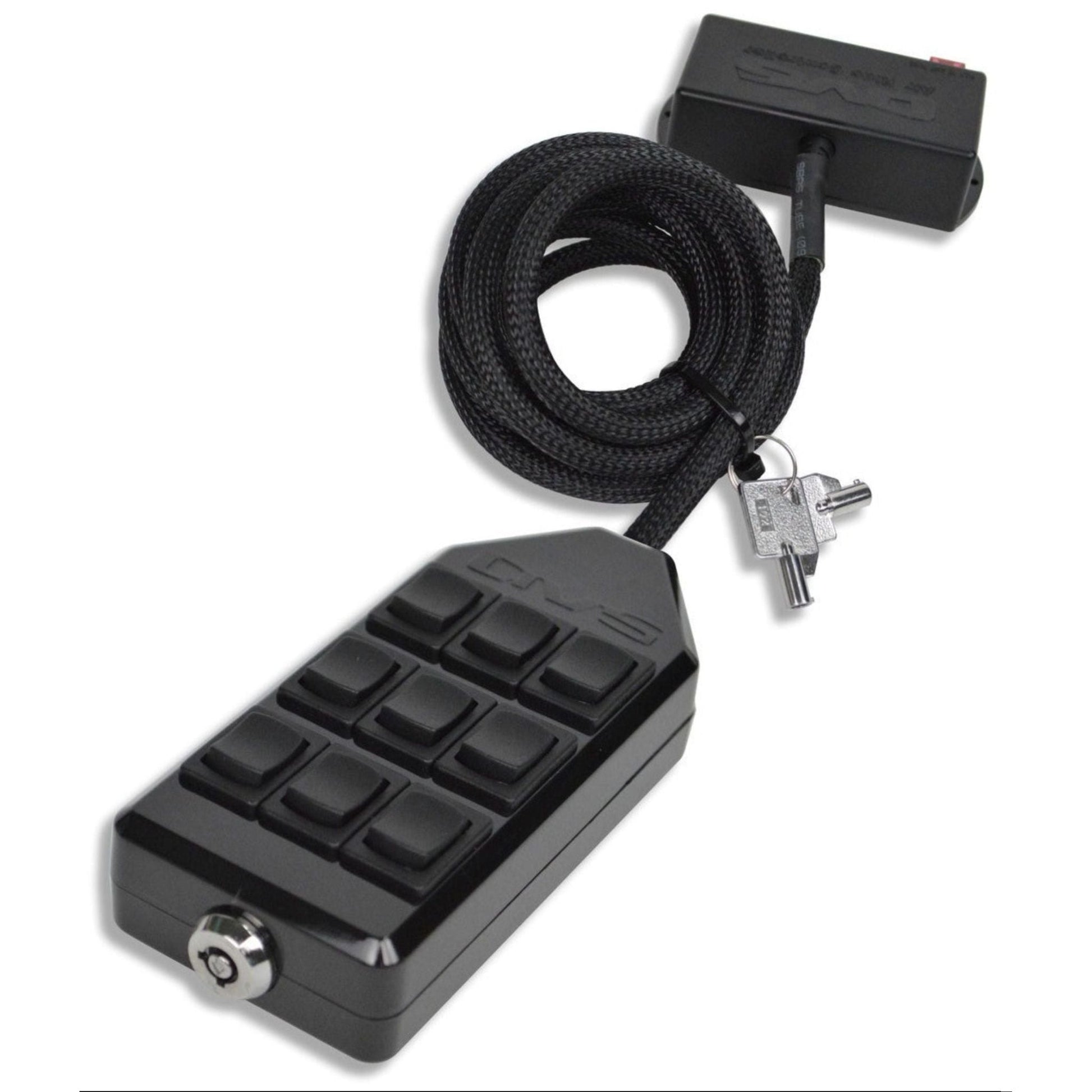

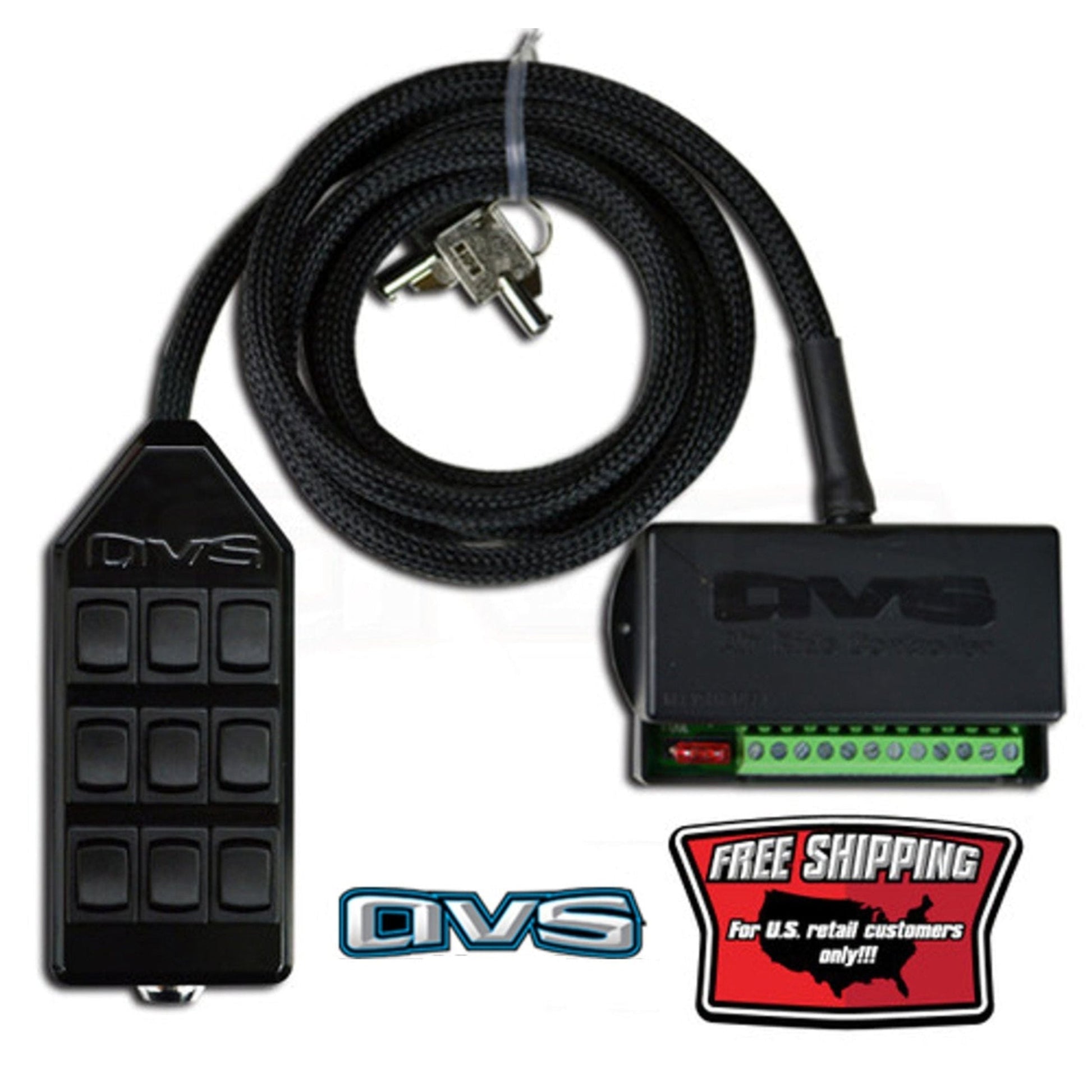

AVS 9 Rocker Switch Box, Black

The AVS 9 Rocker Switch Box in Black (model AVS-ARC-9-BK FS50) is designed to provide comprehensive and detailed control over your air bag suspension system. This switch box includes features that enhance its functionality and ease of use, making it a top choice for enthusiasts looking to maximize their suspension control.

### Key Features:
1. **Nine Rocker Switches**: Offers full control over your air bags and valves, allowing adjustments for front, back, all four corners, left side, right side, and individual wheels.
2. **Compact Design**: With dimensions of 5" x 2" x 1", it’s compact and easy to integrate into your vehicle’s interior.

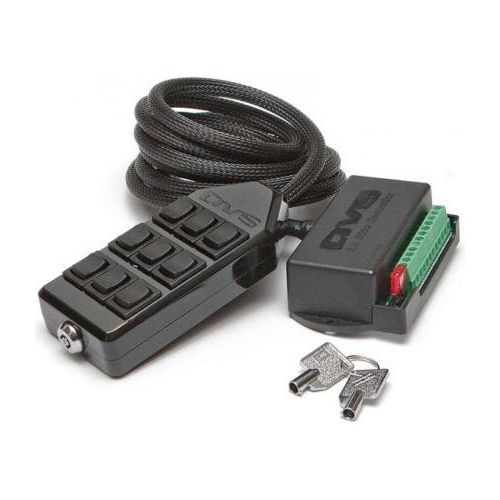

3. **Screw Down Terminals on Relay Box**: Facilitates secure and straightforward installation.

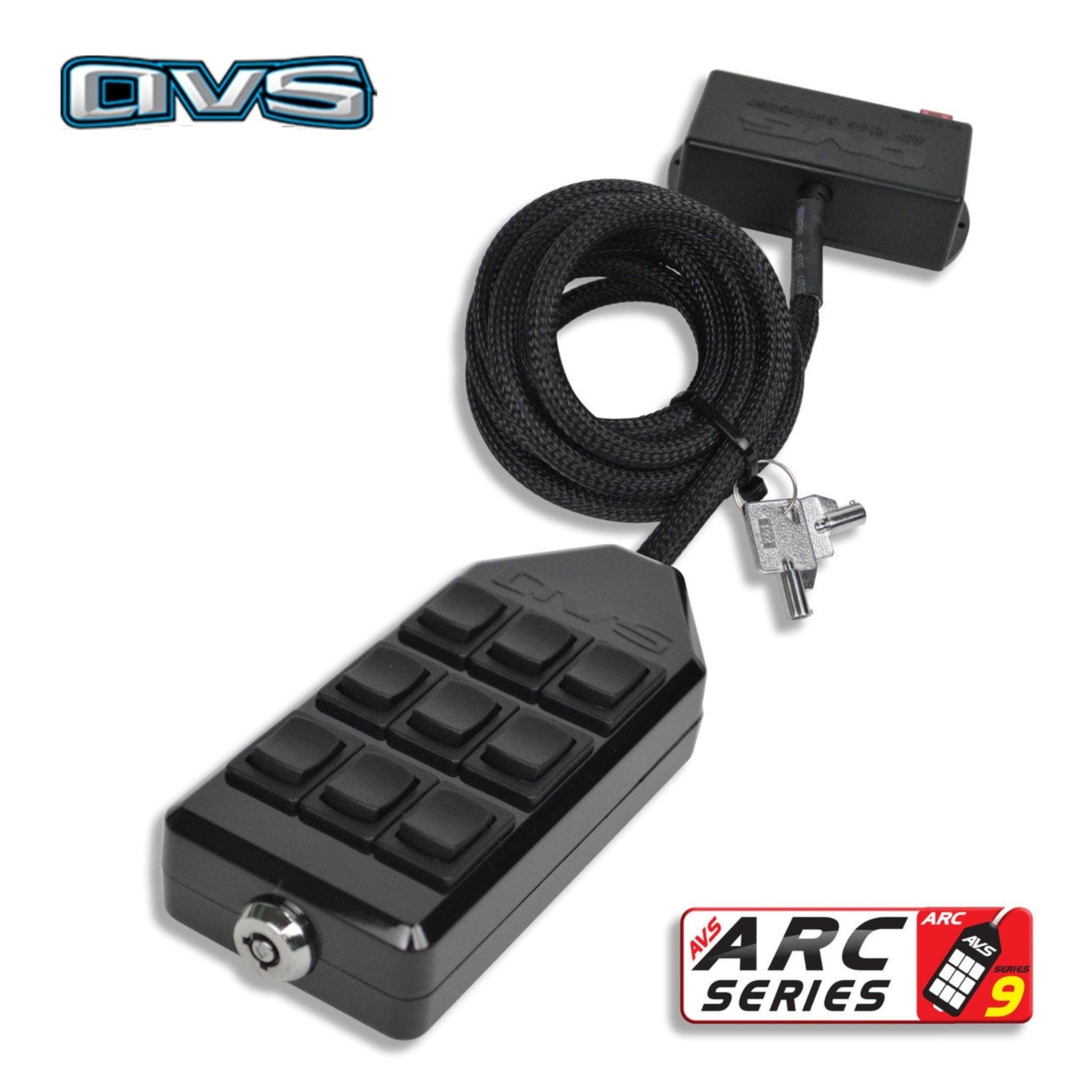

4. **Long Wire Loom**: Comes with a 7-foot wire loom, providing flexibility in mounting and wiring.
5. **+12V Inputs**: Includes inputs for remote up (light blue) and dump (gray) options, making it easier to integrate with alarms or remote systems.
6. **Safety Fuse**: Comes with a 5-amp in-line fuse to protect the electrical system.
7. **Key Pad Lock Safety Feature**: Adds an extra layer of security, preventing unauthorized use.
8. **One-Wire Dump and Up Inputs**: Simplifies the hookup process for alarms or remote operations.

### Benefits:
- **Comprehensive Control**: The nine switches offer granular control over every aspect of your air suspension, including individual wheel adjustments.
- **Ease of Installation**: Screw down terminals and pre-assembled wire loom make the installation process straightforward and secure.
- **Enhanced Security**: The key pad lock feature ensures that only authorized users can operate the system.
- **Versatile Integration**: The +12V inputs for remote up and dump options make it compatible with a variety of remote and alarm systems.
- **Durability and Reliability**: Built with robust materials to ensure long-lasting performance.

### Installation Tips:
1. **Mounting**: Choose a convenient and accessible location within the vehicle’s cabin to mount the switch box securely.
2. **Wiring Connections**:
   - **Relay Box**: Use the screw down terminals on the relay box to connect the wires securely. Ensure all connections are tight to prevent any loose wiring.
   - **Power and Ground**: Connect the switch box to a reliable +12V power source and ensure a solid ground connection to the vehicle chassis.
   - **Remote Up and Dump**: Use the light blue and gray wires for the remote up and dump functions, connecting them to the appropriate controls.
3. **Fuse Installation**: Install the included 5-amp in-line fuse on the power wire to protect the system from electrical surges.
4. **Testing**: After installation, test each switch to ensure proper operation of the air bags. Verify that each switch controls the intended function and that the remote functions work as expected.

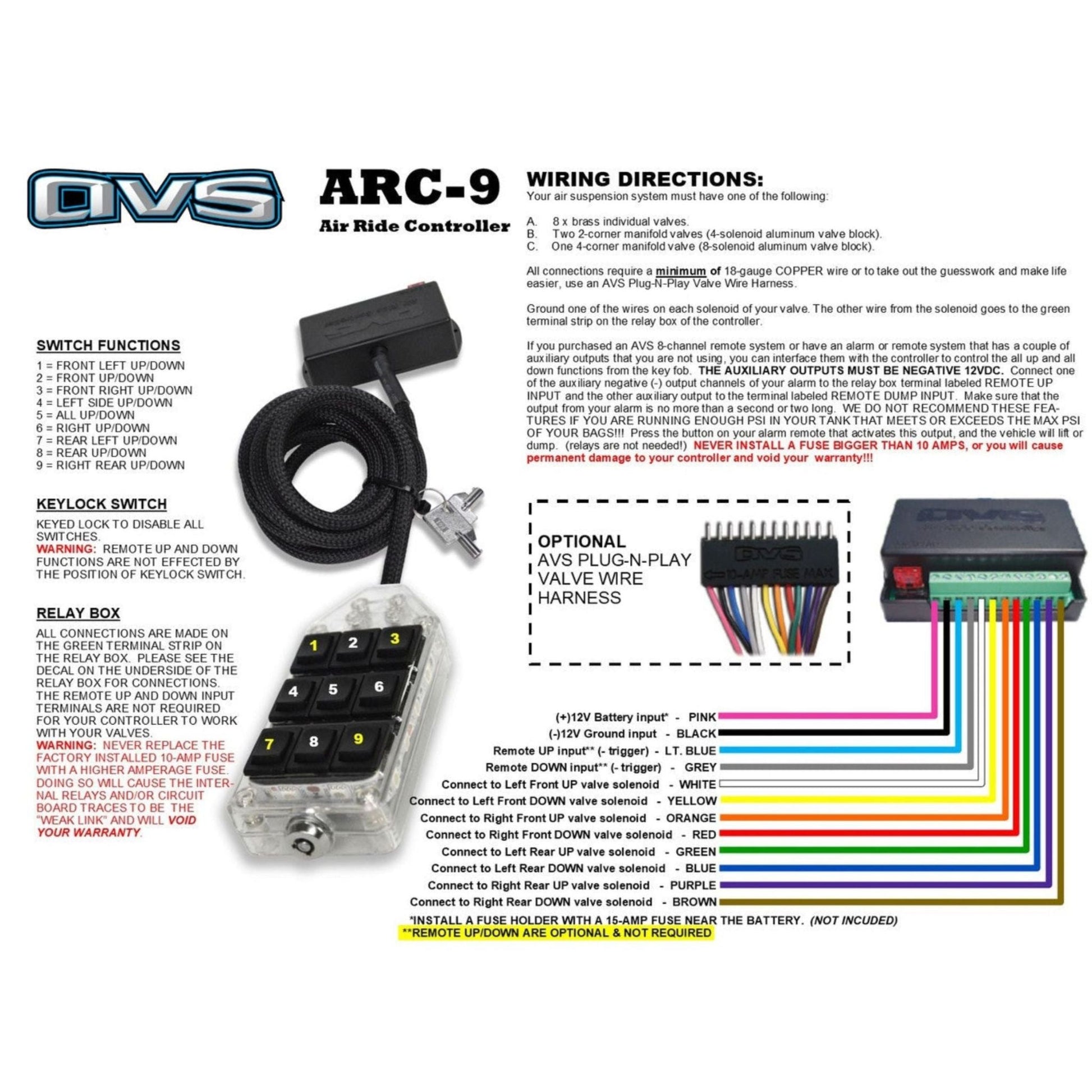

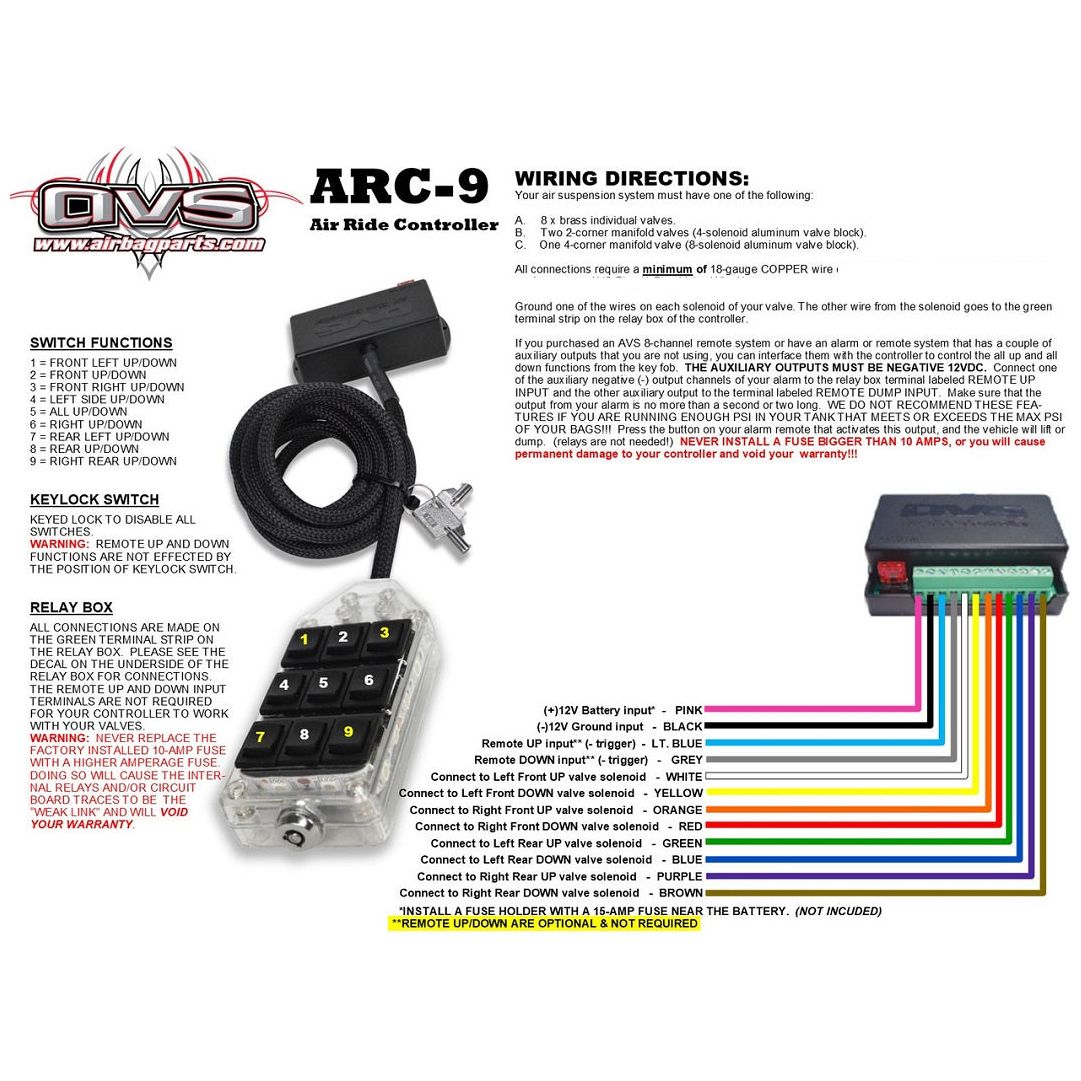

### Wiring Diagram:
The switch box should come with a detailed wiring diagram. Here’s a general guide:
- **Power Source (+12V)**: Connect to the vehicle’s battery or another reliable +12V source.
- **Ground (GND)**: Ensure a good ground connection to the vehicle’s chassis.
- **Air Bag Controls**: Connect the wires from the switch box to the solenoids or valves for each air bag.
- **Remote Functions**: Connect the light blue wire for remote up and the gray wire for the dump function to the appropriate controls.

### Maintenance:
- **Regular Inspections**: Periodically check the switch box, relay box, and wiring for any signs of wear or damage.
- **Keep Contacts Clean**: Ensure all connectors, switches, and terminals are free of dirt and corrosion to maintain reliable operation.
- **Fuse Check**: If the fuse blows, replace it with the same rating (5 amps) to continue protecting the system.

### Troubleshooting:
- **Non-Functioning Switches**: Verify all connections are secure and the power source is providing +12V. Check the ground connection.
- **Intermittent Operation**: Inspect the wiring for any loose connections or damage. Ensure the in-line fuse is intact.
- **Remote Functions Not Working**: Confirm proper connection and voltage supply to the light blue and gray wires.

The AVS 9 Rocker Switch Box (AVS-ARC-9-BK FS50) provides a reliable and efficient way to manage your air bag suspension system, giving you maximum control and flexibility. Its ease of installation, comprehensive control options, and enhanced security features make it an excellent choice for both enthusiasts and professionals looking to optimize their vehicle's suspension setup.
