AVS 7 Toggle Switch Box, Black

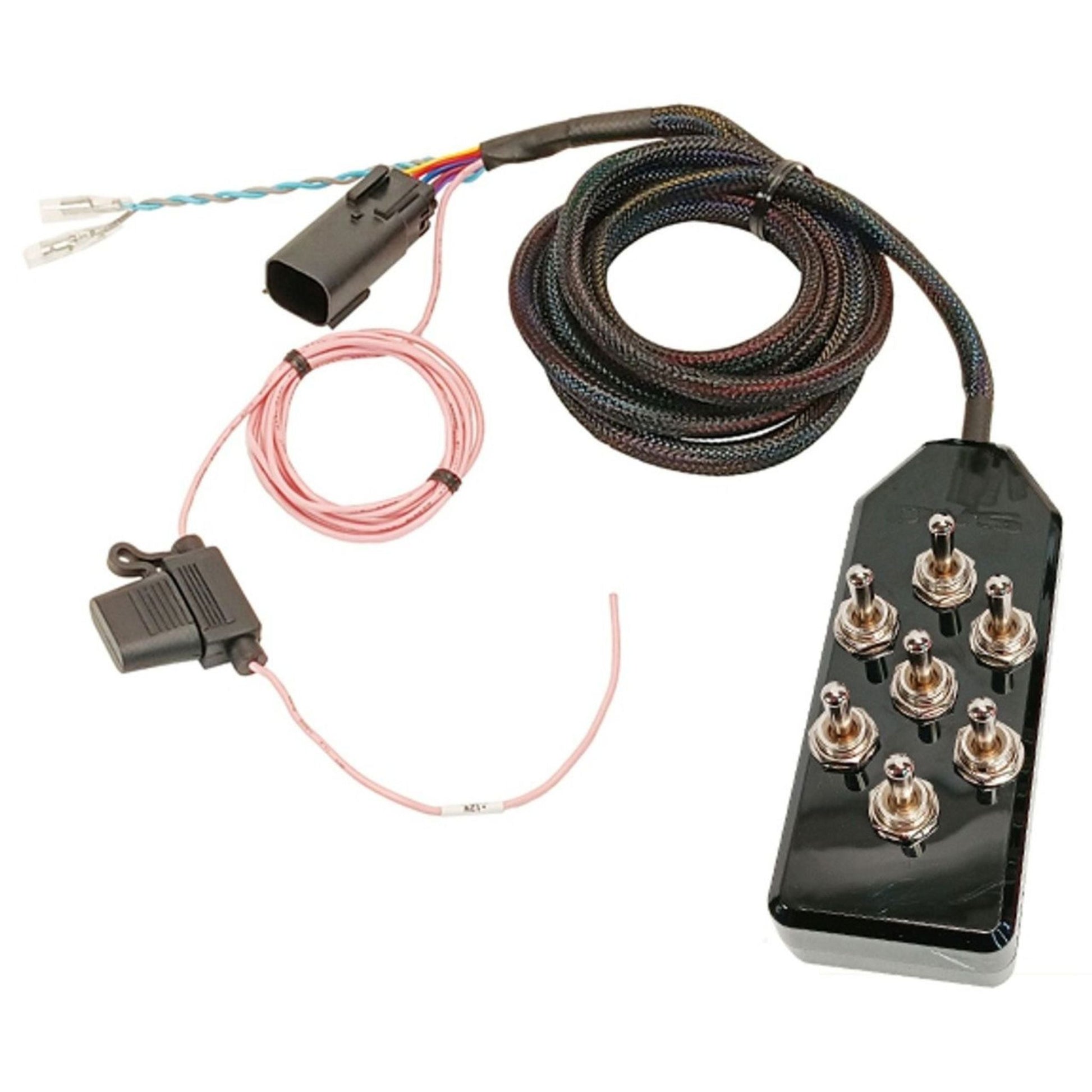

The AVS 7 Toggle Switch Box in Black (model AVS-ARC-T7-BK) is designed to provide precise and individual control over your air bag suspension system, delivering an old-school lowrider feel. This switch box is compact, user-friendly, and ideal for enhancing your air ride setup. Here’s a detailed overview of its features, benefits, and installation instructions:

### Key Features:
1. **Seven Toggle Switches**: Provides individual control for each air bag, allowing for precise adjustments to the front and back suspension.
2. **Compact Design**: With dimensions of 5" x 2" x 1", the switch box is small enough to fit comfortably in most vehicle interiors.
3. **Pre-Assembled Female Bullet Connectors**: These connectors simplify the installation process, ensuring secure and reliable connections.
4. **7-Foot Wire Loom**: The included wire loom offers flexibility in mounting and routing the wires through the vehicle.
5. **+12V Inputs**: Dedicated inputs for remote up and dump functions, enhancing versatility and convenience.
6. **Safety Fuse**: Comes with a 5-amp in-line fuse to protect the electrical circuit from overloads.

### Benefits:
- **Easy Installation**: The pre-assembled connectors and included wiring loom make the installation process straightforward.
- **Enhanced Control**: Allows individual control of each air bag, providing more precise and customizable suspension adjustments.
- **Compact and Durable**: The switch box’s compact size and robust construction make it suitable for a variety of vehicle applications.
- **Convenient Monitoring**: The included wiring for remote up and dump options simplifies integration with additional control systems.
- **Reliable Protection**: The in-line fuse ensures the system is protected from electrical faults, enhancing safety and longevity.

### Installation Tips:
1. **Mounting**: Choose a suitable location within the vehicle's cabin for easy access to the switch box. Ensure it is secure and does not interfere with driving.
2. **Wiring Connections**:
   - **Female Bullet Connectors**: Connect the pre-assembled female bullet connectors to the corresponding male connectors on your air bag solenoids or valves.
   - **Power and Ground**: Connect the switch box to a +12V power source and ensure a solid ground connection to the vehicle chassis.

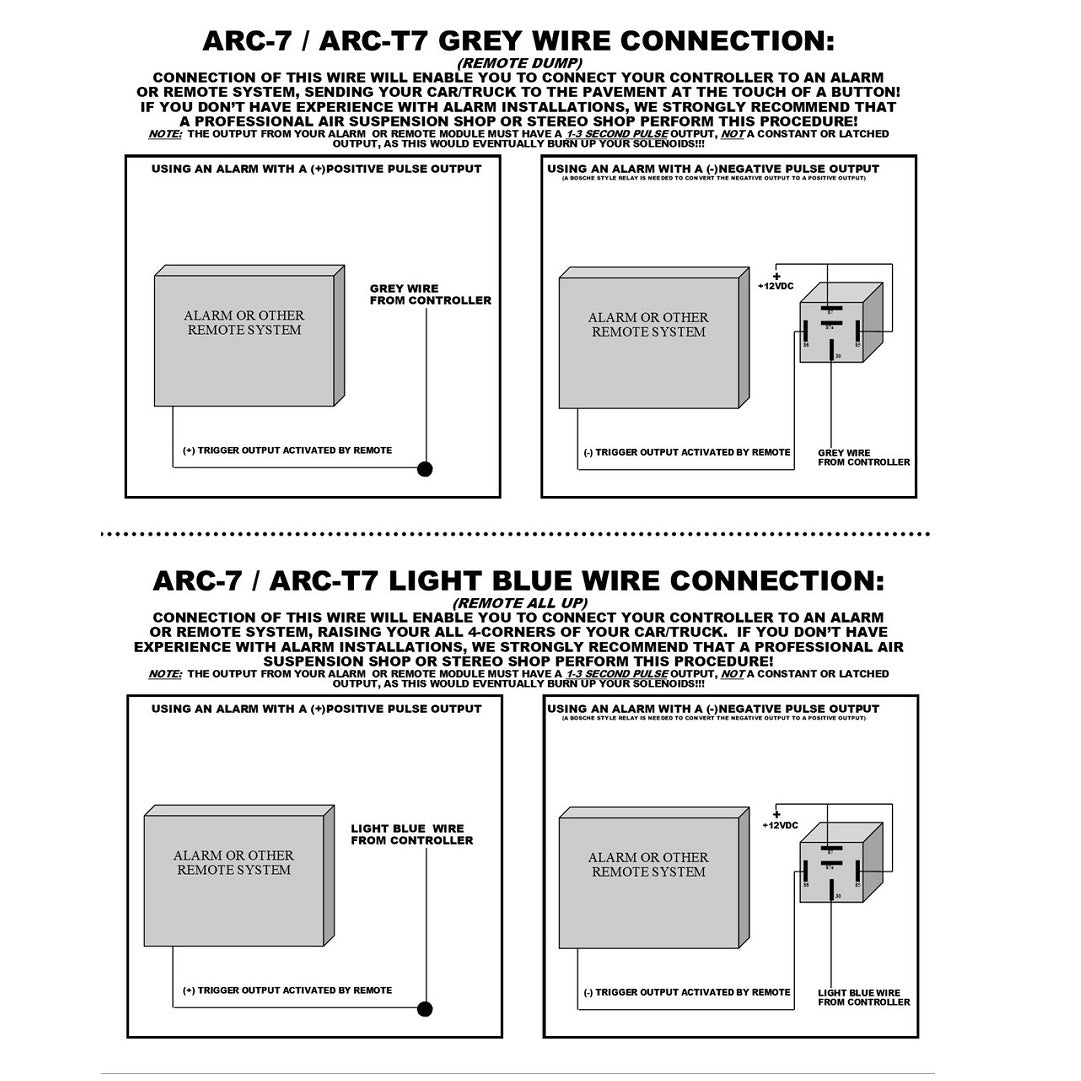

   - **Remote Up and Dump**: Use the designated wires to connect to remote up (typically light blue) and dump (gray) functions.
3. **Fuse Installation**: Install the included 5-amp in-line fuse on the power wire to protect the system from electrical surges.
4. **Testing**: After installation, test each toggle switch to ensure proper operation of the air bags. Verify that each switch controls the correct air bag and that the remote functions work as intended.

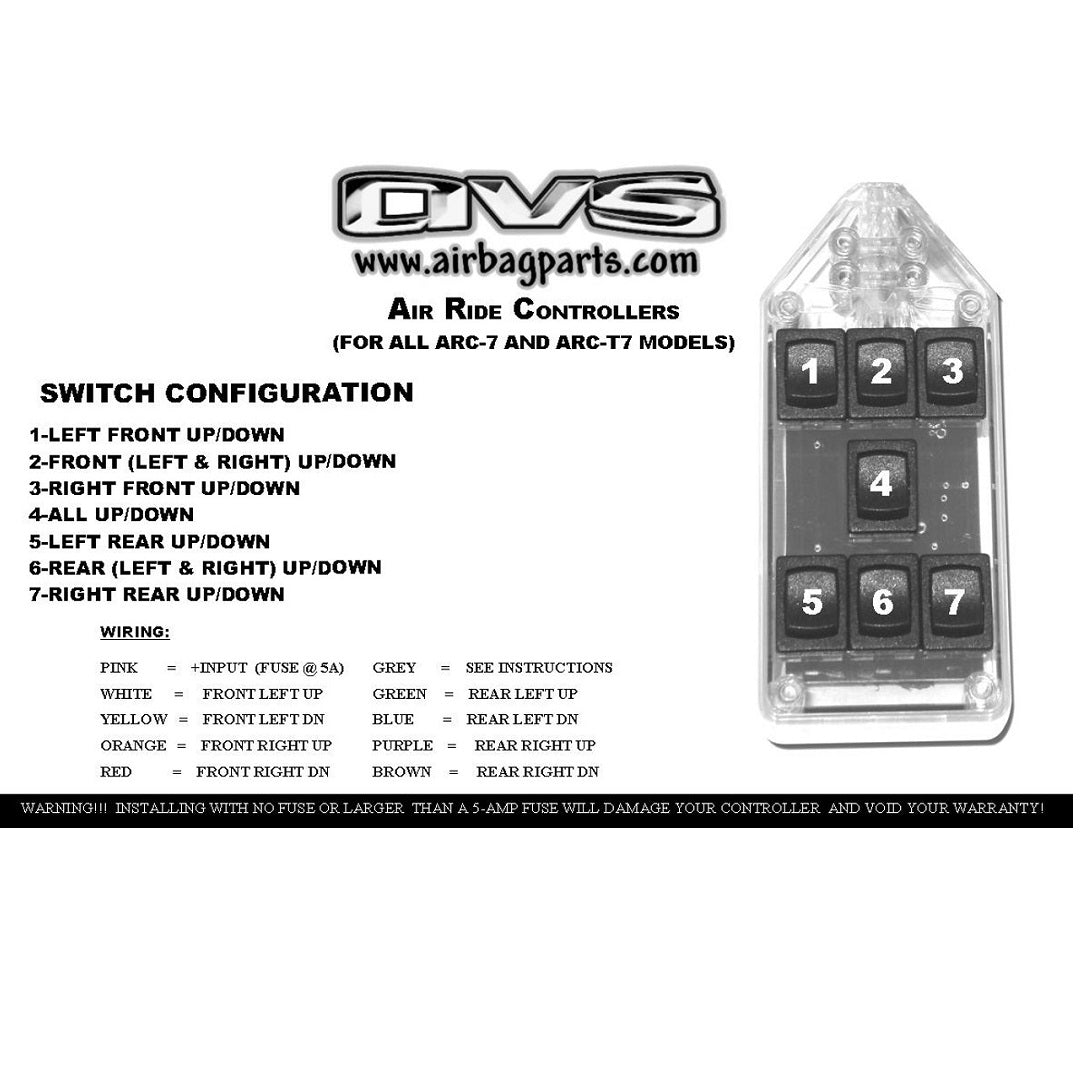

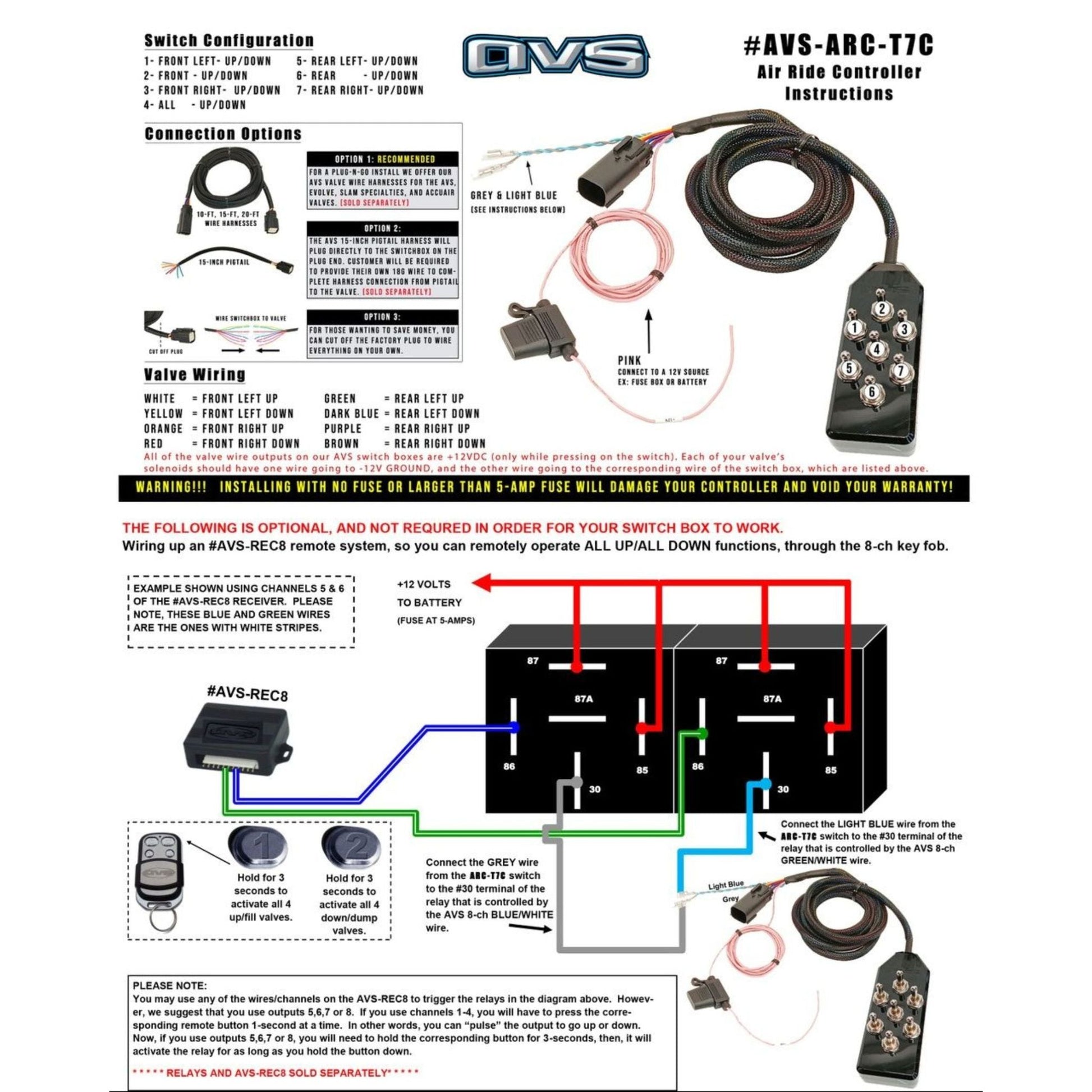

### Wiring Diagram:
The switch box should come with a detailed wiring diagram. Here’s a general guide:
- **Power Source (+12V)**: Connect to the vehicle’s battery or another reliable +12V source.
- **Ground (GND)**: Ensure a good ground connection to the vehicle’s chassis.
- **Air Bag Controls**: Connect the wires from the switch box to the solenoids or valves for each air bag.
- **Remote Functions**: Connect the light blue wire for remote up and the gray wire for the dump function to the appropriate controls.

### Maintenance:
- **Regular Inspections**: Periodically check the switch box and wiring for any signs of wear or damage.
- **Keep Contacts Clean**: Ensure all connectors and switches are free of dirt and corrosion to maintain reliable operation.
- **Fuse Check**: If the fuse blows, replace it with the same rating (5 amps) to continue protecting the system.

### Troubleshooting:
- **Non-Functioning Switches**: Verify all connections are secure and the power source is providing +12V. Check the ground connection.
- **Intermittent Operation**: Inspect the wiring for any loose connections or damage. Ensure the in-line fuse is intact.
- **Remote Functions Not Working**: Confirm proper connection and voltage supply to the light blue and gray wires.

The AVS 7 Toggle Switch Box (AVS-ARC-T7-BK) provides a reliable and efficient way to manage your air bag suspension system, giving you maximum control with an old-school lowrider feel. Its ease of installation, comprehensive control, and compact design make it an excellent choice for both enthusiasts and professionals.
