AVS 3 Rocker Switch Box, Black

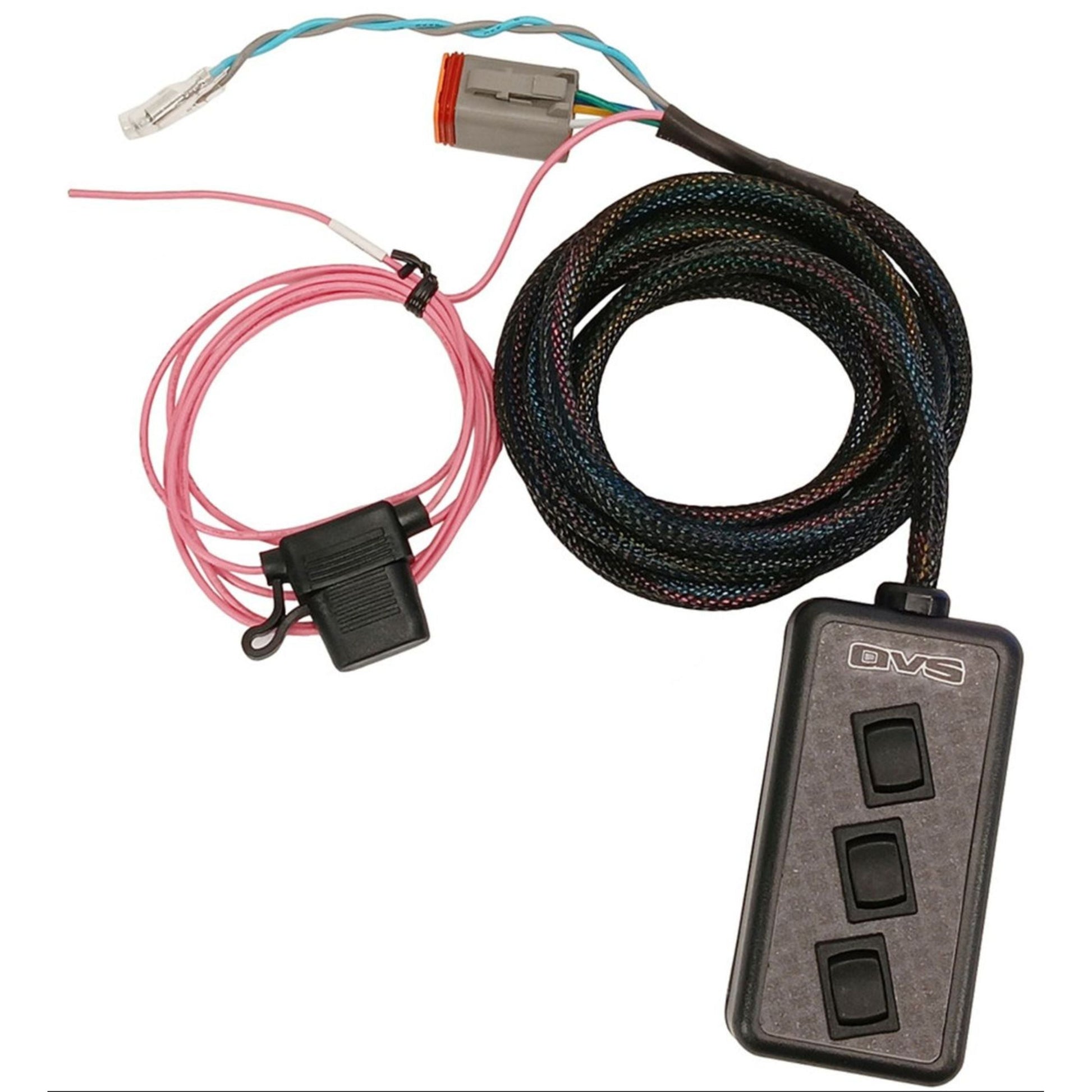

The AVS 3 Rocker Switch Box in Black (model AVS-ARC-3-BK) is a versatile and user-friendly control unit designed to manage your air ride suspension system with ease. Here’s an overview of its features, benefits, and installation process:

### Key Features:
1. **Complete Control**: Designed for a 4-valve setup, allowing for front and rear independent control, as well as an all up/down "pancake" function with the middle switch.
2. **Compact Design**: Dimensions are 5" x 2" x 1", making it easy to mount and integrate into your vehicle's interior.
3. **Pre-Assembled Connectors**: Female bullet connectors come pre-assembled, facilitating straightforward installation.
4. **Long Cord**: Approximately 7-foot cord length provides flexibility in mounting locations.
5. **+12V Inputs**: Dedicated +12V inputs for remote up (light blue) and dump (gray) functions.
6. **Safety Fuse**: Includes a 5-amp in-line fuse to protect the electrical circuit.

### Benefits:
- **Ease of Installation**: Pre-assembled connectors and included wiring diagrams make the installation process simple, even for those with basic electrical knowledge.
- **Comprehensive Control**: Allows precise management of the air suspension system, enhancing both functionality and convenience.
- **Durability and Aesthetics**: The black finish provides a sleek look while ensuring durability.
- **Enhanced Functionality**: The "pancake" function simplifies the process of raising or lowering the vehicle completely with a single switch.

### Installation Tips:
1. **Mounting**: Choose a convenient and accessible location within the vehicle’s cabin to mount the switch box. Ensure it’s secure and within easy reach.
2. **Wiring Connections**:
   - Connect the pre-assembled female bullet connectors to the corresponding male connectors on your air suspension system.
   - Connect the light blue wire to a +12V source for the remote up function.
   - Connect the gray wire to a +12V source for the dump function.
3. **In-Line Fuse**: Install the included 5-amp in-line fuse on the power wire to protect the system from electrical faults.
4. **Testing**: After installation, test each switch function to ensure proper operation. Verify that the front and rear up/down and the all up/down "pancake" functions work correctly.

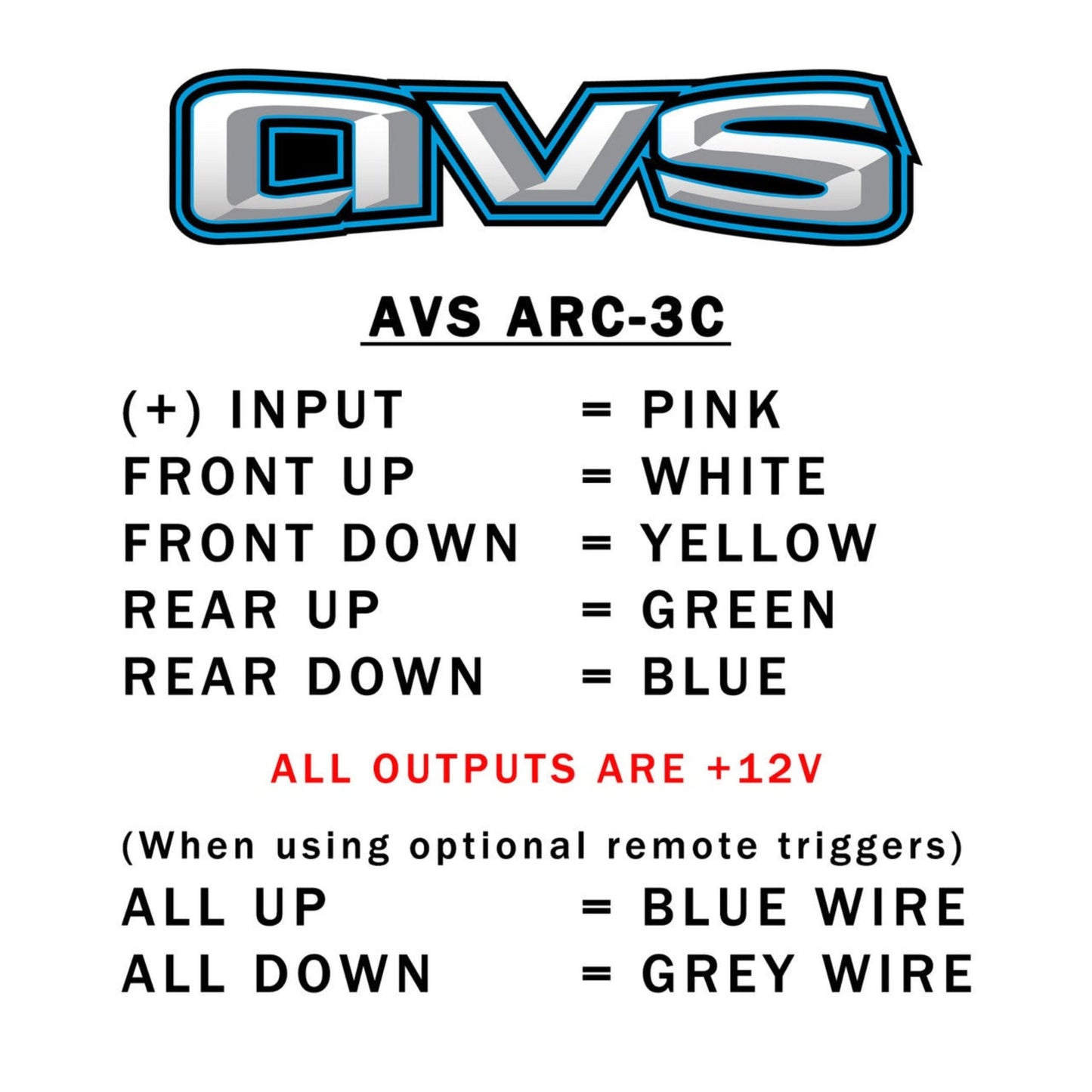

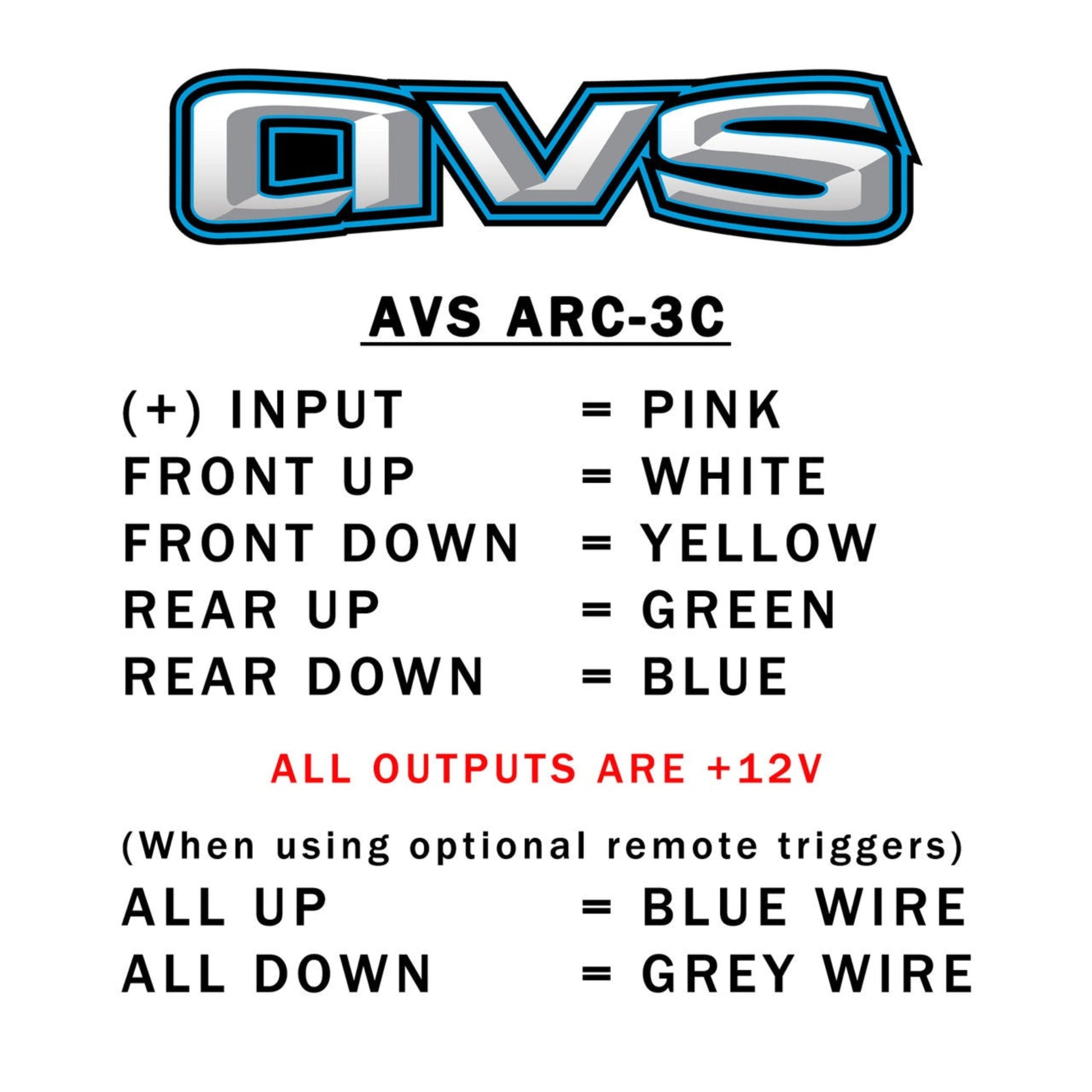

### Wiring Diagram:
The switch box should come with a detailed wiring diagram. Generally, the connections will include:
- **Power Source (+12V)**: Connect to the vehicle’s electrical system.
- **Ground (GND)**: Ensure a good ground connection to the vehicle’s chassis.
- **Front/Rear Controls**: Connect the wires from the switch box to the corresponding solenoids or valves in the air suspension system.
- **Remote Up/Down**: Use the light blue and gray wires for remote up and dump functions respectively.

### Maintenance:
- **Regular Inspections**: Periodically check the switch box and wiring for any signs of wear or damage.
- **Clean Contacts**: Keep the connectors and switches clean to ensure reliable operation.
- **Fuse Check**: Replace the in-line fuse if it blows to maintain protection for your system.

### Troubleshooting:
- **Non-Functioning Switches**: Check all connections and ensure the power source is providing +12V. Verify that the ground connection is secure.
- **Intermittent Operation**: Inspect the wiring for any loose connections or damaged wires. Ensure the in-line fuse is intact.
- **Remote Functions Not Working**: Confirm that the light blue and gray wires are properly connected and receiving the correct voltage.

The AVS 3 Rocker Switch Box (AVS-ARC-3-BK) provides a reliable and efficient way to control your air ride suspension, making it an essential component for enthusiasts looking to enhance their vehicle's performance and aesthetics.
