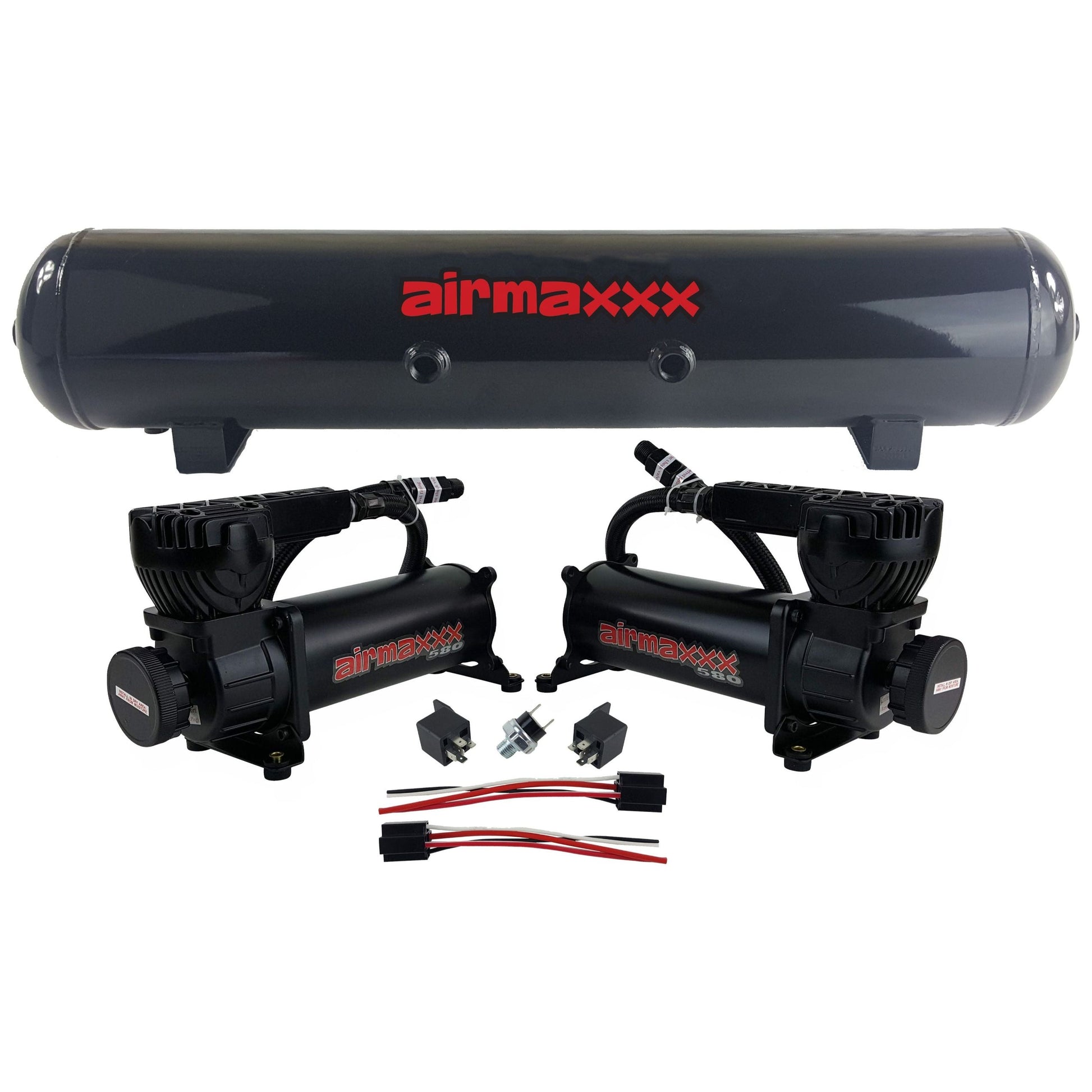

airmaxxx 580 Black Dual Compressors & 5 Gallon Steel Tank

Heavy-Duty Power, Cooler Performance

The airmaxxx 580 Black Dual Compressor Pack with 5 Gallon Steel Tank delivers serious airflow, reliable pressure, and cooler running performance. Each 580 runs up to 40° cooler than the 480 model, while producing up to 200 PSI with a 100% duty cycle at 100 PSI.

Matched with a gloss black powder-coated steel tank rated for 200 PSI, this system provides both strength and capacity to handle demanding air ride suspension systems, air horns, or onboard pneumatic needs. Add the optional dual compressor wiring kit for an even easier installation.

Key Features

• Dual 580 Black Compressors – 3.6 CFM combined airflow

• 200 PSI Max Pressure – Handles suspension, horns, and onboard air

• 100% Duty @ 100 PSI – Built for continuous use under load

• Runs Cooler – Redesigned head dissipates heat 40° better than 480s

• 5 Gallon Steel Tank – Strong, durable, gloss black finish

• Complete Kit – Includes leader hoses, check valves, relays, and pressure switch

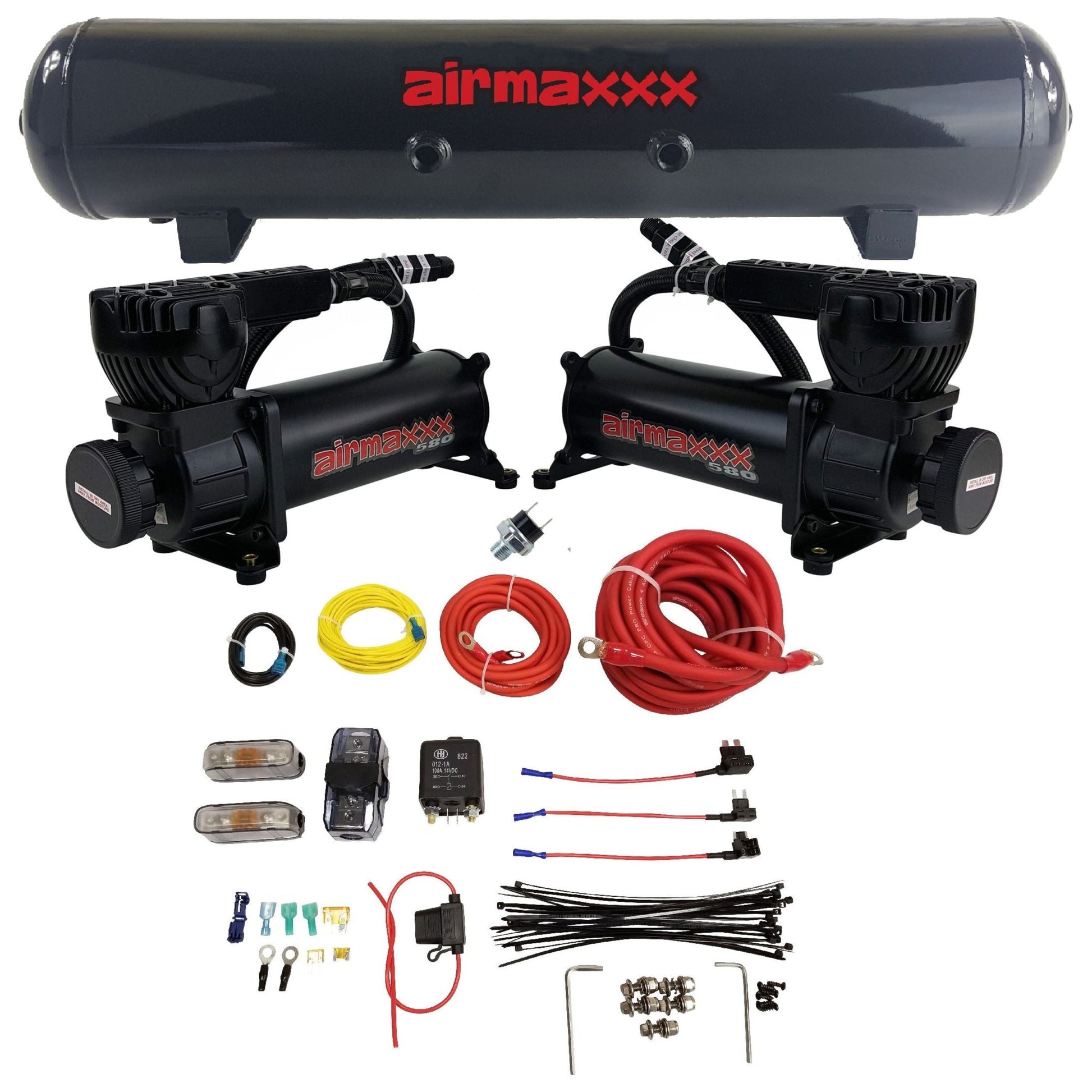

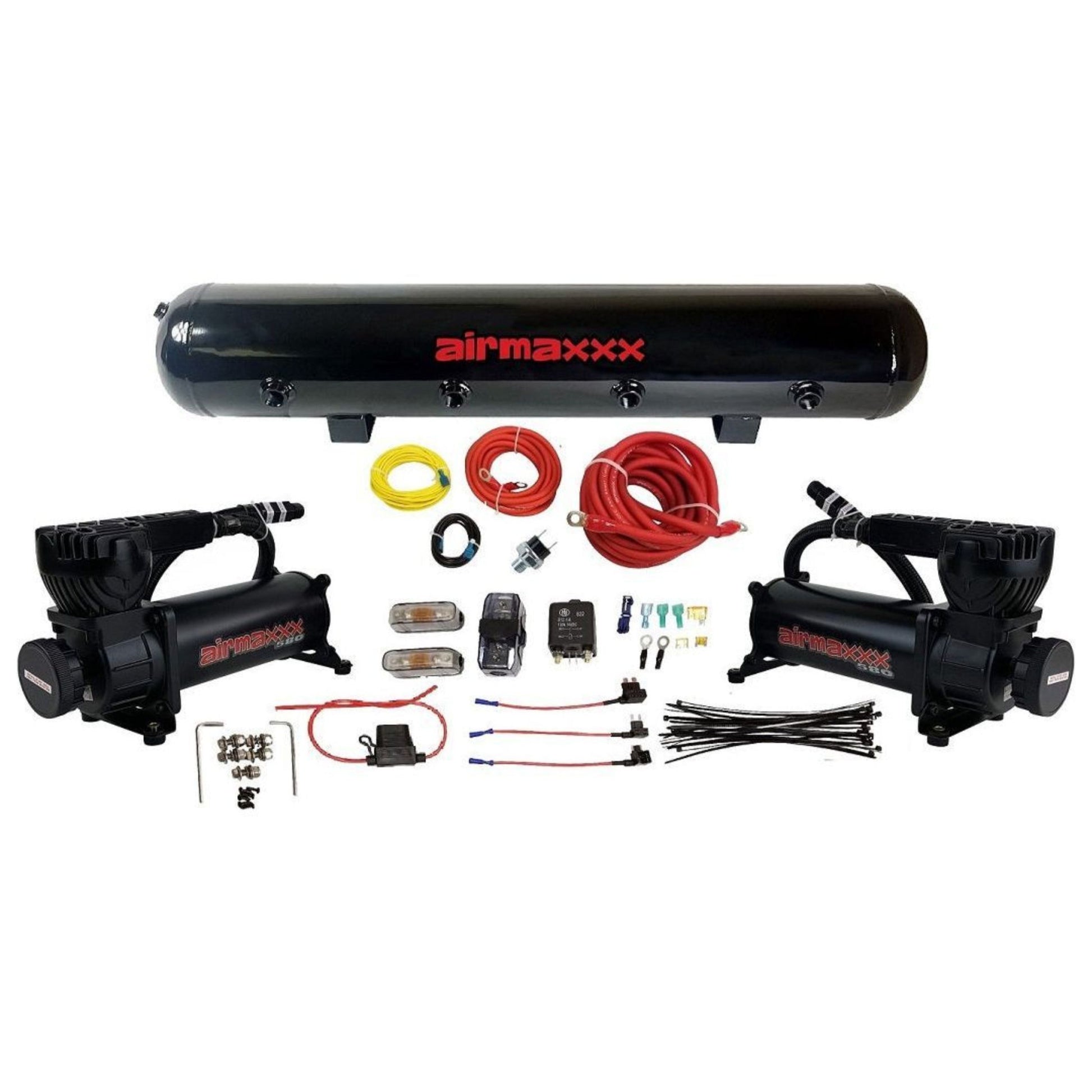

• Expandable – Optional dual compressor wire kit available

Kit Includes

• (2) airmaxxx 580 black compressors

• (1) 5 gallon steel tank
  (gloss black powder coat, multiple port options)

• (2) 3/8" stainless braided leader hoses

• (2) 3/8" NPT check valves

• (2) 40 amp heavy duty relays

• (1) heavy duty pressure switch
  (optional)

(Mounting brackets for individual compressors sold separately. Two required for dual setup.)

Specs

Each Compressor

• 12V, 1.86 CFM
  (dual pack: 3.60 CFM)

• Permanent magnetic motor

• Duty cycle: 100% @ 100 PSI

• Max pressure: 200 PSI

• Max draw: 24 amps

• Size: 9.5" L x 7" H x 3.25" W

• 1-year manufacturer warranty

Tank

• Capacity: 5 gallon steel

• Rated to 200 PSI

• Ports: multiple NPT sizes
  (1/2", 3/8", 1/4")

• Size: 33" L x 7" W x 8.25" H

• Gloss black powder coat finish
