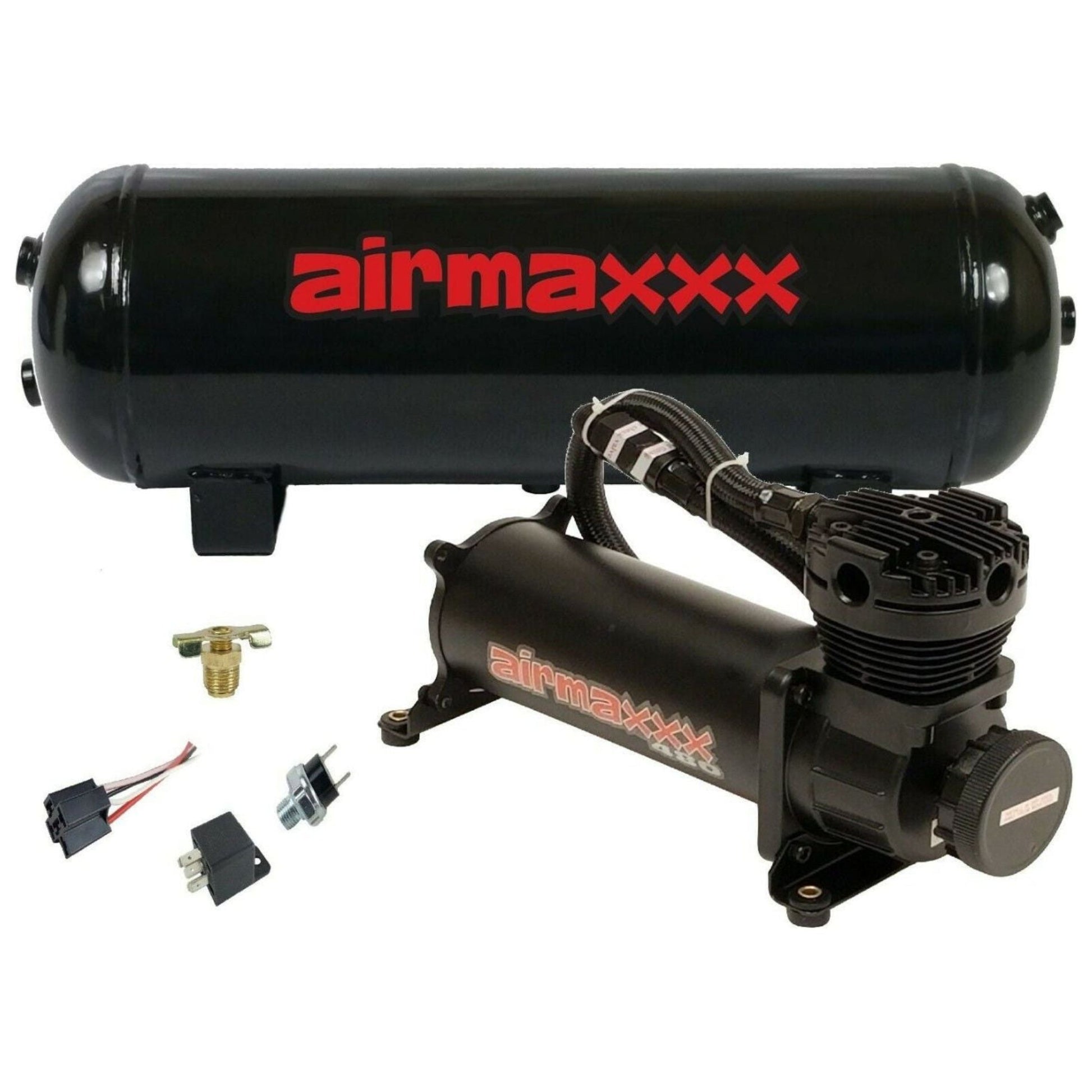

airmaxxx 480 Black Compressor & 3 Gallon Steel Tank Air Kit

All-in-One Onboard Air Solution

Get a complete onboard air setup with the airmaxxx 480 Black Air Compressor and 3 Gallon Steel Tank Kit. Built for air suspension, air horns, or other pneumatic accessories, this kit combines a powerful compressor with a durable steel tank to give you reliable performance in one convenient package.

The airmaxxx 480 black compressor delivers up to 200 PSI with a 100% duty cycle at 100 PSI, while the 3-gallon gloss black steel tank provides six ports for flexible plumbing and multiple accessory connections. This kit is designed to be a dependable air source, whether you’re lowering your ride, powering air horns, or inflating tires.

Key Features

• Complete Onboard Air Kit – Compressor, tank, hoses, check valves, and switch

• Powerful 480 Black Compressor – 1.75 CFM, 200 PSI max, 100% duty @ 100 PSI

• Durable 3 Gallon Steel Tank – Gloss black powder coat with six ports for easy setup

• Fast Fill Times – 0–145 PSI in just 2 minutes 29 seconds

• Flexible Connections – Multiple ports for suspension, horns, or air tools

• Reliable Operation – Includes heavy-duty pressure switch and 40A relay

• Expandable System – Optional wiring kit available for a cleaner install

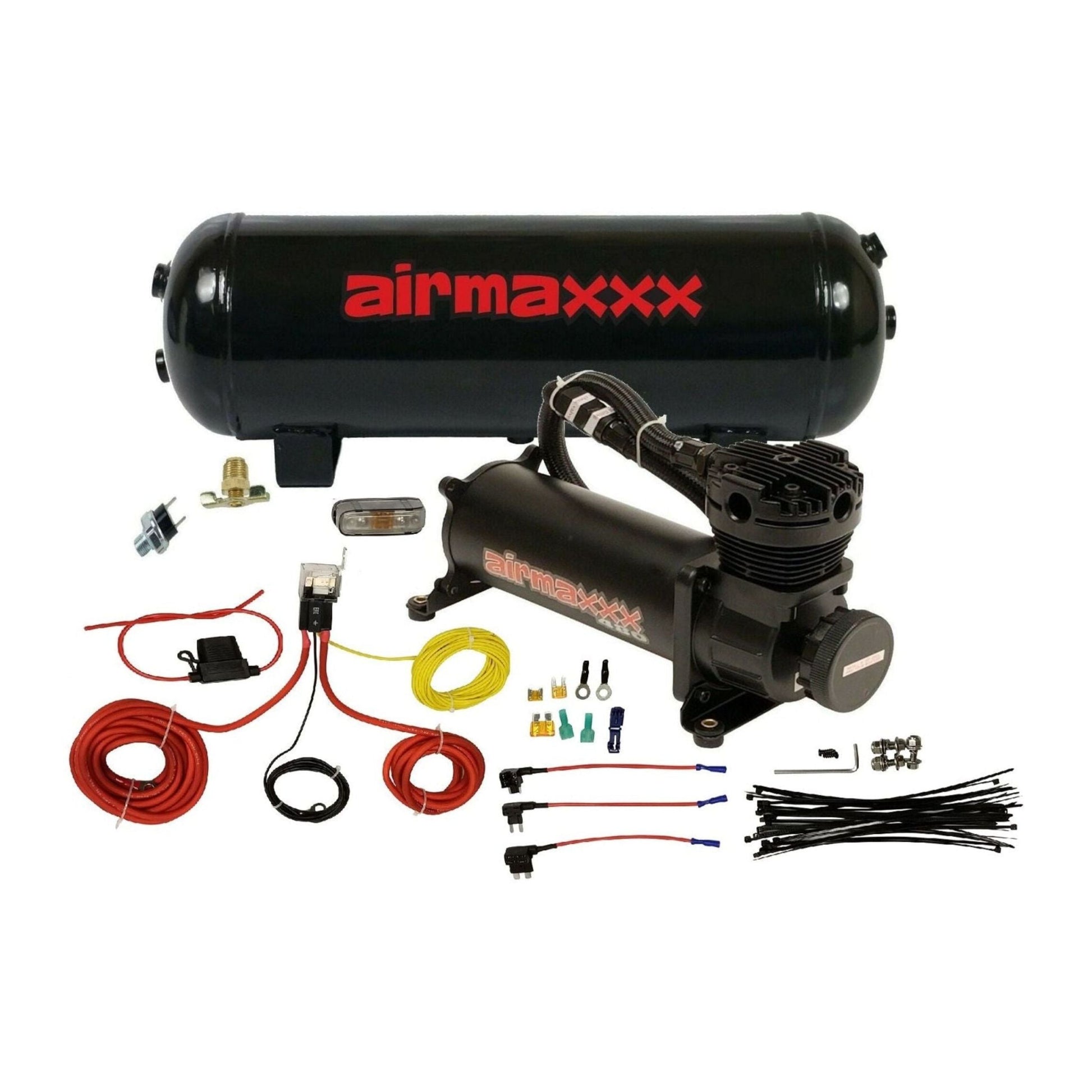

Kit Contents

• (1) airmaxxx 480 black air compressor

• (1) 3 gallon 6-port gloss black steel air tank

• (2) 1/4" stainless braided leader hoses

• (2) 1/4" NPT check valves

• (1) tank drain

• (1) heavy-duty pressure switch & 40 amp relay (choose psi setting)

(Note: a mounting bracket sold separately. Optional single compressor wiring kit also available.)

Specs

Compressor

• 12V, 1.75 CFM permanent magnetic motor

• 100% duty cycle @ 100 PSI

• Max pressure: 200 PSI

• Max draw: 21 amps

• Size: 9.5" L x 7" H x 3.25" W

• Tank fill time (0–145 PSI): 2 min 29 sec

• 1-year manufacturer warranty

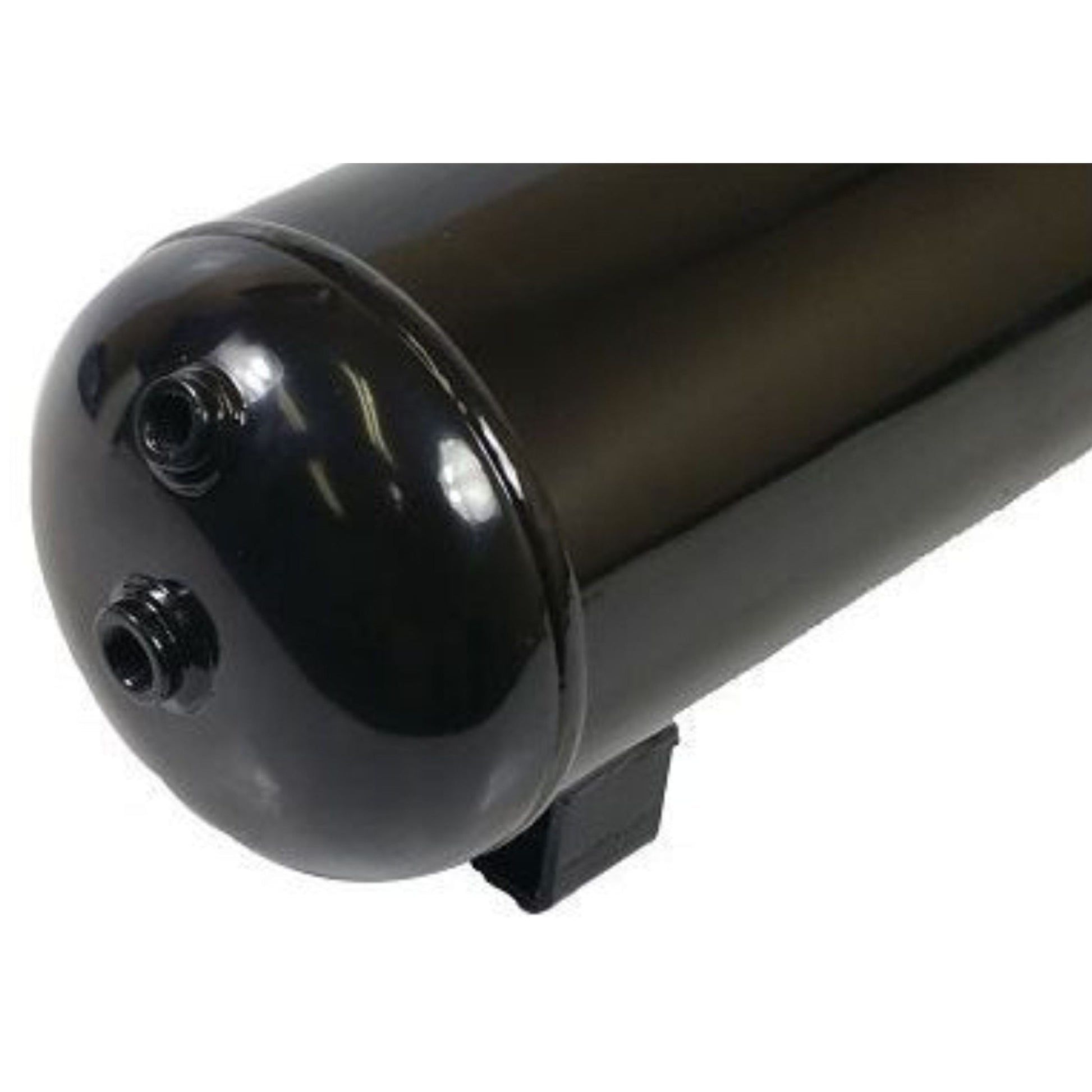

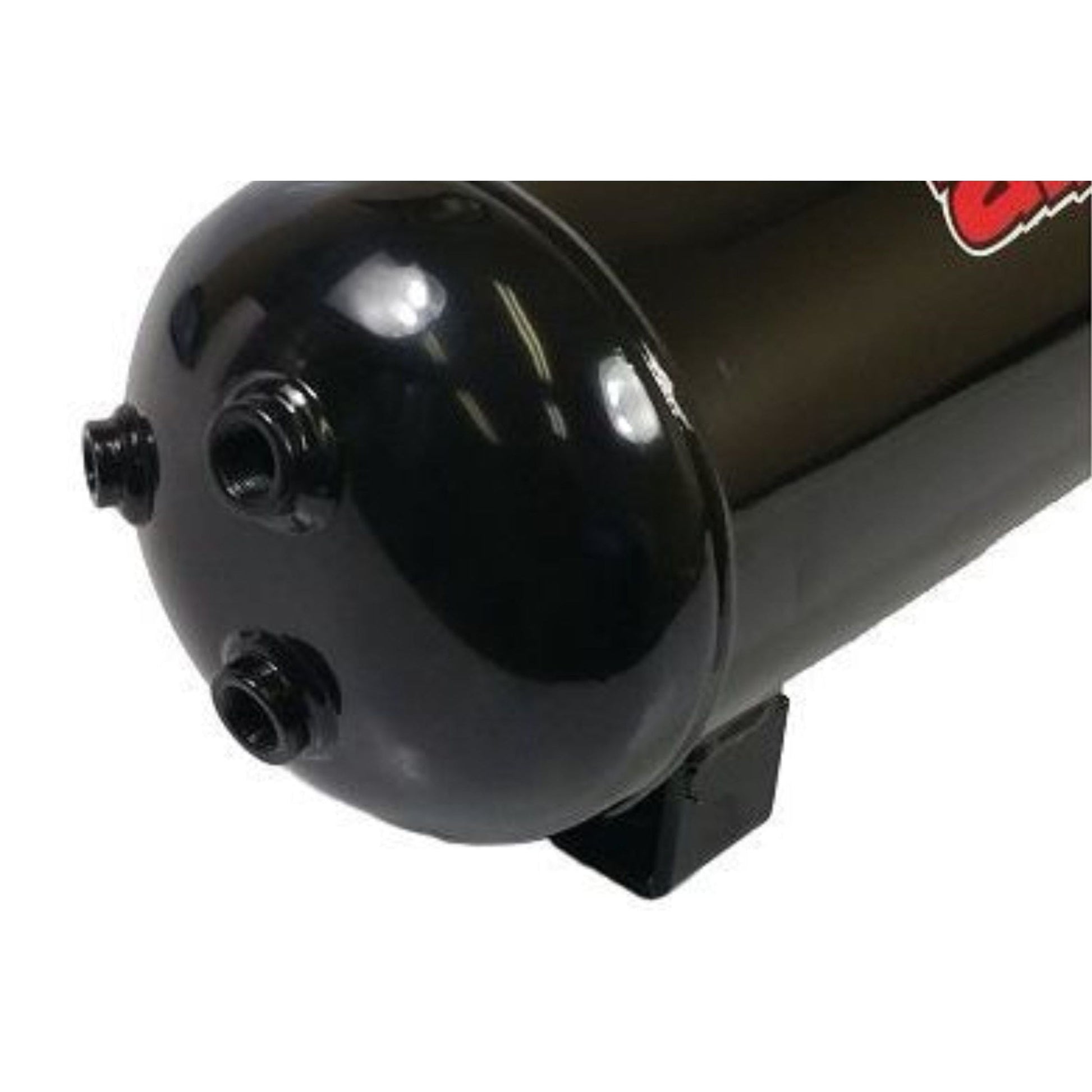

Tank

• 3 gallon capacity

• 6 ports (3/8" & 1/4" NPT)

• Size: 20" L x 7" W x 8.25" H

• Max pressure: 200 PSI

• Gloss black powder coat finish
