Air Compressors Chrome 400 airmaxxx & 5 Gallon Steel Air Tank

Power Up Your Air Ride:

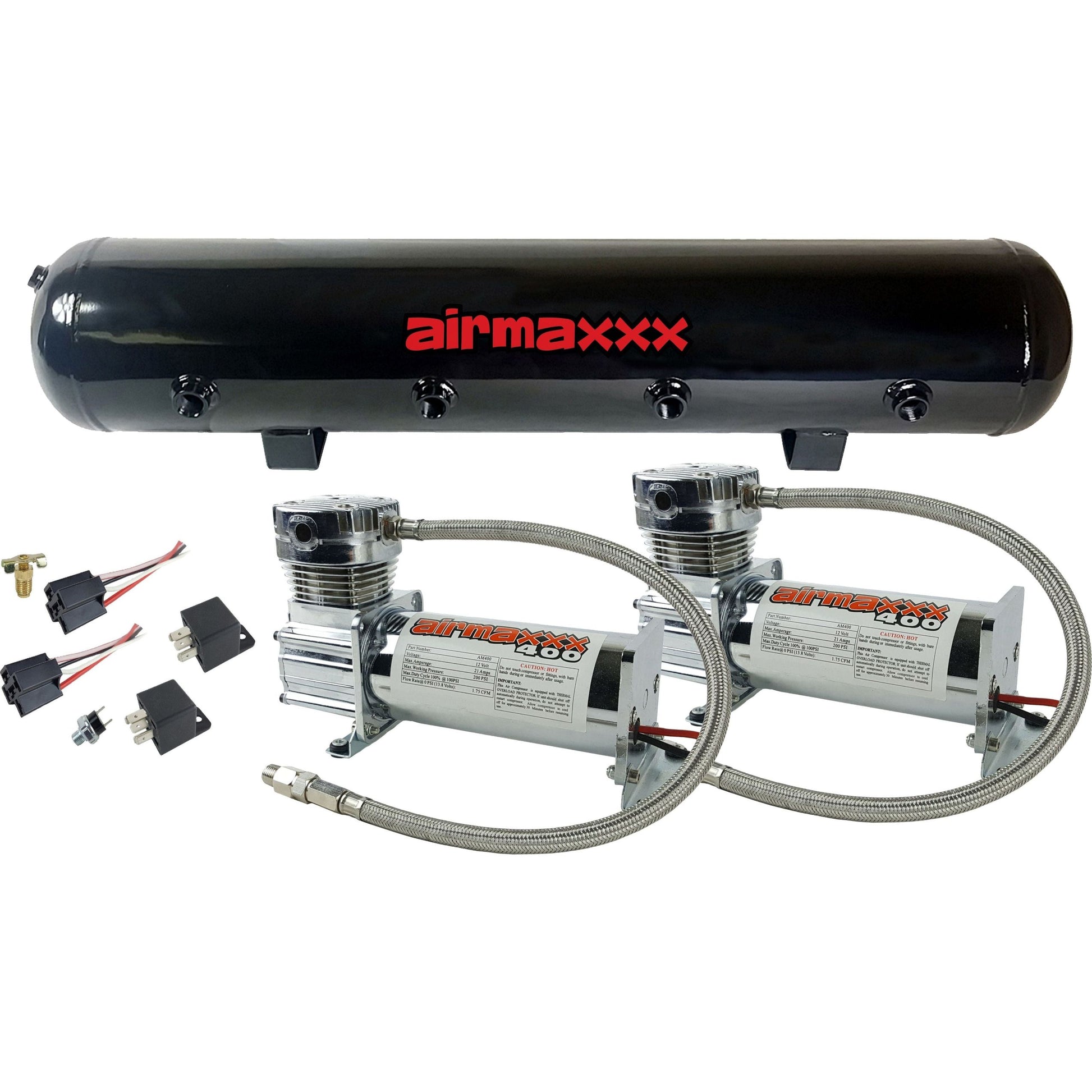

airmaxxx Dual 400 Chrome Air Compressors
& 5 Gallon Steel Air Tank Kit

Experience reliable and robust on-board air power with the airmaxxx Dual 400 Chrome Air Compressors & 5 Gallon Steel Air Tank Kit. This comprehensive kit provides the essential components for a high-performance air ride suspension system, air horns, or other pneumatic applications, all with the added visual appeal of chrome compressors and a gloss black tank.

This system features two powerful airmaxxx 400 chrome air compressors, working together to quickly and efficiently fill the included 5-gallon steel air tank. The tank is available with either 7 or 9 ports, offering exceptional versatility to plumb your air lines, pressure switch, valves, and accessories for a clean and organized installation. The durable steel tank is finished in a sleek gloss black powder coat, providing both protection and a great look.

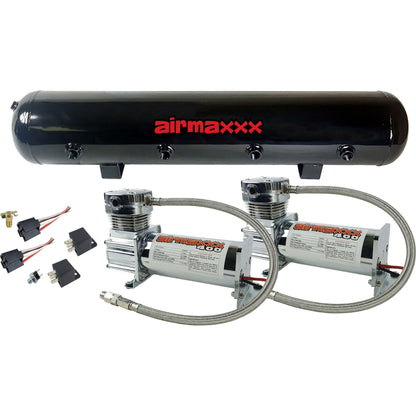

Kit Includes:

• 2 - airmaxxx 400 Chrome Air Compressors
• 1 - 5 Gallon Steel Air Tank (Choose 7 or 9 Port Style, Gloss Black Powder Coat)
• 2 - 1/4" Stainless Steel Braided Leader Hoses
• 2 - 1/4"NPT Check Valves
• 2 - 40 Amp Relays
• 1 - Heavy Duty Pressure Switch (optional, choose your pressure setting)

Optional:

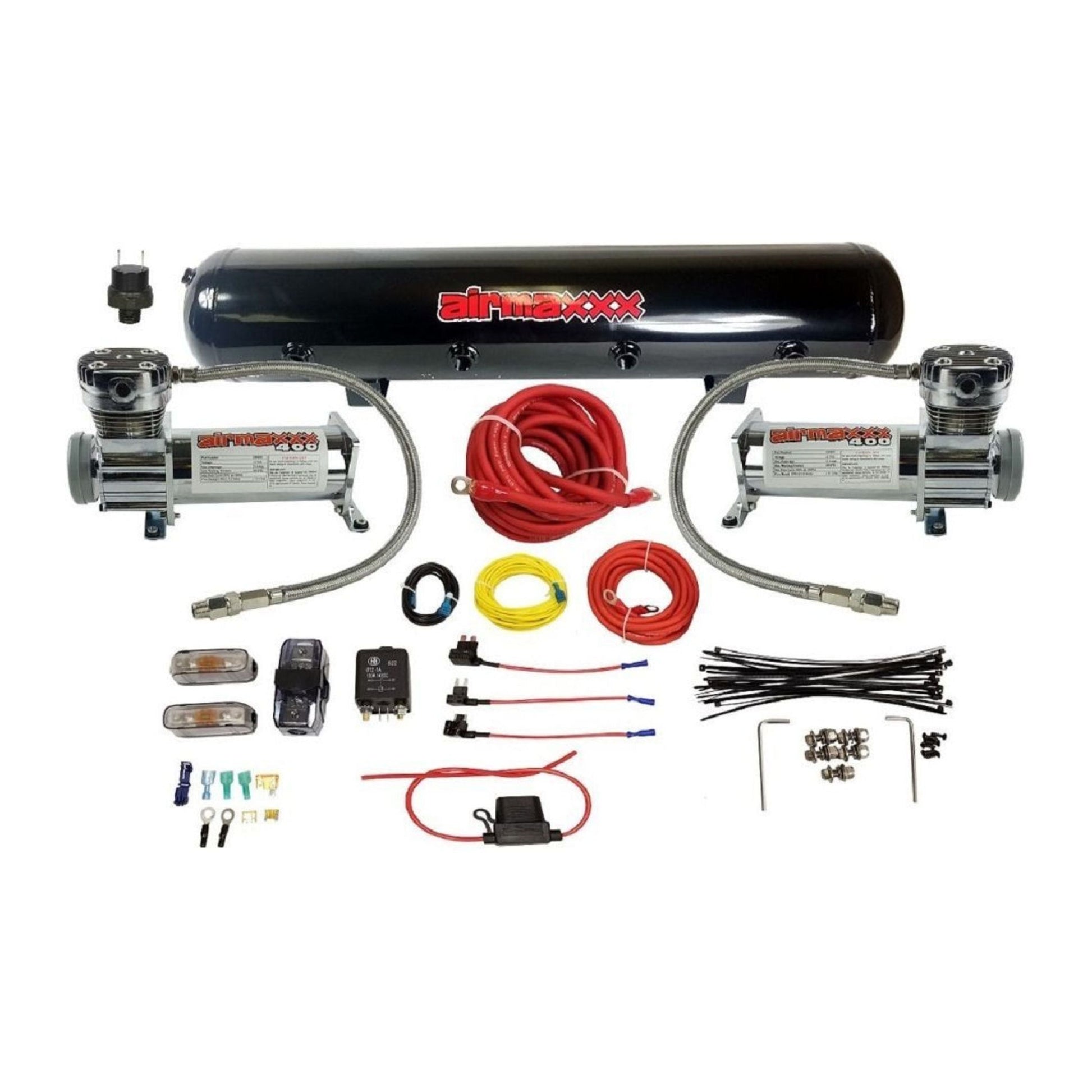

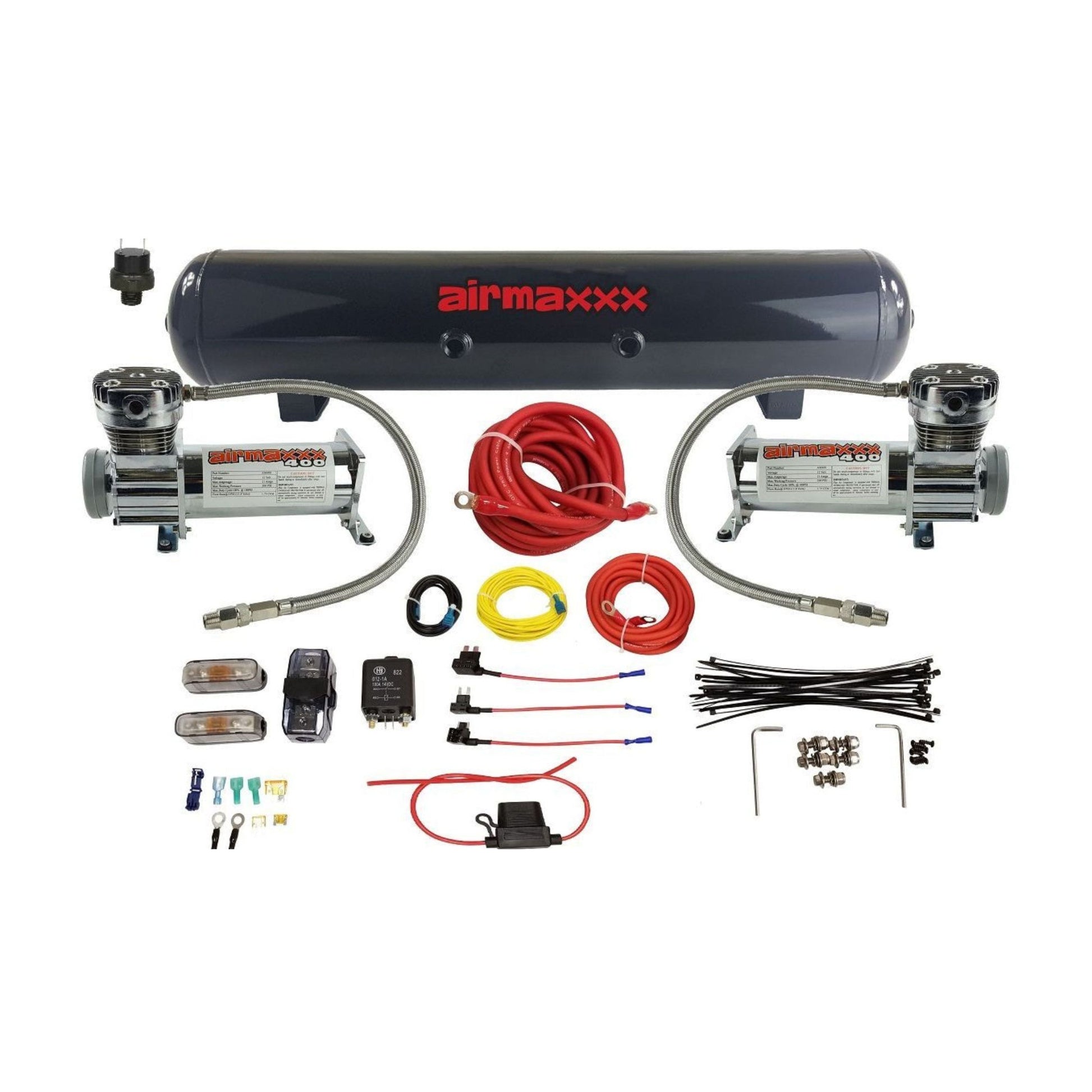

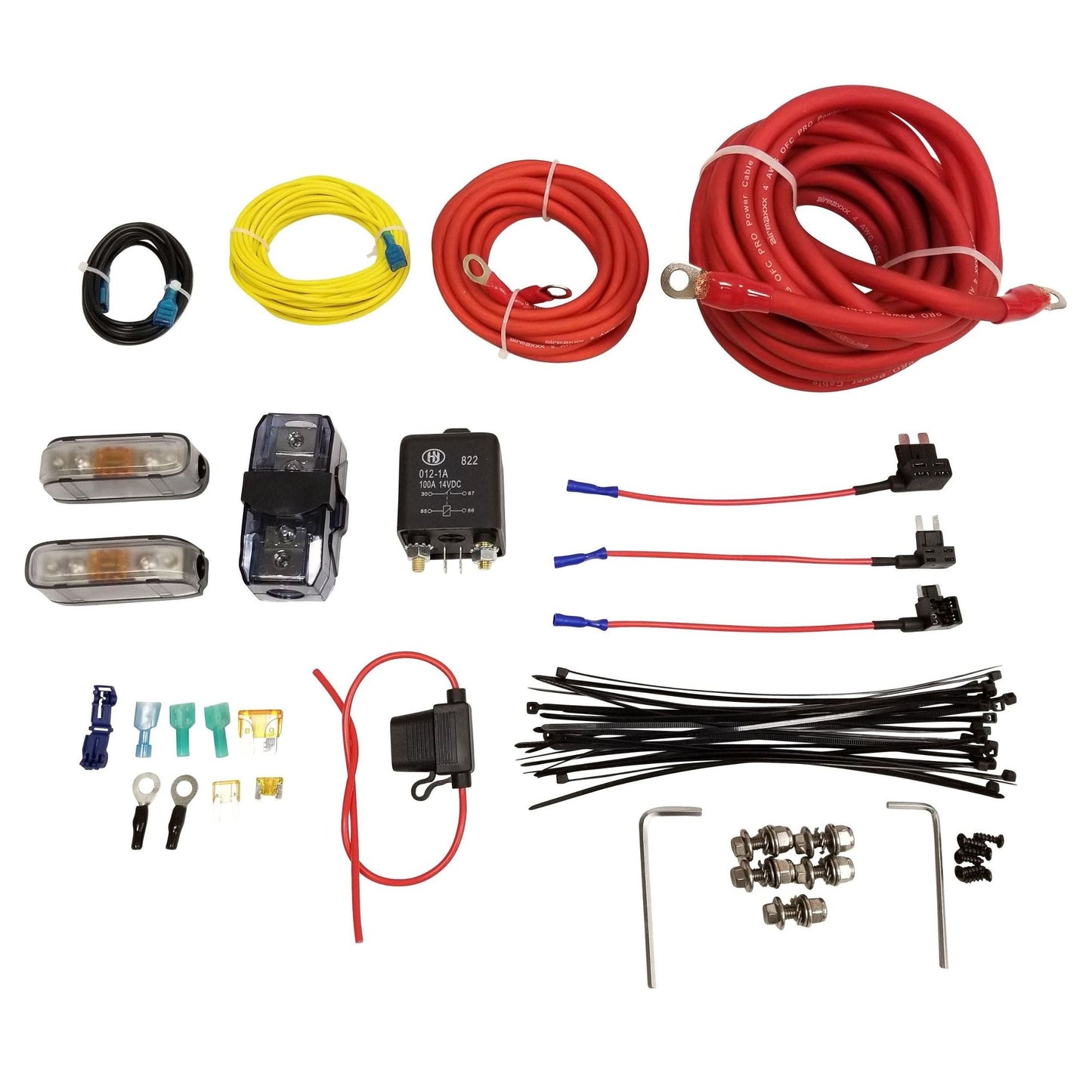

• Dual Compressor Wire Kit (sold separately)

Each Compressor Specifications:

• 12 Volt, 1.75 CFM
• Permanent Magnetic Motor
• 100% Duty Cycle @ 100 psi
• Max Pressure 200 psi
• Max. Amp Draw: 20 Amps
• Dimensions: 9-1/2" Long, 7" Tall, 3-1/4" Wide
• 1 - Year Manufacturer Warranty on Air Compressor

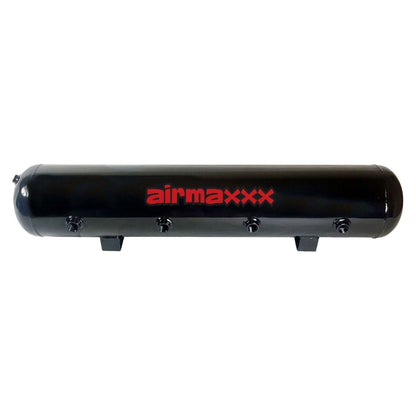

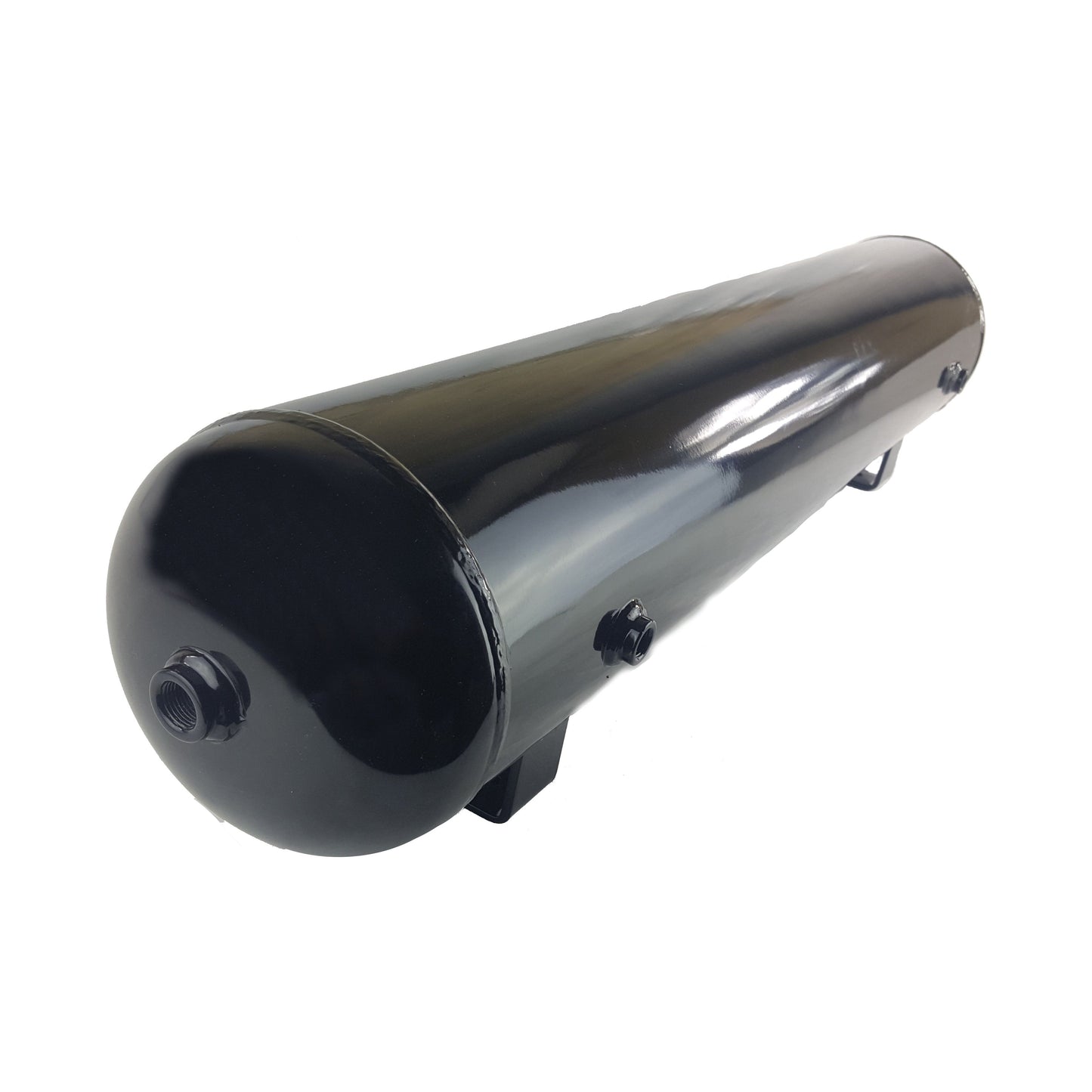

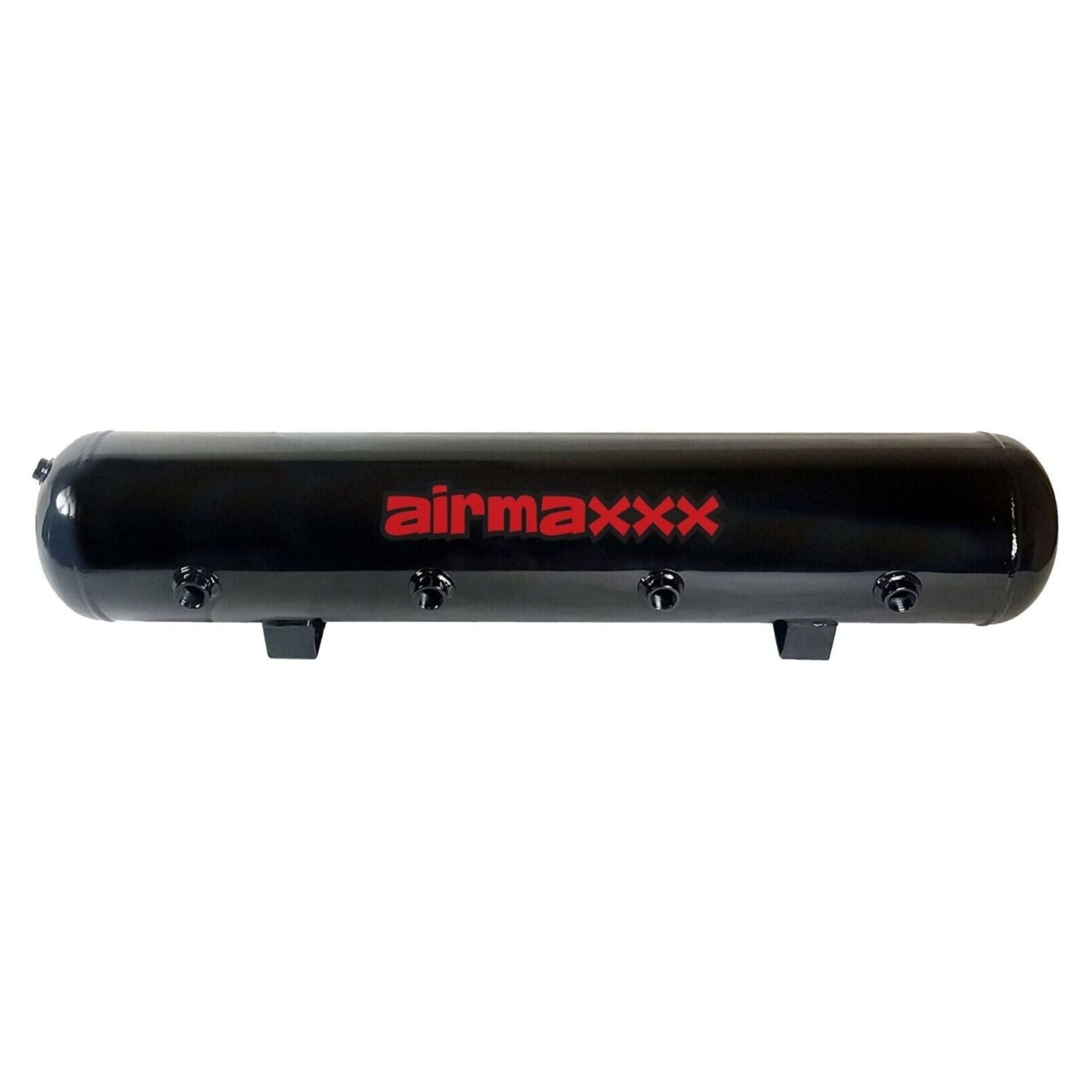

5 Gallon Steel Air Tank Specifications:

• 5 Gallon Capacity

• 200 psi Max Pressure

• Gloss Black Powder Coat Finish

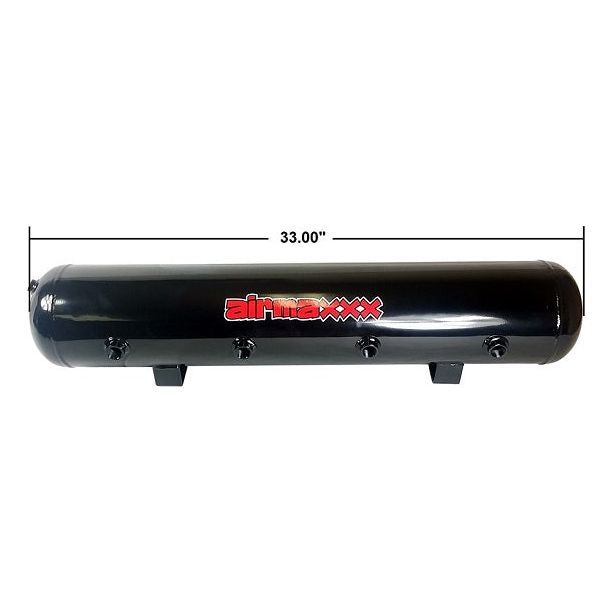

• Approx. Dimensions: 33" Long, 7" Wide, 8.25" Tall

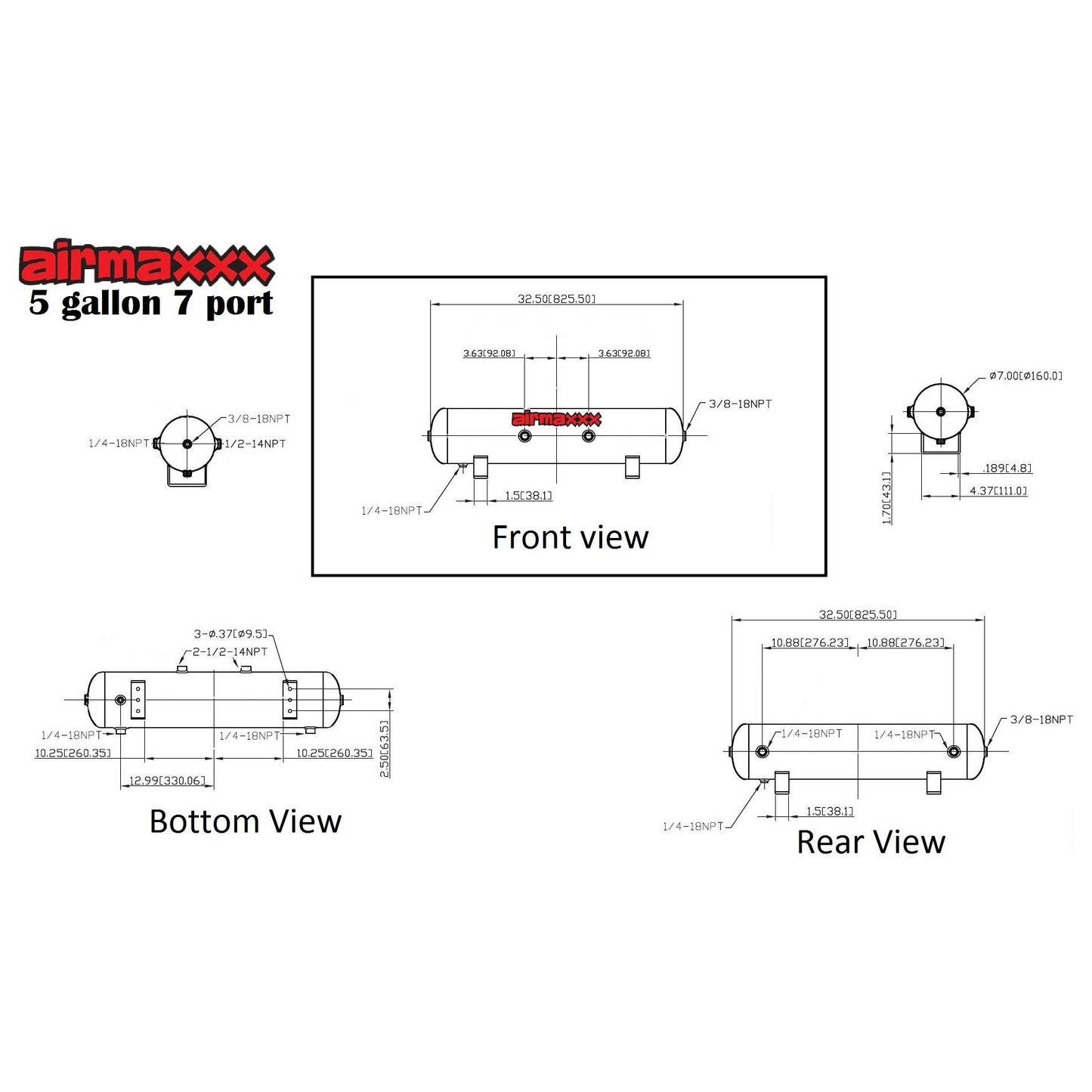

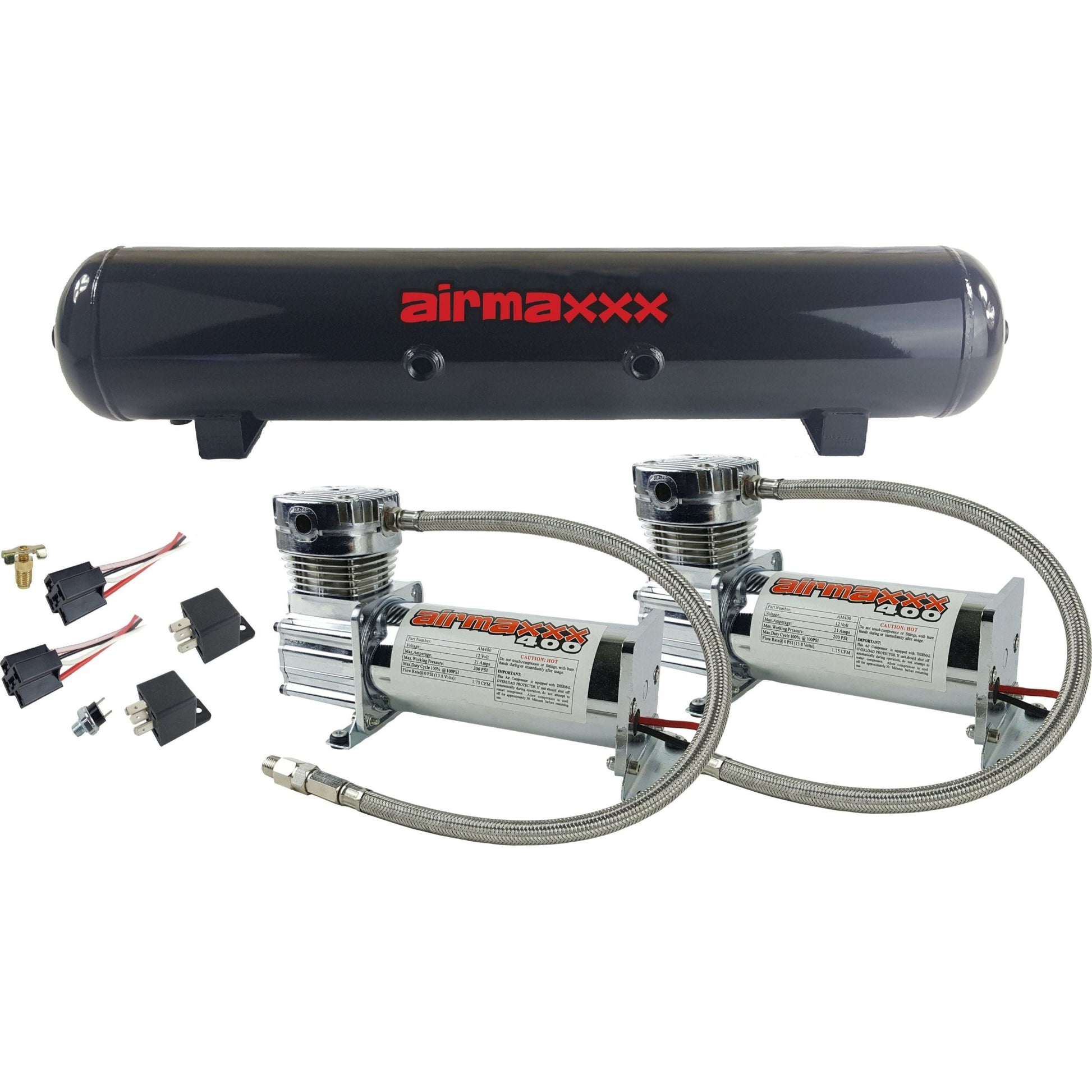

• 7 Port Tank Specs:

  • 2 - 1/2"NPT Ports (across front)
  • 2 - 3/8"NPT Ports (1 on each end)
  • 3 - 1/4"NPT Ports (2 on one end & drain)

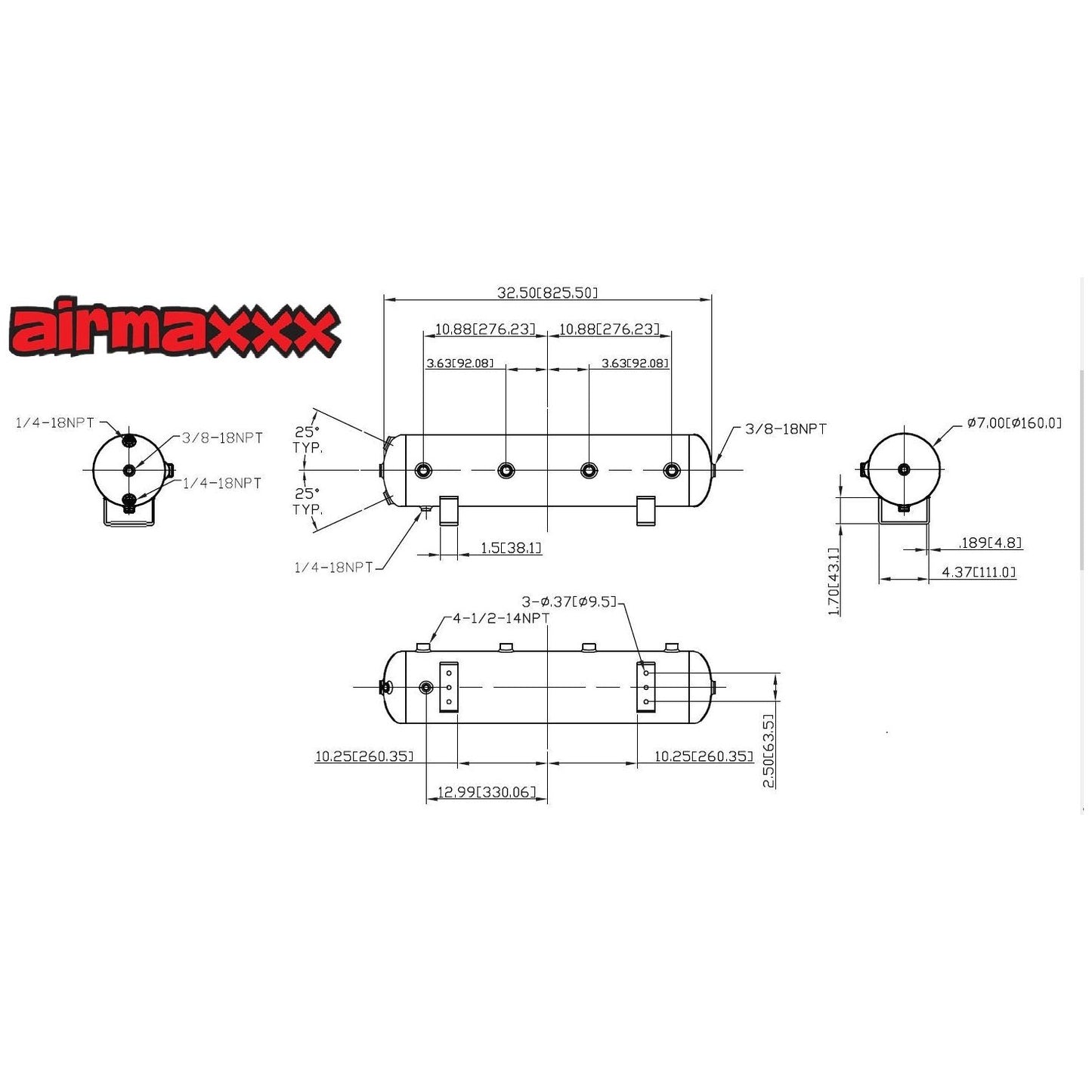

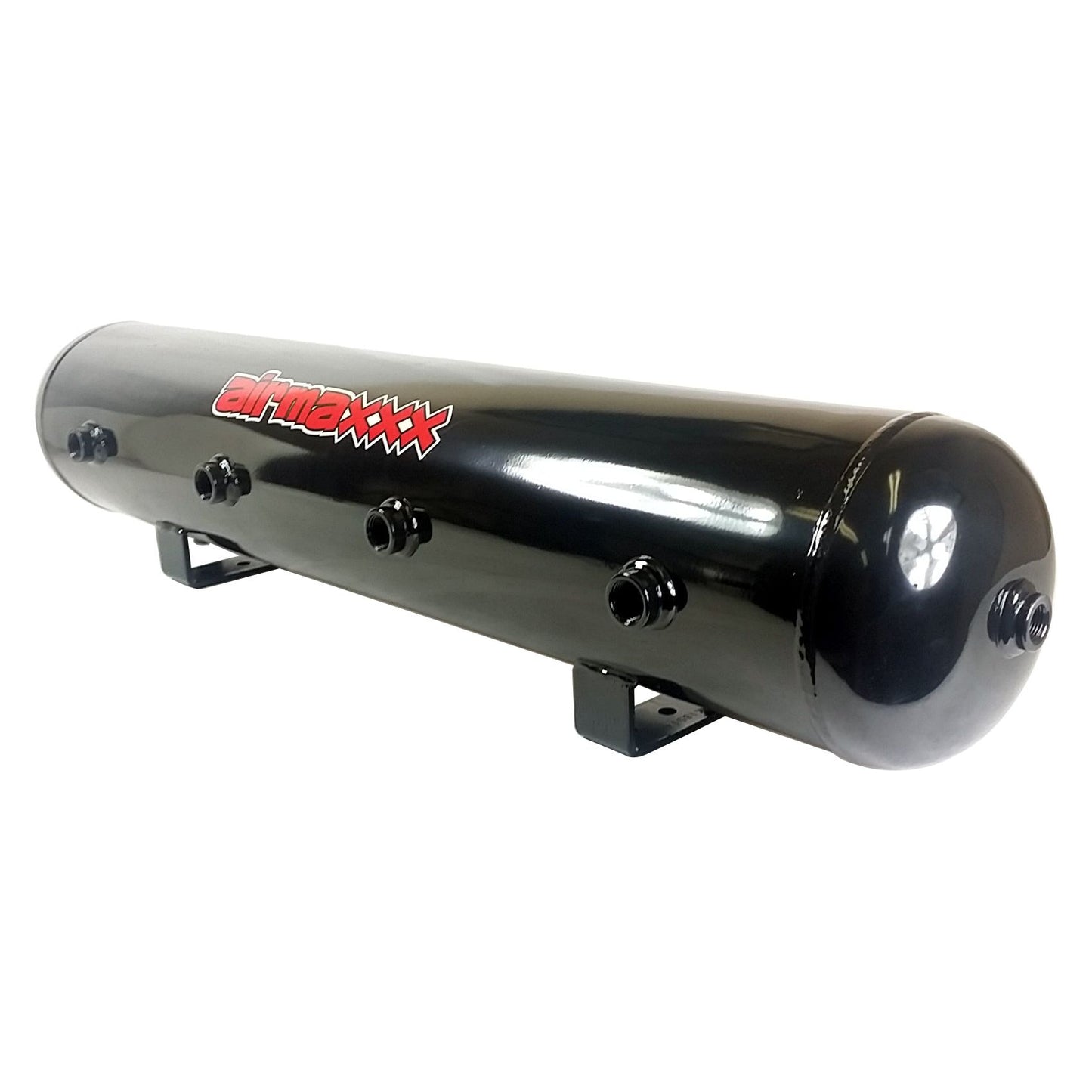

• 9 Port Tank Specs:

  • 4 - 1/2"NPT Ports (across front)
  • 2 - 3/8"NPT Ports (1 on each end)
  • 3 - 1/4"NPT Ports (2 on one end & drain)

Features & Benefits:

• Dual Compressor Power: Two airmaxxx 400 chrome compressors provide ample air volume and faster recovery times.
• Versatile Port Options: Choose between 7 or 9 ports on the 5-gallon tank to perfectly match your system's needs.
• Durable and Stylish: Steel tank with gloss black powder coat offers both longevity and a great look.
• Reliable Performance: Components are selected for dependable operation in air ride and on-board air applications.
• Comprehensive Kit: Includes key components to get your air system started.

Please note: A mounting bracket to secure specifically designed to secure a single 400 compressor to a solid surface is available and sold separately.

Equip your vehicle with the airmaxxx Dual 400 Chrome Air Compressors & 5 Gallon Steel Air Tank Kit for a powerful, versatile, and dependable on-board air solution.
