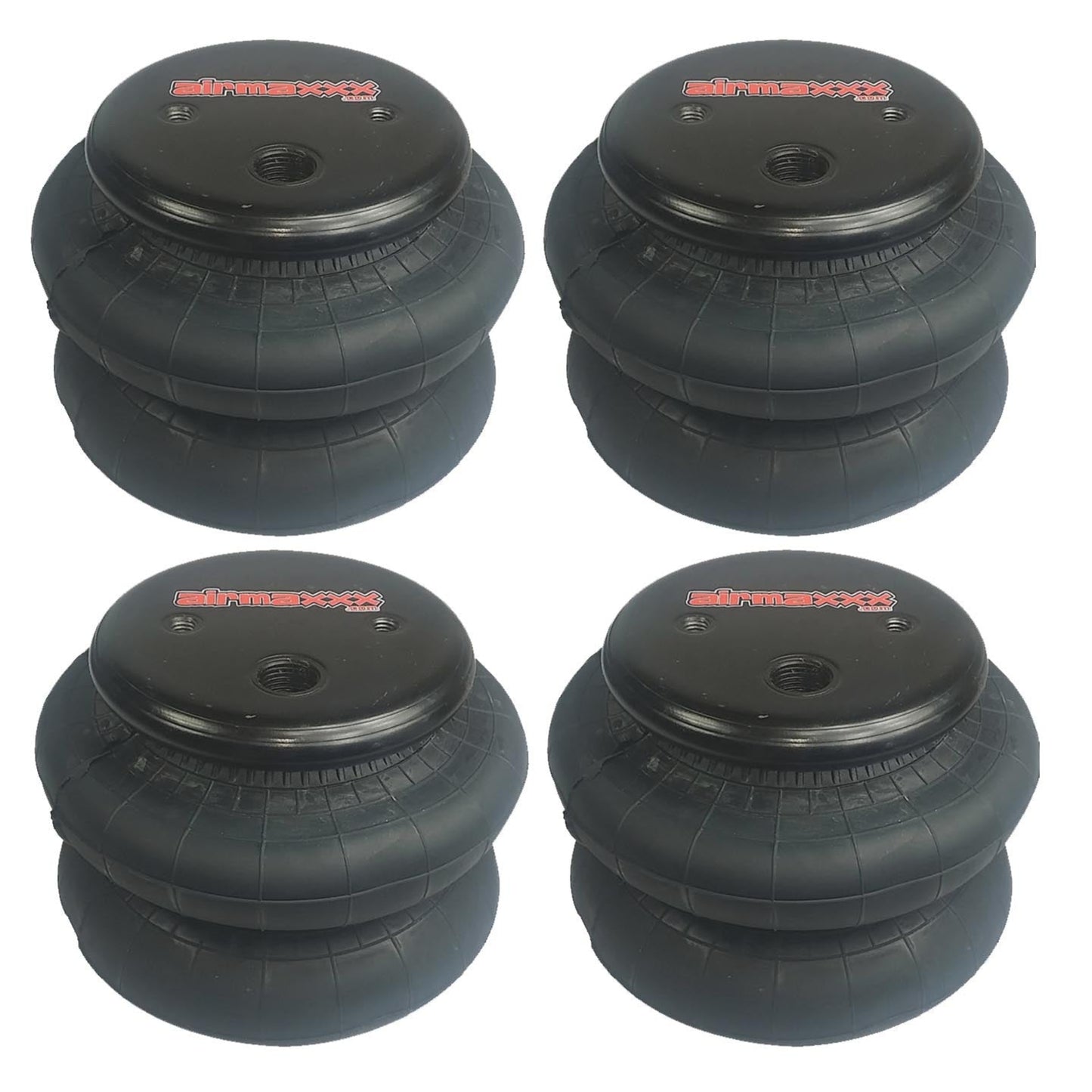

airmaxxx 2600 Air Bag Double Convoluted Suspension Spring 1/2"npt Port

Heavy-Duty Support for Bigger Builds

The airmaxxx 2600 Double Convoluted Air Bag is built to handle serious weight while keeping your ride smooth and controlled. With a 7" diameter and 2,600 lb load capacity, this air spring is perfect for full-size trucks, SUVs, classic cars, and custom bagged builds.

Why It’s a Great Choice

• Strong & Reliable – Supports up to 2,600 lbs per bag.

• Smoother Ride – Double convoluted design improves comfort at lower pressures.

• Firestone Replacement – Direct replacement for Firestone 224C air bags.

• Universal Fit – Works in custom air ride setups, front or rear suspension.

Specifications

• Extended height: 9"

• Collapsed height: 2.75"

• Diameter: 7"

• Port: 1/2"NPT
  (single port)

• Top mount: two holes, approx. 2.75" apart
  (center-to-center)

• Bottom mount: one center hole

• Threads: 3/8"-16 UNC

Lifetime Warranty

Covered for life against defects in materials and workmanship.
(Excludes punctures, abrasions, improper installation, or misuse.)

Perfect For

• Full-size trucks & SUVs

• Classic cars & hot rods

• Custom air ride suspension builds

• Load-leveling systems

• Firestone 224C replacement applications

What’s Included

• (1) airmaxxx 2600 Double Convoluted Air Spring
  (choose 1, 2, or 4 pack)
