airmaxxx 2600 Air Bag Double Convoluted Suspension Spring 1/2"npt Port
Heavy-Duty Support for Bigger Builds
The airmaxxx 2600 Double Convoluted Air Bag is built to handle serious weight while keeping your ride smooth and controlled. With a 7" diameter and 2,600 lb load capacity, this air spring is perfect for full-size trucks, SUVs, classic cars, and custom bagged builds.
Why It’s a Great Choice
Strong & Reliable – Supports up to 2,600 lbs per bag.
Smoother Ride – Double convoluted design improves comfort at lower pressures.
Firestone Replacement – Direct replacement for Firestone 224C air bags.
Universal Fit – Works in custom air ride setups, front or rear suspension.

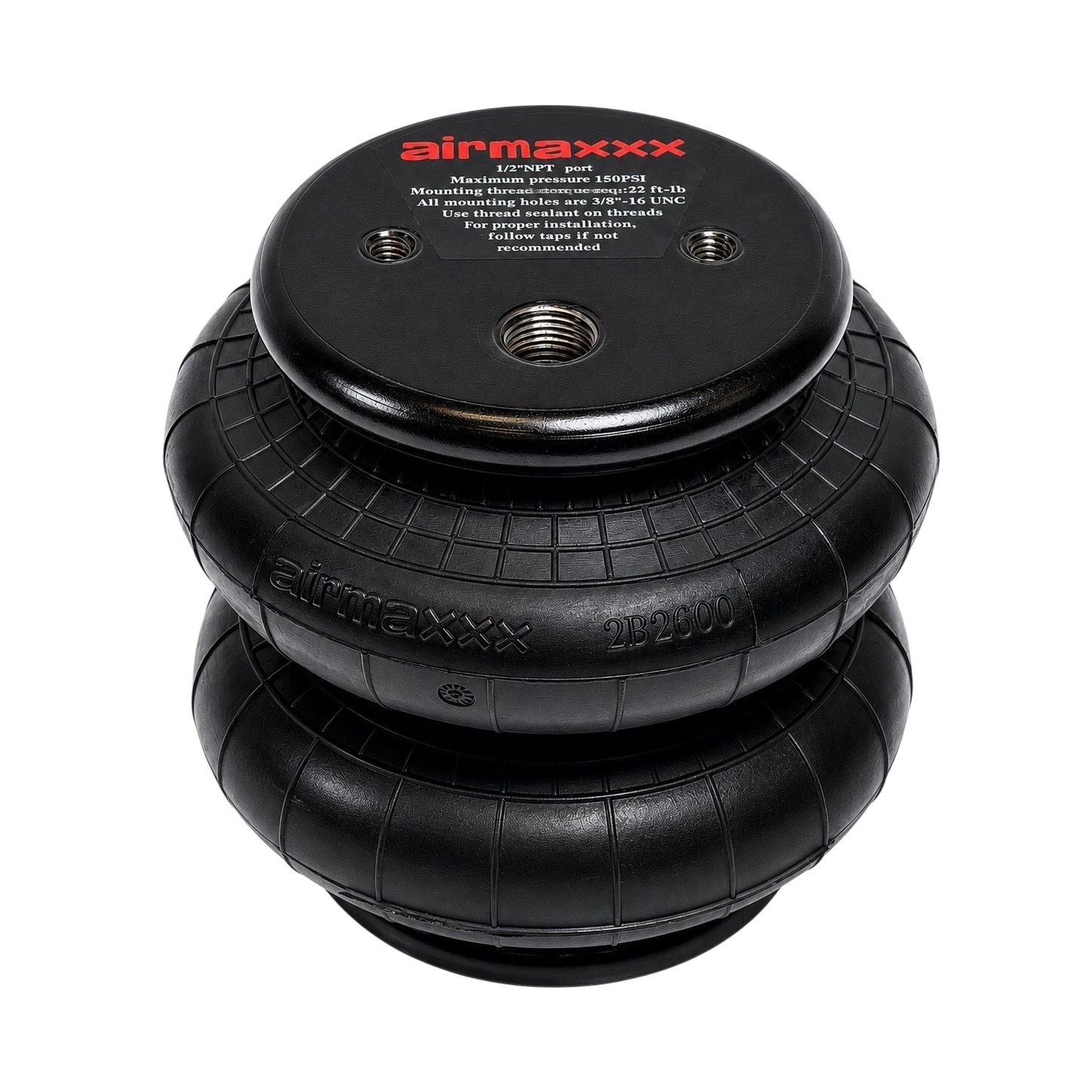

Specifications
Extended height: 9"
Collapsed height: 2.75"
Diameter: 7"
Port: 1/2"NPT
(single port)
Top mount: two holes, approx. 2.75" apart
(center-to-center)
Bottom mount: one center hole
Threads: 3/8"-16 UNC
Lifetime Warranty
Covered for life against defects in materials and workmanship.
(Excludes punctures, abrasions, improper installation, or misuse.)
Perfect For
Full-size trucks & SUVs
Classic cars & hot rods
Custom air ride suspension builds
Load-leveling systems
Firestone 224C replacement applications

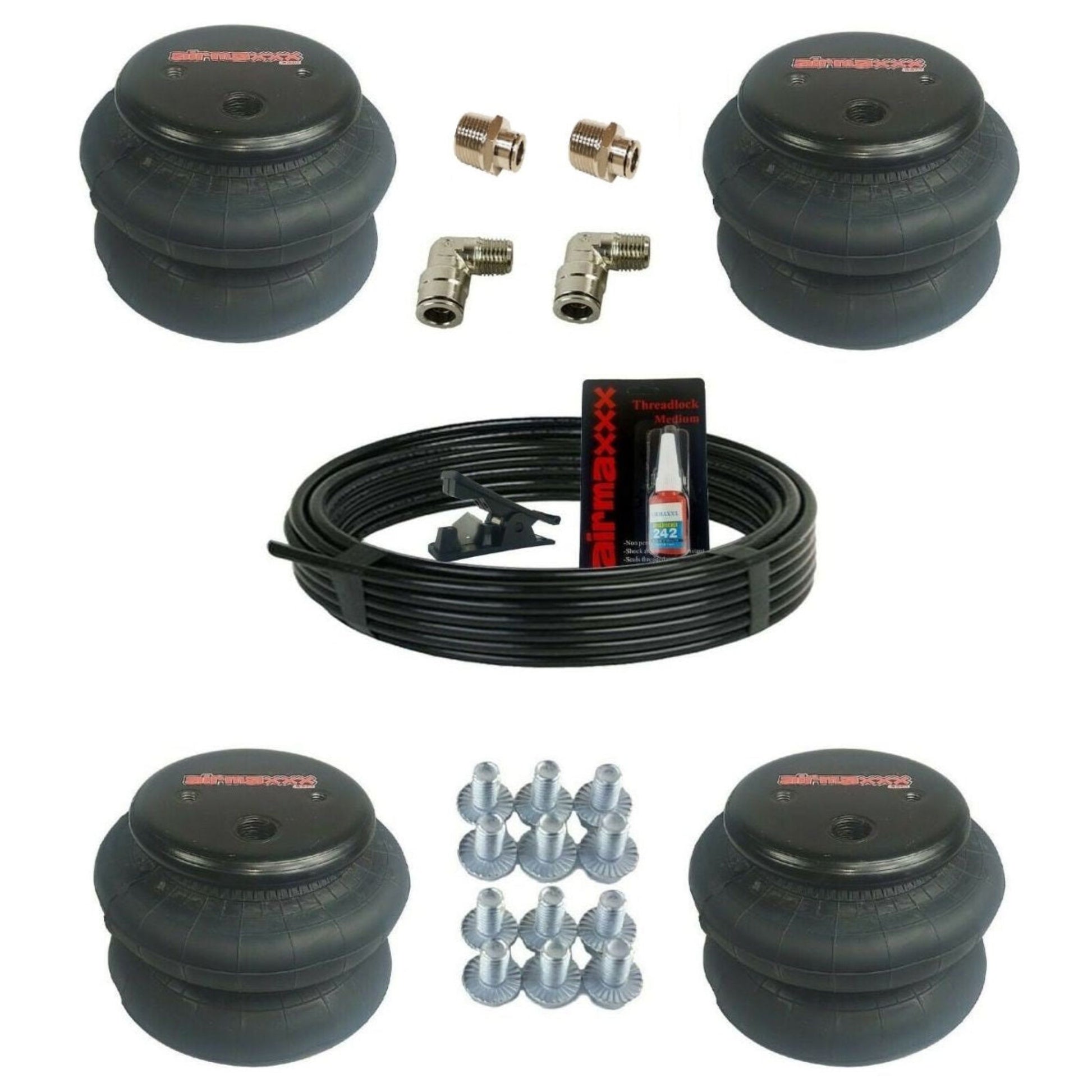

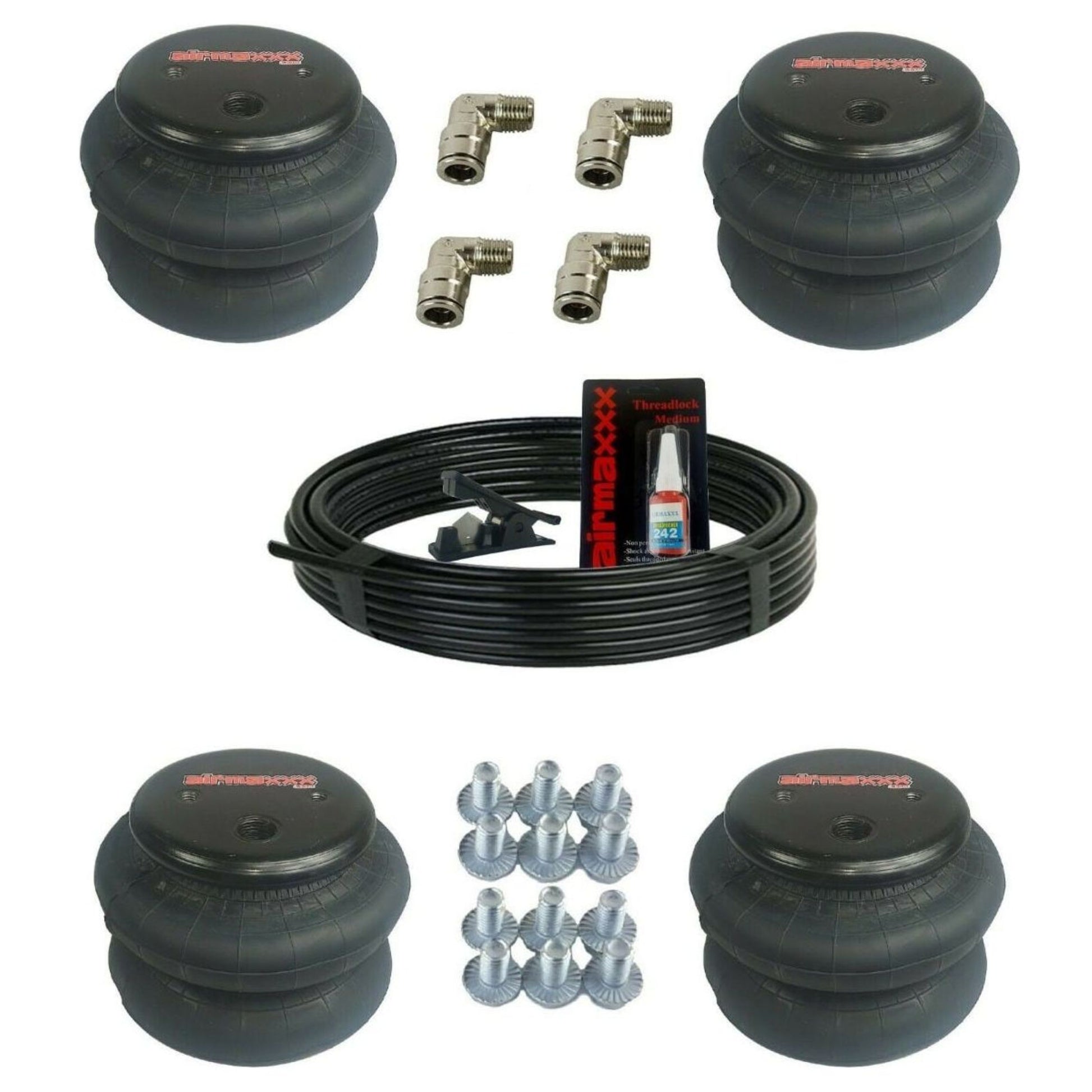

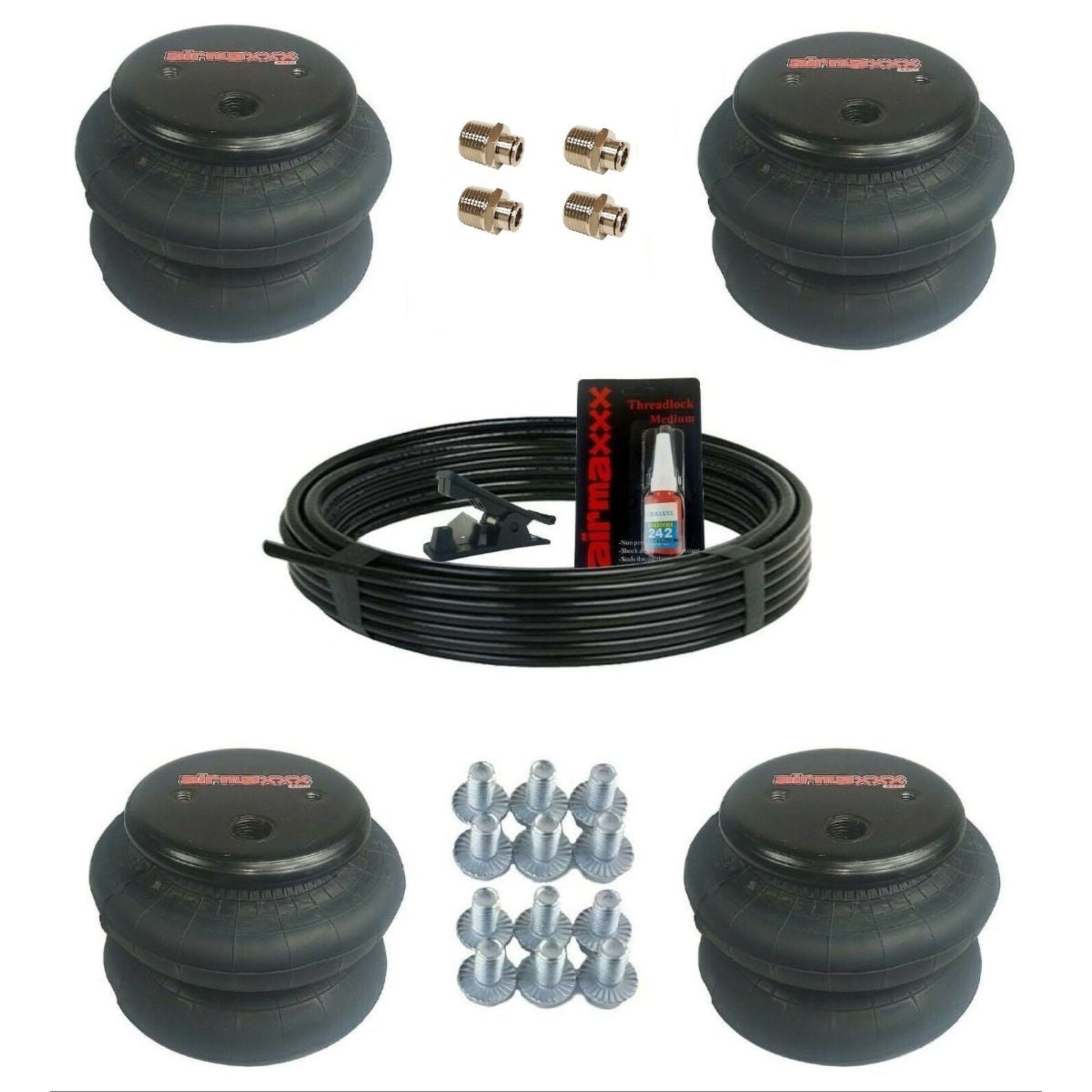

What’s Included

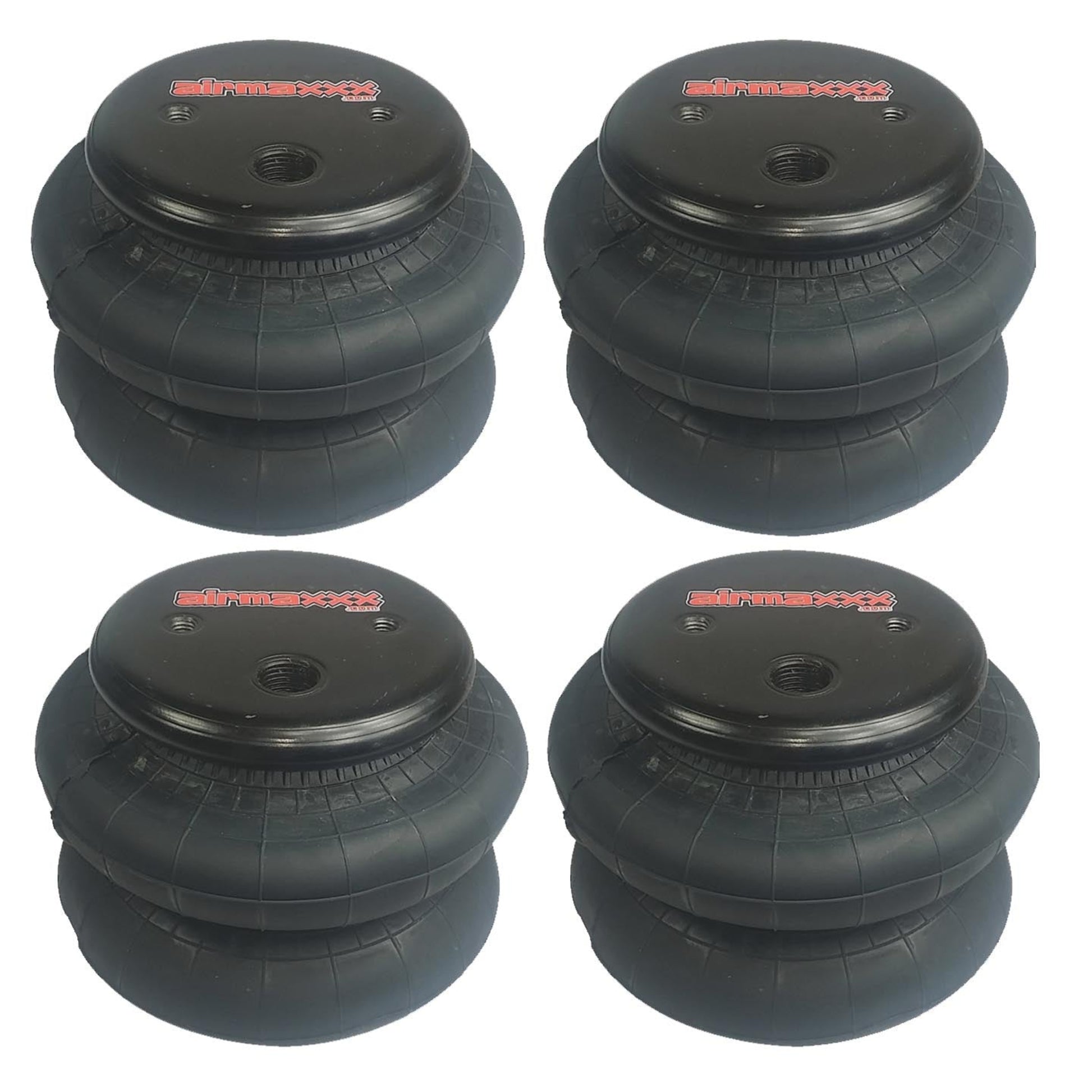

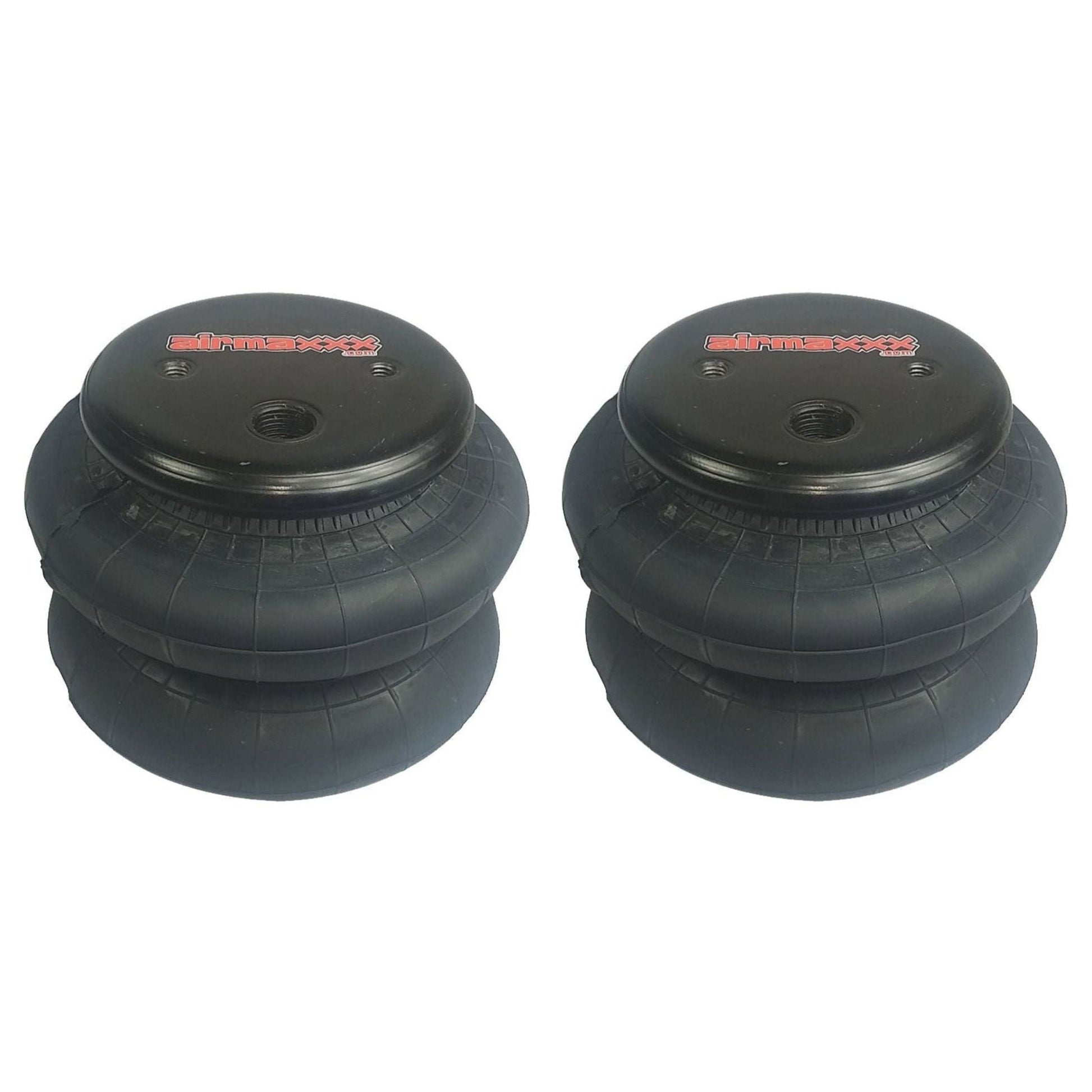

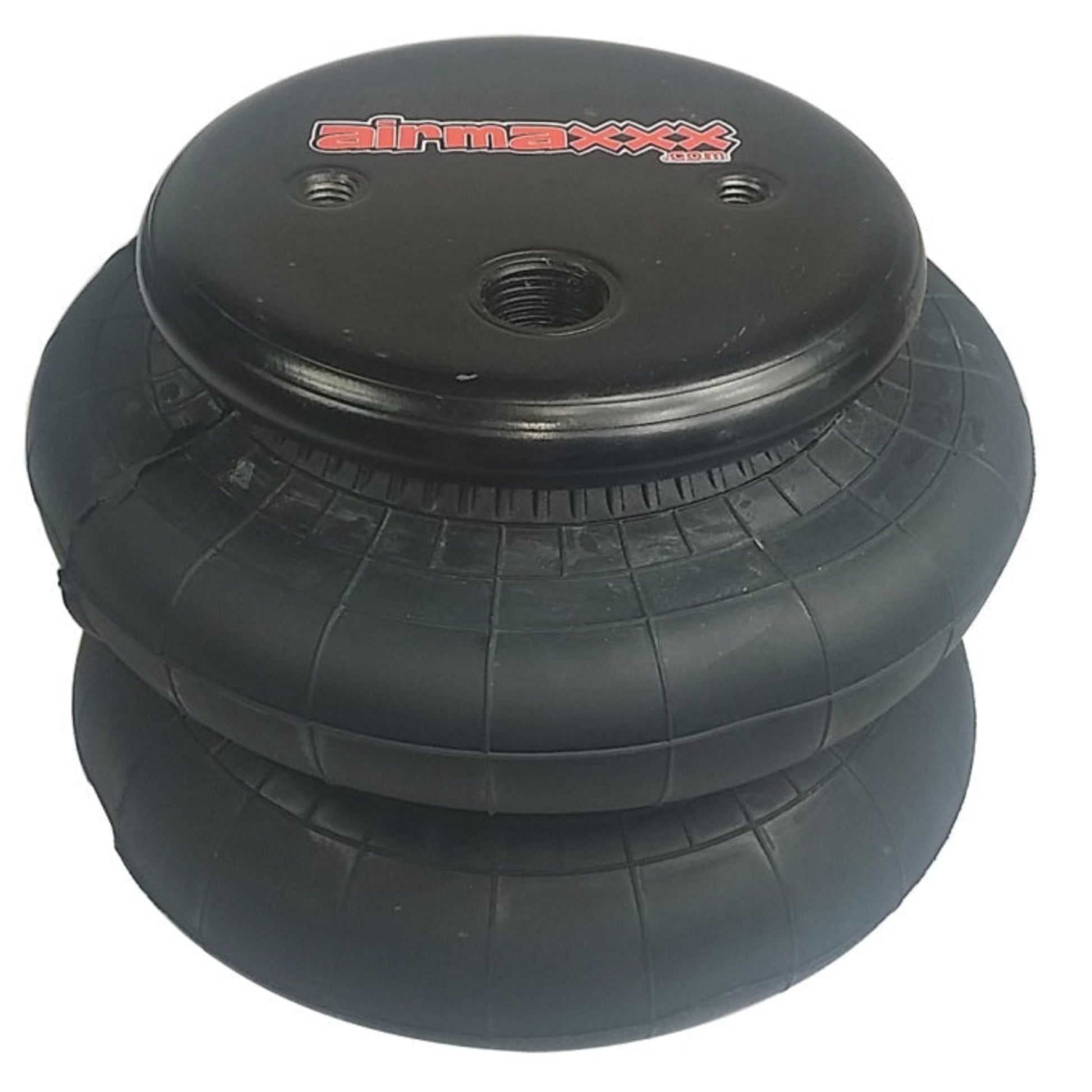

(1) airmaxxx 2600 Double Convoluted Air Spring
(choose 1, 2, or 4 pack)
