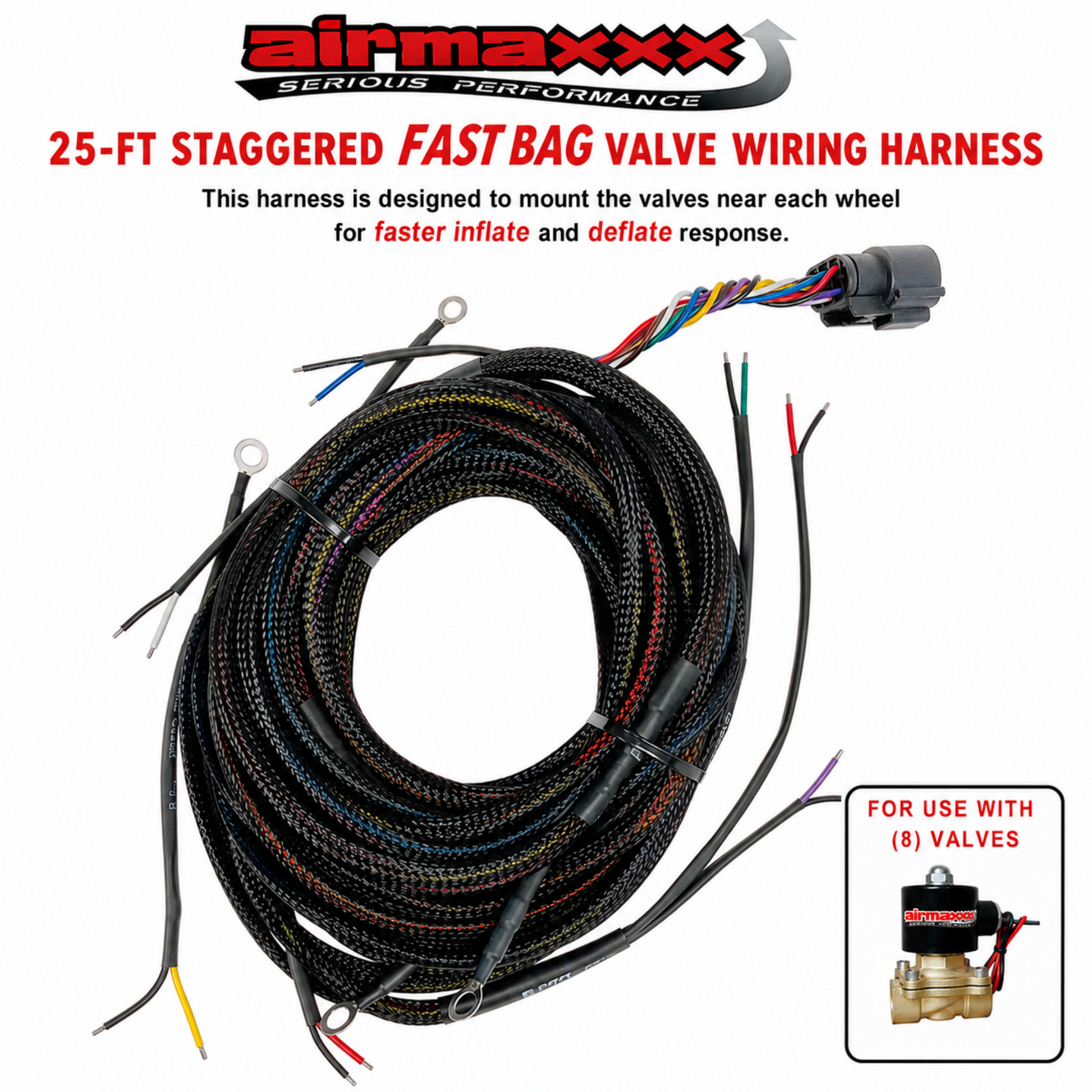

airmaxxx 25-Foot Staggered Fast Bag Air Valve Wiring Harness

Cleaner Air Ride Wiring with Faster Valve Response

The airmaxxx 25-Foot Staggered Fast Bag Valve Wiring Harness is built for air suspension setups that need cleaner wiring, improved valve placement, and quicker suspension response. Instead of mounting every valve in one central location, this staggered harness allows valve pairs to be positioned closer to each wheel for shorter air line runs and better overall performance.

By reducing the distance between the valves and air bags, your suspension can react quicker while keeping the installation cleaner and easier to service. This layout is ideal for custom air ride builds where response time and professional appearance both matter.

Key Features

Staggered Valve Layout

Different wire lead lengths allow valve pairs to be mounted near each corner of the vehicle for cleaner routing and improved airflow response.

25-Foot Harness Length

Provides plenty of reach for mini trucks, classic cars, full-size trucks, SUVs, and long-wheelbase custom builds.

Plug-and-Play Compatibility

Designed to work directly with:
AVS ARC-7 Switch Boxes
Slam Specialties MC.1 Controllers
Slam Specialties MC.2 Controllers

Built for 8-Valve Air Ride Systems

Supports four inflate valves and four deflate valves for full FBSS air suspension setups.

Protective Braided Sleeving

Braided loom helps protect wiring from abrasion, heat, moisture, and road debris while maintaining a clean appearance.

Color-Coded Wiring

Simplifies installation and troubleshooting by making valve identification easier.

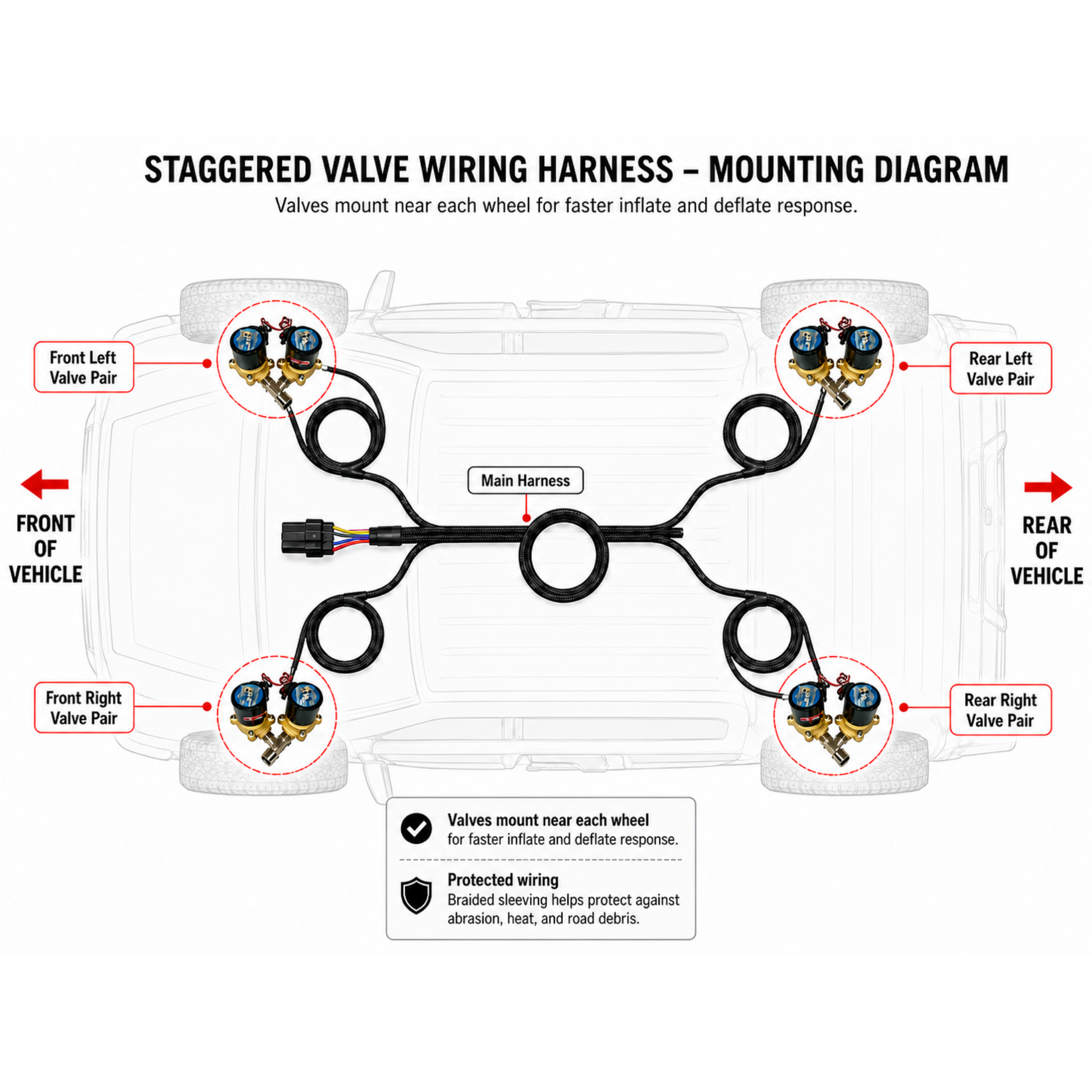

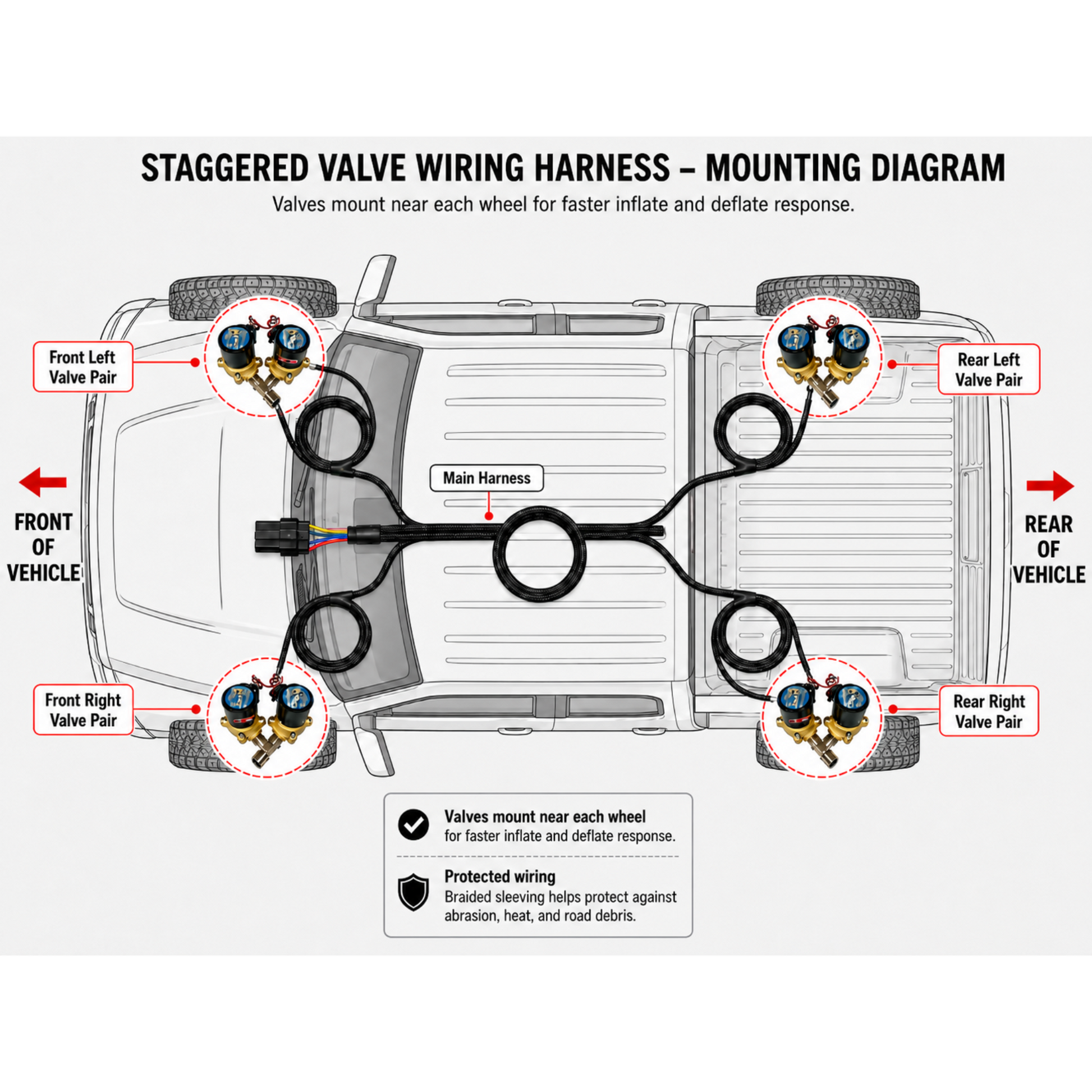

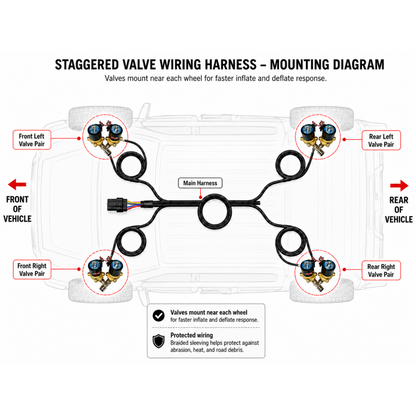

Why Use a Staggered Harness?

Many traditional air ride systems mount all valves near the air tank or center of the vehicle. While functional, that setup usually creates longer air line runs, which can slow suspension movement and clutter the installation.

This staggered fast bag harness allows the valves to be mounted closer to the air bags themselves, helping improve:
Faster lift speed
Quicker drop speed
Cleaner plumbing layout
Better airflow response
Reduced wiring clutter

The result is a cleaner-looking installation with improved air suspension performance.

Perfect For

Mini trucks
Classic cars
Full-size trucks
SUVs
Custom chassis builds
Hot rods
Long-wheelbase air ride vehicles

This harness is especially useful for builders wanting cleaner wiring and faster air bag response without building a custom harness from scratch.

Compatibility

Compatible Controllers

AVS ARC-7
Slam Specialties MC.1
Slam Specialties MC.2

Designed For

8-valve air suspension systems using individual inflate and deflate valve control.

Installation Notes

For best performance, mount each valve pair as close to the corresponding air bag as possible. Route the harness away from exhaust heat, moving suspension components, sharp edges, and pinch points to help protect the wiring and maintain long-term reliability.

The staggered layout naturally reduces excess wire buildup for a cleaner, more organized installation.

Product Highlights

airmaxxx 25-foot staggered valve wiring harness
Designed for four-corner air suspension systems
Plug-and-play controller compatibility
Supports FBSS 8-valve setups
Improves air bag response speed
Braided protective sleeving included
Cleaner wiring layout for custom air ride installs
Great for trucks, cars, SUVs, and chassis builds

Why Choose This Harness

The airmaxxx Staggered Fast Bag Valve Wiring Harness helps simplify complex air ride wiring while improving suspension response and valve placement. By allowing valves to be mounted closer to each wheel, you get quicker air movement, cleaner plumbing, and a more professional installation without needing to build your own custom wiring harness.

Perfect for builders who want dependable wiring, faster suspension response, and a cleaner air ride setup.
