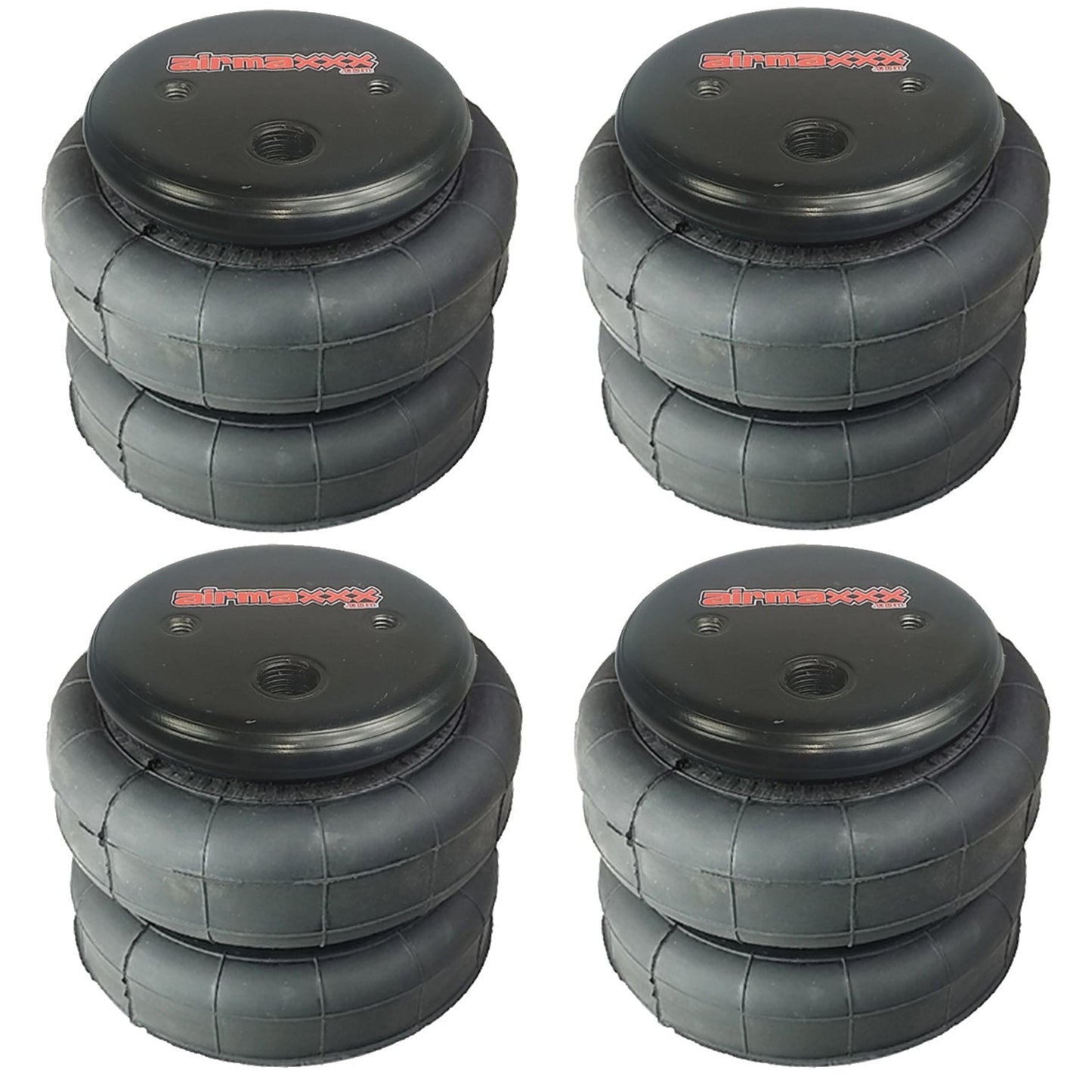

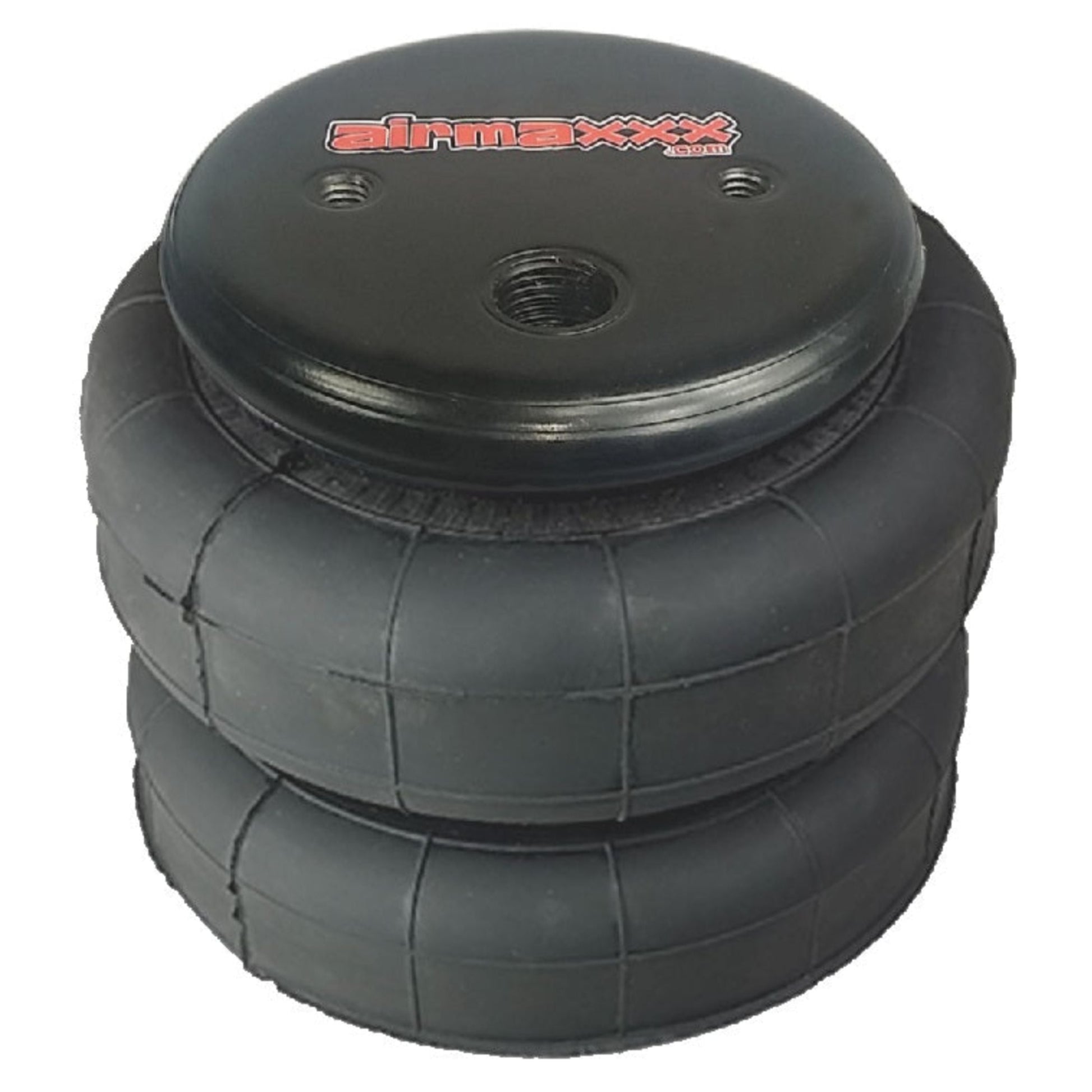

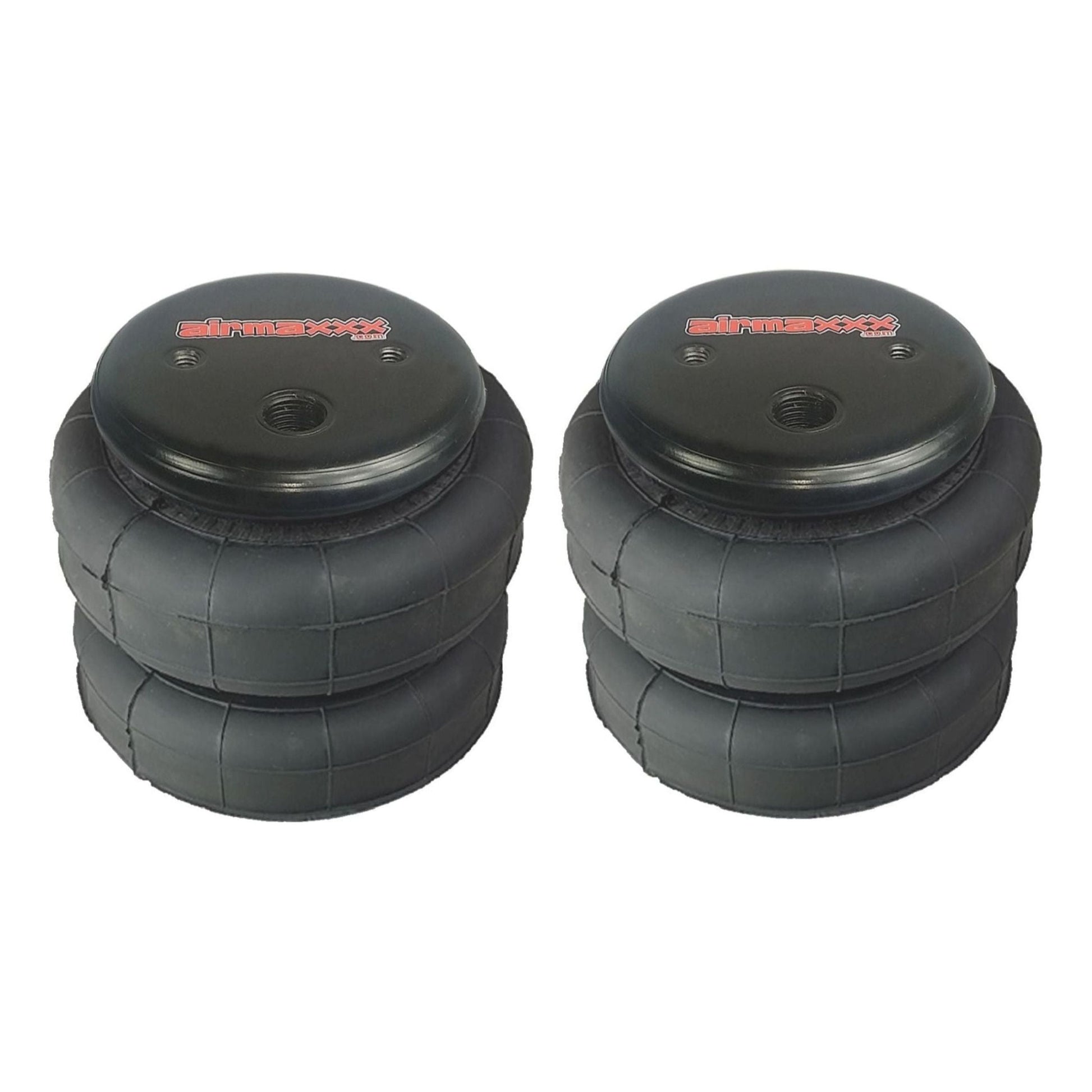

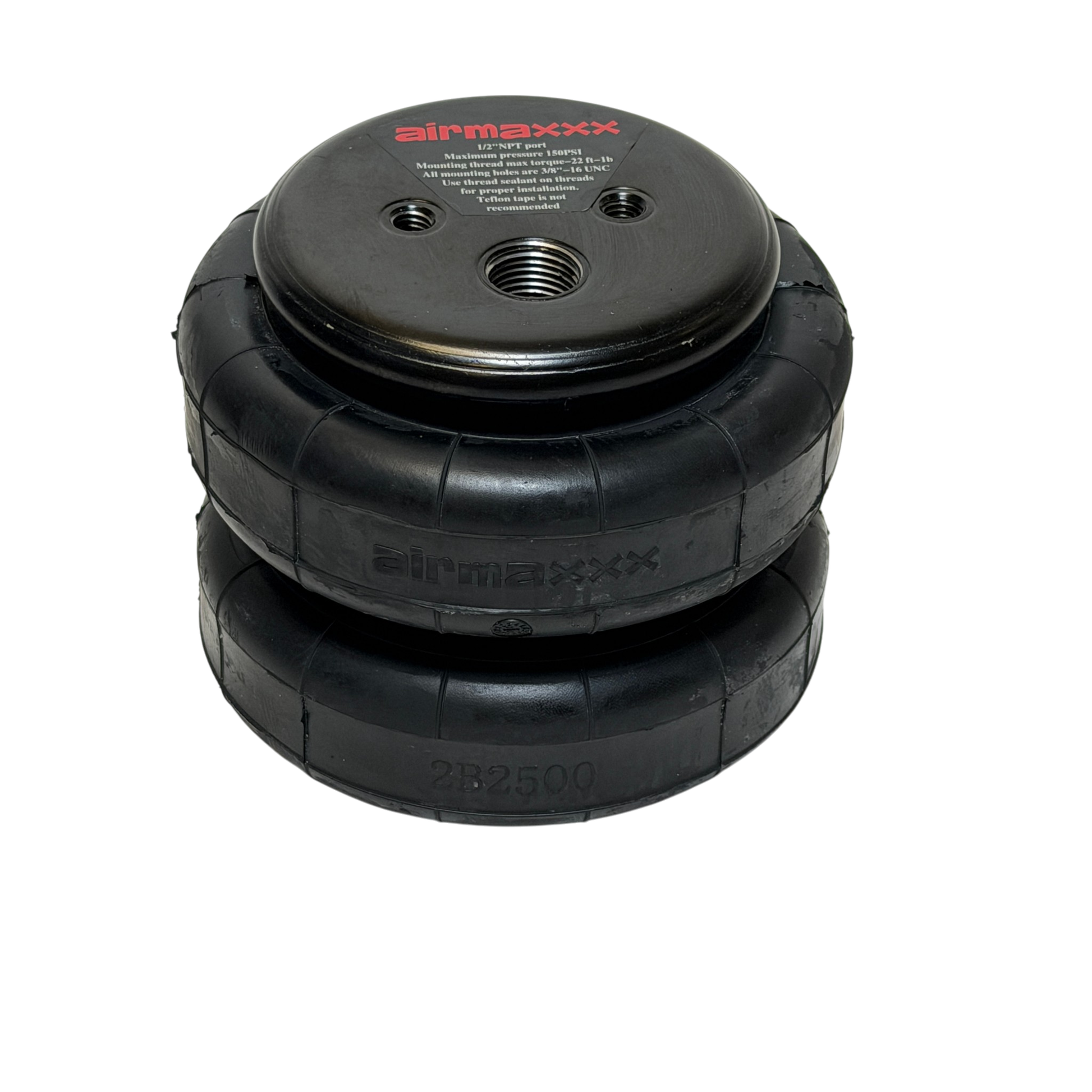

airmaxxx 2500 Air Ride Suspension Bag
Compact Double Convoluted Design

Perfect for tight builds and low-profile rides, the airmaxxx 2500 Air Spring is a compact and versatile solution for your air suspension setup. With a 6-inch diameter and an 8-inch extended height, this bag is ideal for mini trucks, classic cars, and hot rods where space is limited.

Engineered to match the performance of the Firestone 255C or 2500 series air bags, it provides up to 2,500 lbs of load support while maintaining a smooth, controlled ride. Whether you're lifting, leveling, or laying frame, this air spring delivers consistent performance in a space-saving design.

🔧 Key Features:

• Load Rating: 2,500 lbs per bag

• Compact Design: Great for front or rear suspension in tight spaces

• Double Convoluted for smooth ride quality and durability

• Extended Height: 8"

• Collapsed Height: 2.75"

• Diameter: 6"

📏 Mounting Specifications:

• Top Mount: Two holes, approx. 1.75" apart (center-to-center)

• Bottom Mount: Three mounting holes for versatile placement

• All Threads: 3/8"-16 UNC

🛡️ Lifetime Warranty Coverage

• Built for reliability in daily driving and show builds

• Lifetime Warranty Included
  (Excludes punctures, abrasions, improper install, or abuse)

✅ Perfect For:

• Mini Trucks & Compact Pickups

• Classic Cars & Custom Hot Rods

• Tight-Fit Suspension Setups

• Air Suspension Replacement for Firestone 255C / 2500 Bags

• Front or Rear Suspension Air Bag Use

📦 What’s Included:

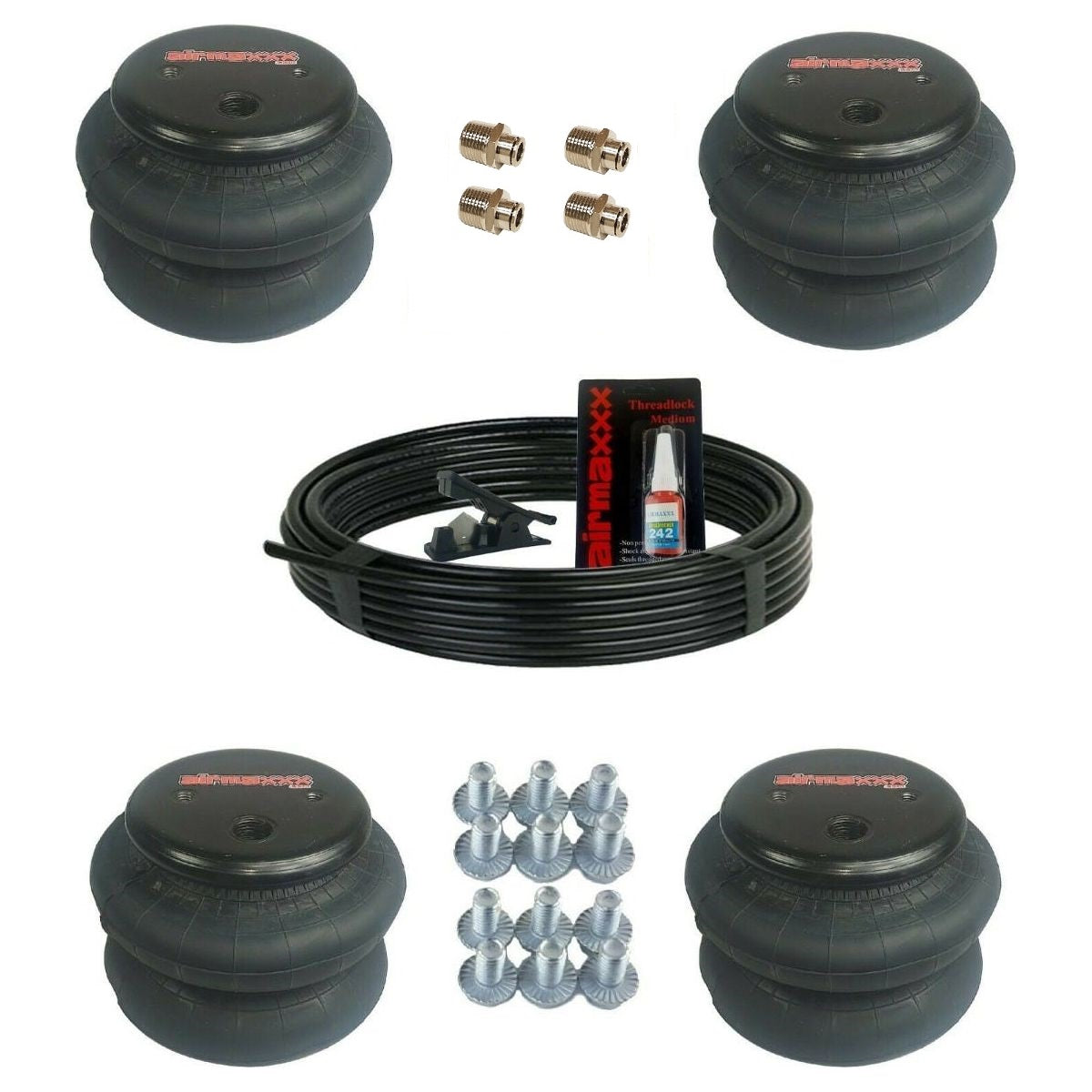

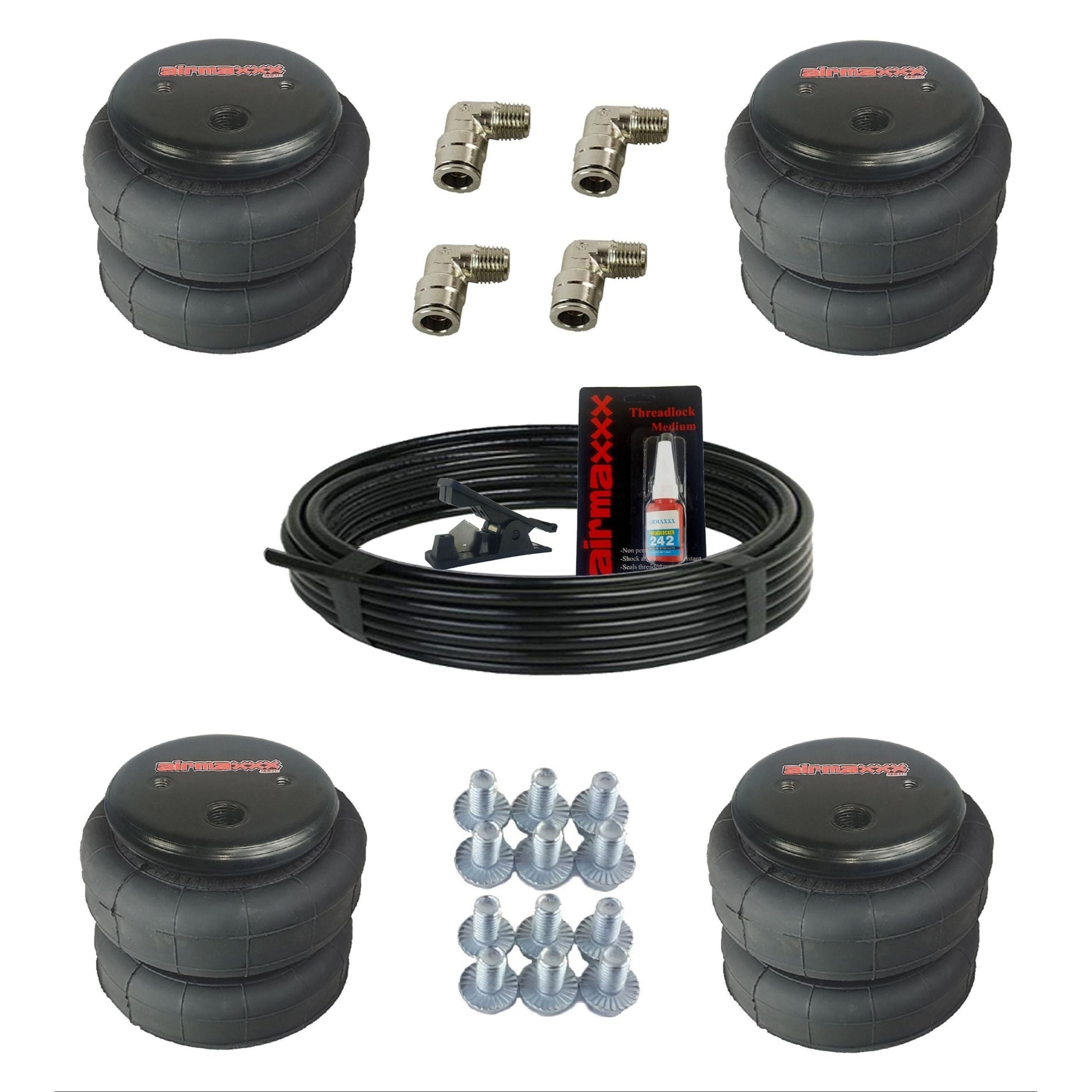

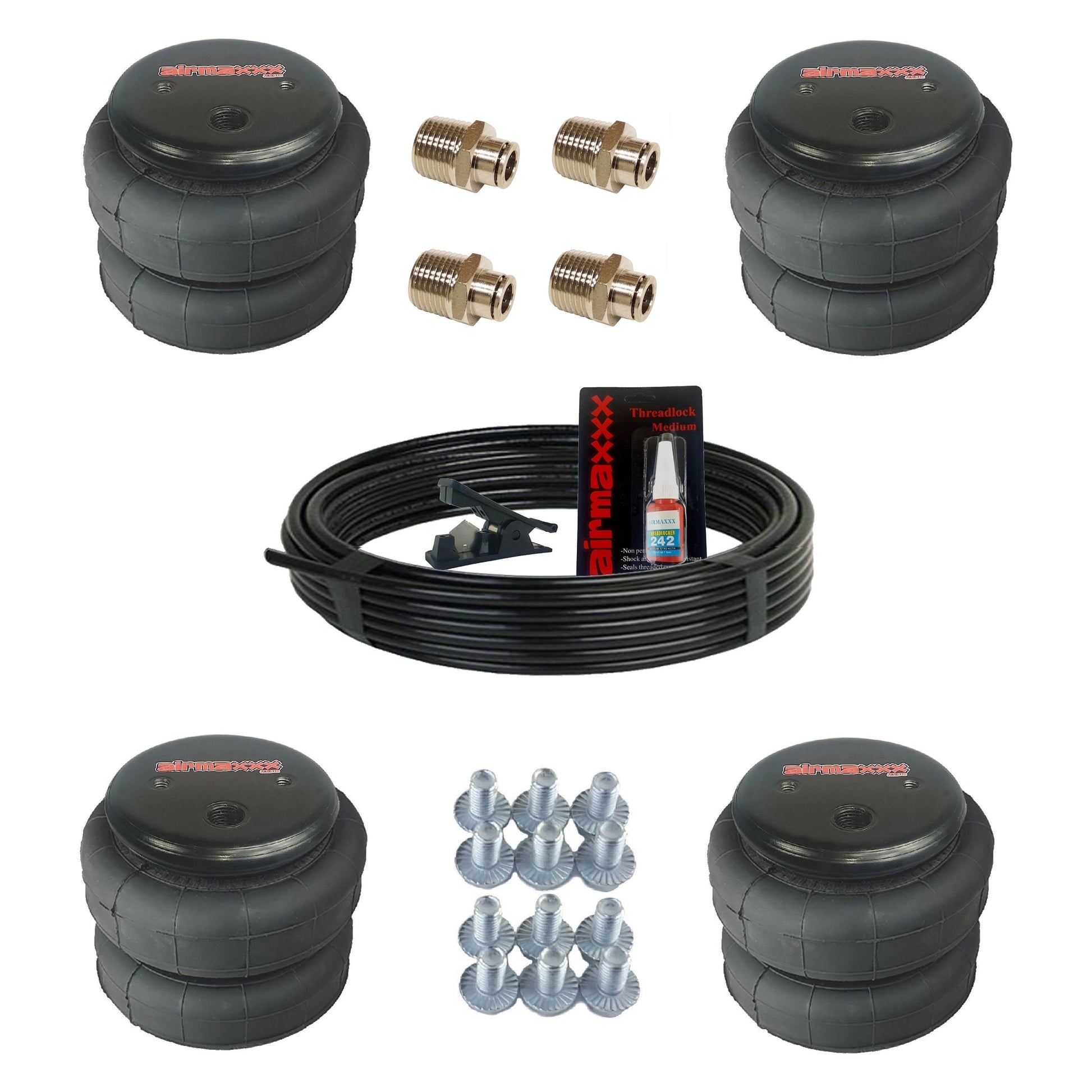

• (1) airmaxxx 2500 Double Convoluted Air Spring (choose 1,2 or 4)
