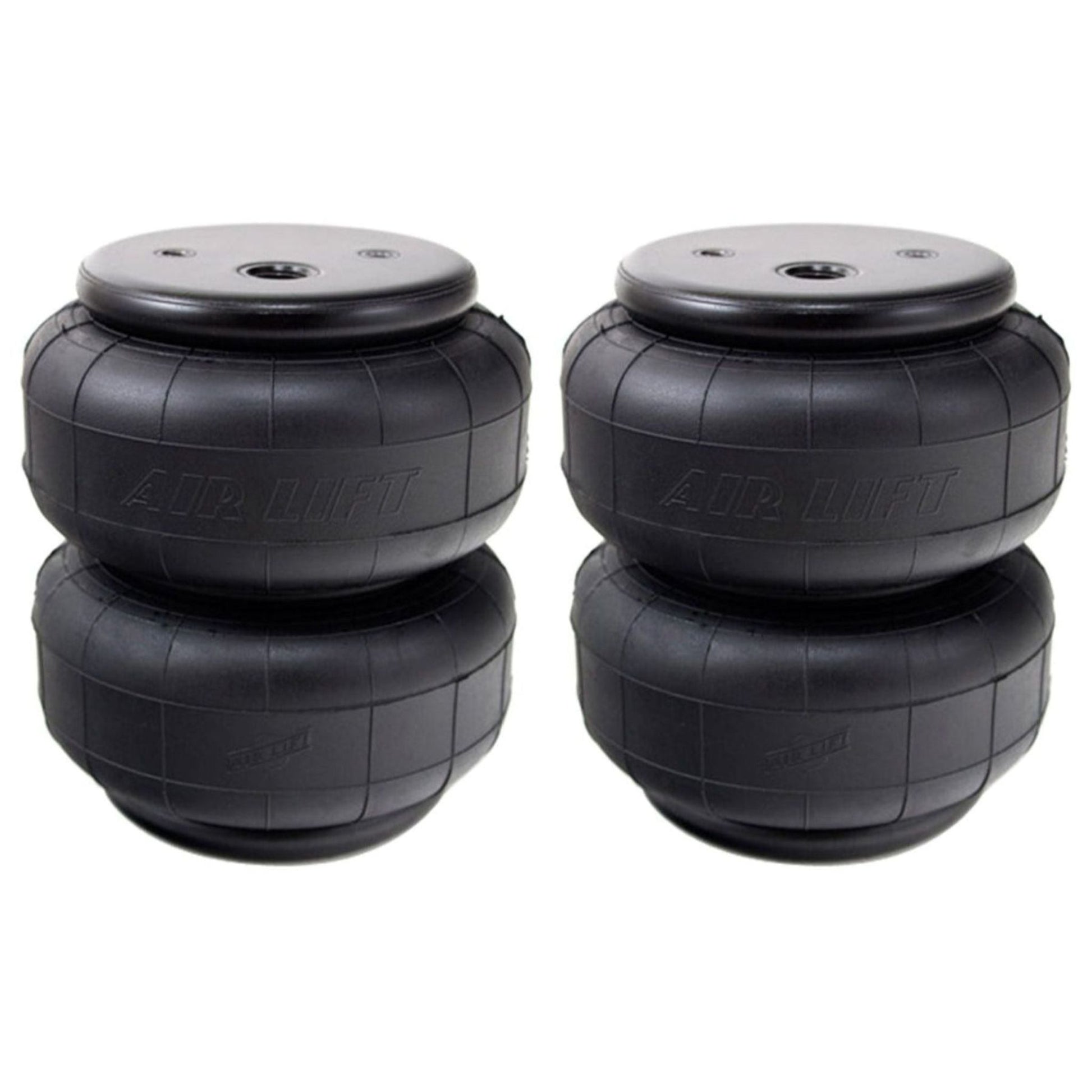

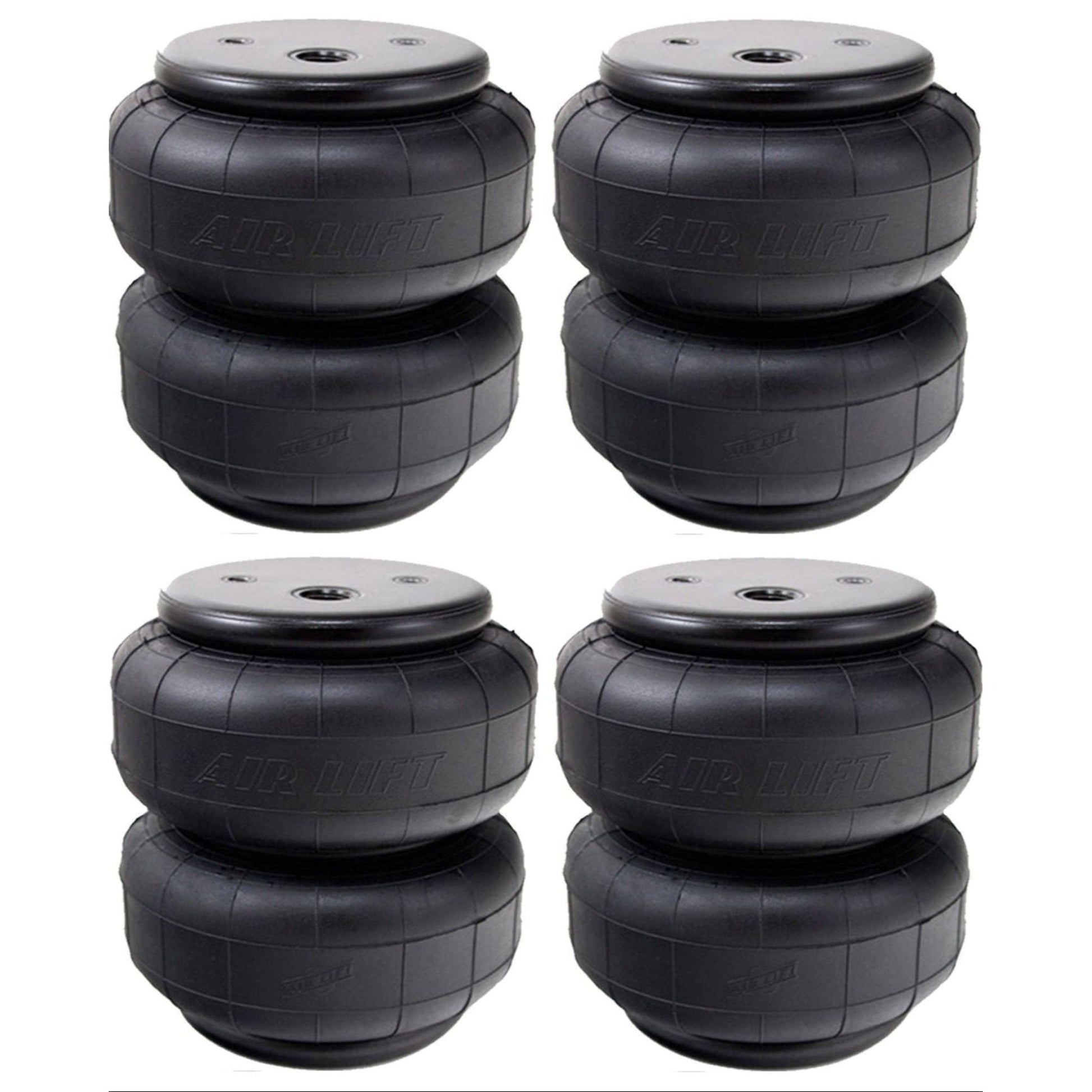

Air Lift Dominator D2600 – Extreme Capacity Air Bag 58616

Heavy-Duty Air Spring for Maximum Lift

The Air Lift Dominator D2600 (58616) is engineered for serious air ride builds that demand extreme strength, lift, and reliability. Featuring a massive 9.7″ stroke, 600 PSI maximum pressure, and a load range of 349–3,055 lbs, this heavy-duty air spring delivers unbeatable performance for trucks, SUVs, and custom suspension projects.

Key Features

Extreme Load Capacity  – Supports up to 3,055 lbs @ 100 PSI.

Long Travel Range  – 9.7″ stroke provides maximum usable lift and flexibility.

High-Pressure Strength  – Rated for 600 PSI restrained pressure for serious builds.

Large, Durable Design  – Built tough with reinforced construction for heavy-duty use.

Smooth Ride Quality  – Delivers stability and comfort even under heavy load.

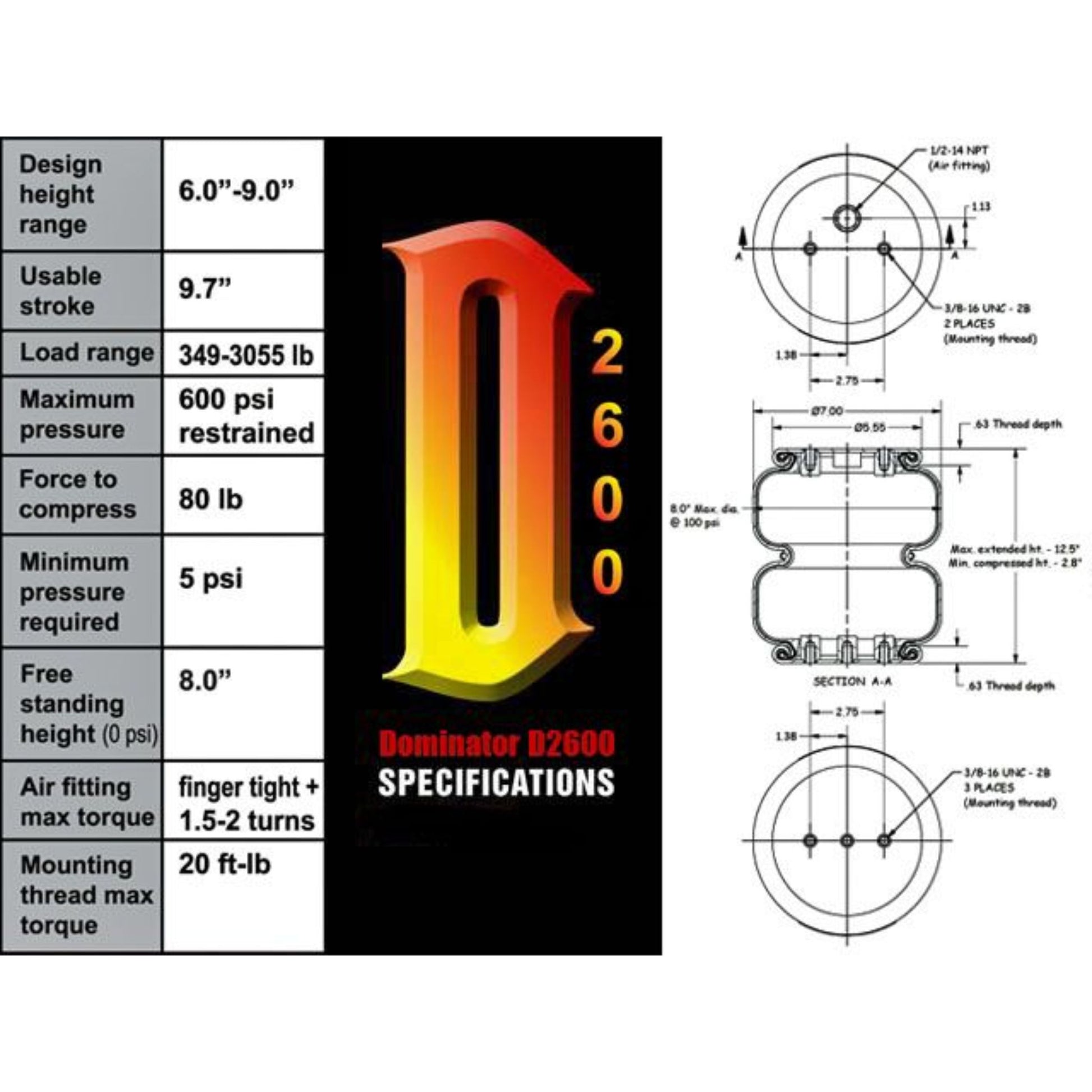

Specifications

Extended Height: 12.5″

Compressed Height: 2.8″

Usable Stroke: 9.7″

Max Diameter: 8″

Load Range: 349–3,055 lbs

UPC: 729199586163

Design Height: 6.0″–9.0″

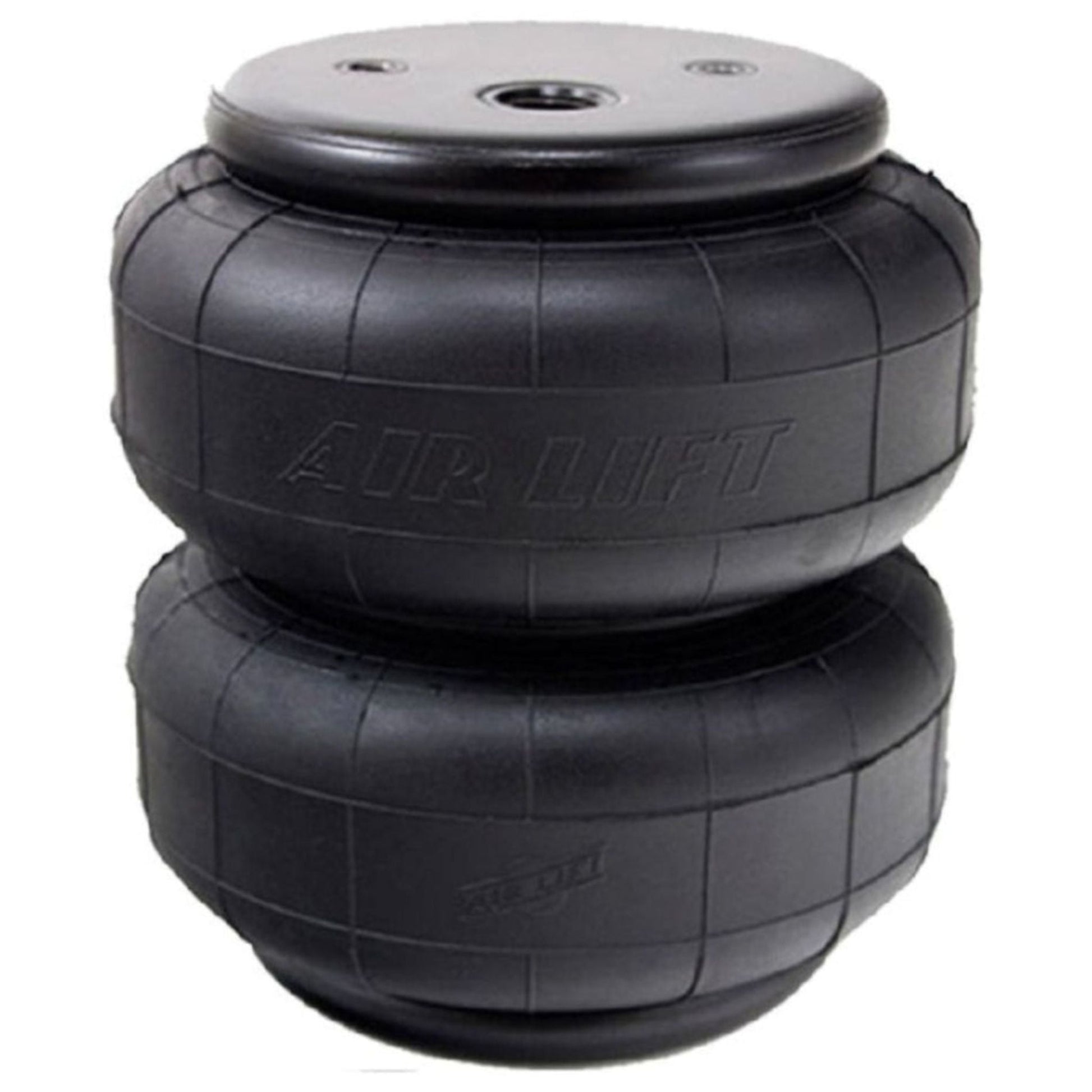

Air Fitting: 1/2″NPT

Top Fastener: 3/8″-16

Bottom Fastener: 3/8″-16

Mounting Centers: 2.75″
