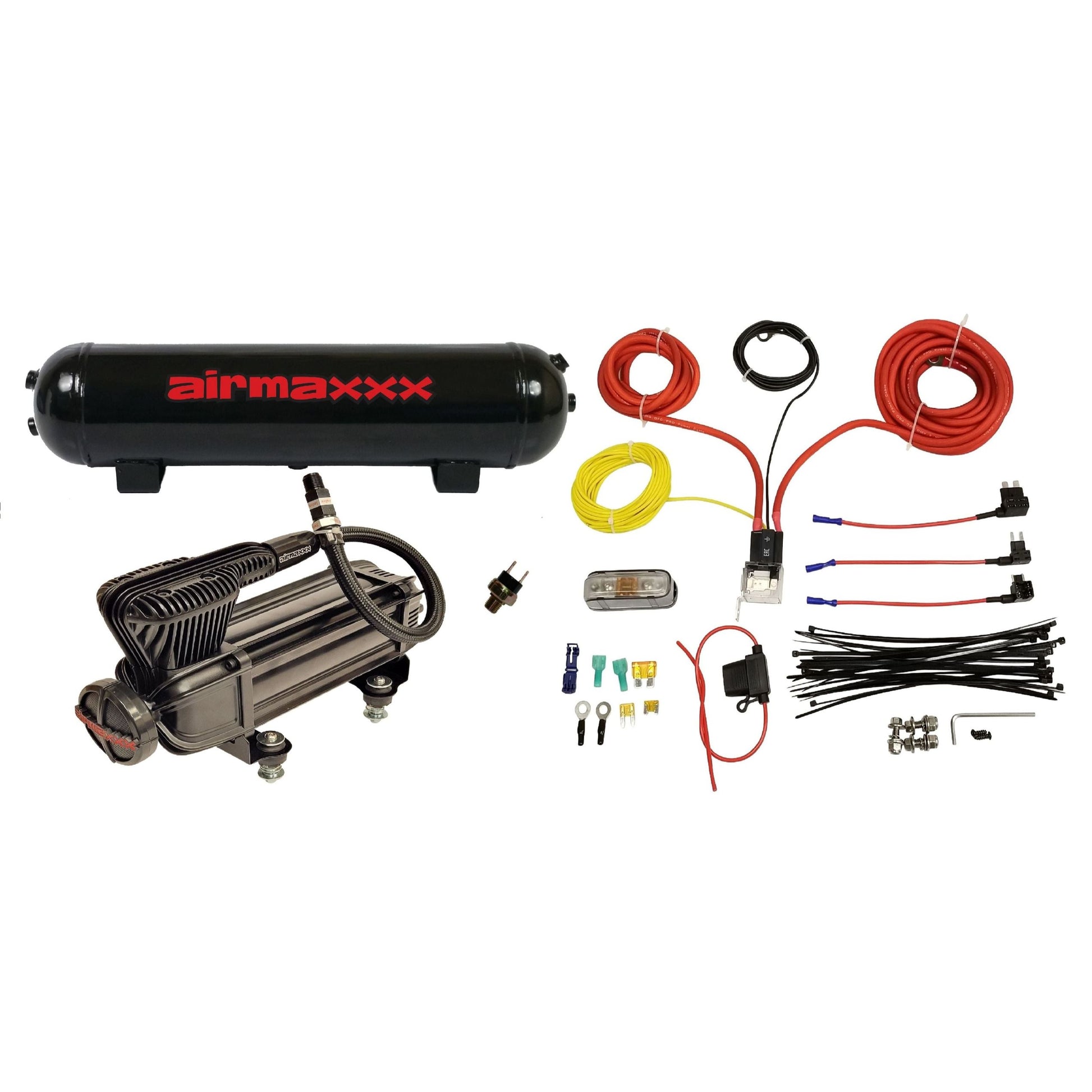

airmaxxx X-Series Black Compressor & 3 Gallon Tank Kit

Premium Onboard Air Made Simple

The airmaxxx X-Series Air Compressor with 3 Gallon Tank and Wiring Kit is a complete onboard air solution, built for power, reliability, and ease of installation. Delivering up to 200 PSI with a 100% duty cycle at 100 PSI, this system is perfect for air horns, air suspension, or auxiliary onboard air needs.

Featuring a high-output X-Series compressor paired with a versatile 6-port 3-gallon tank (choose steel or aluminum), this kit gives you everything you need — including a wiring install kit, pressure switch, and relay. Compact, efficient, and reliable, it’s designed to power your air system with confidence.

Key Features

• High-Output X-Series Compressor – 1.75 CFM, 200 PSI max

• 100% Duty Cycle @ 100 PSI – Runs continuously at standard air pressures

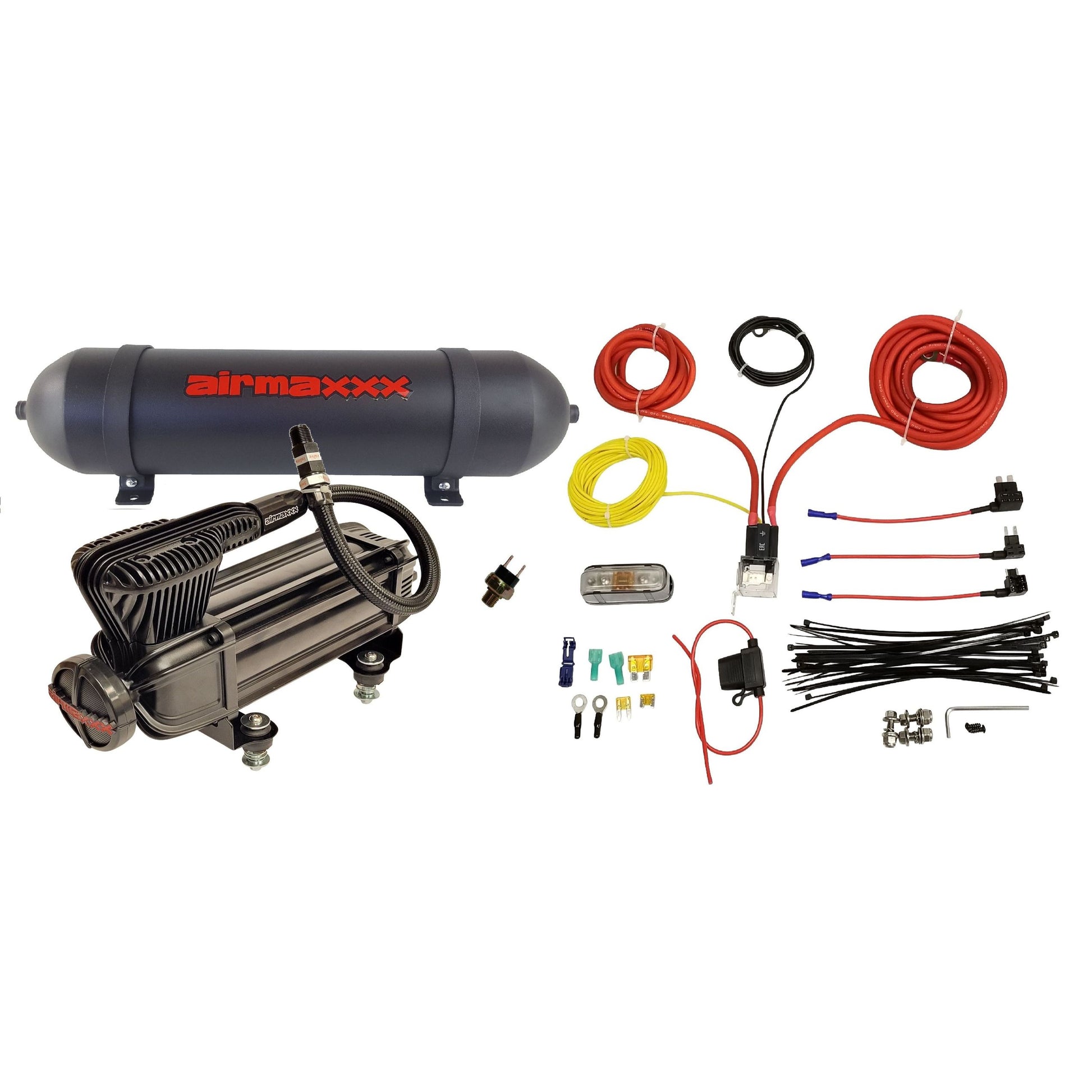

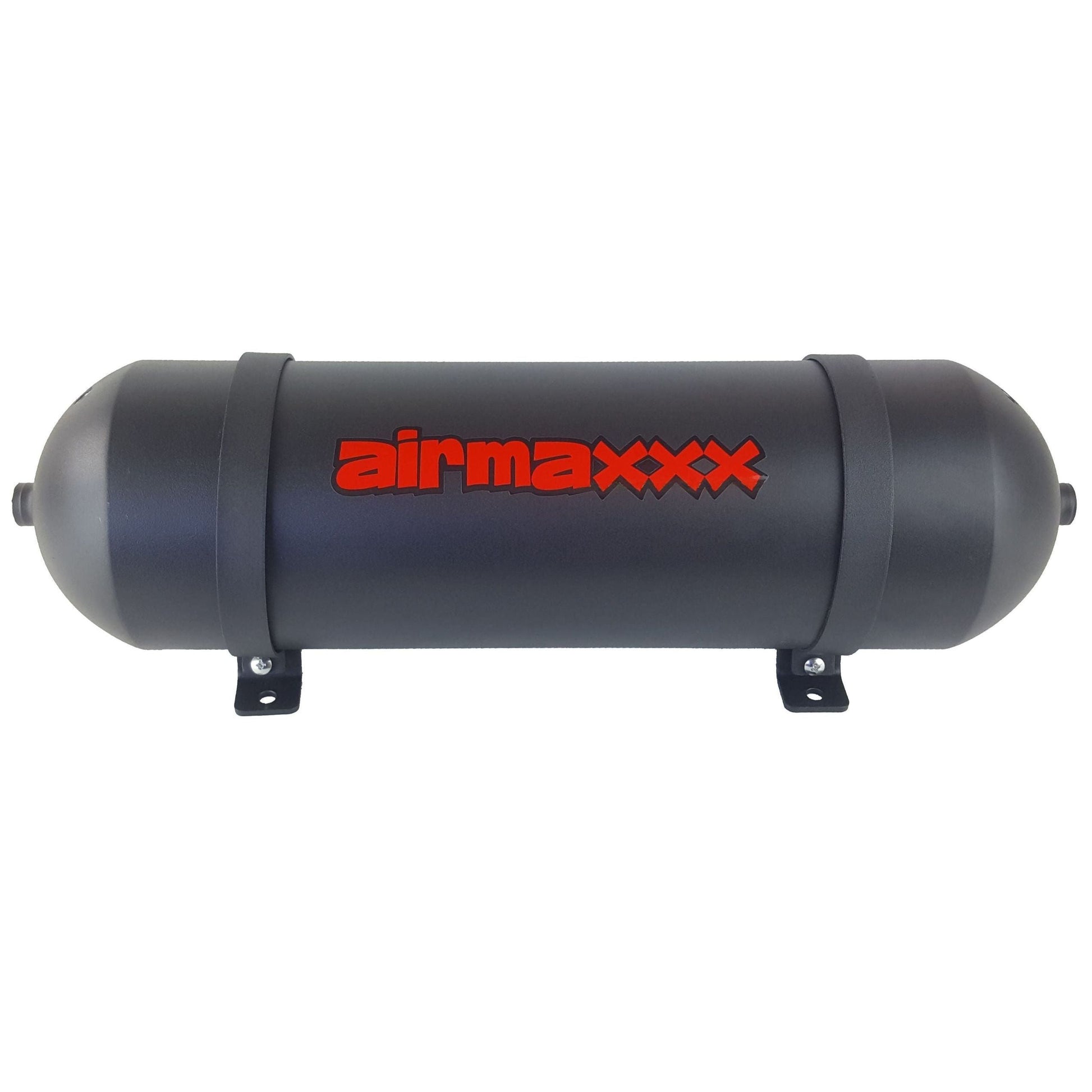

• 3 Gallon 6-Port Tank – Choose steel or aluminum for flexible installation

• Complete Air Kit – Includes wiring kit, leader hose, check valve, and fittings

• Fast Fill Time – 0–145 PSI in ~2 minutes 29 seconds

• Durable Build – Gloss black tank finish, stainless braided hose

• Expandable System – Perfect base for suspension or horns

Kit Includes

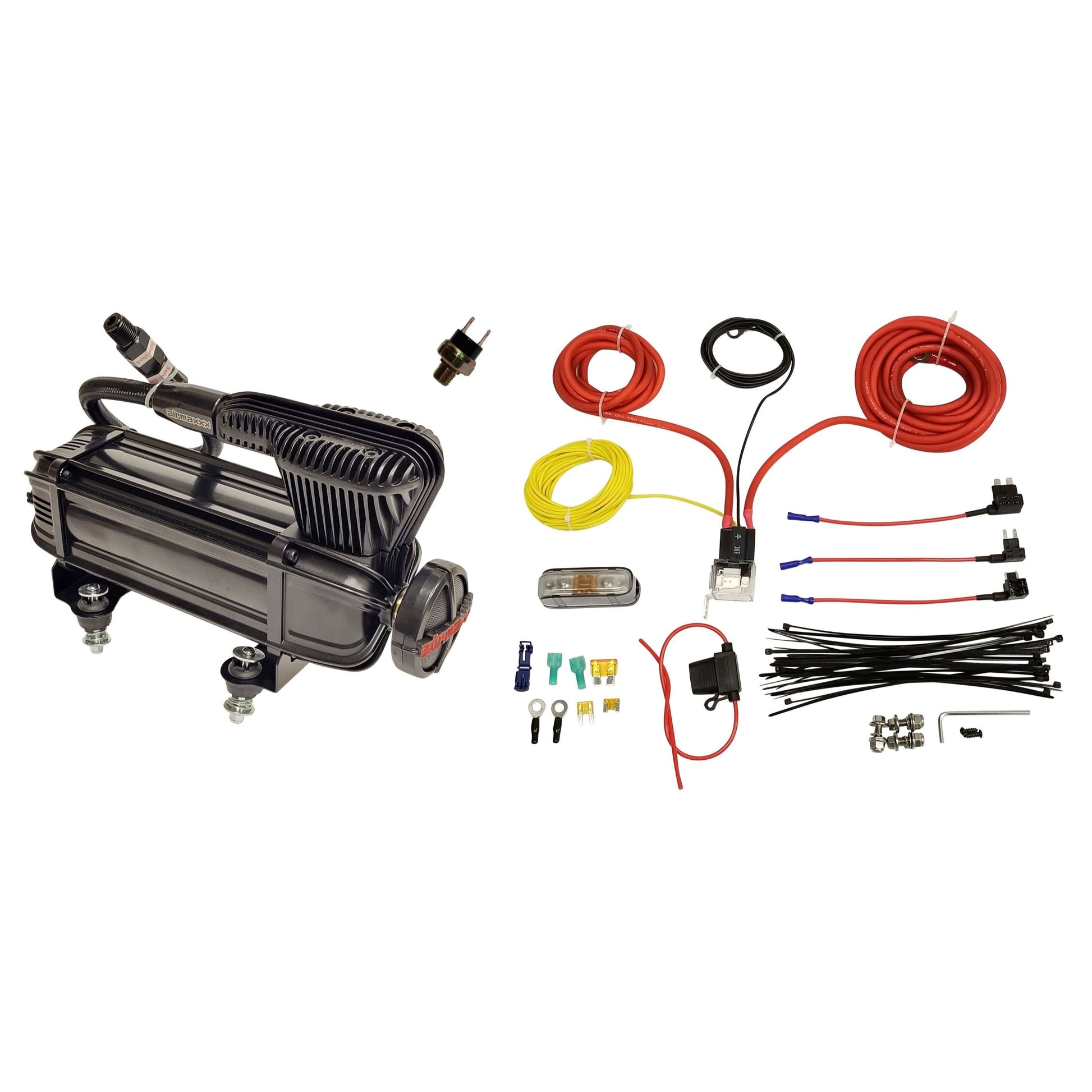

• (1) airmaxxx X-Series air compressor

• (1) 3 gallon 6-port air tank
  (steel or aluminum)

• (1) 3/8" stainless braided leader hose

• (1) 3/8"NPT check valve

• (1) tank drain

• (1) heavy duty pressure switch & 40 amp relay
  (choose psi setting)

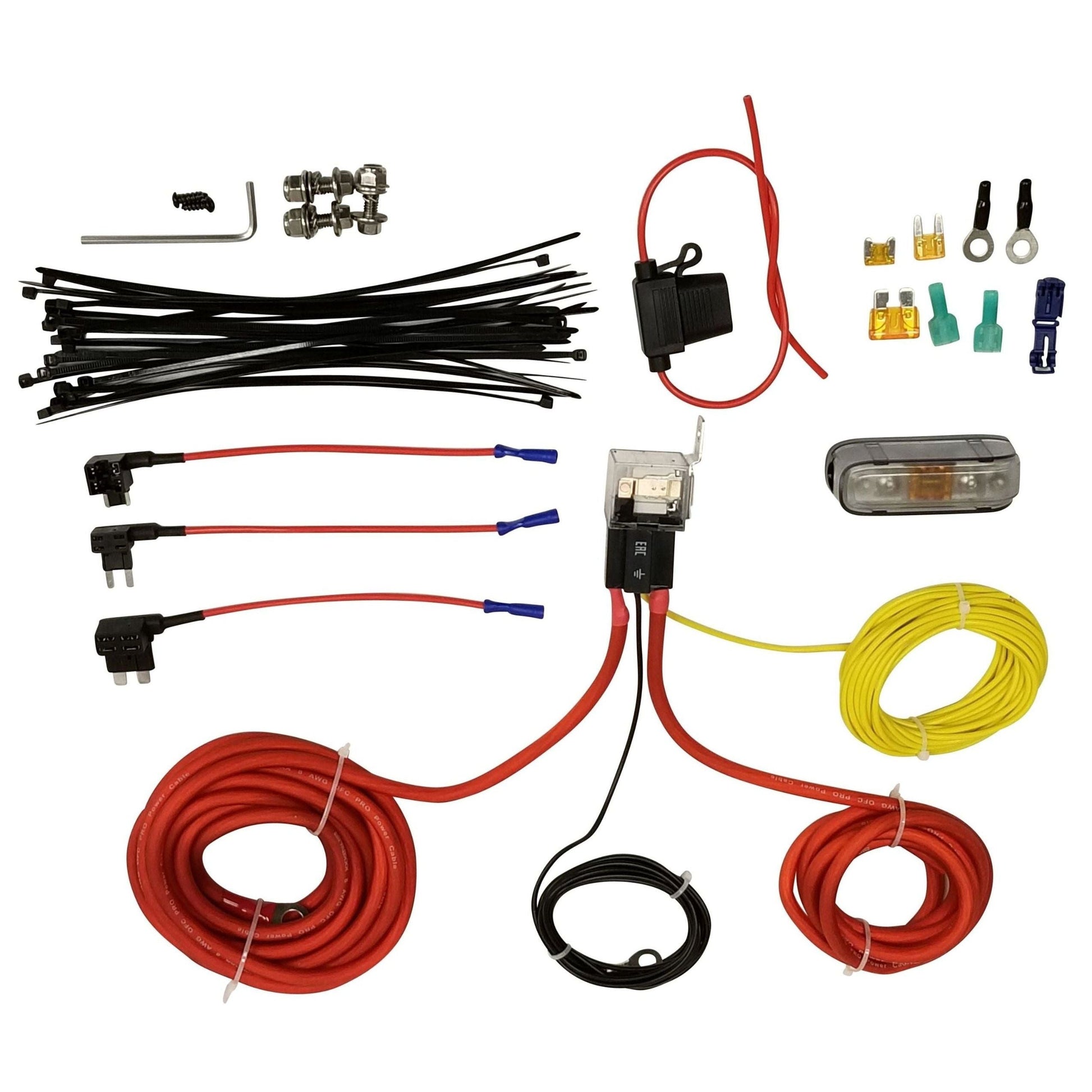

• (1) single compressor wiring install kit

(Mounting brackets to mount X-Series compressor sold separately.)

Specs

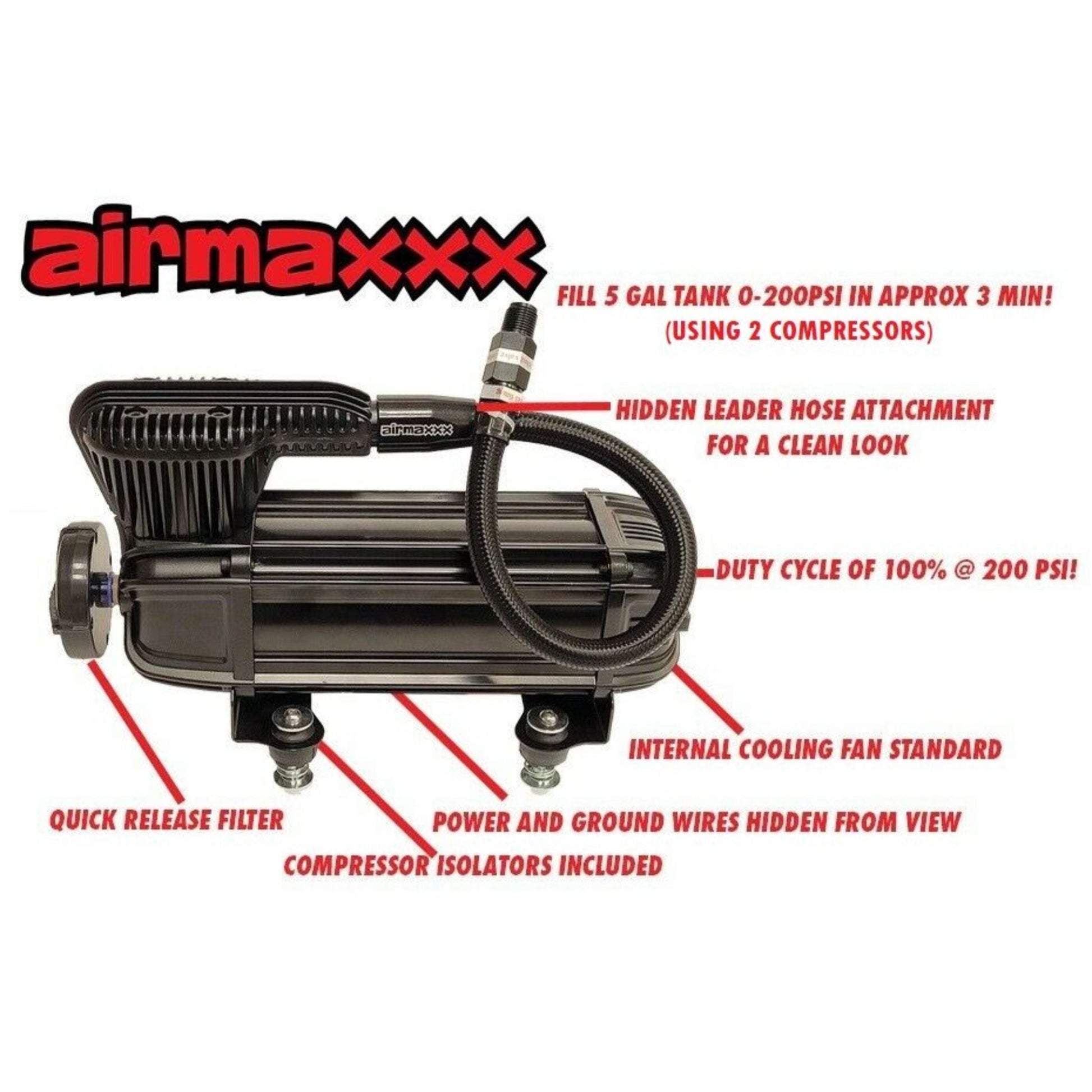

Compressor

• 12V, 1.75 CFM permanent magnetic motor

• 100% duty @ 100 PSI

• Max pressure: 200 PSI

• Max draw: 21 amps

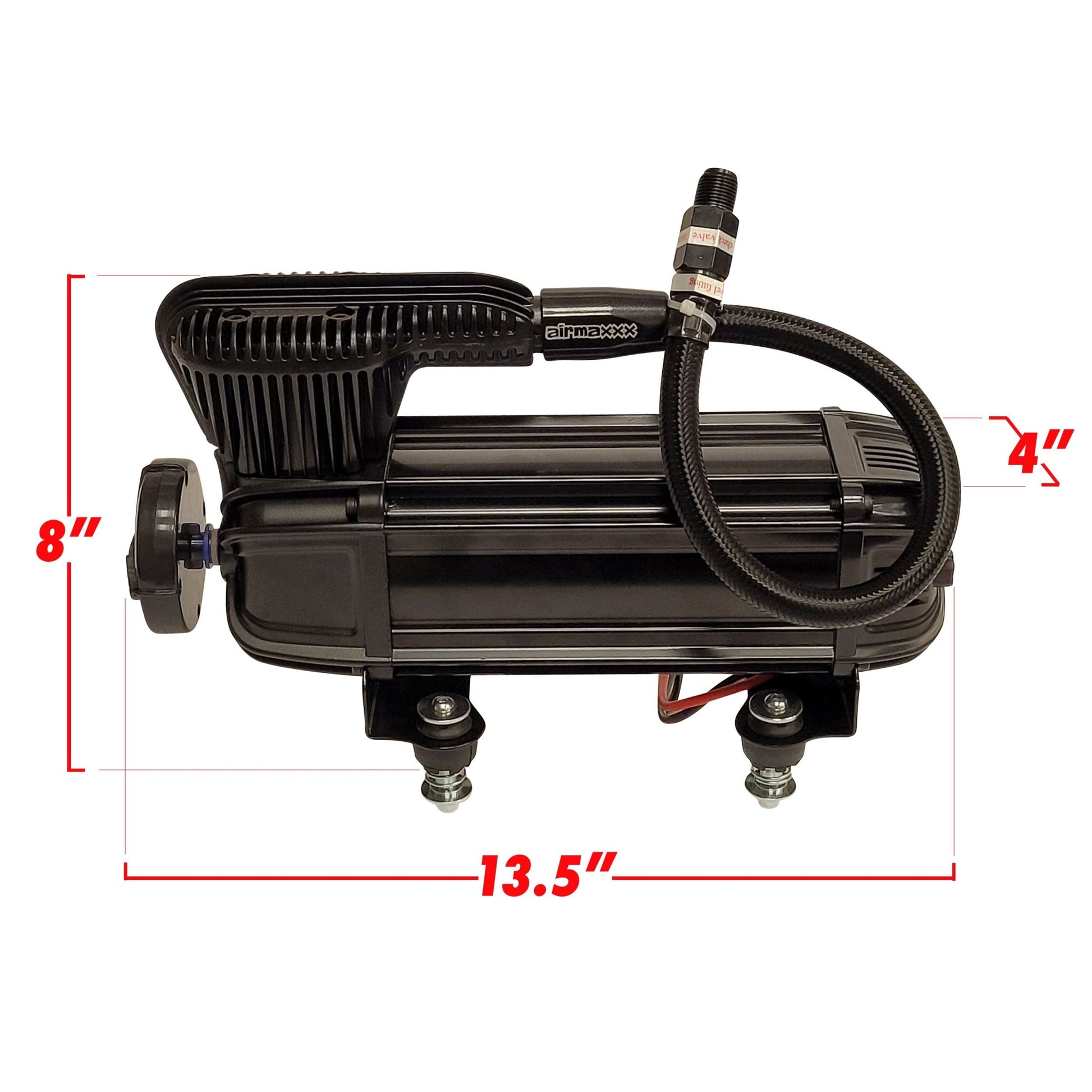

• Size: 9.5" L x 7" H x 3.25" W

• 1-year warranty

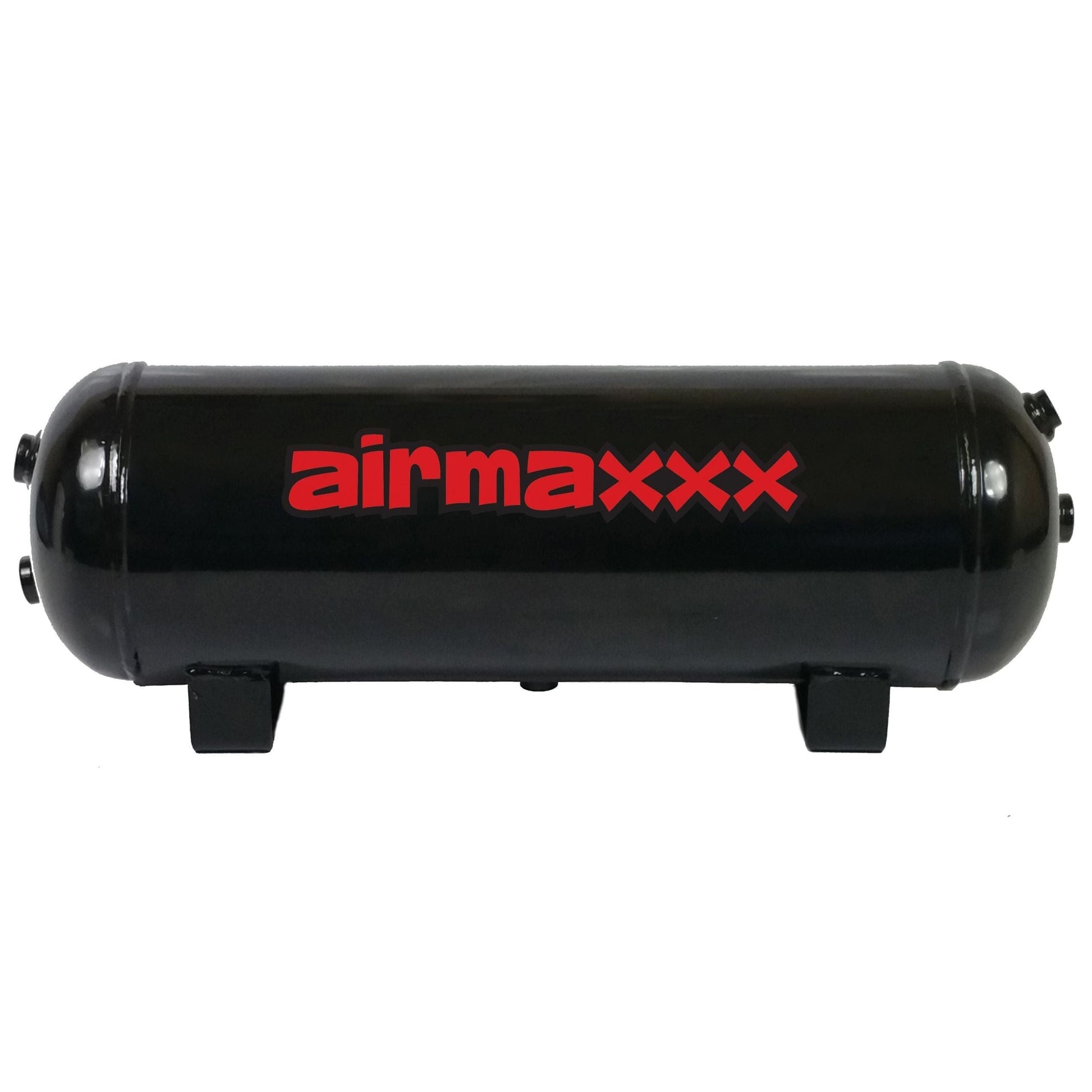

Tank

• 3 gallon capacity

• 6 ports
  (3/8" & 1/4" NPT)

• Size: 20" L x 7" W x 8.25" H

• Max pressure: 200 PSI

• Fill time (0–145 PSI): ~2 min 29 sec

• Gloss black powder coat finish
