airmaxxx 400 Pewter Air Compressor & 3 Gallon Steel Tank Kit

Compact Onboard Air Solution

Set up a reliable onboard air system with the airmaxxx 400 Pewter Compressor & 3 Gallon Steel Tank Kit. Perfect for air horns, basic suspension setups, or auxiliary air needs, this kit combines a dependable 200 PSI compressor with a durable gloss black 3-gallon steel tank.

With multiple NPT ports for flexible plumbing, a compact design, and all the key components included, this system is an affordable way to add onboard air to your vehicle. Great for first-time builds or smaller applications.

Key Features

• 400 Pewter Compressor – 1.75 CFM, 200 PSI max, 100% duty @ 100 PSI

• 3 Gallon Steel Tank – Gloss black finish with 6 ports for easy hookups

• Complete Air Kit – Includes hoses, check valves, pressure switch & relay

• Compact & Versatile – Great for air horns or auxiliary onboard air use

• Expandable System – Optional wiring kit available for clean installation

• Affordable Solution – Entry-level setup for onboard air needs

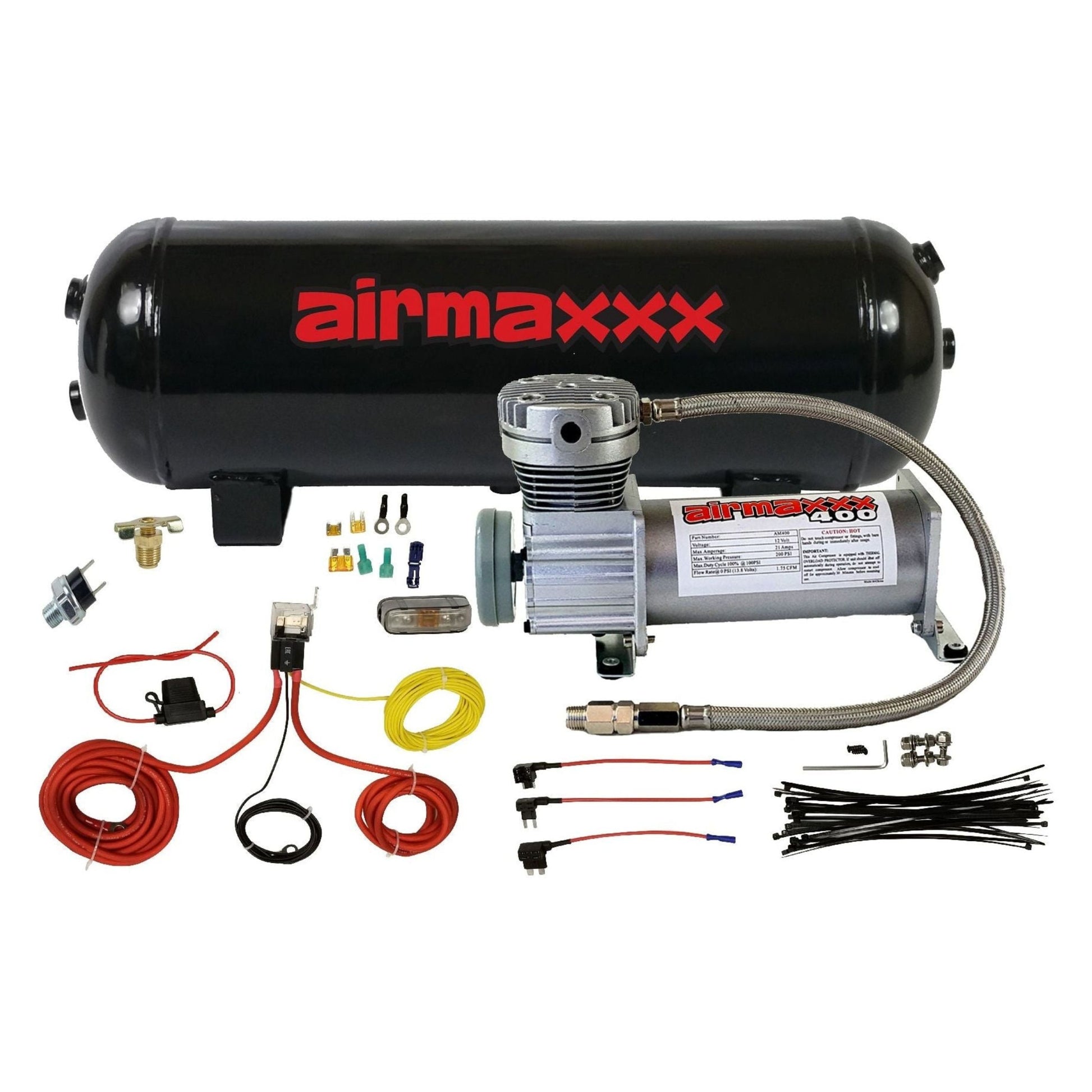

Kit Includes

• (1) 400 pewter air compressor

• (1) 3 gallon 6-port gloss black steel tank

• (2) 1/4" stainless braided leader hoses

• (2) 1/4" NPT check valves

• (1) tank drain

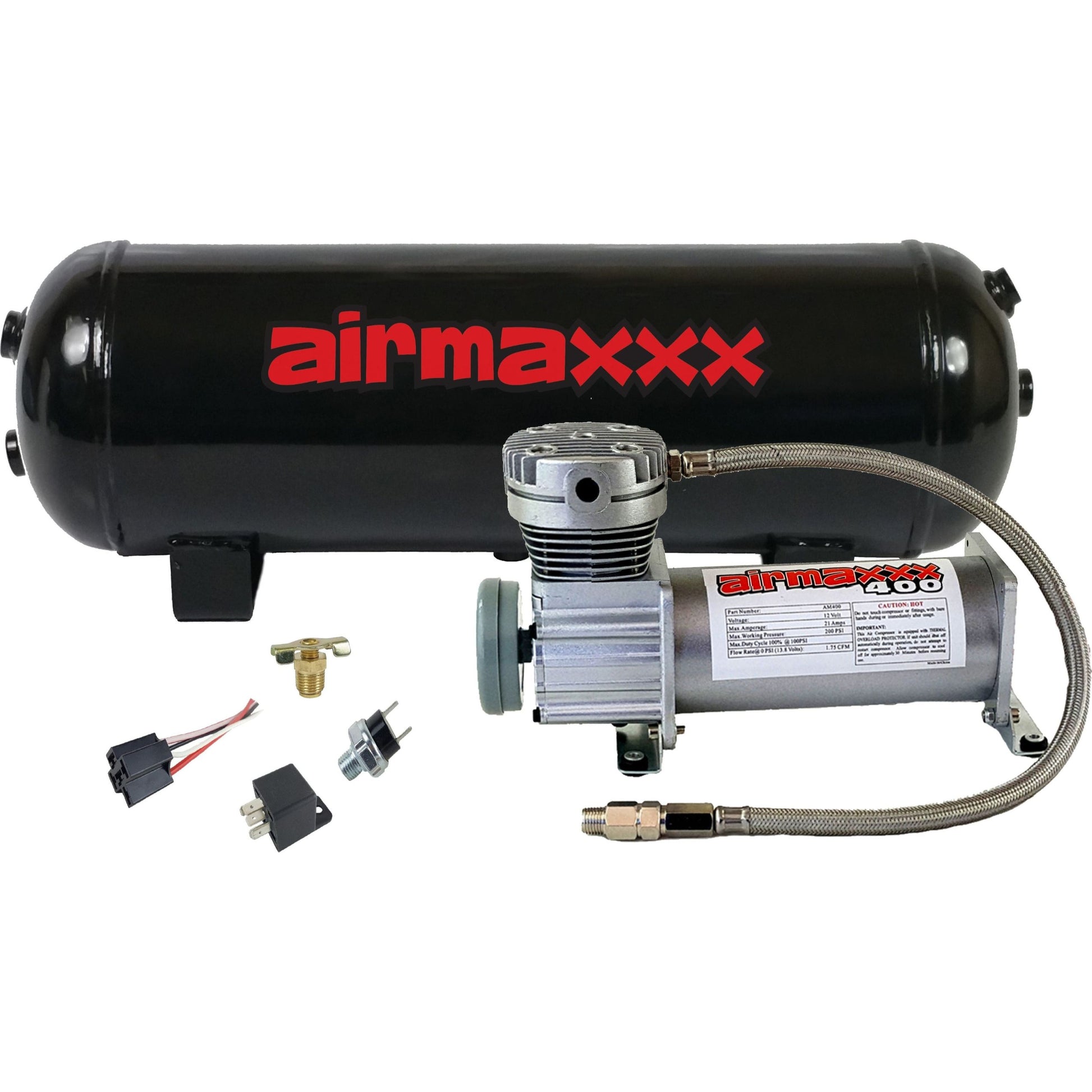

• (1) heavy duty pressure switch & 40 amp relay (choose psi setting)

(Optional: single compressor wiring kit sold separately. Single Compressor Mounting bracket available.)

Specs

Compressor

• 12V, 1.75 CFM permanent magnetic motor

• 100% duty cycle @ 100 PSI

• Max pressure: 200 PSI

• Max draw: 20 amps

• Size: 9.5" L x 7" H x 3.25" W

• 1-year manufacturer warranty

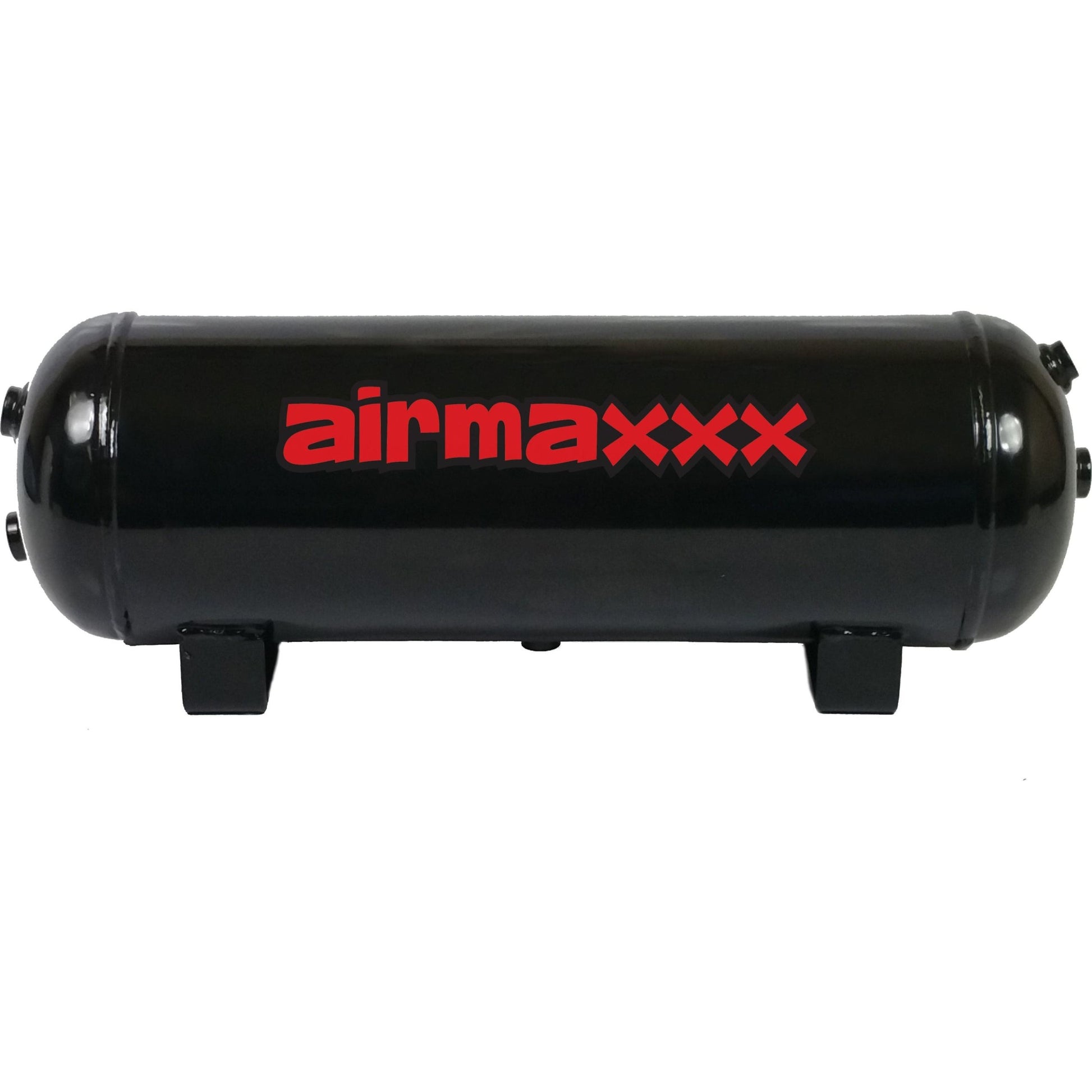

Tank

• 3 gallon capacity

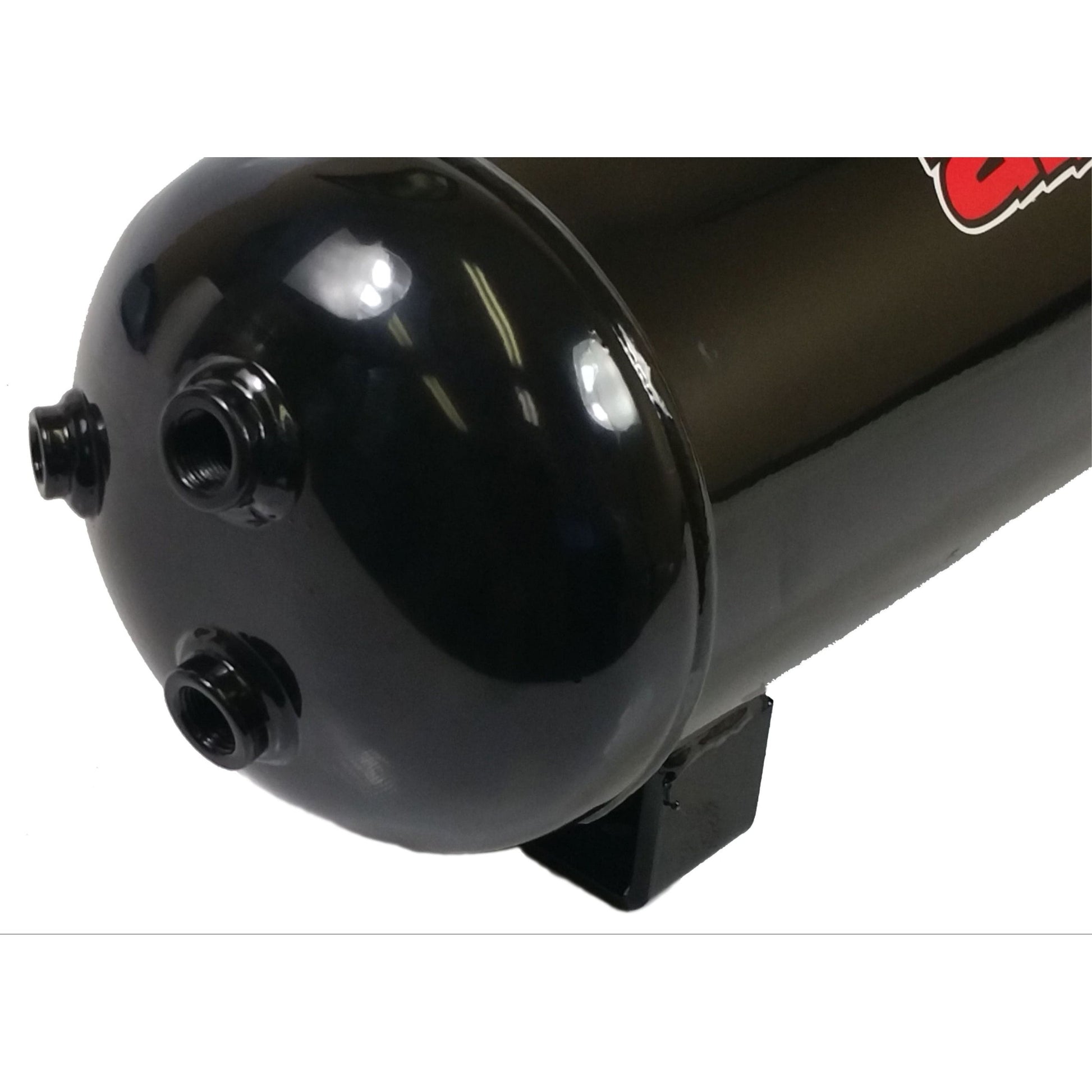

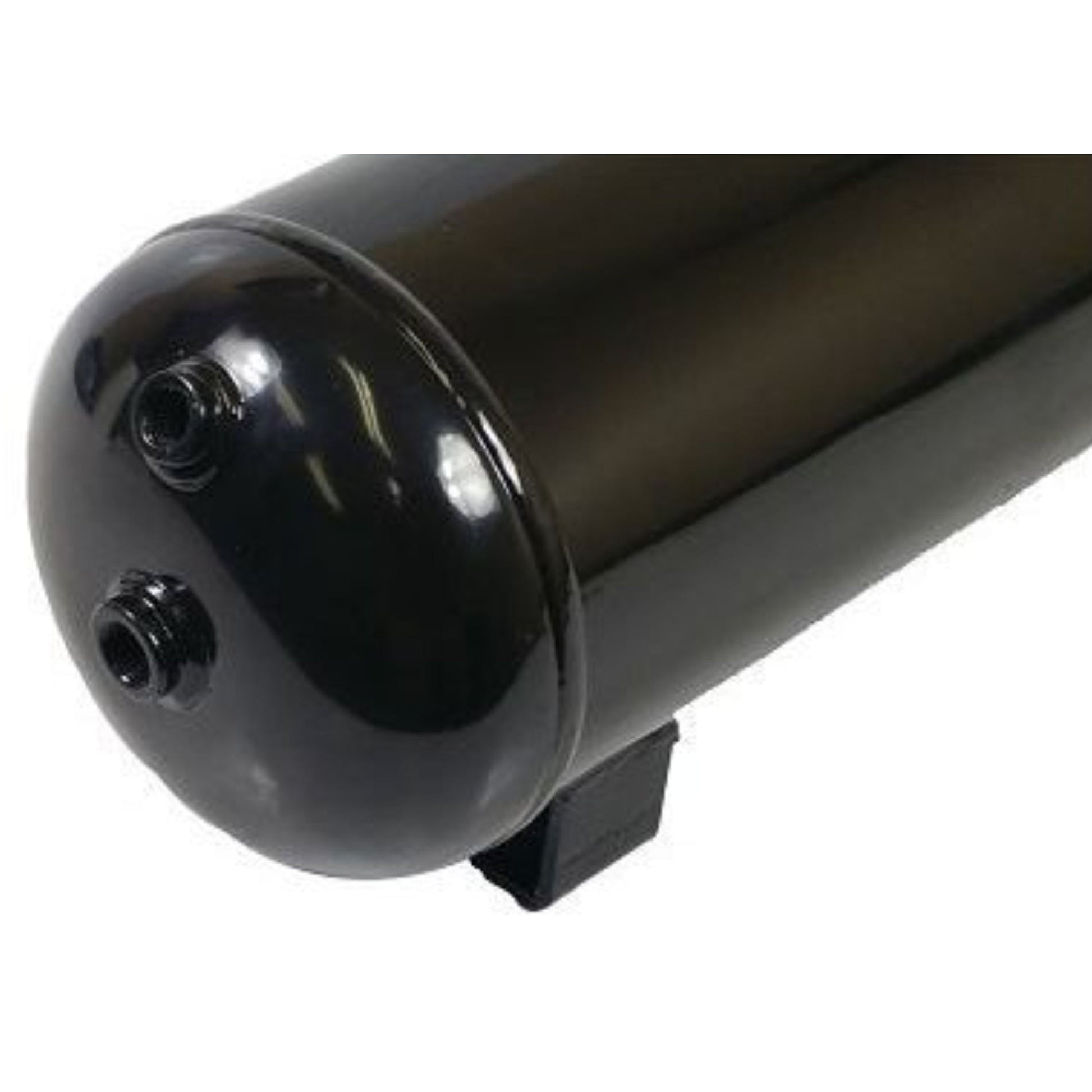

• 6 ports (3/8" & 1/4" NPT)

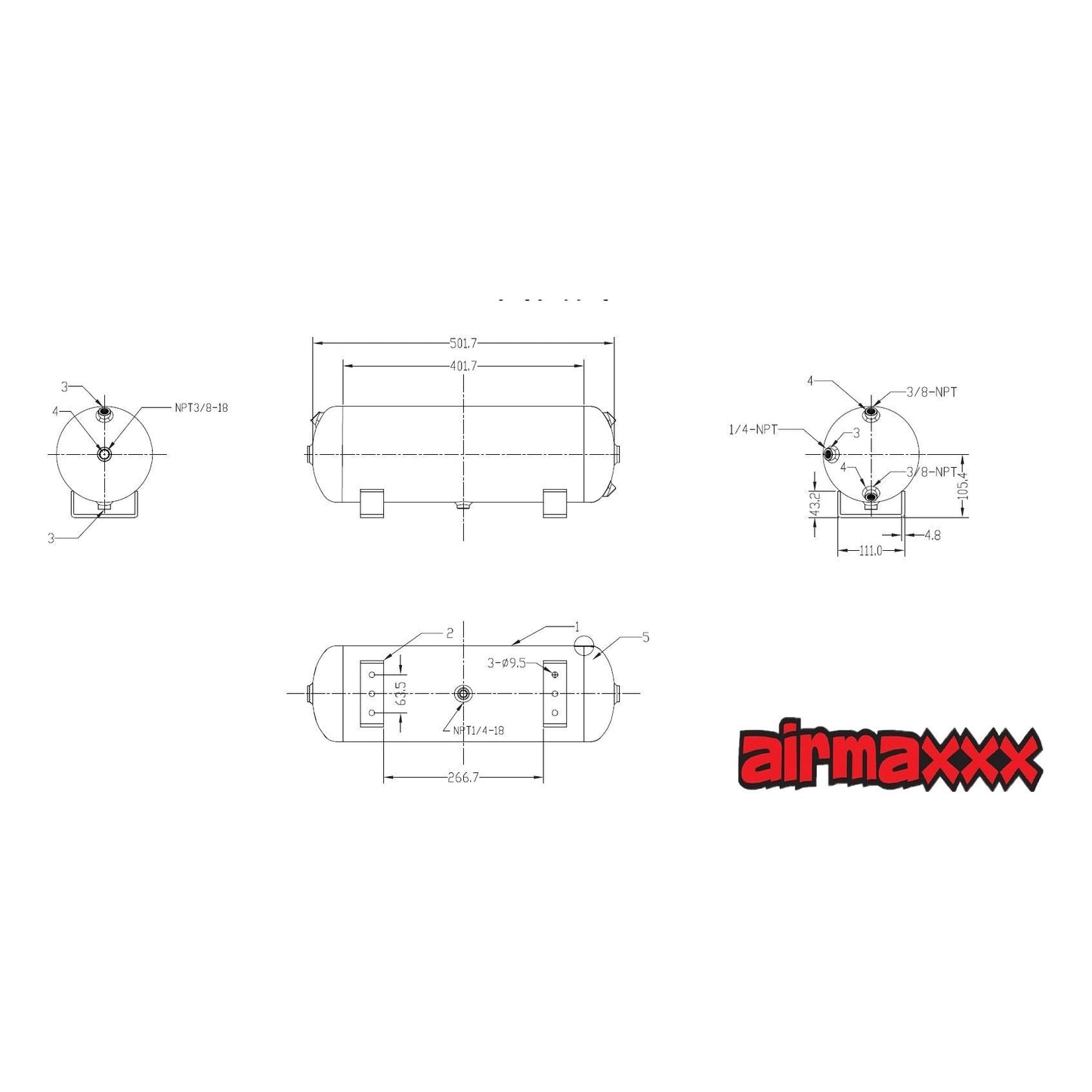

• Size: 20" L x 7" W x 8.25" H

• Max pressure: 200 PSI

• Gloss black powder coat finish

We sell secure a 400 compressor to something solid.
