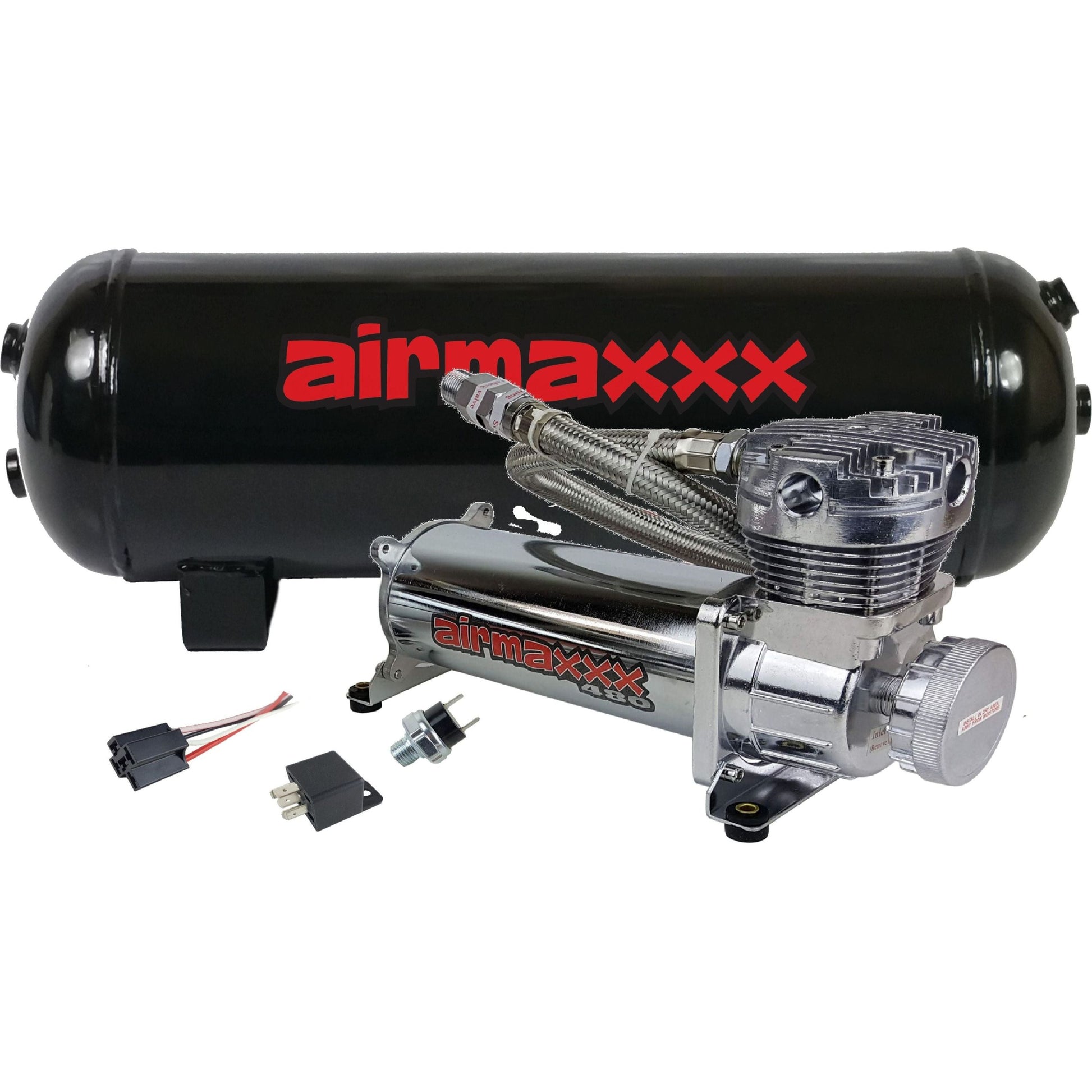

airmaxxx 480 Chrome Compressor & 3 Gallon Steel Tank Air Kit

High-Performance Onboard Air

Power your air suspension, air horns, or onboard accessories with the airmaxxx 480 Chrome Air Compressor & 3 Gallon Steel Tank Kit. Delivering up to 200 PSI and a fast fill time, this complete package provides everything you need for a dependable onboard air system.

The polished 480 chrome compressor offers strong output and sleek style, while the 3-gallon gloss black steel tank provides six ports for easy plumbing and expansion. Built for durability and performance, this system is a perfect fit for trucks, cars, and custom builds needing reliable air power.

Key Features

• Complete Air Kit – Includes compressor, tank, hoses, valves, and switch

• 480 Chrome Compressor – 1.75 CFM, 200 PSI max, 100% duty @ 100 PSI

• Fast Fill Times – 0–145 PSI in just 2 minutes 29 seconds

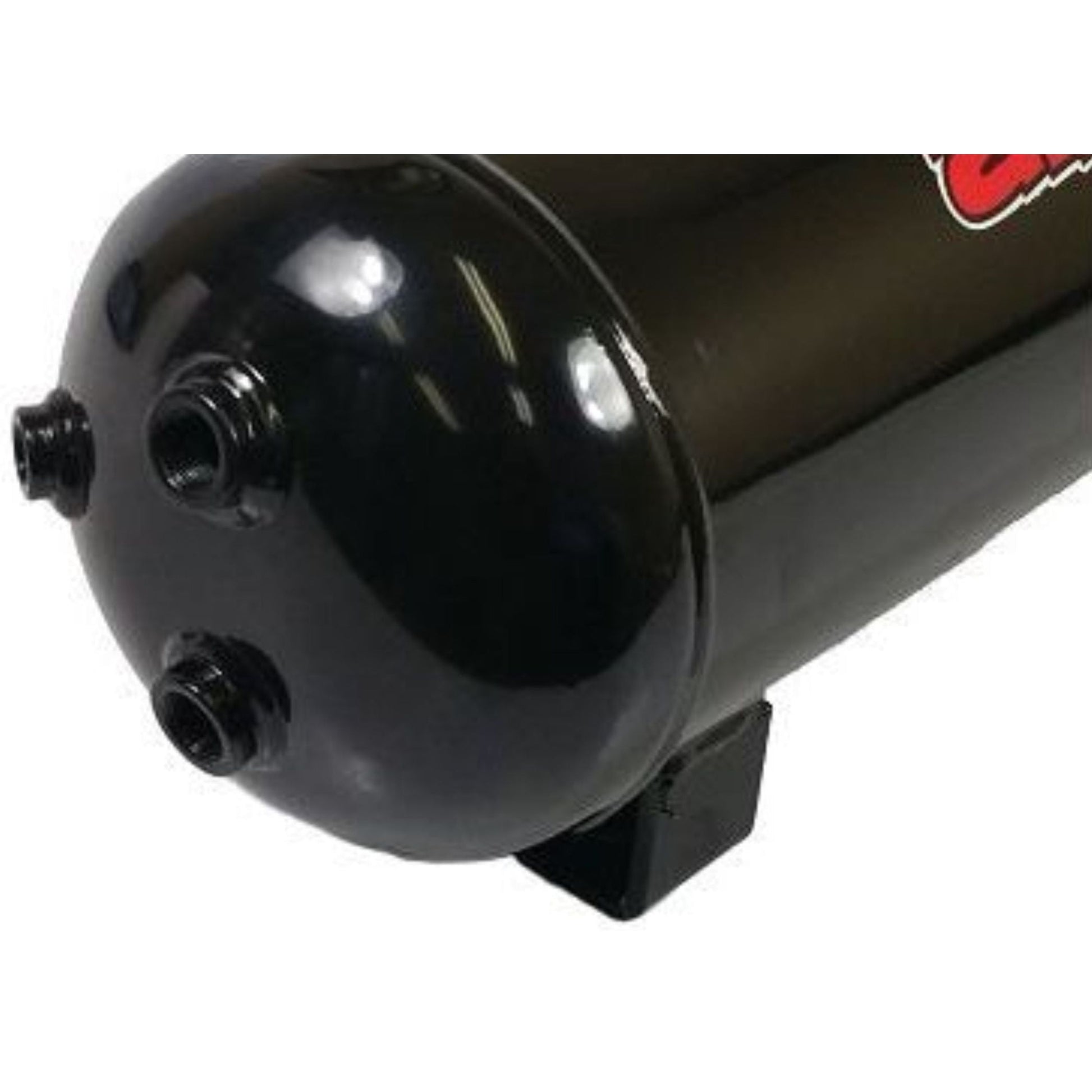

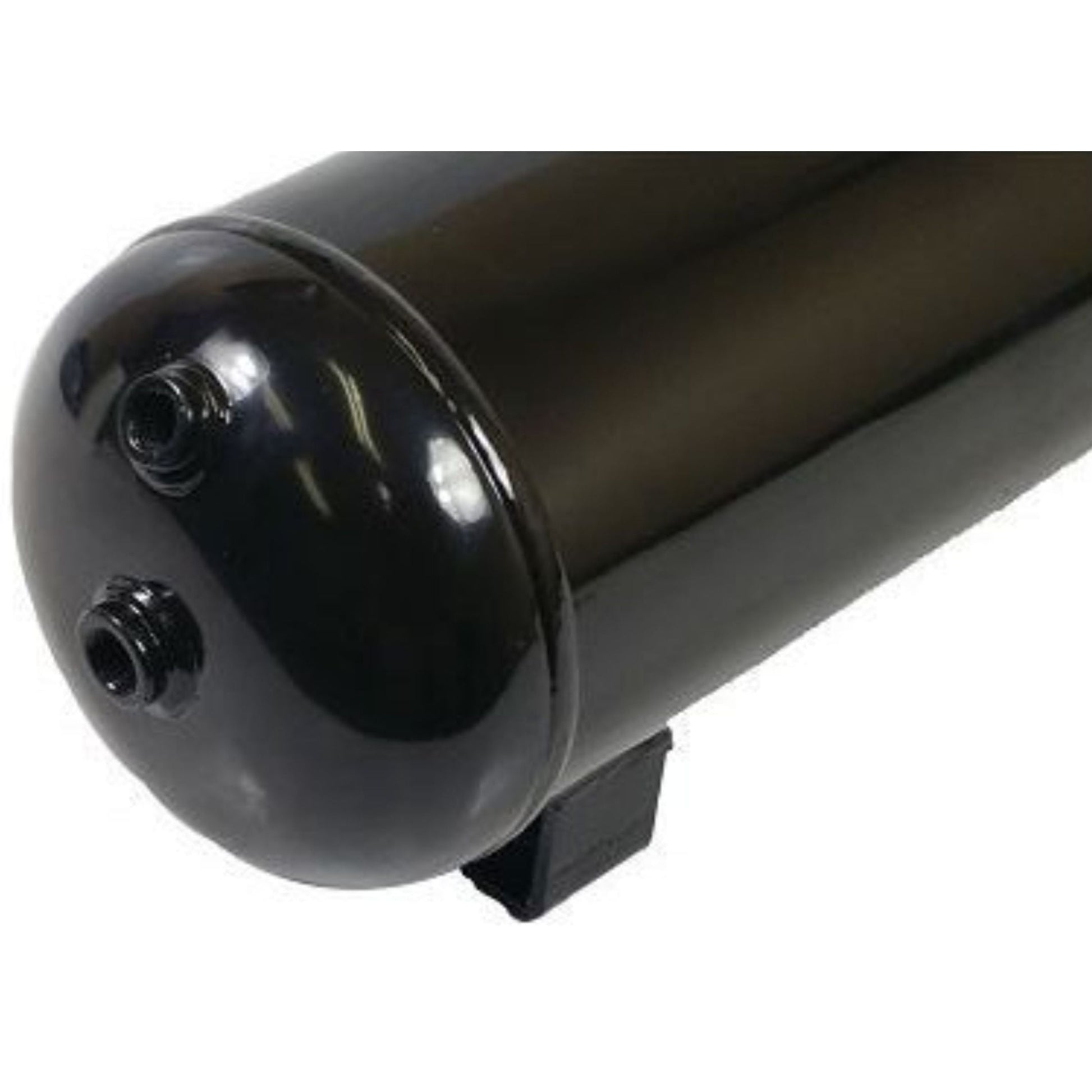

• 3 Gallon Steel Tank – Gloss black powder coat with six ports for flexible setup

• Durable & Stylish – Chrome finish compressor with heavy-duty steel tank

• Expandable System – Optional single compressor wiring kit for clean install

• Mounting Bracket Available – Sold separately to secure compressor installation

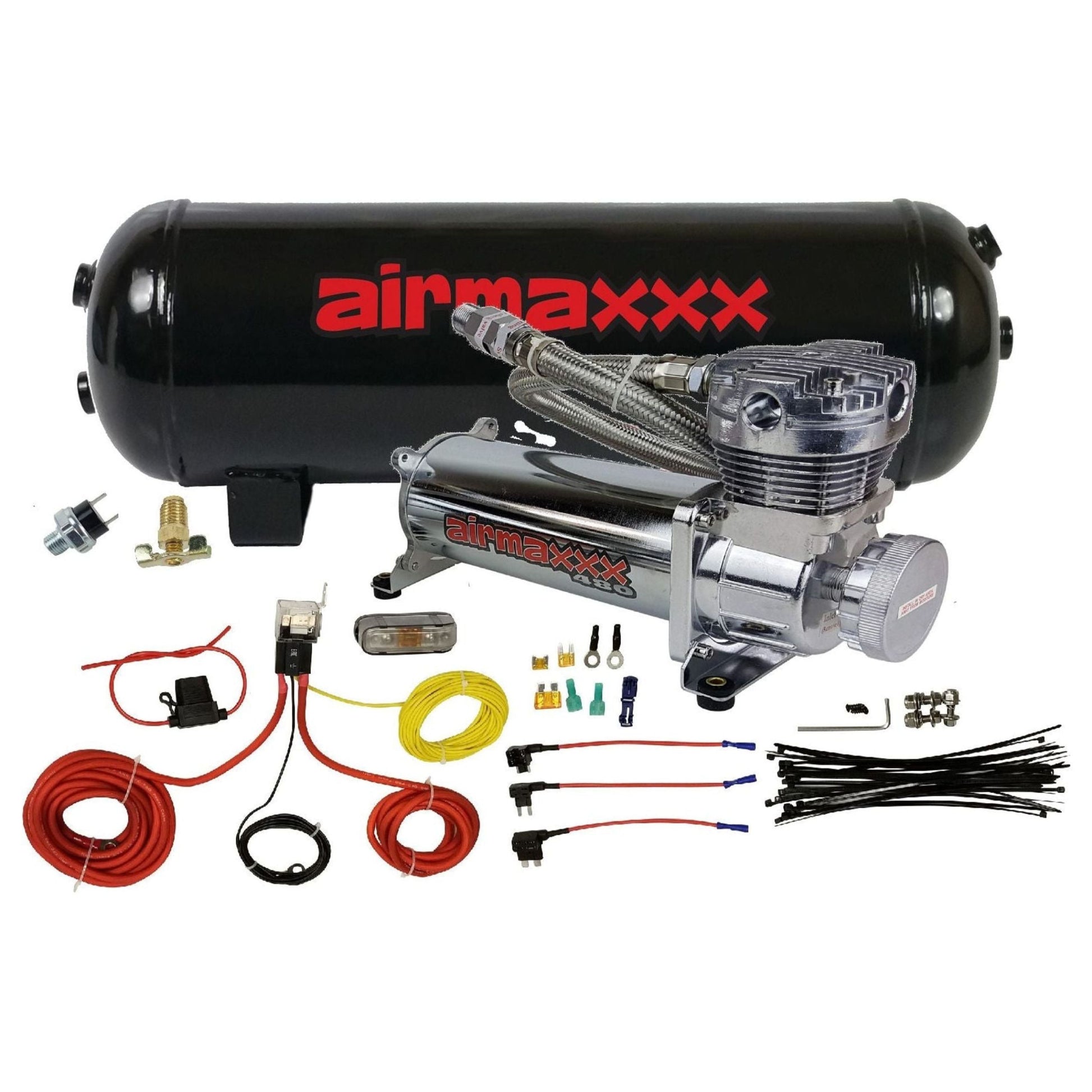

Kit Contents

• (1) 480 chrome air compressor

• (1) 3 gallon 6-port gloss black steel tank

• (2) 1/4" stainless braided leader hoses

• (2) 1/4" NPT check valves

• (1) tank drain

• (1) heavy-duty pressure switch & 40 amp relay (choose psi setting)

(Optional: single compressor wiring kit sold separately)

Specs

Compressor

• 12V, 1.75 CFM permanent magnetic motor

• 100% duty cycle @ 100 PSI

• Max pressure: 200 PSI

• Max draw: 21 amps

• Size: 9.5" L x 7" H x 3.25" W

• Tank fill time (0–145 PSI): 2 min 29 sec

• 1-year manufacturer warranty

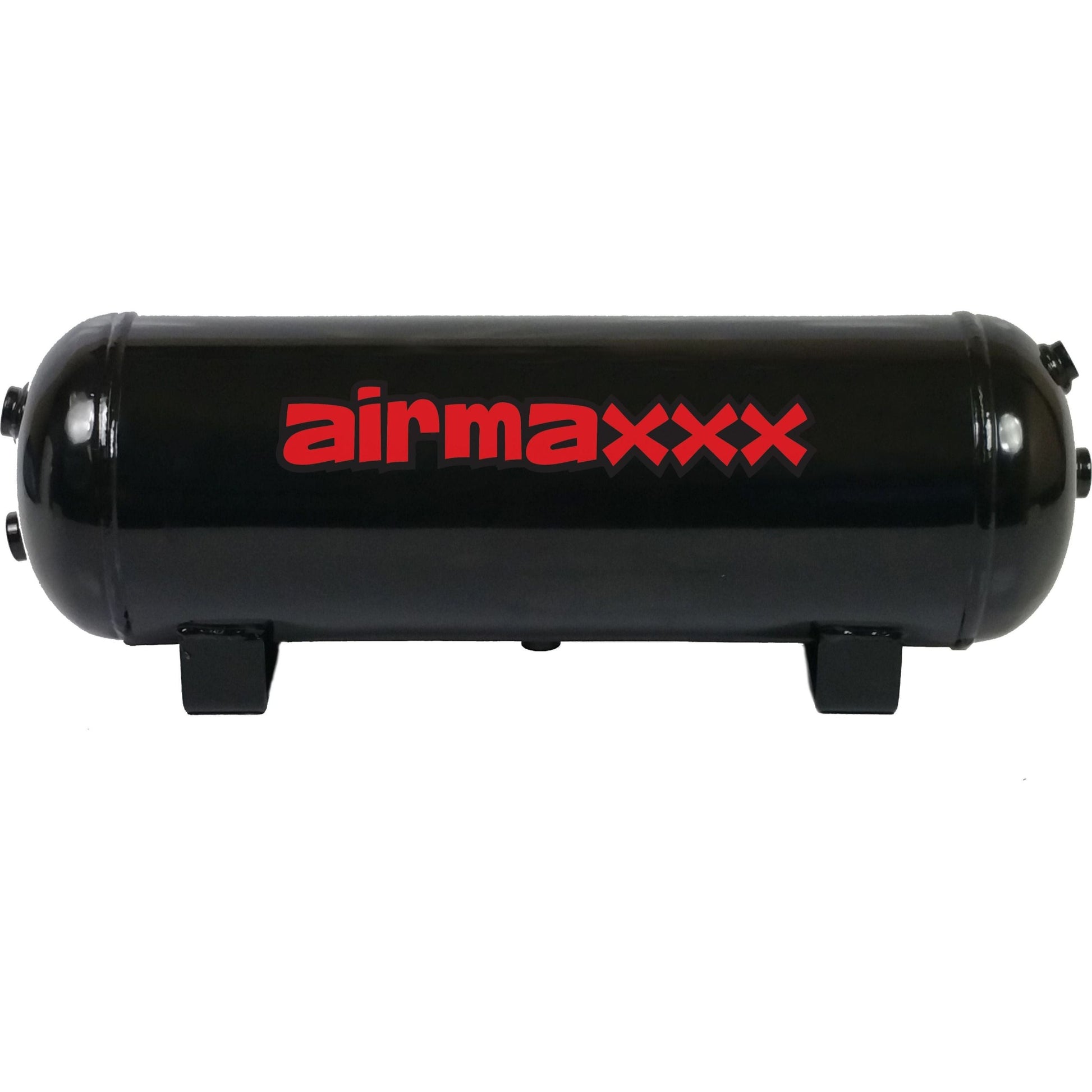

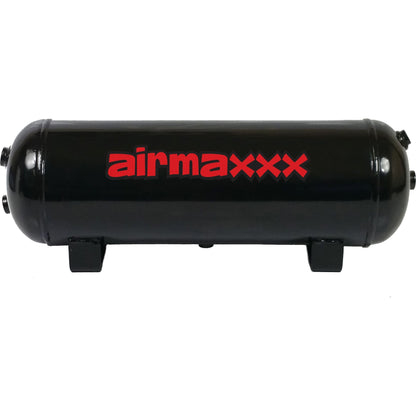

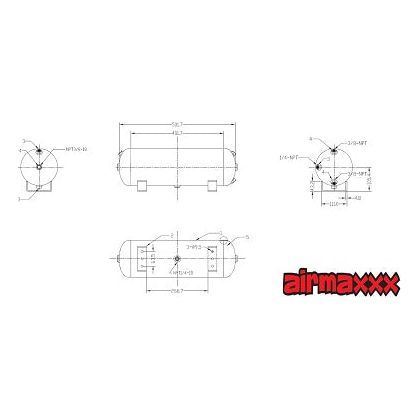

Tank

• 3 gallon capacity

• 6 ports (3/8" & 1/4" NPT)

• Size: 20" L x 7" W x 8.25" H

• Max pressure: 200 PSI

• Gloss black powder coat finish
