MaxTrac K880442 4"/2" Lift Kit for 2015-2022 Colorado & Canyon 2WD

Build a Taller Colorado or Canyon with a Balanced 4/2 Lift

Add clearance and a more aggressive stance to your 2015–2022 Chevy Colorado or GMC Canyon 2WD with the MaxTrac K880442 Lift Kit. This complete suspension package provides approximately 4 inches of front lift and 2 inches of rear lift using front lift spindles, rear blocks, U-bolts, extended brake lines, and matched MaxTrac rear shocks.

Key Features

4" Front Lift Spindles

Front lift spindles raise the suspension approximately 4 inches for increased clearance and a taller truck stance.

2" Rear Lift

Rear lift blocks and matched U-bolts provide approximately 2 inches of rear lift to complement the raised front suspension.

Extended Brake Lines

Extended front brake lines are included to accommodate the increased suspension height.

MaxTrac Rear Shocks

Includes two 2400LL-4 MaxTrac rear shocks matched to the lifted rear suspension.

Clears Up to 33" Tires

Designed to clear up to 33" x 11.50" tires on 8"-9" wide wheels, although fender trimming may be required.

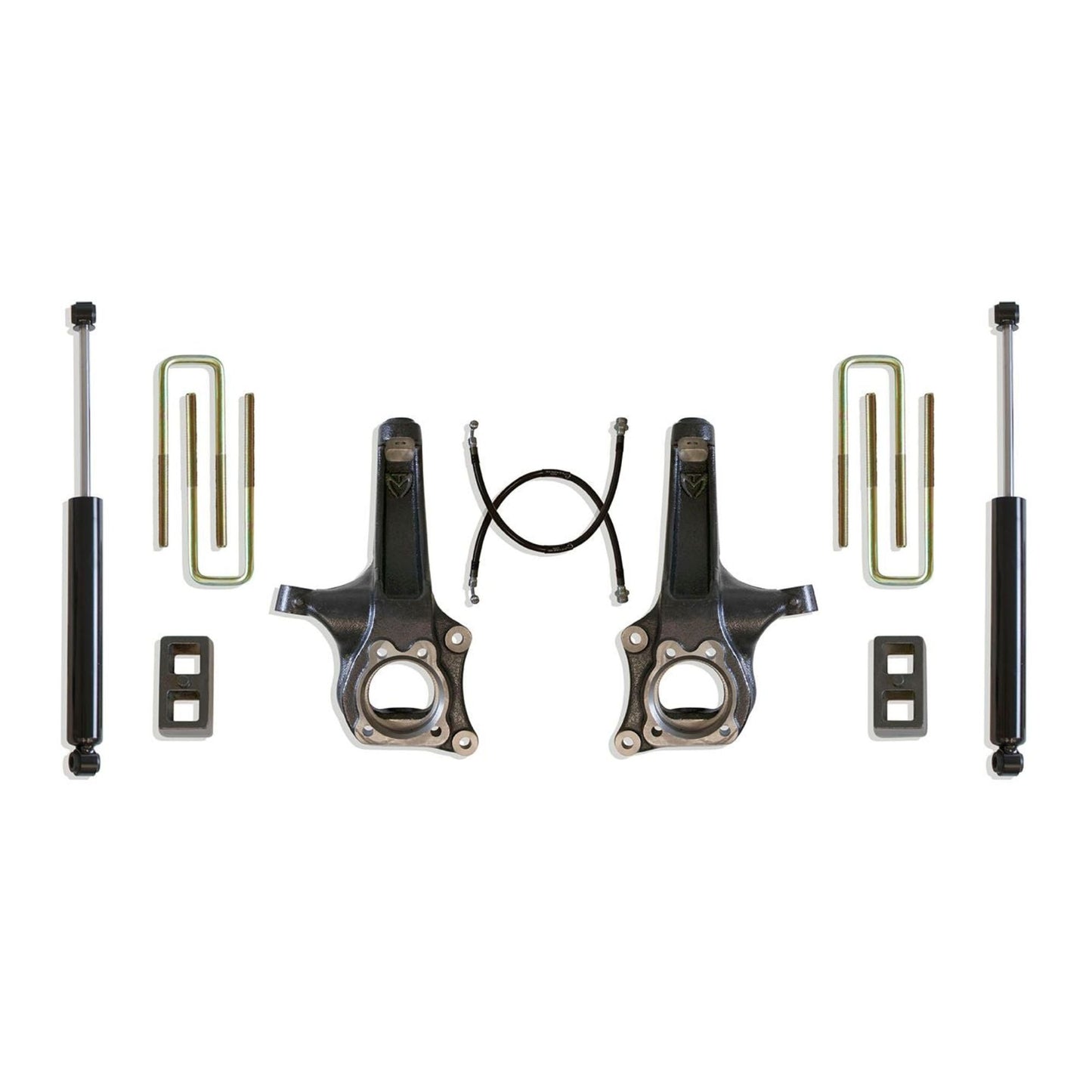

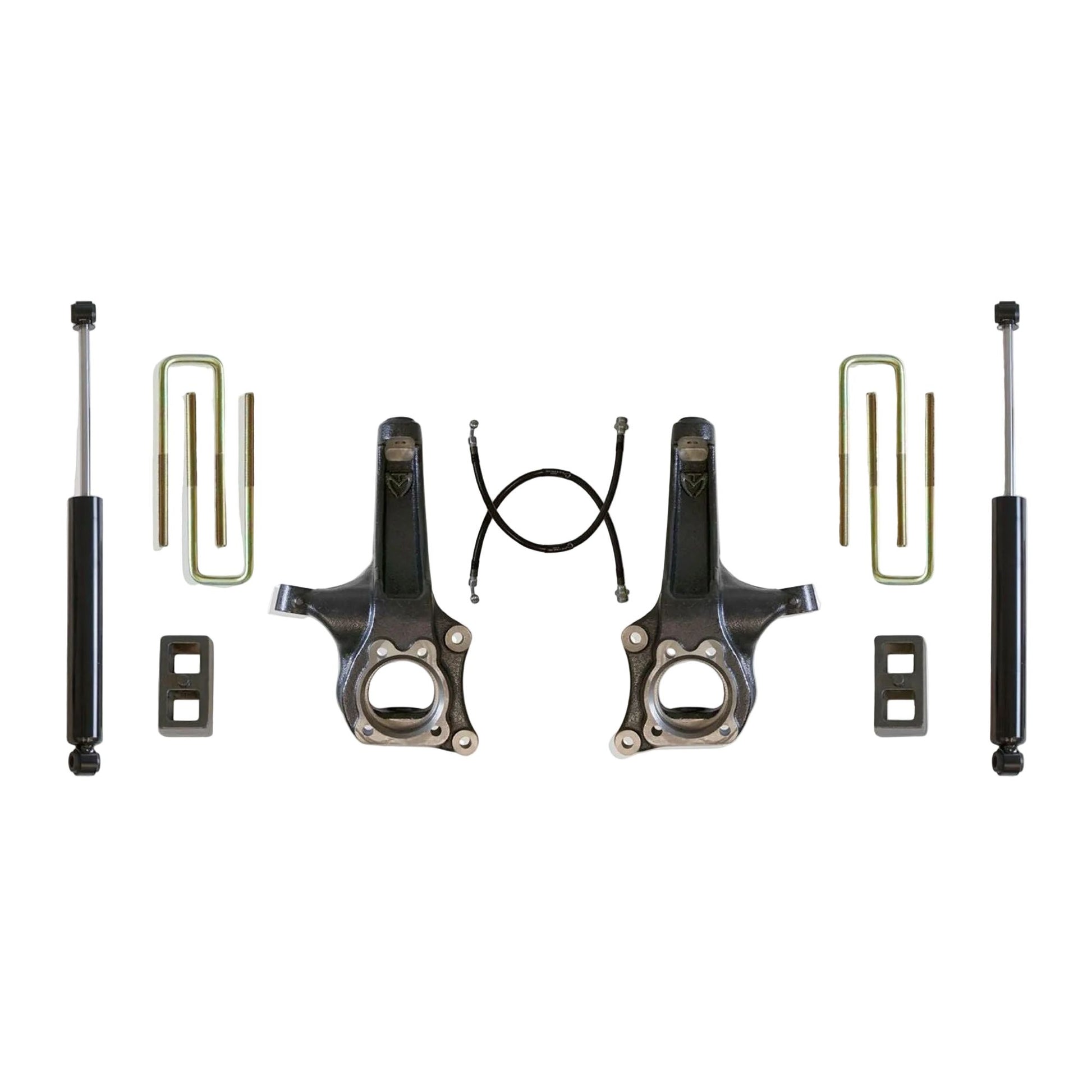

What's Included

4" front lift spindles
Extended brake lines
2" rear lift blocks
Rear U-bolts
MaxTrac 2400LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2015–2022 Chevrolet Colorado 2WD
2015–2022 GMC Canyon 2WD

Does Not Fit

Chevrolet Colorado ZR2 models

Important Notes

Requires 17" wheels or larger with 6" backspacing or less.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required depending on wheel and tire configuration.
Does not fit ZR2 models.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K880442
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 4 Inches
Rear Lift: 2 Inches
Drivetrain: 2WD
Front Components: Lift Spindles & Extended Brake Lines
Rear Components: Lift Blocks & U-Bolts
Rear Shocks: 2400LL-4 (Qty. 2)
Maximum Tire Size: 33" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Maximum Backspacing: 6 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 100 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K880442?

The K880442 combines the major components needed for a substantial 4"/2" lift into one package. Lift spindles raise the front while blocks and U-bolts handle the rear, with extended brake lines and MaxTrac rear shocks included to complete the setup.

Perfect For

2015–2022 Chevy Colorado 2WD
2015–2022 GMC Canyon 2WD
4-inch front lift builds
33-inch tire setups
Street and off-road style builds
Custom midsize trucks
