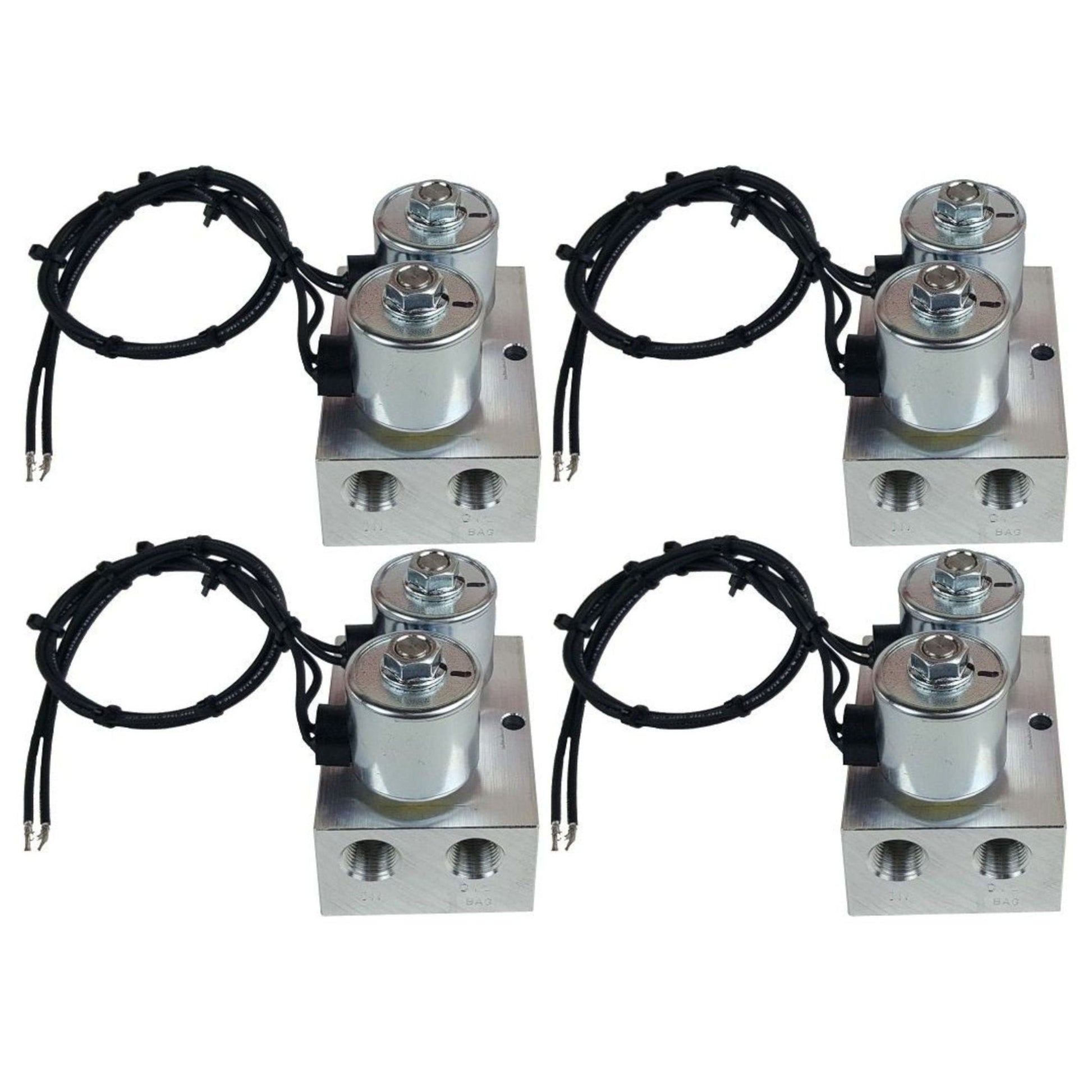

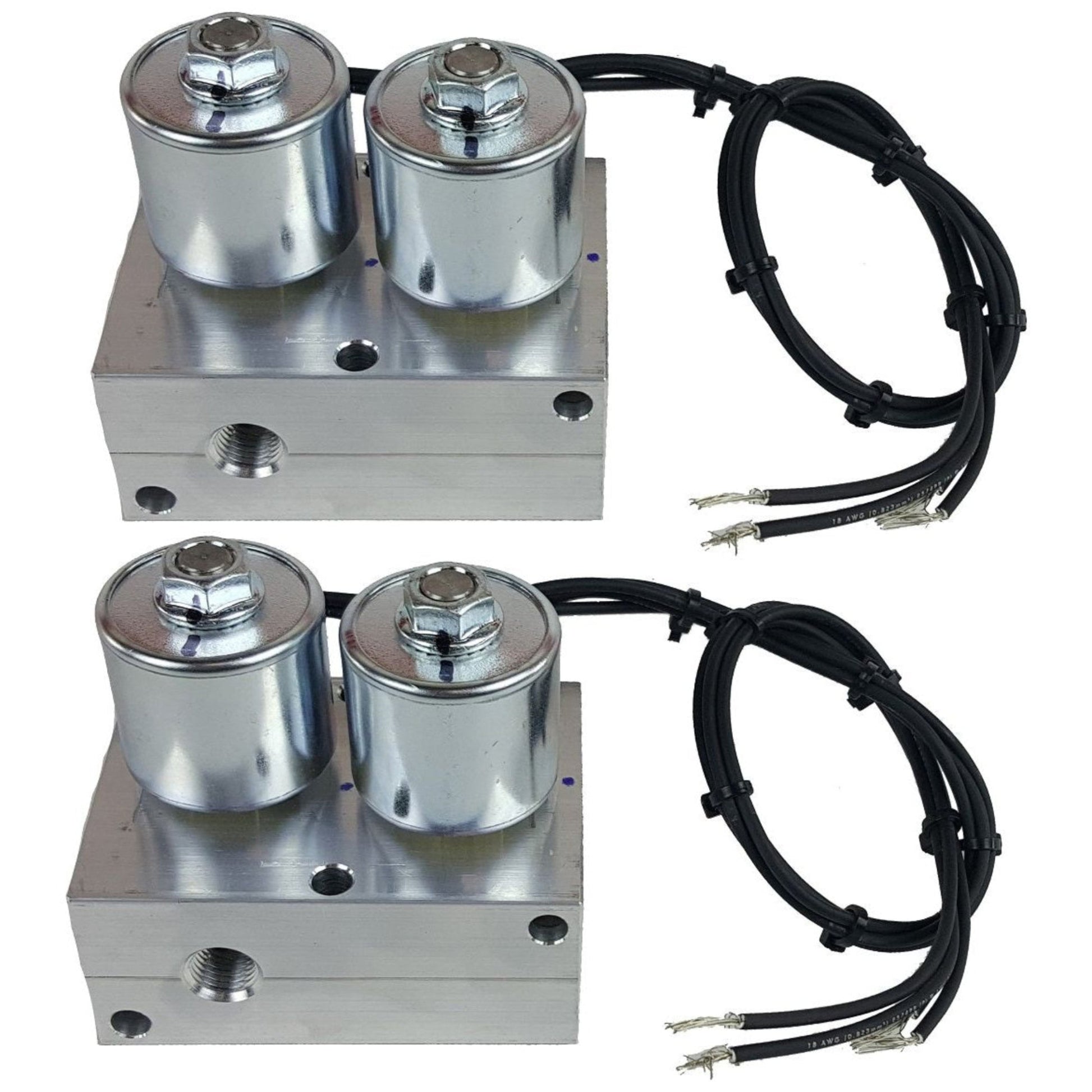

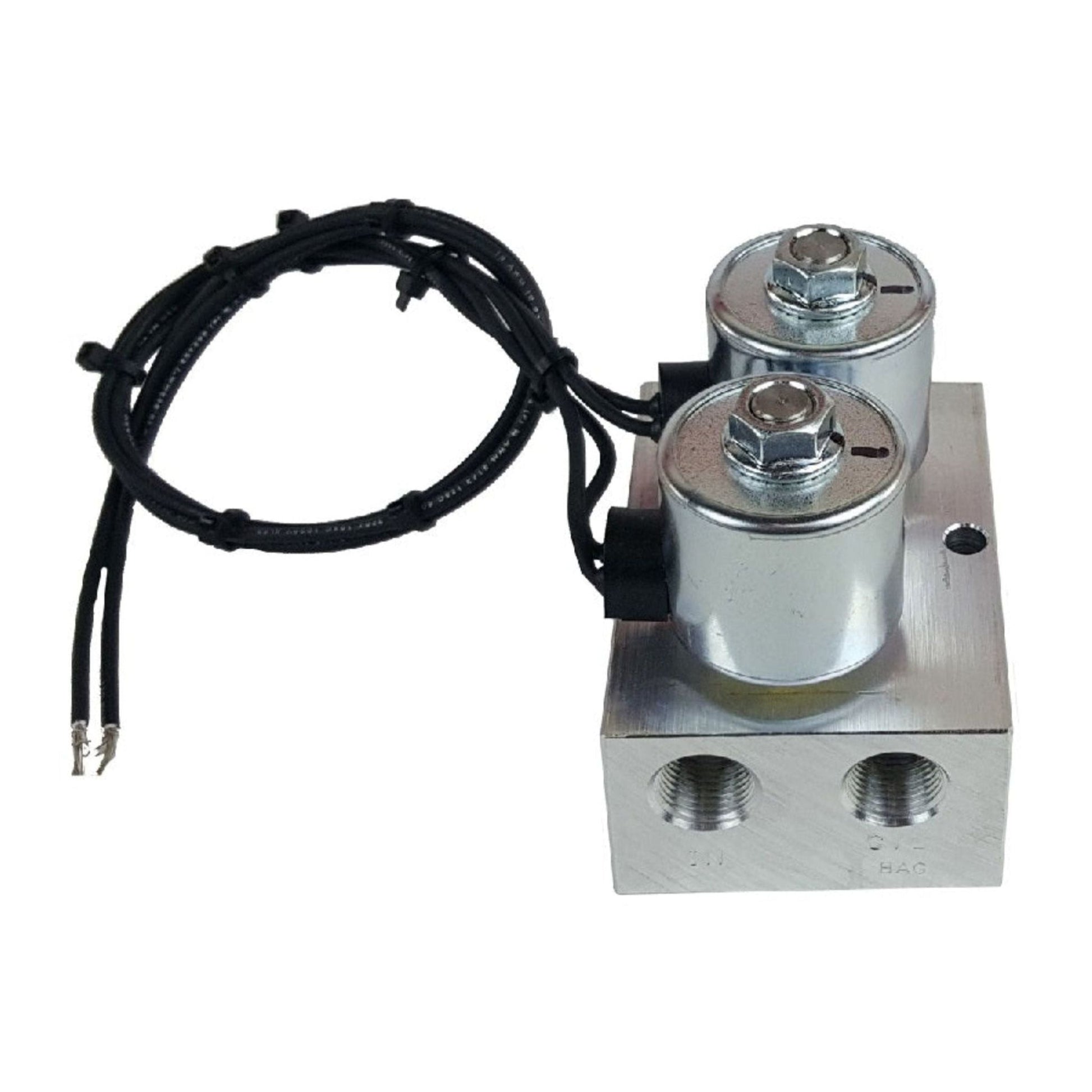

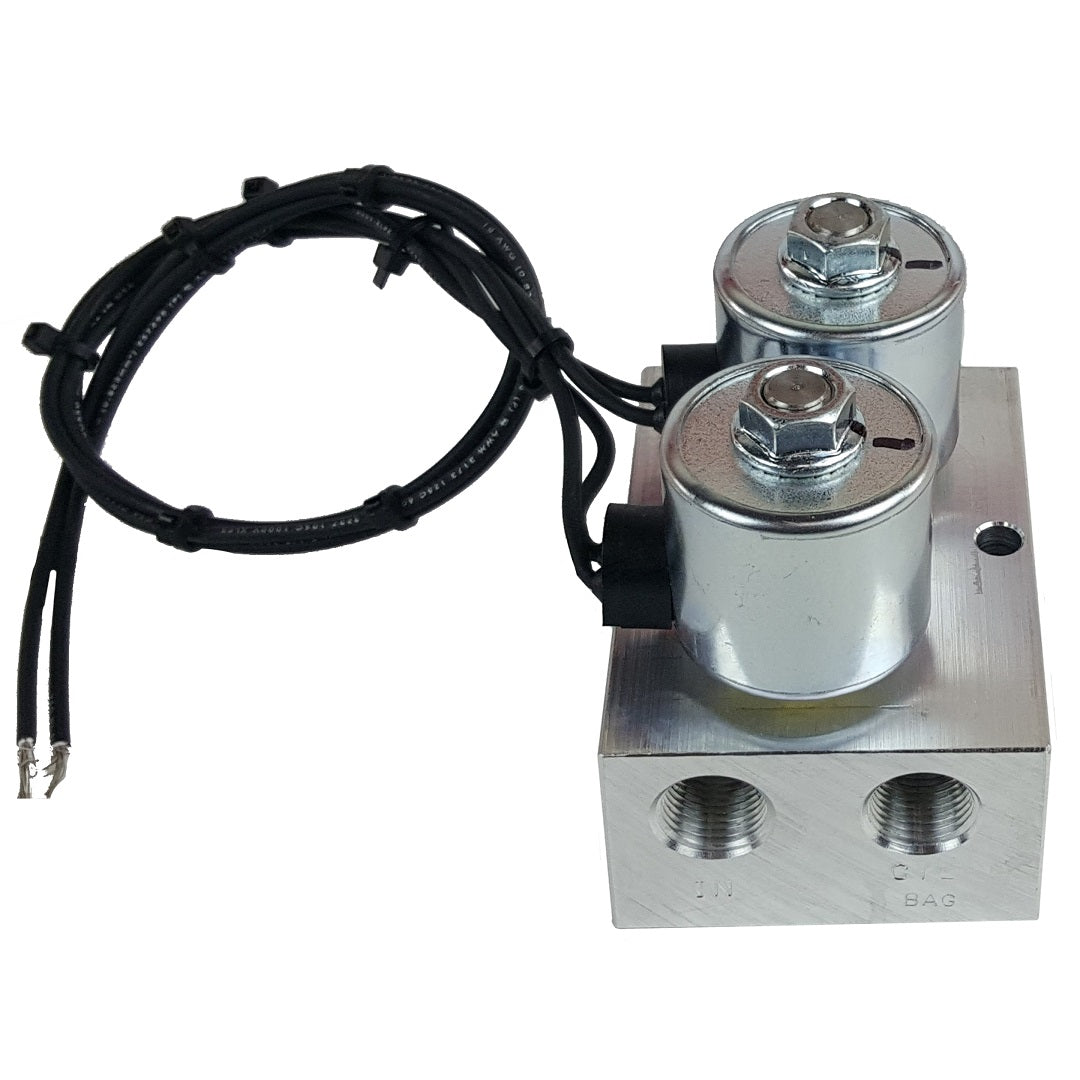

Direct Action AFC 3/8"npt Air Valve Manifold - A202

The Direct Action AFC 3/8" NPT Air Valve Manifold (model A202) is a highly beneficial component for enhancing the functionality and performance of your vehicle's air suspension system. Here's a detailed overview of its key features, benefits, installation tips, maintenance guidelines, and troubleshooting advice:

Key Features:

1. Dual Coil Design: Provides two coils per valve for precise control of airflow to each airbag, facilitating both inflation and deflation.
2. 3/8" NPT Ports: Standard National Pipe Thread ports allow for secure connections to air lines and other components in the air suspension system.
3. Built-In Gauge Port: Simplifies integration of analog or digital gauges to monitor real-time air pressure in the system.
4. Versatile Application: Compatible with various types of air suspension setups, enhancing overall compatibility and performance.

Benefits:

• Improved Control: Dual coil design enables precise adjustments to the vehicle's ride height and handling characteristics.
• Easy Integration: Built-in gauge port facilitates straightforward installation of pressure gauges for monitoring and maintaining optimal air pressure.
• Enhanced Performance: Efficient airflow control ensures smoother and more responsive operation of the suspension system.
• Reliability: Robust construction ensures durability and consistent performance in diverse driving conditions.

Installation Tips:

1. Mounting: Install the manifold in an accessible yet protected location to avoid exposure to heat, dirt, and moisture.
2. Connections: Use appropriate fittings and ensure tight connections to prevent air leaks; use Teflon tape or thread sealant for secure seals.
3. Gauge Integration: Connect pressure gauges to the built-in port following manufacturer instructions for proper installation.
4. Testing: Conduct thorough testing post-installation to verify valve functionality and check for leaks.

Maintenance:

• Regular Inspections: Periodically inspect manifold and connections for wear or leaks.
• Pressure Monitoring: Use integrated gauges to monitor air pressure consistently and adjust as needed.
• Cleanliness: Keep manifold and surrounding area clean to prevent debris from affecting valves and connections.

Troubleshooting:

• Air Leaks: Check and tighten connections; reapply thread sealant if necessary.
• Valve Issues: Ensure proper electrical connections to coils; verify voltage supply.
• Pressure Fluctuations: Check gauge functionality and inspect air lines for blockages.

In conclusion, the Direct Action AFC 3/8" NPT Air Valve Manifold (A202) offers significant advantages in terms of control, integration, performance, and reliability for air suspension systems. Its robust design and versatile features make it an excellent choice for enhancing your vehicle's suspension dynamics and overall ride quality.
