25ft Staggered Fast Valve Wire Harness

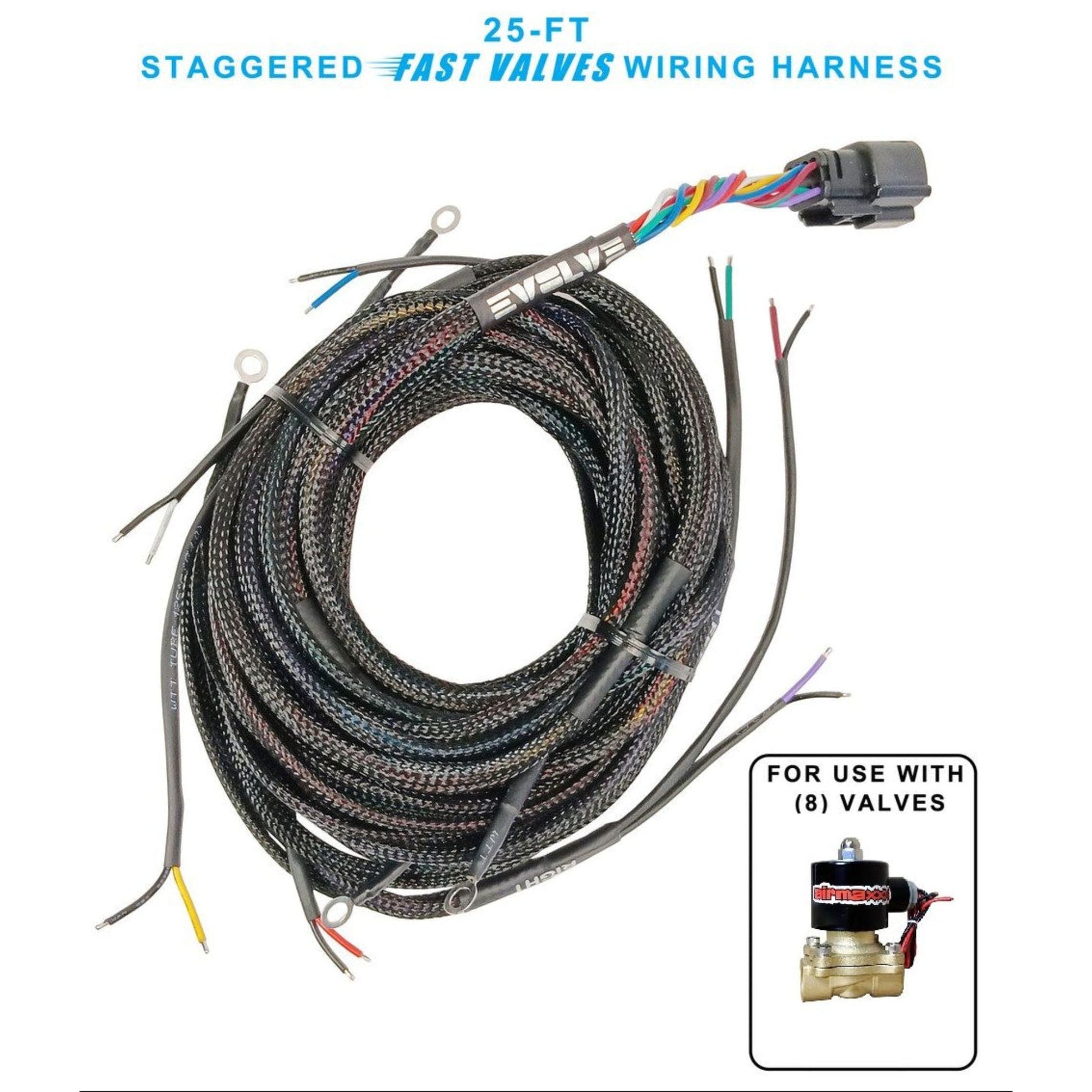

25-Foot Staggered Fast Valves Wiring Harness – EVOLVE Edition

Take the guesswork out of wiring your air suspension valves with the EVOLVE 25-Foot Staggered Fast Valves Wiring Harness — designed for clean installs, long frame coverage, and rock-solid reliability.

This premium harness is pinned to work directly with the AVS ARC-7C, AVS T7C, AccuAir e-Level, AccuAir SwitchSpeed, and Slam Specialties MC.1 / MC.2 switch boxes. It’s fully mapped to reach all four corners of your vehicle — Front Right, Front Left, Rear Left, Rear Right — so your valves sit right next to your bags for the fastest possible response.

Key Features

• 25 feet of total length — long enough for full-size trucks, SUVs, and even long-frame classics (like 70s Cadillacs).

• 18-gauge tinned copper wire for maximum conductivity and corrosion resistance.

• Pre-wired grounds with ring terminals and included stainless steel hardware for solid, rust-proof grounding.

• Heavy-duty braided loom protects your wiring from heat, abrasion, and road debris.

• Color-coded wires (Orange, Red, White, Yellow, Green, Blue, Purple, Brown) labeled for easy valve identification — no more tracing spaghetti wiring.

• Staggered layout for clean routing from the dash to the valves, eliminating clutter and confusion.

• Plug-and-play main connector that integrates directly with your existing switch box harness.

Installation Notes

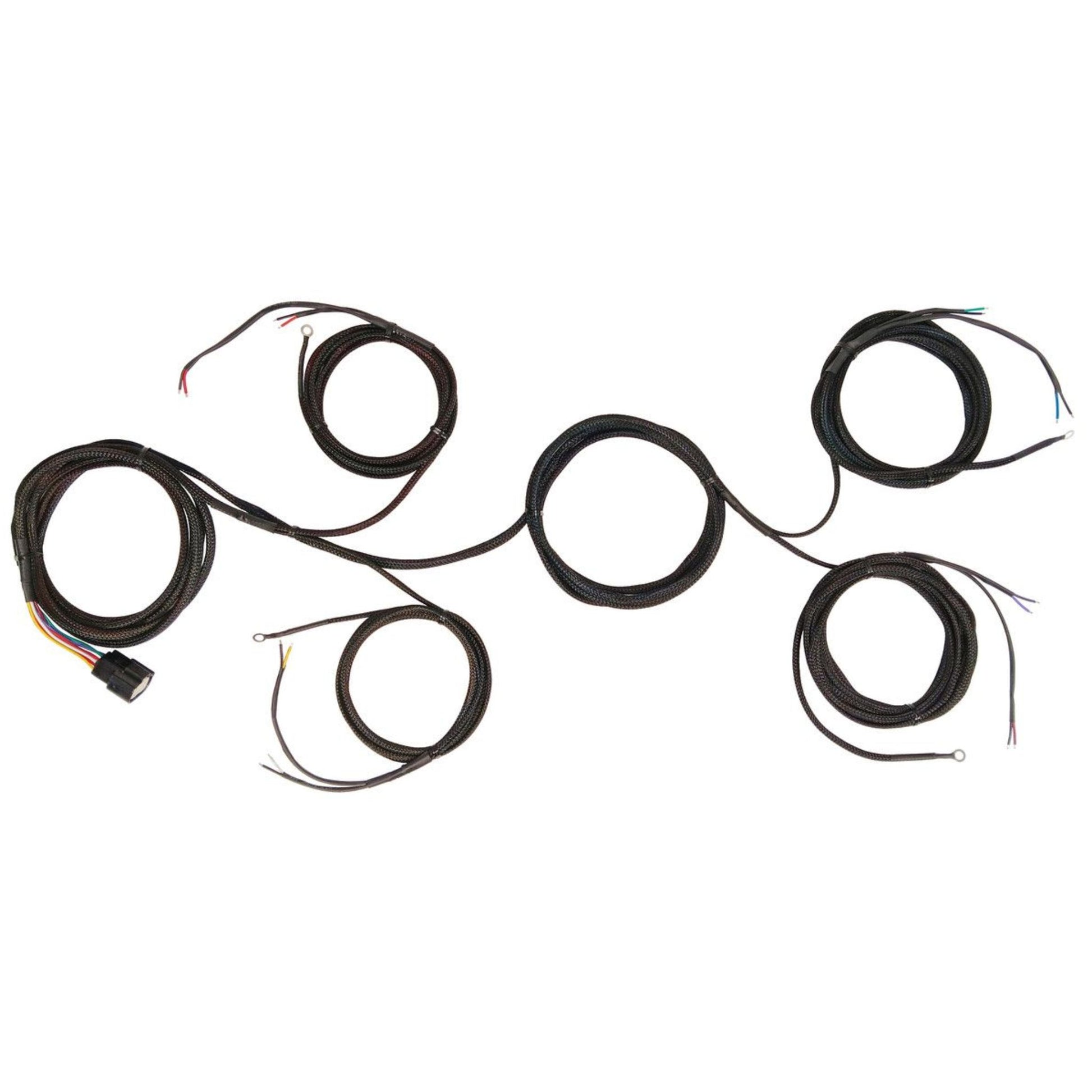

Mount the main connector under the driver’s dash and run it through the firewall to the frame rail. The harness splits (“Y’s”) to route neatly to both the front and rear of the vehicle. Follow the included length map to reach each valve position perfectly without stretching or bunching.

Important: Ground only to clean, bare metal using the supplied nut, bolt, and star washer hardware — never to valve bodies or with self-tapping screws.

Compatibility

✅ AVS ARC-7C & T7C Switch Boxes
✅ AccuAir e-Level & SwitchSpeed Controllers
✅ Slam Specialties MC.1 & MC.2 Controllers
✅ Works with Airmaxxx, AVS, SMC, Parker, ASCO, and other solenoid-style valves

Say Goodbye to the Rat’s Nest

This harness replaces messy speaker wire runs and makes your setup look as good as it performs. Professional results, simplified install, and faster valve response
