MaxTrac K949832S 3" Lift Kit for 2018-2026 Jeep Wrangler JL 4-Door V6

Build a Taller JL with Clearance for Up to 37" Tires

Transform the stance of your 2018–2026 Jeep Wrangler JL 4-door V6 with the MaxTrac K949832S 3" Lift Kit. Unlike a basic spacer setup, this package uses replacement front and rear lift coils along with matched MaxTrac shocks and supporting suspension components for a more complete suspension upgrade.

The system delivers approximately 3 inches of front lift and 2 inches of rear lift, providing additional ground clearance and room for up to 37" x 12.50" tires with the proper wheel setup.

Key Features

3" Front / 2" Rear Coil Lift

Replacement front and rear coils increase suspension height while creating a taller, balanced stance specifically for 4-door V6 Wrangler JL models.

MaxTrac Front & Rear Shocks

Includes 2650LL-11 front shocks and 2900LL-11 rear shocks matched to the increased suspension height.

Supporting Suspension Components

Front and rear bump stop extensions, a rear track bar bracket, rear brake line extensions, and rear sway bar end links help accommodate the increased ride height.

Clears Up to 37" Tires

Designed to clear up to 37" x 12.50" tires on 8"-9" wide wheels when the recommended wheel specifications are followed.

Vehicle-Specific JL Design

Engineered specifically for 2018–2026 Jeep Wrangler JL 4-door models equipped with the V6 gas engine.

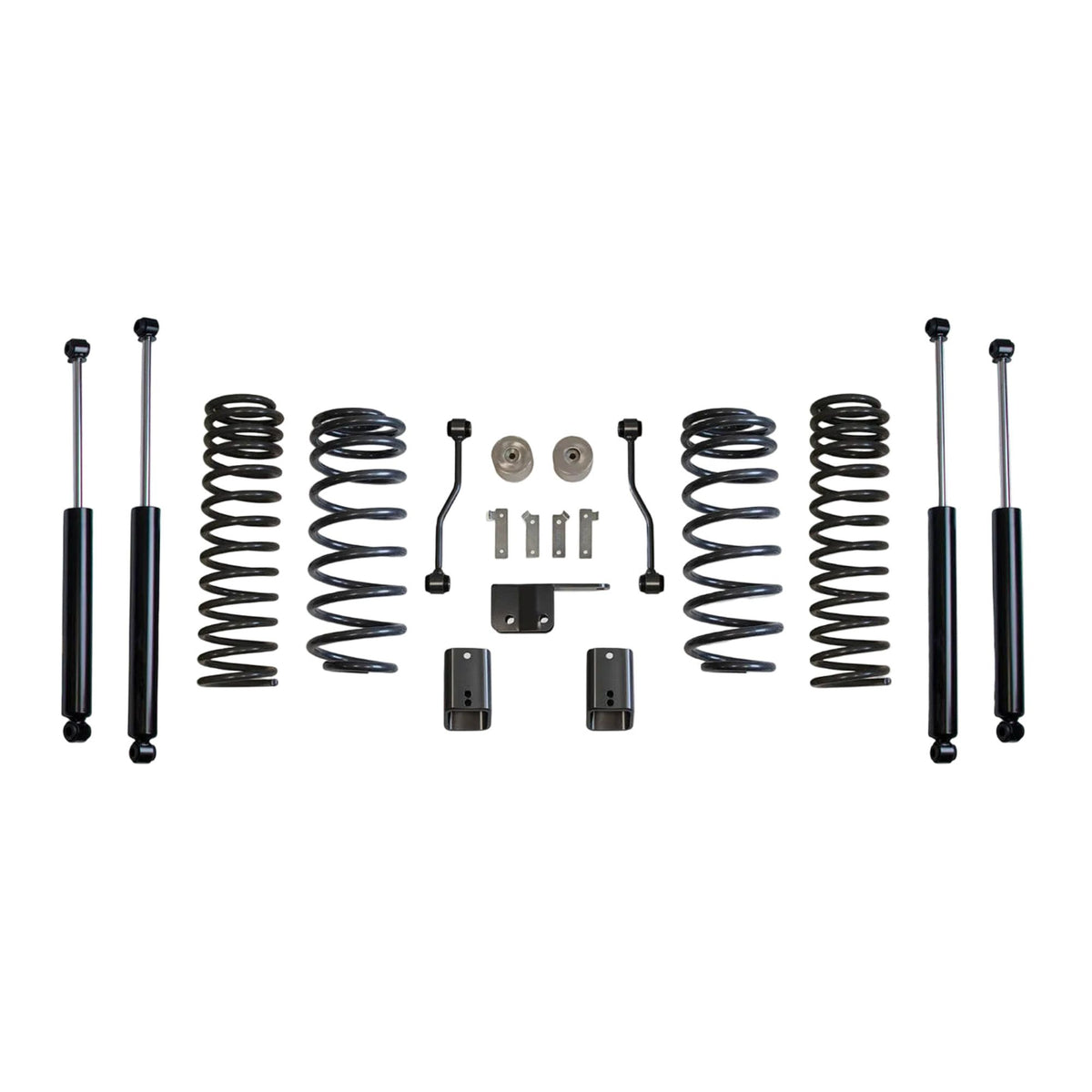

What's Included

Front lift coils
Rear lift coils
Front bump stop extensions
Rear bump stop extensions
Rear track bar bracket
Rear brake line extensions
Rear sway bar end links
MaxTrac 2650LL-11 front shocks (Qty. 2)
MaxTrac 2900LL-11 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2018–2026 Jeep Wrangler JL
4-door models only
V6 gasoline engine models only

Important Notes

Fits 4-door V6 gas models only.
Requires 17" wheels or larger with 4.5" backspacing or less.
Clears up to 37" x 12.50" tires on 8"-9" wide wheels.
Fender trimming may be required depending on wheel and tire combination.
MaxTrac 9499CCB geometry correction brackets are recommended with this kit.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K949832S
UPC: N/A
Product Type: Complete Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 3 Inches
Rear Lift: 2 Inches
Body Style: 4-Door
Engine: V6 Gas
Front Suspension: Lift Coils, Bump Stop Extensions & MaxTrac Shocks
Rear Suspension: Lift Coils, Bump Stop Extensions, Track Bar Bracket, Brake Line Extensions, Sway Bar End Links & MaxTrac Shocks
Front Shocks: 2650LL-11 (Qty. 2)
Rear Shocks: 2900LL-11 (Qty. 2)
Recommended Geometry Brackets: 9499CCB
Maximum Tire Size: 37" x 12.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Maximum Backspacing: 4.5 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 95 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K949832S?

The K949832S goes beyond a basic spacer lift by using replacement lift coils and matched MaxTrac shocks along with the supporting components needed for the increased suspension height. It's a comprehensive option for 4-door V6 Wrangler JL owners looking for a substantial stance change and clearance for larger tires.

Perfect For

2018–2026 Jeep Wrangler JL
4-door V6 gas models
3-inch coil suspension lifts
37-inch tire builds
Street and off-road Wrangler builds
JL owners upgrading coils and shocks together
