MaxTrac 902445 4.5" Rear Lift Box Kit with Rear Shocks for 2009-2024 Ram 1500 2WD 5-Lug

Take your Ram 1500 to the next level with the MaxTrac 902445 Rear Lift Box Kit. Designed specifically for 2009-2024 Ram 1500 2WD 5-lug models, this complete rear suspension package delivers 4.5 inches of rear lift using heavy-duty 3-inch lift coils, 1.5-inch rear coil spacers, a track bar bracket, sway bar brackets, and a pair of MaxTrac rear shocks for excellent ride quality, handling, and suspension performance.

Engineered to work with MaxTrac front lift components, this kit completes a 6.5 to 7-inch suspension lift while maintaining proper suspension geometry and long-term reliability. Heavy-duty steel construction and a durable grey powder coat finish provide lasting corrosion resistance and strength.

Key Features

Complete 4.5" Rear Lift Kit

Provides 4.5 inches of rear lift for increased ground clearance, improved stance, and larger tire clearance.

Designed for 6.5"-7" Lift Systems

Works with MaxTrac front lift components to complete a full 6.5 to 7-inch suspension lift.

Lift Coils & Coil Spacers Included

Includes heavy-duty 3-inch rear lift coils and 1.5-inch rear coil spacers for proper rear ride height.

Suspension Geometry Correction

Rear track bar bracket and sway bar brackets help maintain factory suspension geometry and handling after lifting.

MaxTrac Rear Shocks Included

Includes (2) MaxTrac 2900LL-4 rear shocks engineered specifically for lifted Ram applications.

Heavy-Duty Steel Construction

Premium steel components with a corrosion-resistant grey powder coat finish for years of dependable performance.

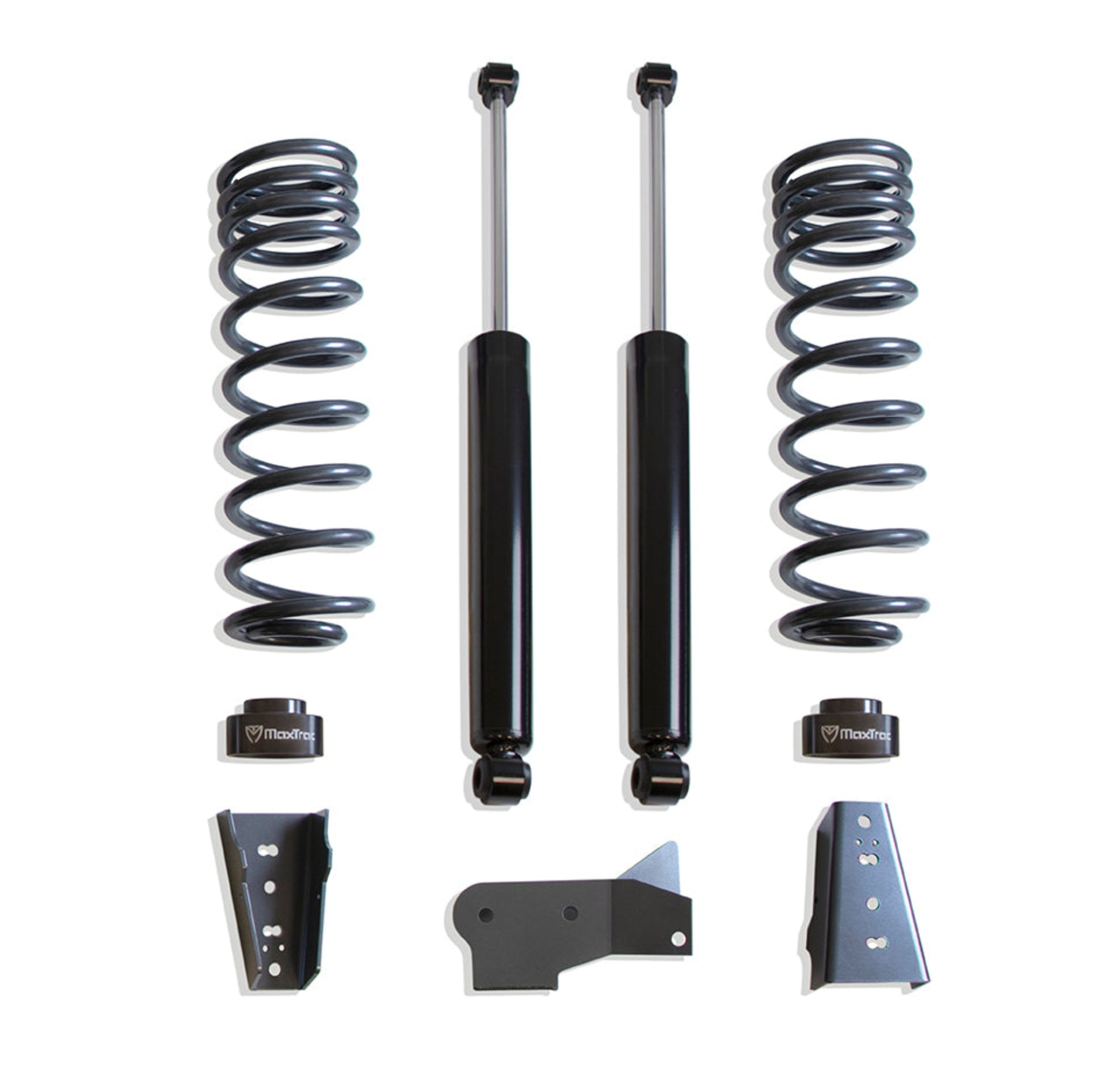

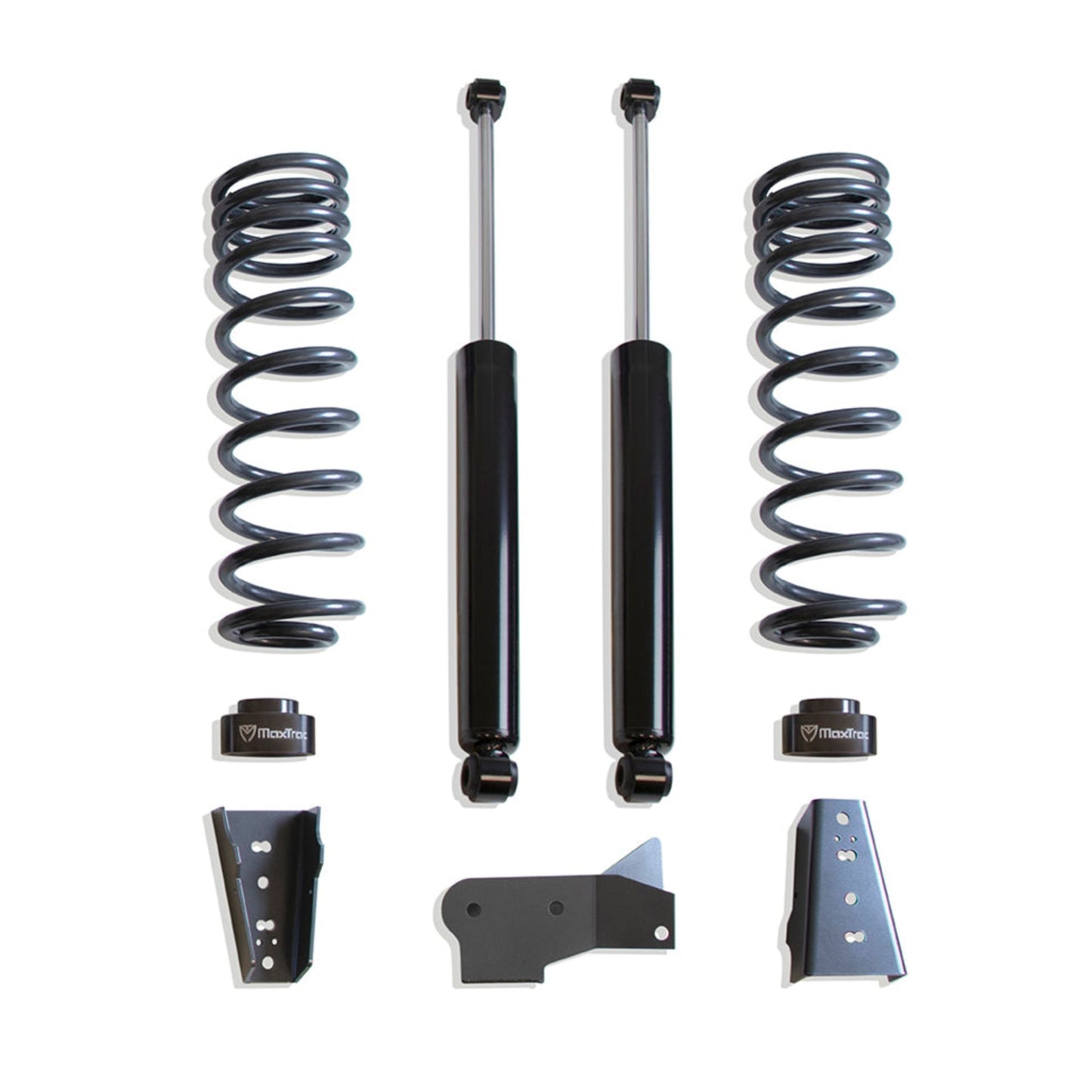

What's Included

• (2) 3" Rear Lift Coils
• (2) 1.5" Rear Coil Spacers
• Rear Track Bar Bracket
• Rear Sway Bar Brackets
• (2) MaxTrac Rear Shocks (2900LL-4)
• Installation Hardware

Vehicle Fitment

Fits

• 2009-2024 Ram 1500 2WD 5-Lug Models

Does Not Fit

• 2019-2024 Ram 1500 6-Lug Models

Important Notes

• Designed for use with MaxTrac front lift components to complete a 6.5 to 7-inch lift system.
• Models equipped with a two-piece driveshaft require MaxTrac Carrier Bearing Kit Part #612400.
• Replacement rear shocks are sold individually. Order quantity two if purchasing separately.
• Professional alignment is recommended after completing the suspension installation.

Wheel Recommendations

• Maximum recommended wheel width: 9 inches.
• Minimum recommended backspacing: 4.5 inches.
• Wheels exceeding these specifications may void the manufacturer warranty.

Why Choose the MaxTrac 902445?

The MaxTrac 902445 is a complete rear suspension solution for Ram owners looking to build a serious lifted truck. By combining lift coils, coil spacers, suspension correction brackets, and matched MaxTrac shocks, this kit delivers proper ride height, excellent ride quality, and the durability needed for daily driving, towing, and off-road use.

Perfect For

• Completing a 6.5-7 inch MaxTrac lift
• Daily drivers
• Work trucks
• Towing applications
• Larger tire upgrades
• Off-road enthusiasts

Product Specifications

Part Number: 902445
UPC: 738283444302
Kit Type: Lift / Level
Rear Lift: 4.5"
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Engine Compatibility: Gas, Diesel
Shock Details: Rear: 2900LL-4 (Qty. 2)
Sold As: Combo Kit
Weight: 58 lbs
Dimensions: 24" × 14" × 8"
Country of Origin: China
