MaxTrac K886732 3.5" Lift Kit for 2007-2021 Toyota Tundra 2WD

Add Height and 33" Tire Clearance to Your Tundra

Upgrade the stance of your 2007–2021 Toyota Tundra 2WD with the MaxTrac K886732 3.5" Lift Kit. This complete suspension package uses front lift spindles to provide 3.5 inches of lift while 2-inch rear blocks bring up the back for a balanced lifted appearance.

Extended front brake lines, U-bolts, and matched MaxTrac rear shocks are included, giving you the major components needed for the conversion. With the proper wheel setup, the K886732 provides clearance for up to 33" x 11.50" tires.

Key Features

3.5" Front Spindle Lift

Vehicle-specific lift spindles provide approximately 3.5 inches of front lift, adding height and tire clearance to your 2WD Tundra.

2" Rear Lift

Rear lift blocks and U-bolts raise the back approximately 2 inches, complementing the taller front suspension.

Extended Brake Lines Included

Extended front brake lines provide the additional length needed to accommodate the increased suspension height.

MaxTrac Rear Shocks

Includes two MaxTrac 2650SL-8 rear shocks designed for the lifted rear suspension.

Clears Up to 33" Tires

Designed to clear up to 33" x 11.50" tires on 8"-9" wide wheels when the recommended wheel specifications are followed.

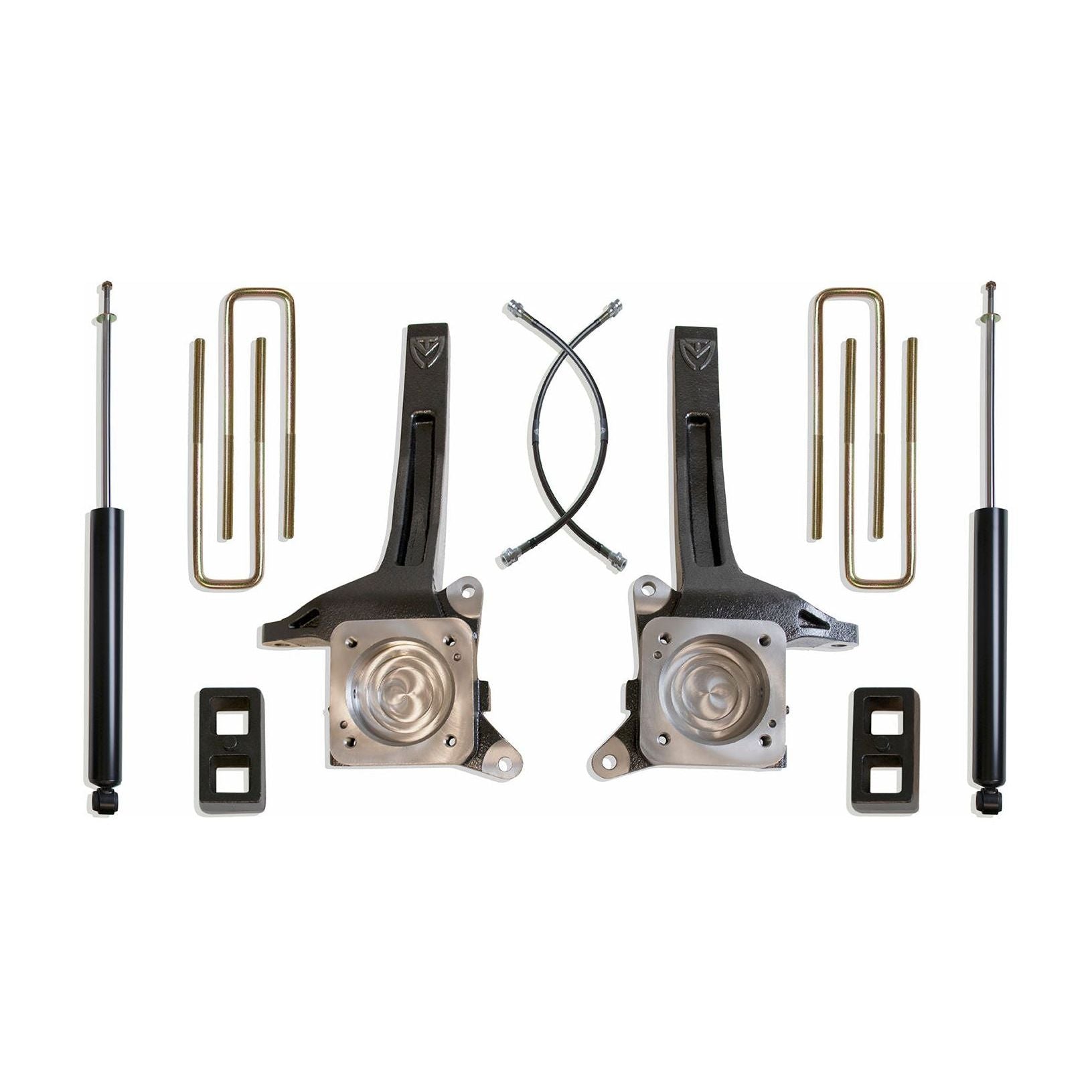

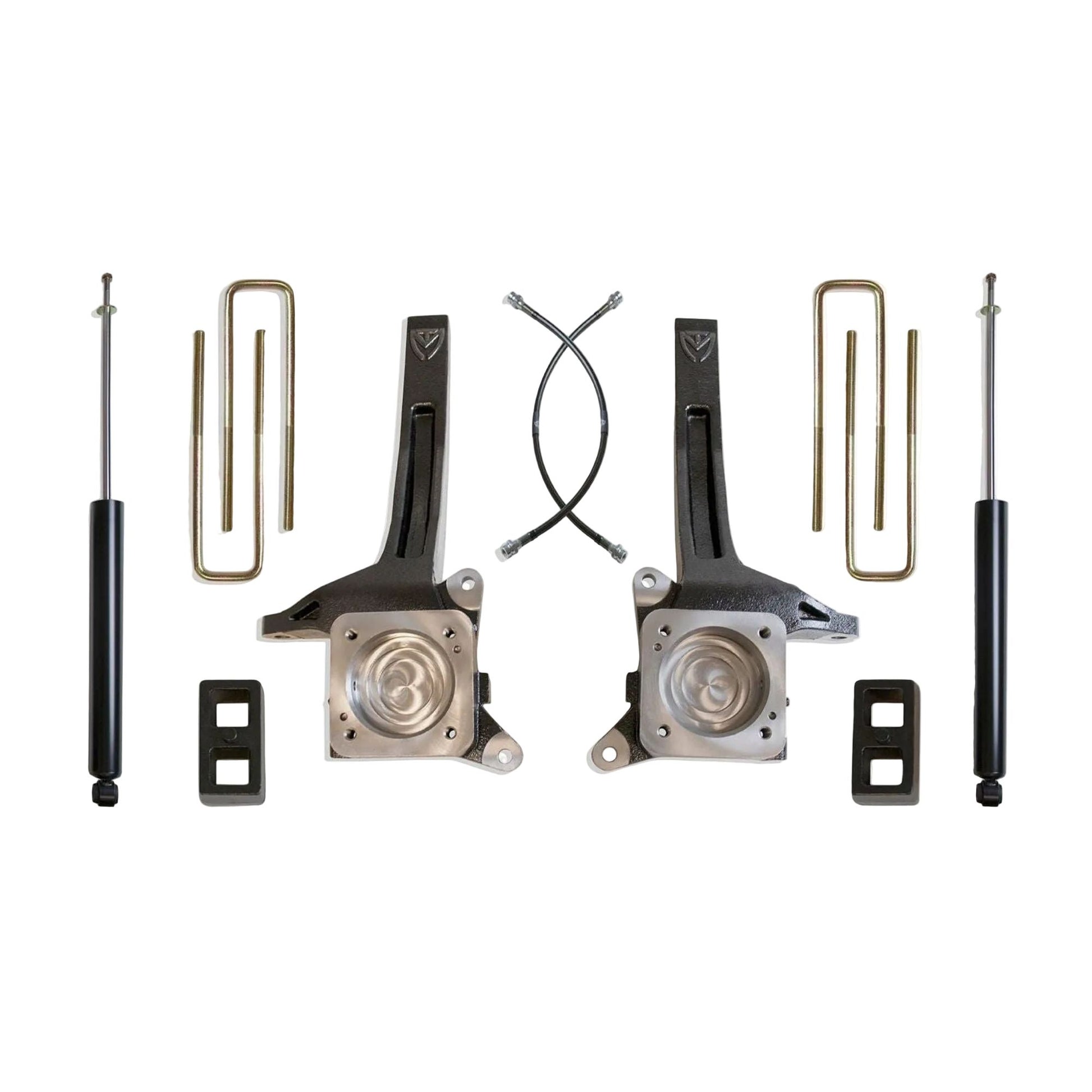

What's Included

Front lift spindles 706735
Extended front brake lines
Rear lift box 906720
Includes-
MaxTrac 2650SL-8 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2007–2021 Toyota Tundra
2WD models

Important Notes

Requires 18" wheels or larger with 6-1/2" backspacing or less.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required depending on the wheel and tire combination.
When ordering rear shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K886732
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 3.5 Inches
Rear Lift: 2 Inches
Drivetrain: 2WD
Front Components: Lift Spindles & Extended Brake Lines
Rear Components: Lift Blocks, U-Bolts & Shocks
Rear Shocks: 2650SL-8 (Qty. 2)
Maximum Tire Size: 33" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 18 Inches
Maximum Backspacing: 6-1/2 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 108 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K886732?

Instead of relying only on strut spacers for additional height, the K886732 uses front lift spindles to deliver a substantial 3.5-inch front lift. Combined with extended brake lines, 2-inch rear blocks, U-bolts, and MaxTrac rear shocks, this package provides a complete front-to-rear solution for lifting a 2WD Tundra.

Perfect For

2007–2021 Toyota Tundra 2WD
3.5-inch Tundra lift builds
Spindle lift applications
33-inch tire setups
Street and custom truck builds
Tundras needing a complete front and rear lift package
