MaxTrac 701330BL 3" Front Lift Spindles w/ Brake Lines for 2007-2016 Silverado & Sierra 1500 2WD (Cast Steel Arms)

Add 3 Inches of Lift Without Sacrificing Ride Quality

The MaxTrac 701330BL Front Lift Spindle Kit delivers a true 3-inch front lift for 2007-2016 Chevy Silverado and GMC Sierra 1500 2WD trucks equipped with factory cast steel control arms. Manufactured from heavy-duty ductile steel and finished with a corrosion-resistant black E-coat, these lift spindles include DOT-approved extended brake lines for a complete bolt-on installation while maintaining factory steering geometry and ride quality.

Key Features

3-Inch Front Lift

Raises the front of your truck while maintaining factory suspension geometry and handling.

Ductile Steel Lift Spindles

Heavy-duty cast ductile steel construction provides exceptional strength and durability.

Extended Brake Lines Included

Includes extended front brake lines for safe operation with the lifted suspension.

Black E-Coat Finish

Protects against rust and corrosion for long-lasting performance.

Direct Bolt-On Installation

Designed specifically for trucks equipped with factory cast steel control arms.

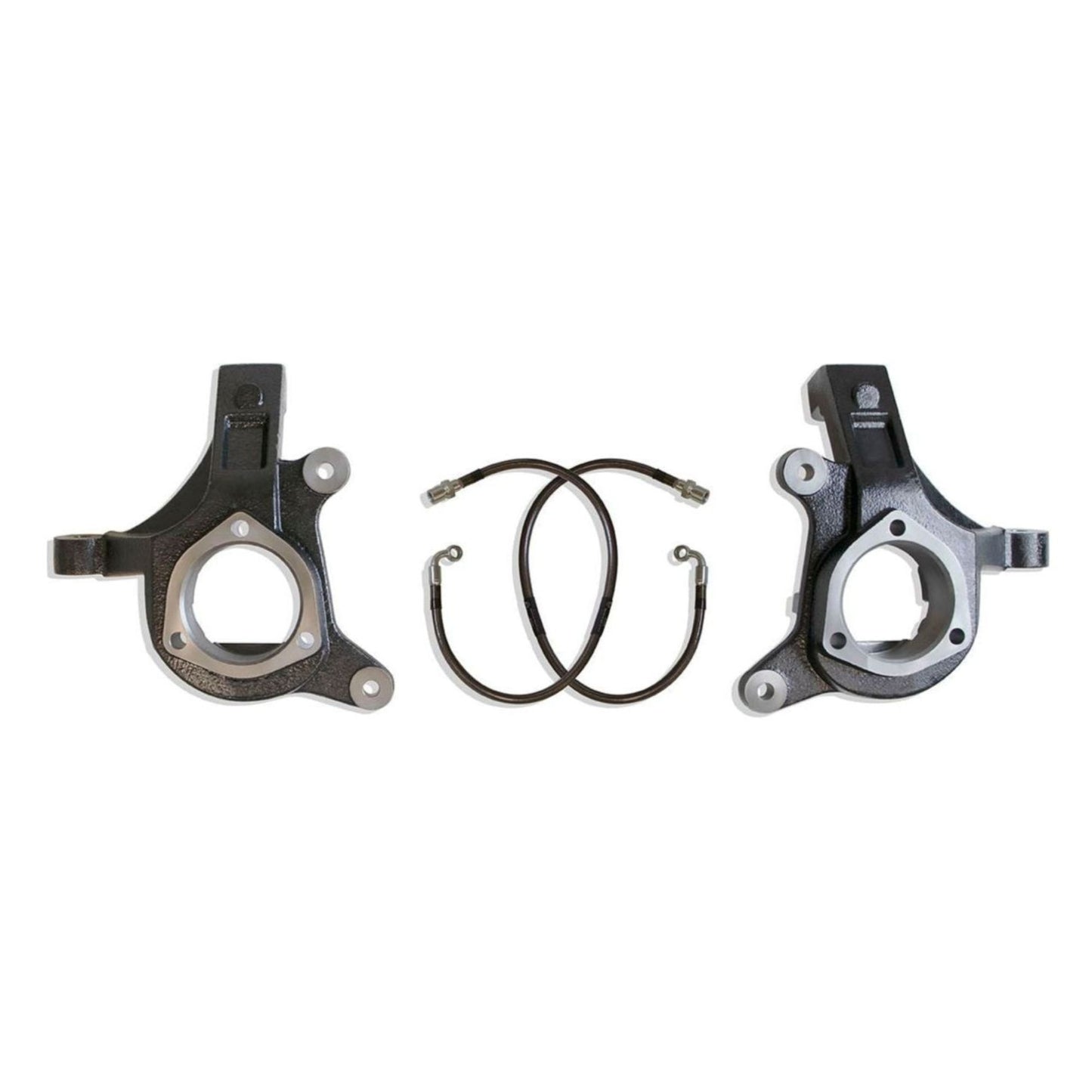

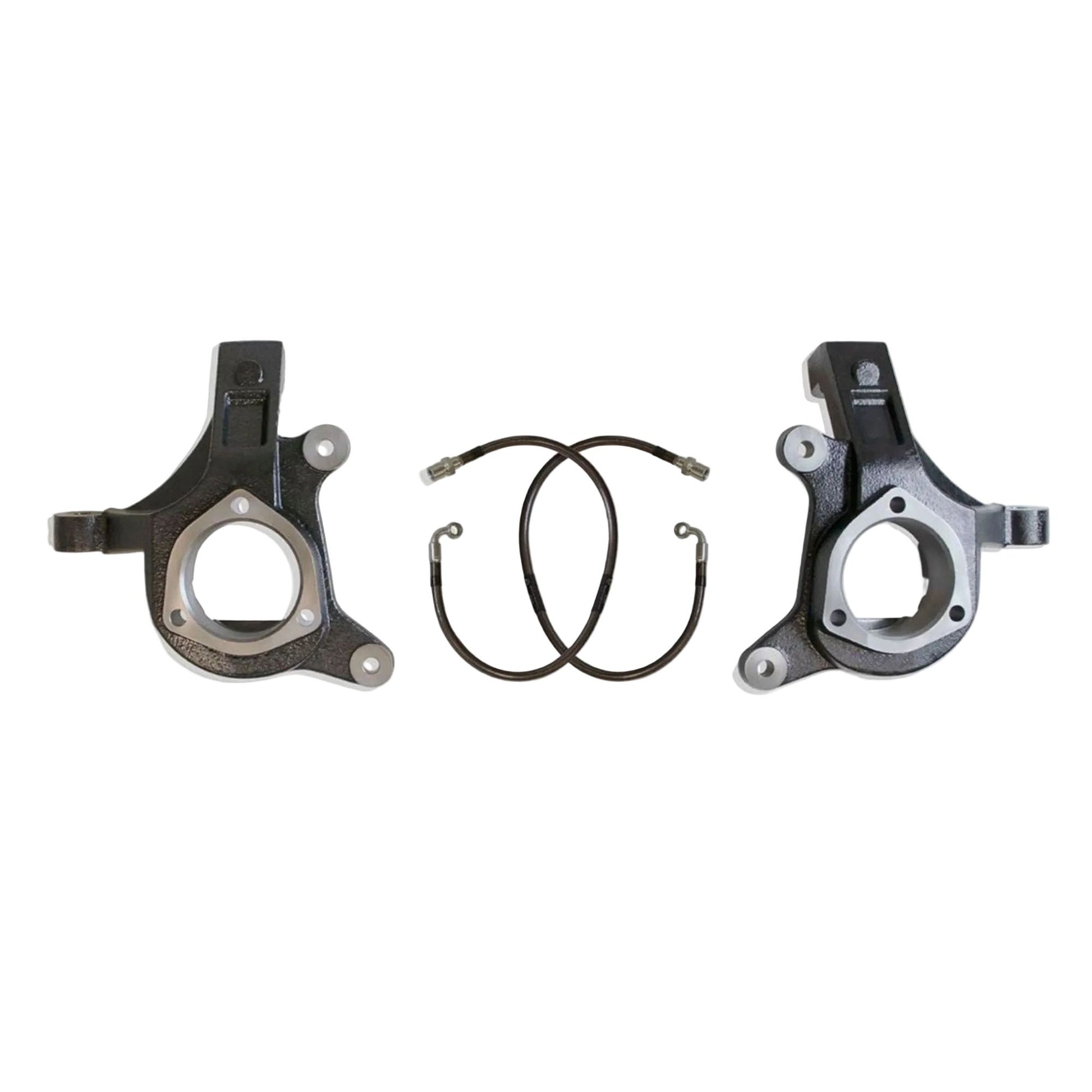

What's Included

(2) Front Lift Spindles
Extended Front Brake Lines
Installation Hardware

Vehicle Fitment

Fits

2007-2016 Chevrolet Silverado 1500 2WD (Cast Steel Control Arms)
2007-2016 GMC Sierra 1500 2WD (Cast Steel Control Arms)

Does Not Fit

Stamped steel or aluminum control arm models
4WD models

Important Notes

Provides a 3-inch front lift.
Fits factory cast steel control arm models only.
Requires 17-inch or larger wheels with 4.75 inches of backspacing or less.
20-inch or larger wheels may use up to 5.75 inches of backspacing.
Factory 20-inch wheels will fit.
Clears tires up to 32" x 11.50" on 8-9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
Professional installation and alignment are recommended.
MaxTrac recommends wheels no wider than 9" with at least 4.5" of backspacing. Using wheels outside these recommendations may void the manufacturer warranty.

Product Specifications

Part Number: 701330BL
UPC: 738283445828
Kit Type: Lift/Level
Product Type: Front Lift Spindles with Brake Lines
Position: Front
Lift Height: 3"
Material: Ductile Steel
Finish: Black E-Coating
Color: Black
Sold As: Pair
Weight: 46 lbs
Dimensions: 16" x 16" x 8"
Country of Origin: China

Why Choose MaxTrac?

The MaxTrac 701330BL spindle kit offers a true 3-inch lift without changing ride quality or suspension geometry. With heavy-duty ductile steel construction and included extended brake lines, it's an excellent upgrade for Silverado and Sierra owners looking for additional tire clearance and a more aggressive stance.

Perfect For

3" Front Lifts
Silverado 1500 Leveling
Sierra 1500 Lift Kits
32" Tire Upgrades
Daily Drivers
Off-Road Builds
