MaxTrac K882262DS 6.5" Lift Kit for 2003-2008 Ram 2500/3500 2WD Diesel (3.625" U-Bolts)

Upgrade Your Diesel Ram with Confidence

Give your 2003–2008 Dodge Ram 2500 or Ram 3500 2WD Diesel the clearance and aggressive stance it deserves with the MaxTrac K882262DS Lift Kit. Specifically engineered for diesel-powered trucks equipped with 3.625-inch wide factory U-bolts, this complete suspension system delivers a 6.5-inch front lift and 2.5-inch rear lift. The kit includes diesel-specific lift coils, heavy-duty lift spindles, extended brake lines, rear lift blocks, 3.625-inch U-bolts, and matched MaxTrac front and rear shocks for a complete bolt-on suspension upgrade.

Key Features

Complete 6.5"/2.5" Lift System

Provides a balanced front and rear lift using components engineered to work together for reliable performance and improved ground clearance.

Diesel-Specific Front Lift Coils

Designed to support the additional weight of diesel engines while maintaining proper ride height and suspension geometry.

Heavy-Duty Lift Spindles

Increase front ride height while maintaining factory steering geometry and dependable handling characteristics.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 1800SL-6 front shocks and (2) MaxTrac 2900LL-4 rear shocks for excellent ride quality and suspension control.

Durable Powder-Coated Steel Components

Constructed from heavy-duty steel with a corrosion-resistant grey powder-coated finish for long-lasting durability.

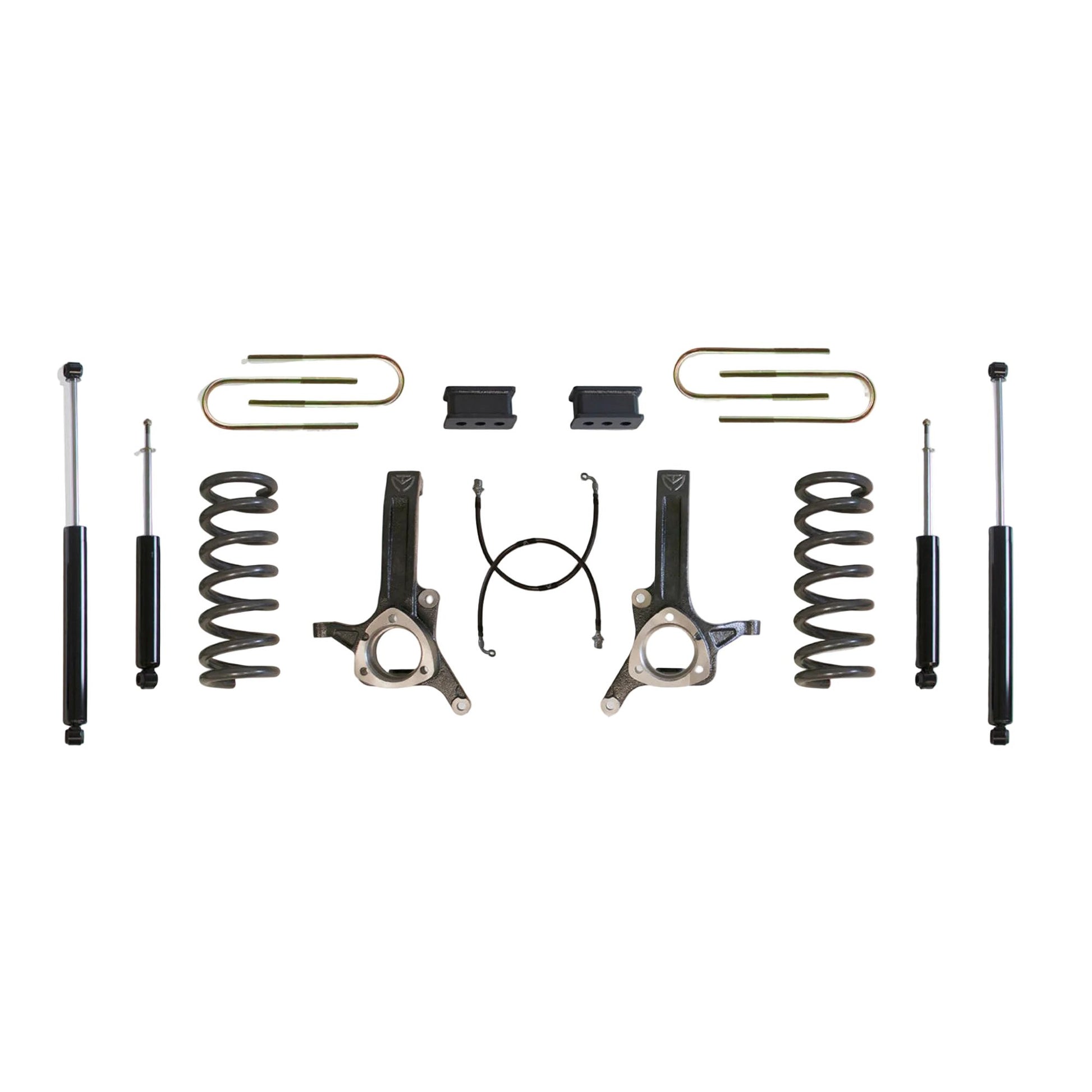

What's Included

Diesel front lift coils
Front lift spindles
Extended front brake lines
Rear lift blocks
3.625-inch wide U-bolts
(2) MaxTrac 1800SL-6 front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2003–2008 Dodge Ram 2500 2WD Diesel
2003–2008 Dodge Ram 3500 2WD Diesel
Models equipped with 3.625-inch wide factory U-bolts

Does Not Fit

Gas engine models
4WD models
Vehicles with factory U-bolts other than 3.625 inches wide

Important Notes

Requires 17-inch wheels or larger with 4.75 inches of backspacing or less.
Factory wheels will not fit after installation. Factory dually wheels with stock-size tires will fit.
Clears up to 34x11.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits Diesel models only.
Fits trucks equipped with 3.625-inch wide factory U-bolts only. Measure your factory U-bolts before ordering.
Replacement shocks are sold individually if purchased separately. Order a quantity of two for both the front and rear.
With the lift coils installed, the upper control arm may contact the coil bucket at full suspension droop, producing a "bang" sound.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882262DS
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6.5 Inches
Rear Lift: 2.5 Inches
Engine Compatibility: Diesel
U-Bolt Size: 3.625 Inches
Front Shock Details: (2) 1800SL-6 Front Shocks
Rear Shock Details: (2) 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 139 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882262DS?

Designed exclusively for diesel-powered 2WD Ram 2500 and 3500 trucks, the K882262DS combines application-specific lift coils, premium MaxTrac shocks, heavy-duty lift spindles, and properly sized 3.625-inch U-bolts into one complete suspension package. It's an ideal upgrade for increased ground clearance, larger tires, and dependable on-road or off-road performance.

Perfect For

Diesel Ram 2500 owners
Diesel Ram 3500 owners
Daily driven lifted trucks
Off-road enthusiasts
34-inch tire upgrades
Complete suspension lift installations
