MaxTrac K882262DL 6.5" Lift Kit for 2003-2008 Ram 2500/3500 2WD Diesel (4.125" U-Bolts)

Lift Your Diesel Ram with a Complete 6.5-Inch Suspension System

Upgrade your 2003–2008 Dodge Ram 2500 or Ram 3500 2WD Diesel with the MaxTrac K882262DL Lift Kit. Designed specifically for diesel-powered trucks equipped with 4.125-inch wide factory U-bolts, this complete suspension package delivers a 6.5-inch front lift and 2.5-inch rear lift. The kit includes diesel-specific front lift coils, heavy-duty lift spindles, extended brake lines, rear lift blocks, 4.125-inch U-bolts, and matched MaxTrac front and rear shocks for dependable performance both on and off the road.

Key Features

Complete 6.5"/2.5" Lift Kit

Everything needed to properly lift your Ram 2500 or 3500 with components engineered to work together for excellent ride quality and durability.

Diesel-Specific Front Lift Coils

Designed to properly support the additional weight of diesel engines while delivering the intended lift height.

Heavy-Duty Lift Spindles

Maintains factory steering geometry while providing increased ground clearance and suspension performance.

Front & Rear MaxTrac Shocks Included

Includes (2) MaxTrac 1800SL-6 front shocks and (2) MaxTrac 2900LL-4 rear shocks for improved ride control and handling.

Heavy-Duty Steel Construction

Manufactured from premium steel with a durable grey powder-coated finish for excellent corrosion resistance and long service life.

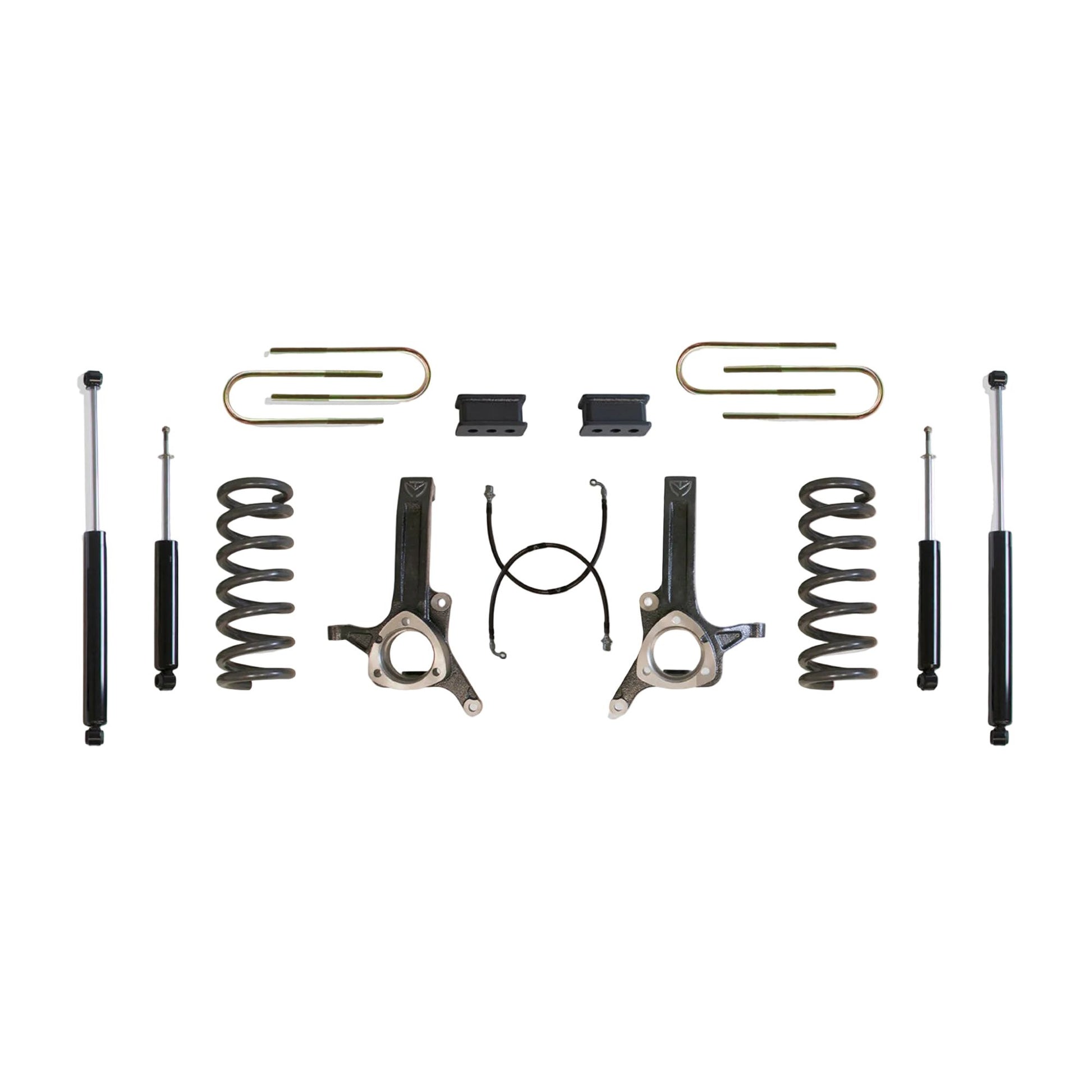

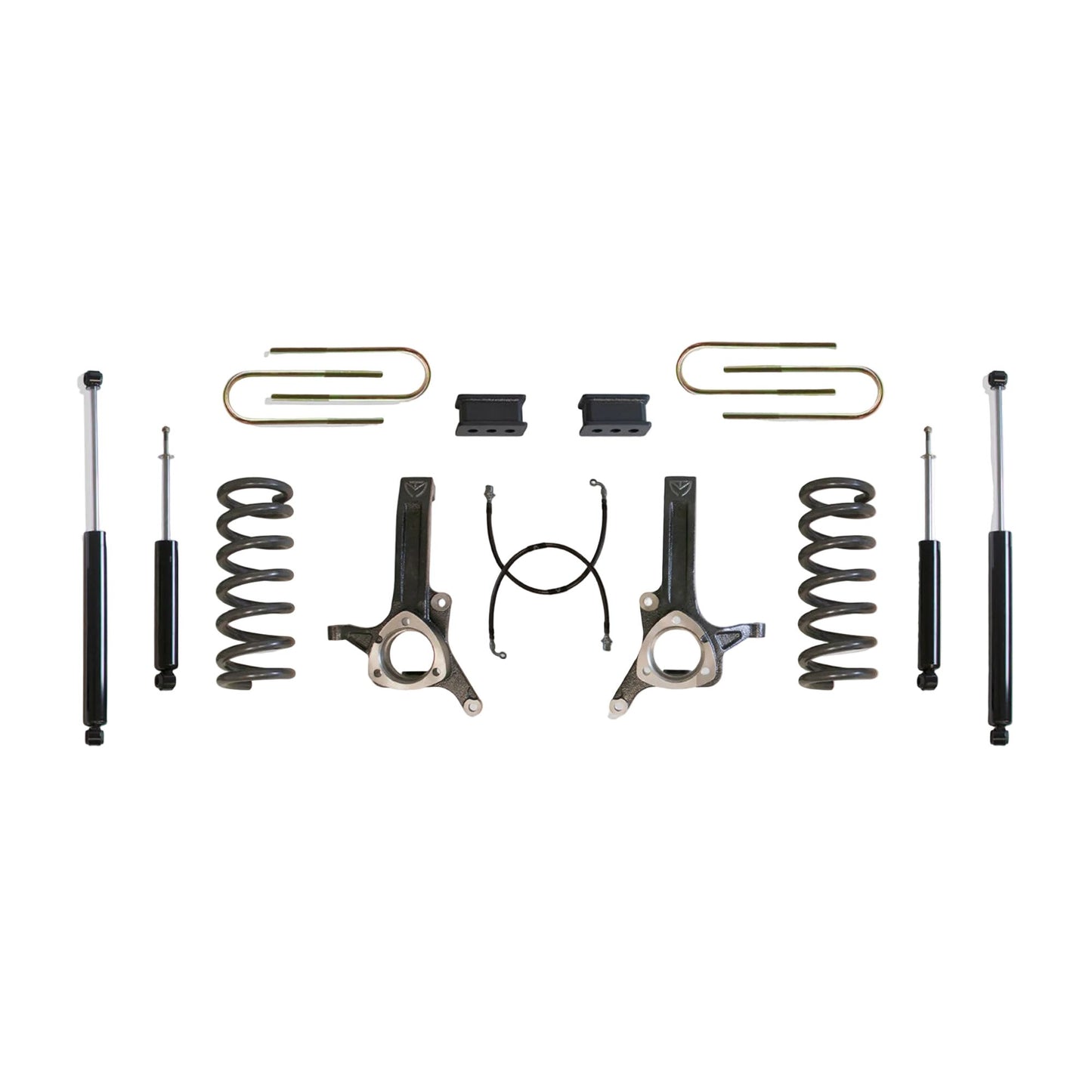

What's Included

Diesel front lift coils
Lift spindles
Extended front brake lines
Rear lift blocks
4.125-inch wide U-bolts
(2) MaxTrac 1800SL-6 front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2003–2008 Dodge Ram 2500 2WD Diesel
2003–2008 Dodge Ram 3500 2WD Diesel
Models equipped with 4.125-inch wide factory U-bolts

Does Not Fit

Gas engine models
4WD models
Trucks equipped with factory U-bolts other than 4.125 inches wide

Important Notes

Requires 17-inch wheels or larger with 4.75 inches of backspacing or less.
Factory wheels will not fit after installation. Factory dually wheels with stock-size tires will fit.
Clears up to 34x11.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
Fits Diesel models only.
Fits trucks equipped with 4.125-inch wide factory U-bolts only. Measure your factory U-bolts before ordering.
Replacement shocks are sold individually if purchased separately—order a quantity of two for both the front and rear.
With the lift coils installed, the upper control arm may contact the coil bucket at full suspension droop, producing a "bang" sound.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882262DL
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6.5 Inches
Rear Lift: 2.5 Inches
Engine Compatibility: Diesel
U-Bolt Size: 4.125 Inches
Front Shock Details: (2) 1800SL-6 Front Shocks
Rear Shock Details: (2) 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 139 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882262DL?

Purpose-built for diesel-powered Ram 2500 and 3500 trucks, the K882262DL combines vehicle-specific lift coils, premium MaxTrac shocks, and heavy-duty suspension components into one complete package. It's the ideal choice for owners looking to improve ground clearance, accommodate larger tires, and maintain reliable suspension performance.

Perfect For

Diesel Ram 2500 builds
Diesel Ram 3500 builds
Daily driven lifted trucks
Off-road enthusiasts
34-inch tire upgrades
Complete suspension lift installations
