MaxTrac K882262S 6.5" Lift Kit for 2003-2008 Ram 2500/3500 2WD

Lift Your HEMI Ram with a Complete Matched Suspension Package

Build a taller, more aggressive 2003–2008 Dodge Ram 2500/3500 or Ram 1500 Mega Cab 2WD with the MaxTrac K882262S Lift Kit. Designed specifically for 5.7L HEMI gas models with 3.625" wide factory U-bolts, this package combines HEMI-specific front coils and lift spindles with a 2.5-inch rear lift, extended brake lines, and matched MaxTrac shocks.

Key Features

HEMI Coils & Lift Spindles

The front suspension combines 5.7L HEMI V8 lift coils and MaxTrac lift spindles to deliver the increased ride height and aggressive stance.

2.5" Rear Lift

Rear blocks provide approximately 2.5 inches of lift, with properly sized U-bolts included for compatible applications.

3.625" Wide U-Bolts

This version is specifically designed for trucks using 3.625" wide factory U-bolts. Measure your original U-bolts before ordering to verify fitment.

Front & Rear MaxTrac Shocks

Includes two 1800SL-6 front shocks and two 2900LL-4 rear shocks matched to the lifted suspension.

Clears Up to 34" Tires

Provides clearance for up to 34" x 11.50" tires on 8"-9" wide wheels. Fender trimming may be required depending on the wheel and tire combination.

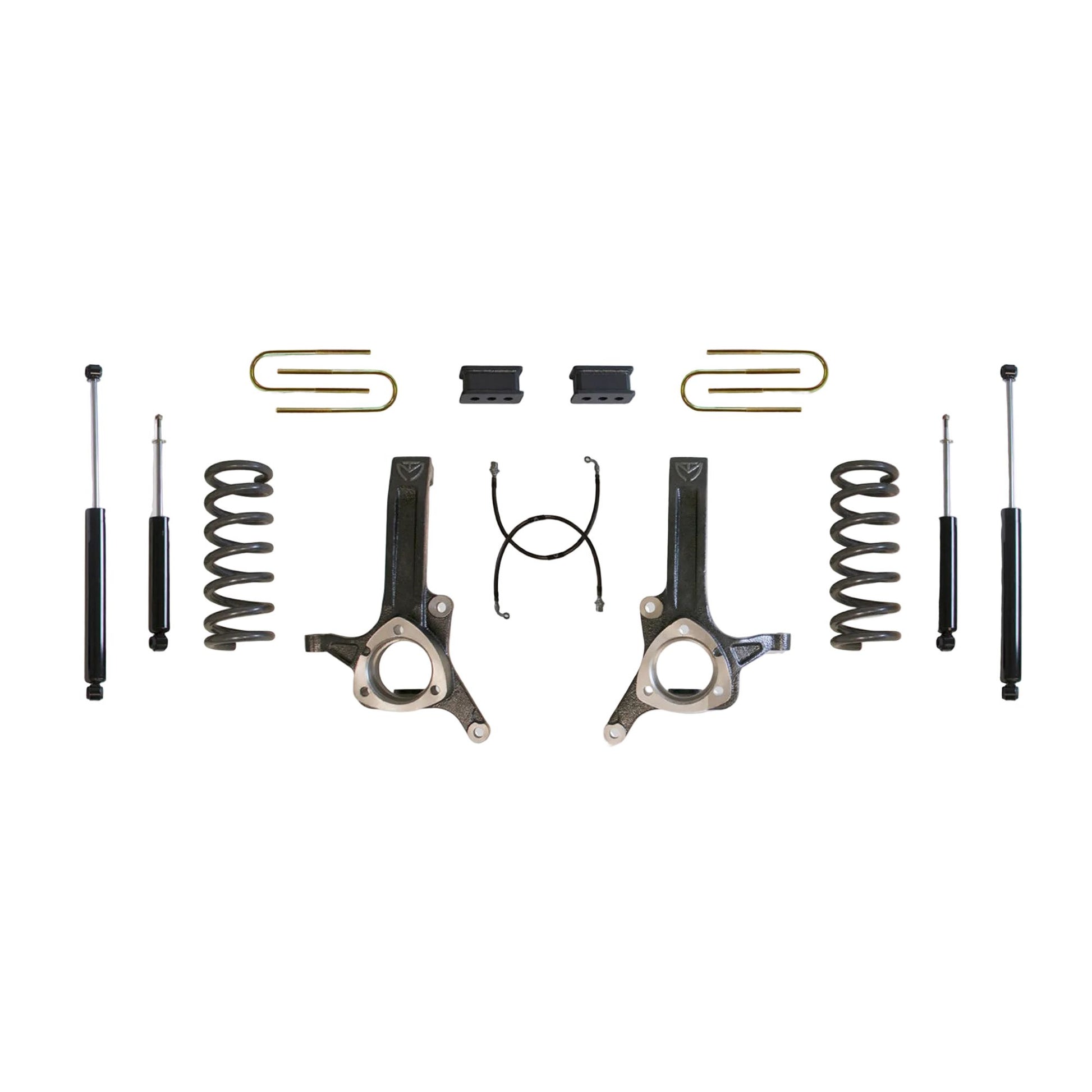

What's Included

HEMI V8 front lift coils
Front lift spindles
Extended brake lines
2.5" rear lift blocks
3.625" wide x 10" U-bolts
MaxTrac 1800SL-6 front shocks (Qty. 2)
MaxTrac 2900LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2003–2008 Dodge Ram 2500 2WD with 5.7L HEMI
2003–2008 Dodge Ram 3500 2WD with 5.7L HEMI
Applicable Dodge Ram 1500 Mega Cab 2WD with 5.7L HEMI
Models with 3.625" wide factory U-bolts only

Does Not Fit

Diesel engine models
Trucks with factory U-bolts other than 3.625" wide

Important Notes

Requires 17" wheels or larger with 4-3/4" backspacing or less.
Standard stock wheels will not fit.
Stock dually wheels with stock-size tires will fit.
Clears up to 34" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
Fits 5.7L HEMI gas models only.
Fits models with 3.625" wide U-bolts only; measure the factory U-bolts before ordering.
With the lift coils installed, the upper control arm may contact the coil bucket at full suspension droop and cause a "bang" sound.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882262S
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Advertised Lift: 6.5 Inches
Listed Front Lift: 6 Inches
Rear Lift: 2.5 Inches
Drivetrain: 2WD
Engine: 5.7L HEMI V8 Gas
Front Components: HEMI Lift Coils, Spindles & Extended Brake Lines
Rear Components: Lift Blocks & U-Bolts
U-Bolt Width: 3.625 Inches
U-Bolt Size: 3.625" x 10"
Front Shocks: 1800SL-6 (Qty. 2)
Rear Shocks: 2900LL-4 (Qty. 2)
Maximum Tire Size: 34" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 139 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882262S?

The K882262S packages the major components needed to lift compatible 5.7L HEMI Ram trucks, including coils, spindles, extended brake lines, rear blocks, 3.625" U-bolts, and front/rear MaxTrac shocks. The application-specific U-bolts make it especially important to verify your factory measurements before ordering.

Perfect For

2003–2008 Ram 2500 2WD
2003–2008 Ram 3500 2WD
Ram 1500 Mega Cab 2WD
5.7L HEMI V8 trucks
3.625" U-bolt applications
6.5-inch lift builds
Up to 34-inch tire setups
