MaxTrac K882262L 6.5" Lift Kit for 2003-2008 Ram 2500/3500 2WD

Go Bigger with a Complete HEMI-Powered Ram Lift

Transform the stance of your 2003–2008 Dodge Ram 2500/3500 or Ram 1500 Mega Cab 2WD with the MaxTrac K882262L Lift Kit. Built specifically for 5.7L HEMI gas models with 4.125" wide factory U-bolts, this system combines HEMI-specific lift coils and spindles for approximately 6.5 inches of advertised front lift, along with a 2.5-inch rear lift and matched MaxTrac shocks.

Key Features

HEMI Coils & Lift Spindles

The front suspension combines 5.7L HEMI-specific lift coils with MaxTrac lift spindles to create the kit's aggressive lifted stance.

2.5" Rear Lift

Rear lift blocks and heavy-duty 4.125" wide x 13.5" U-bolts raise the rear approximately 2.5 inches to complement the front suspension.

Front & Rear MaxTrac Shocks

Includes 1800SL-6 front shocks and 2900LL-4 rear shocks, with two shocks provided for each axle.

Extended Brake Lines Included

Extended brake lines help accommodate the additional suspension height and are included with the complete package.

Clears Up to 34" Tires

Designed to clear up to 34" x 11.50" tires on 8"-9" wide wheels. Fender trimming may be required depending on the wheel and tire combination.

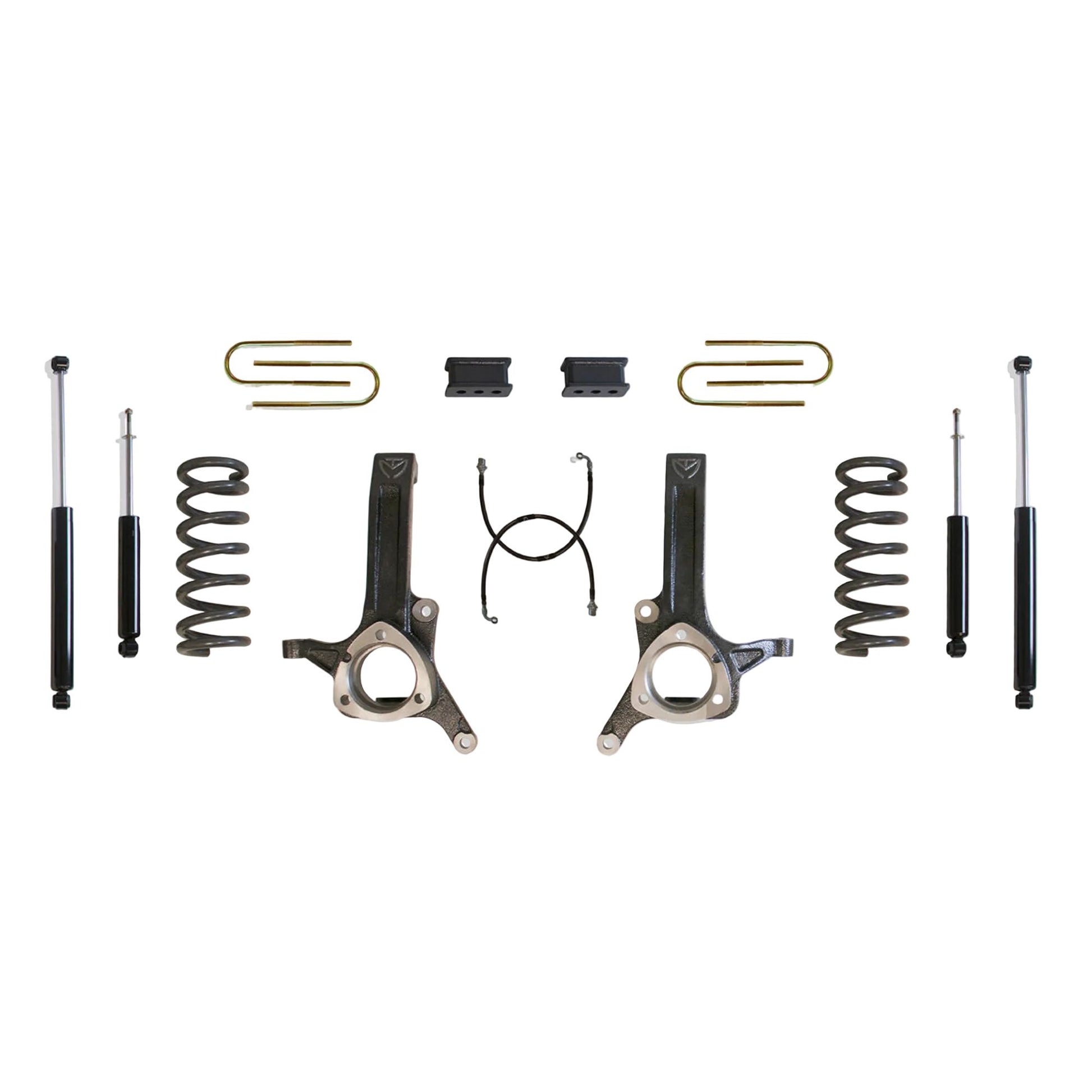

What's Included

HEMI front lift coils
Front lift spindles
Extended brake lines
Rear lift blocks
4.125" wide x 13.5" U-bolts
MaxTrac 1800SL-6 front shocks (Qty. 2)
MaxTrac 2900LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2003–2008 Dodge Ram 2500 2WD with 5.7L HEMI
2003–2008 Dodge Ram 3500 2WD with 5.7L HEMI
Applicable Ram 1500 Mega Cab 2WD with 5.7L HEMI
Models equipped with 4.125" wide factory U-bolts only

Does Not Fit

Diesel engine models
Trucks with factory U-bolts other than 4.125" wide

Important Notes

Requires 17" wheels or larger with 4-3/4" backspacing or less.
Standard stock wheels will not fit.
Factory dually wheels with stock-size tires will fit.
Clears up to 34" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
Fits 5.7L HEMI gas models only.
Fits trucks with 4.125" wide U-bolts only—measure your factory U-bolts before ordering.
With the lift coils installed, the upper control arm can contact the coil bucket at full suspension droop and produce a "bang" sound.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882262L
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Advertised Lift: 6.5 Inches
Listed Front Lift: 6 Inches
Rear Lift: 2.5 Inches
Drivetrain: 2WD
Engine: 5.7L HEMI Gas
Front Components: Lift Coils, Spindles & Extended Brake Lines
Rear Components: Lift Blocks & U-Bolts
U-Bolt Width: 4.125 Inches
U-Bolt Size: 4.125" x 13.5"
Front Shocks: 1800SL-6 (Qty. 2)
Rear Shocks: 2900LL-4 (Qty. 2)
Maximum Tire Size: 34" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 139 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882262L?

Rather than piecing together individual suspension components, the K882262L combines HEMI-specific coils, lift spindles, extended brake lines, rear blocks, properly sized U-bolts, and front/rear MaxTrac shocks into one matched package. It's designed specifically around the suspension and weight requirements of compatible 5.7L HEMI Ram HD trucks.

Perfect For

2003–2008 Ram 2500 2WD
2003–2008 Ram 3500 2WD
Ram 1500 Mega Cab 2WD
5.7L HEMI trucks
4.125" U-bolt applications
6.5-inch lift builds
Up to 34-inch tire setups
