MaxTrac 902225S 2.5" Rear Lift Box Kit with Shocks for 2003-2008 Ram 2500/3500 & 1500 Mega Cab 2WD

Complete the Rear Suspension Lift on Your Ram

The MaxTrac 902225S Rear Lift Box Kit is designed for 2003-2008 Dodge Ram 2500, Ram 3500, and Ram 1500 Mega Cab 2WD models. This complete kit includes 2.5-inch rear lift blocks, 3.625-inch wide U-bolts, and front and rear MaxTrac twin-tube gas-charged shocks. Designed to be used with MaxTrac lift spindles and front lift coils, it provides the rear components needed to complete your suspension lift while maintaining ride quality and load-carrying capability.

Key Features

2.5-Inch Rear Lift

Provides 2.5 inches of rear lift for a level stance and increased ground clearance.

Includes MaxTrac Front & Rear Shocks

Features four twin-tube gas-charged MaxTrac shocks tuned for lifted applications.

Heavy-Duty Lift Blocks & U-Bolts

Includes durable steel 2.5-inch lift blocks and 3.625-inch wide U-bolts for a secure installation.

Built for Gas & Diesel Models

Compatible with both gasoline and diesel-equipped Ram applications.

Designed to Complete a Lift System

Engineered to work with MaxTrac lift spindles and front lift coils for a complete suspension package.

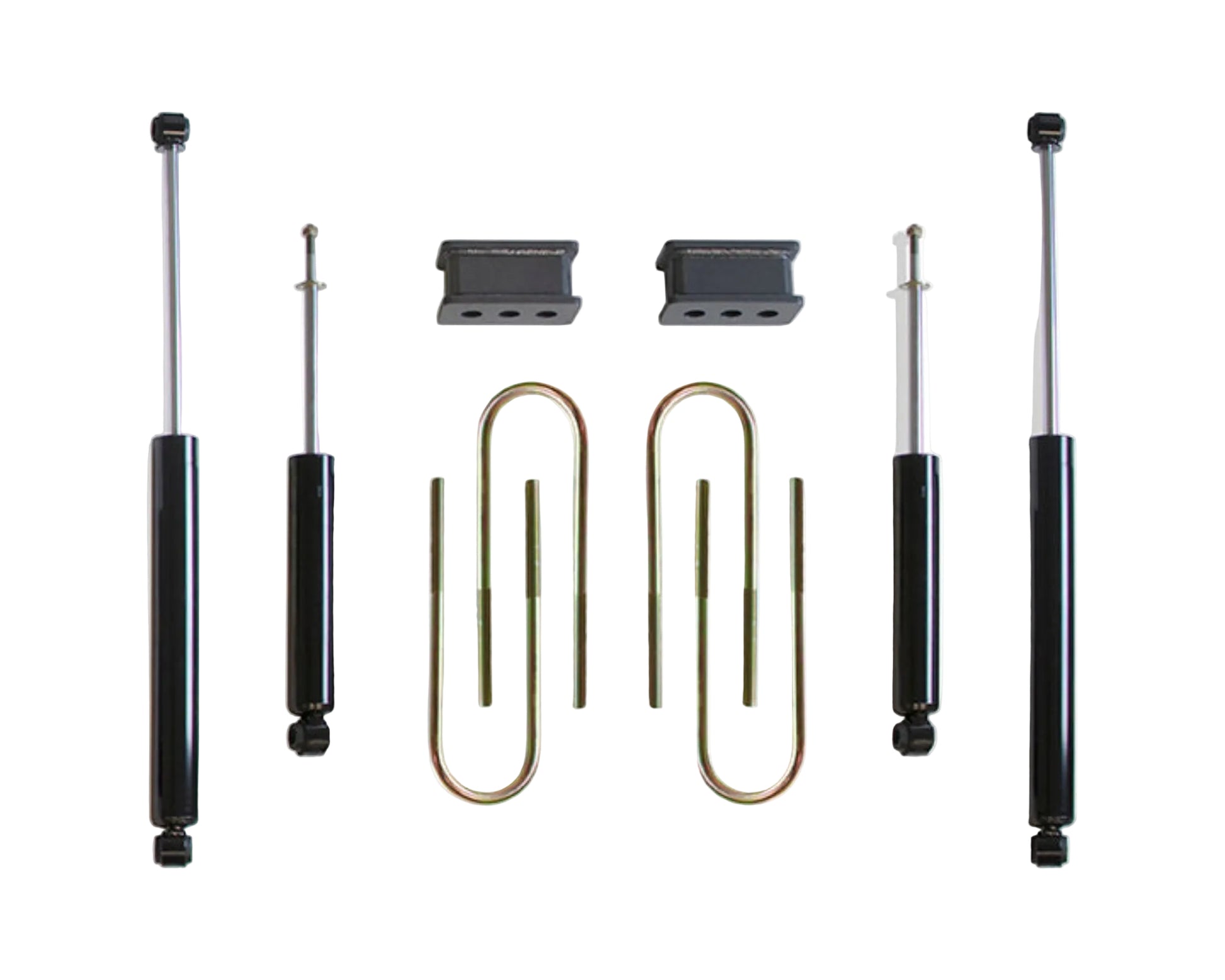

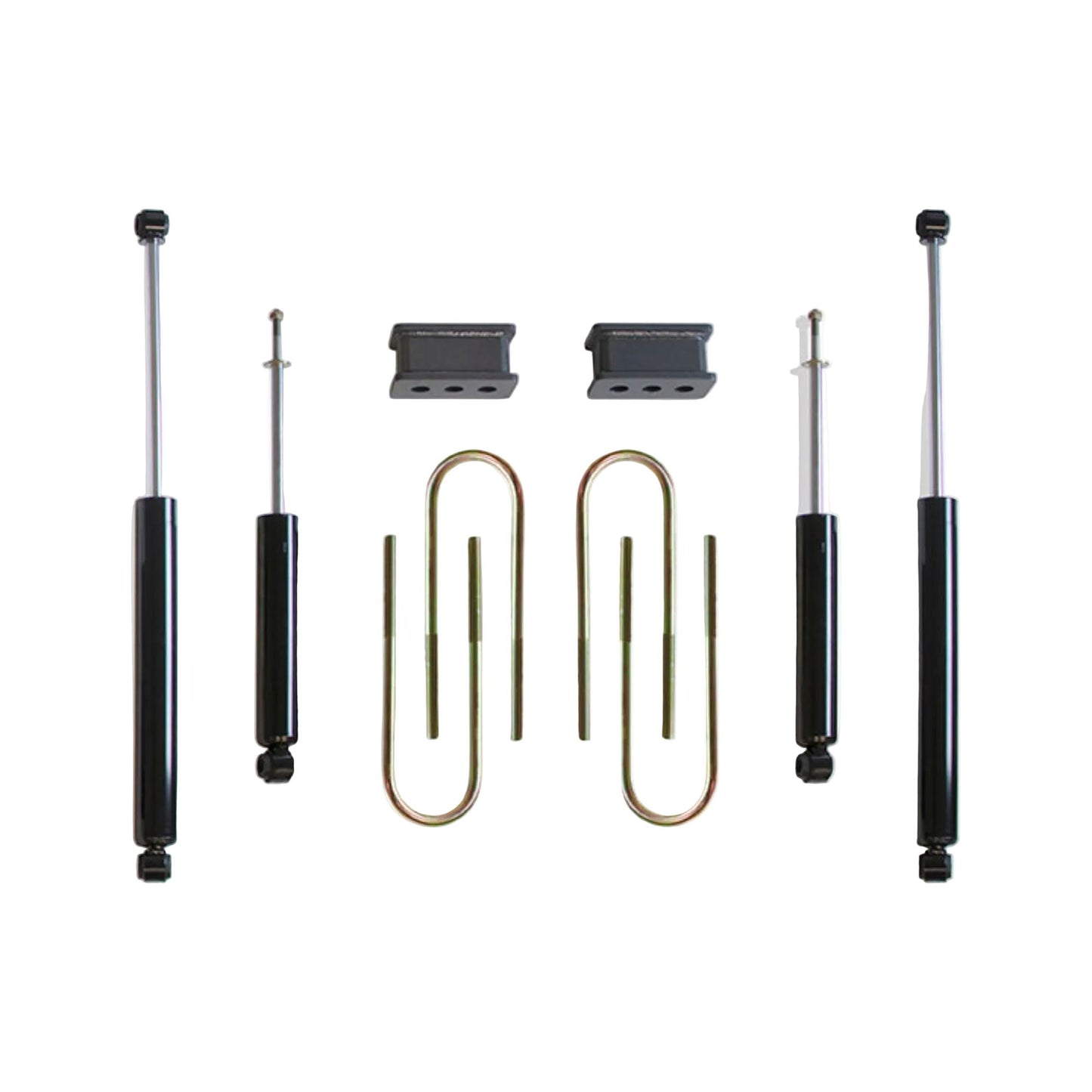

What's Included

(2) 2.5" Rear Lift Blocks
(4) 3.625" Wide U-Bolts
(2) Front MaxTrac Shocks – Part #1800SL-6
(2) Rear MaxTrac Shocks – Part #2900LL-4
Installation Hardware

Vehicle Fitment

Fits

2003-2008 Dodge Ram 2500 2WD
2003-2008 Dodge Ram 3500 2WD
2003-2008 Dodge Ram 1500 Mega Cab 2WD

Engine Compatibility

Gas Models
Diesel Models

Important Notes

Includes 3.625-inch wide U-bolts. Measure your factory U-bolts before ordering, as two different U-bolt widths were used from the factory.
Designed to be used with MaxTrac lift spindles and front lift coils to complete a suspension lift kit.
Replacement shocks are sold individually. If purchasing separately, order quantity 2 for both the front and rear.
Professional installation and wheel alignment are recommended.
MaxTrac recommends wheels no wider than 9" with at least 4.5" of backspacing. Using wheels outside these recommendations may void the manufacturer warranty.

Product Specifications

Part Number: 902225S
UPC: 738283444258
Kit Type: Lift/Level
Product Type: Rear Lift Box Kit with Shocks
Position: Rear (Includes Front & Rear Shocks)
Rear Lift Height: 2.5"
U-Bolt Width: 3.625"
Front Shock Part Number: 1800SL-6 (Qty. 2)
Rear Shock Part Number: 2900LL-4 (Qty. 2)
Engine Compatibility: Gas & Diesel
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Combo Kit
Weight: 43 lbs
Dimensions: 26" x 10" x 6"
Country of Origin: China

Why Choose MaxTrac?

The MaxTrac 902225S provides everything needed to properly lift the rear of your Ram while upgrading ride quality with matched MaxTrac shocks. Built with heavy-duty steel components, it's an excellent solution for completing a professionally engineered suspension lift.

Perfect For

2.5" Rear Lift
Ram 2500 Lift Kits
Ram 3500 Lift Kits
Ram 1500 Mega Cab Lifts
Daily Drivers
Work Trucks
