MaxTrac 702145 Front 4.5" Lift Spindles Fits 2002-24 Ram 1500 5 Lug 2wd

Achieve Maximum Ground Clearance and Aggressive Stance

The MaxTrac 702145 4.5" Lift Spindles are engineered to provide a true 4.5-inch front lift for 2002-2024 Dodge Ram 1500 2WD 5-lug trucks. Designed as a massive upgrade over factory steering knuckles, these one-piece ductile steel spindles deliver exceptional strength, increased ground clearance, and the ability to run larger wheel and tire combinations without sacrificing factory ride quality.

Constructed from heavy-duty ductile steel and finished with a corrosion-resistant black e-coating, these lift spindles are built for long-term durability. The kit includes DOT-approved extended brake lines and installation hardware, making it one of the most complete spindle lift solutions available for Ram 1500 owners looking for improved performance and a commanding lifted appearance.

Key Features

True 4.5-Inch Front Lift

Provides a full 4.5 inches of front lift while maintaining proper suspension geometry.

One-Piece Ductile Steel Construction

Engineered from heavy-duty ductile steel for maximum strength and durability.

Black E-Coated Finish

Protects against rust, corrosion, and harsh environmental conditions.

Includes DOT-Approved Brake Lines

Comes complete with extended brake lines for lifted applications.

Maintains Factory Ride Quality

Designed to work with factory shocks and coil springs while preserving ride comfort.

Direct Bolt-On Installation

No cutting, welding, or fabrication required.

Clears Larger Wheel and Tire Combinations

Creates room for up to 35-inch tires for a more aggressive stance.

What's Included

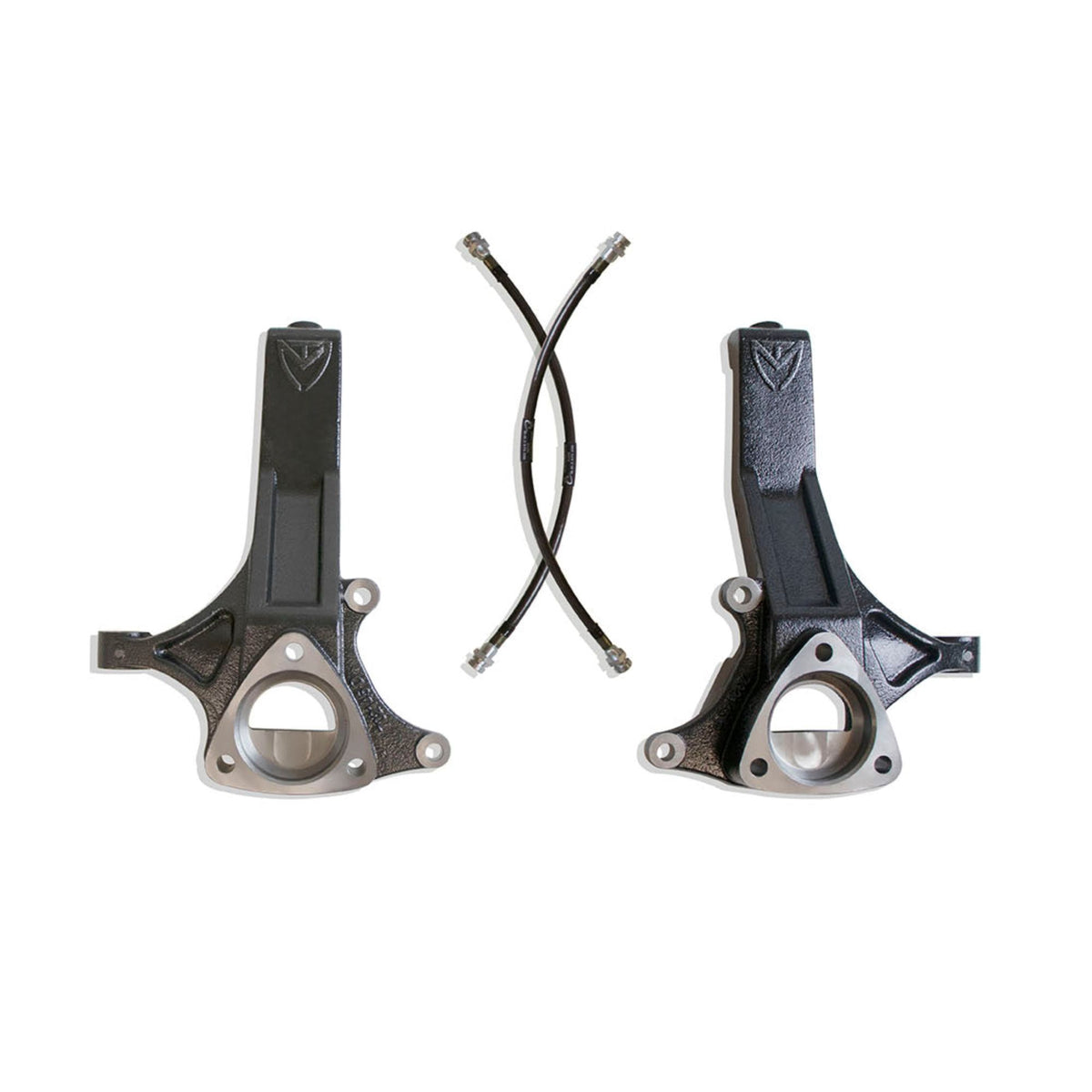

Pair of 4.5" Lift Spindles
DOT-Approved Extended Brake Lines
Brake Line Bracket for 2002-2005 Applications
Installation Hardware

Vehicle Fitment

Fits

2002-2024 Dodge Ram 1500 2WD (5-Lug)

2002-2024 Ram 1500 2WD (5-Lug)

Gas and Diesel Models

Does Not Fit

Mega Cab Models

8-Lug Models

4WD Models

Important Notes

Requires 17" wheels or larger with 5-3/4" backspacing or less.

Factory 17" or larger wheels will fit.

Clears up to a 35" x 12.50" tire on an 8"-9" wide wheel.

Fender trimming may be required depending on wheel and tire combination.

2002-2005 models use the included brake line bracket instead of the extended brake lines.

Fits 5-lug models only.

Prior to installation, wheel and tire measurements should be verified.

Does not fit Ram 1500 Mega Cab or 8-lug applications.

MaxTrac Suspension does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Doing so will void all manufacturer warranties.

Product Specifications

Part Number: 702145
UPC: 738283445859
Kit Type: Lift / Level
Front Lift: 4.5"
Material: Ductile Steel
Finish: E-Coating
Color: Black
Engine Compatibility: Gas, Diesel
Weight: 62 lbs
Dimensions: 24" x 16" x 8"
Country of Origin: China
Sold As: Pair

Why Choose MaxTrac Lift Spindles?

The MaxTrac 702145 Lift Spindles provide one of the highest spindle lift options available for the Ram 1500 2WD platform. Their one-piece ductile steel construction, included brake line components, and ability to clear up to 35-inch tires make them an excellent choice for truck owners seeking maximum ground clearance, improved appearance, and dependable performance.

Perfect For

Ram 1500 lift projects

2WD truck builds

35-inch tire setups

Street truck builds

Custom lifted trucks

Daily driven lifted trucks

Ground clearance upgrades

Maintaining factory ride quality
