MaxTrac K883042B 4" Lift Kit for 2001-2009 Ford Ranger 2WD

Get More Height and Tire Clearance from Your 2WD Ranger

Raise your 2001–2009 Ford Ranger 2WD with the MaxTrac K883042B 4" Lift Kit. Built specifically for coil-spring Rangers equipped with 11.250" front brake rotors, this spindle-based setup delivers 4 inches of front lift while rear shackles provide approximately 1.5–2 inches of rear lift. It's a straightforward way to give your Ranger a taller stance and clearance for up to 31" tires.

Key Features

4" Front Spindle Lift

MaxTrac lift spindles provide approximately 4 inches of front lift, creating additional ground clearance and a noticeably taller stance.

1.5"-2" Rear Lift Shackles

Rear lift shackles raise the back approximately 1.5 to 2 inches, complementing the front spindle lift without requiring rear lift blocks.

Designed for Coil Spring Rangers

Engineered specifically for 2001–2009 Ford Ranger 2WD coil-spring models with 11.250" front brake rotors.

Clears Up to 31" Tires

Provides clearance for up to 31" x 10.50" tires on 7"-8" wide wheels. Fender trimming may be required depending on the wheel and tire combination.

Flexible Wheel Fitment

Compatible with 15" and larger wheels when MaxTrac's specified backspacing requirements are followed.

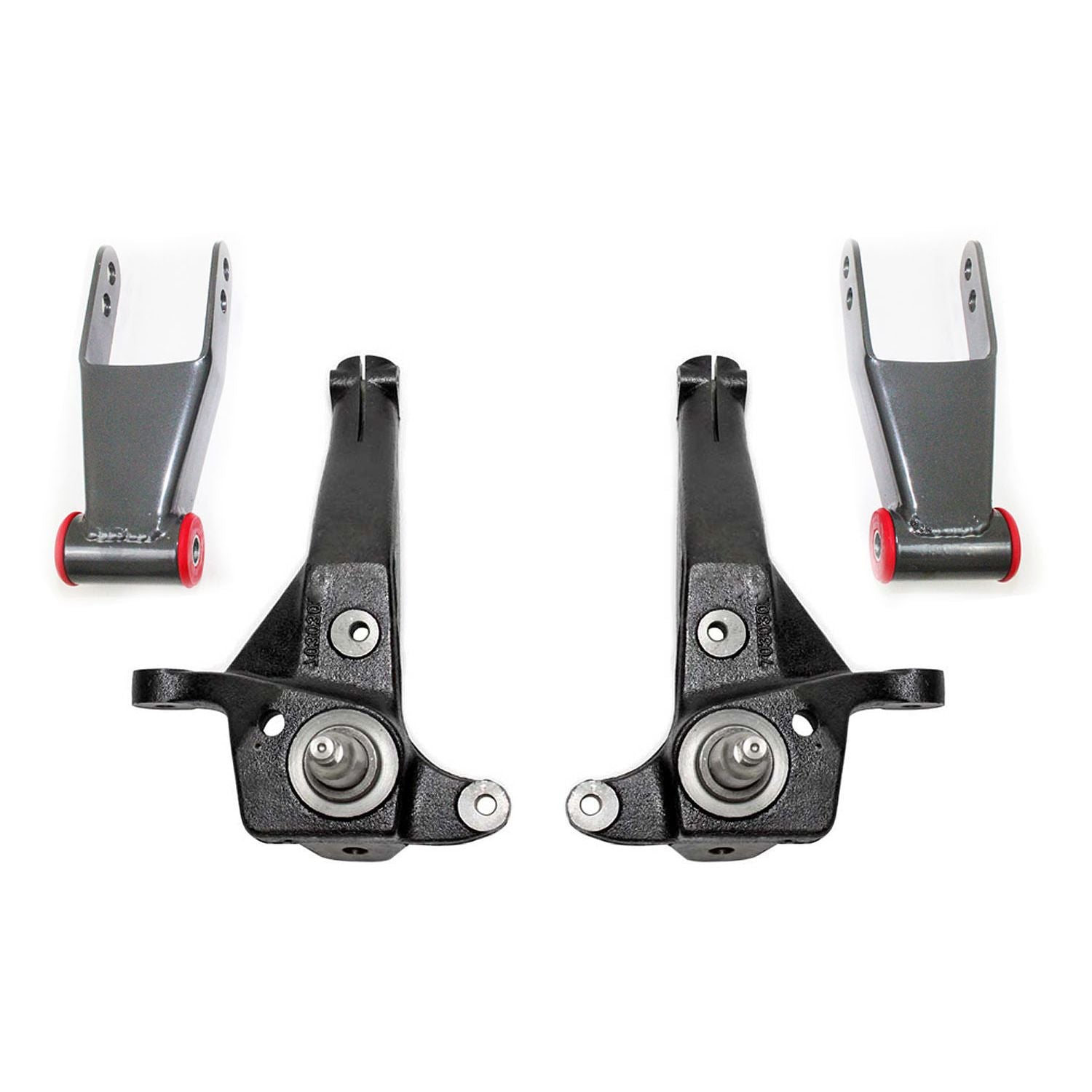

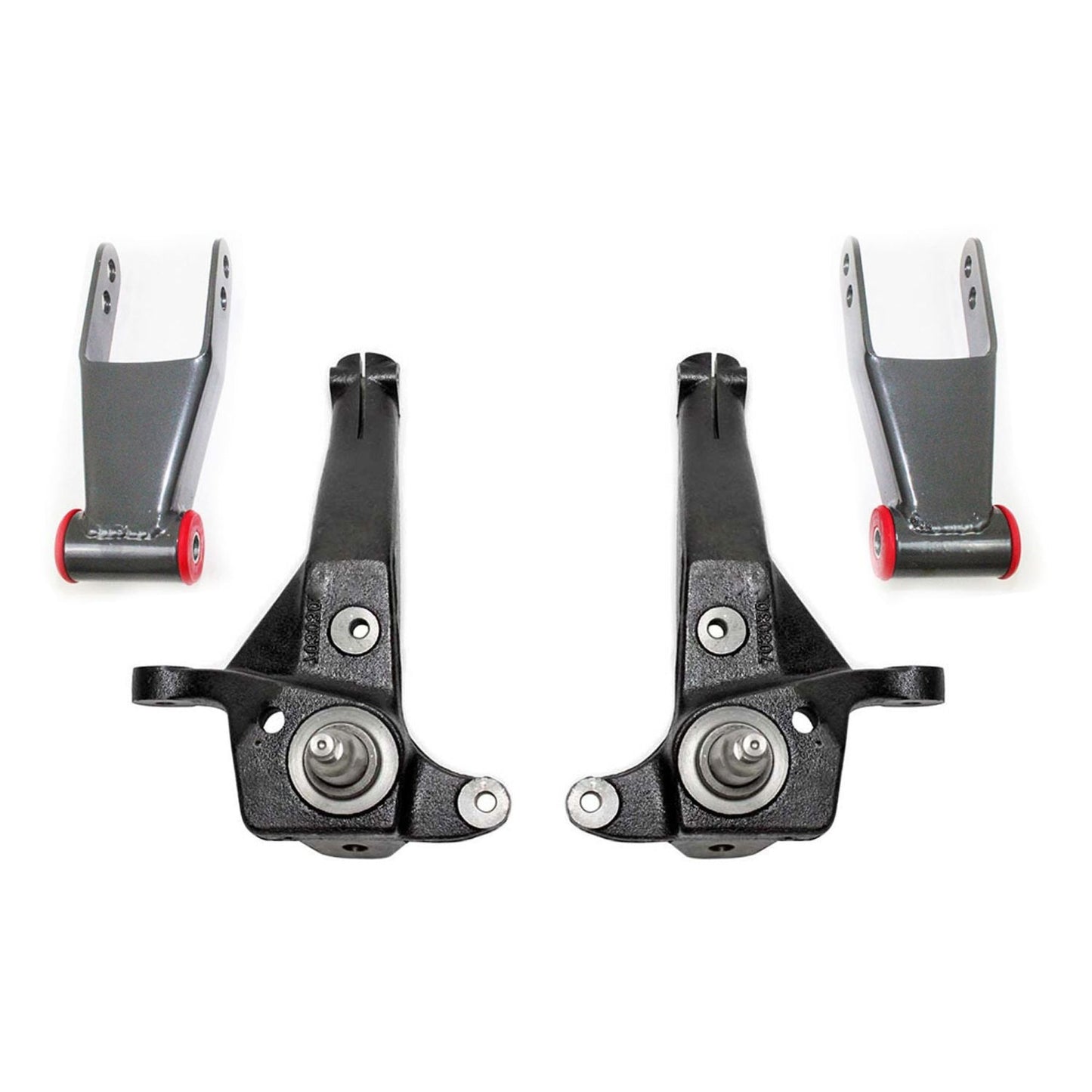

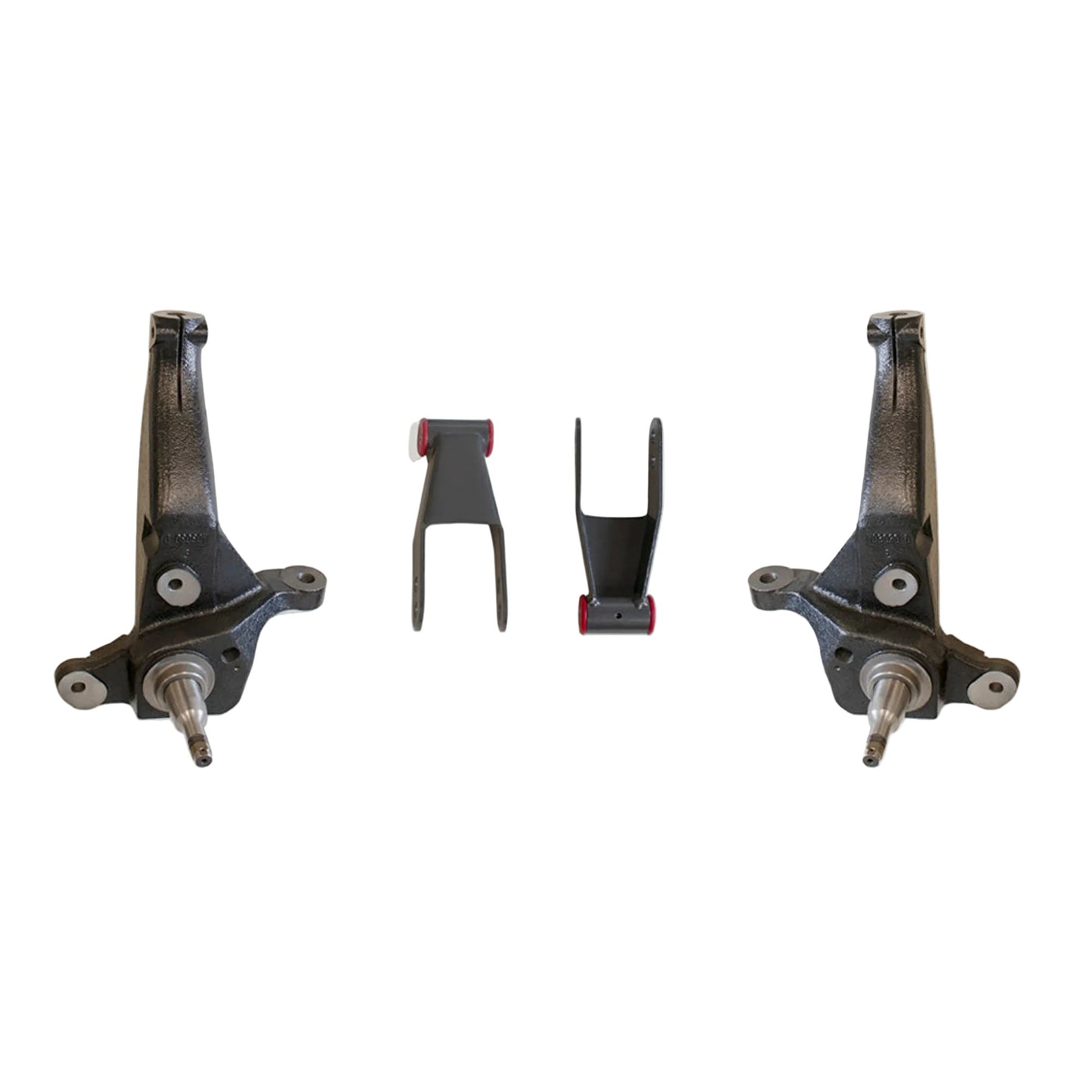

What's Included

4" front lift spindles
Rear lift shackles
Installation hardware

Vehicle Fitment

Fits

2001–2009 Ford Ranger 2WD
Coil spring suspension models only
Models equipped with 11.250" front brake rotors only

Does Not Fit

2010–2011 Ranger models due to the AdvanceTrac system
Non-coil-spring front suspension applications
Models with incompatible front rotor sizes

Important Notes

Requires 15" wheels or larger with 3-3/4" backspacing or less.
16" wheels or larger can use up to 4-1/2" backspacing.
Fits 2001–2009 coil spring models with 11.250" front rotors only.
Clears up to 31" x 10.50" tires on 7"-8" wide wheels.
Fender trimming may be required.
Does not fit 2010–2011 Ranger models due to the AdvanceTrac system.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883042B
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 4 Inches
Rear Lift: 1.5–2 Inches
Drivetrain: 2WD
Front Suspension: Coil Spring
Front Components: Lift Spindles
Rear Components: Lift Shackles
Listed Shock Details: 2650LL-9 Rear (Qty. 2)
Required Front Rotor Size: 11.250 Inches
Maximum Tire Size: 31" x 10.50"
Recommended Wheel Width: 7"-8"
Minimum Wheel Diameter: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 54 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883042B?

The K883042B offers a spindle-based lift specifically engineered around the 2001–2009 coil-spring Ranger platform. The combination of 4" front lift spindles and rear shackles creates a substantial increase in height while allowing up to 31" tires when the recommended wheel specifications are followed.

Perfect For

2001–2009 Ford Ranger 2WD
Coil spring Ranger suspension
11.250" rotor applications
4-inch spindle lift builds
31-inch tire setups
Lifted mini-truck builds
