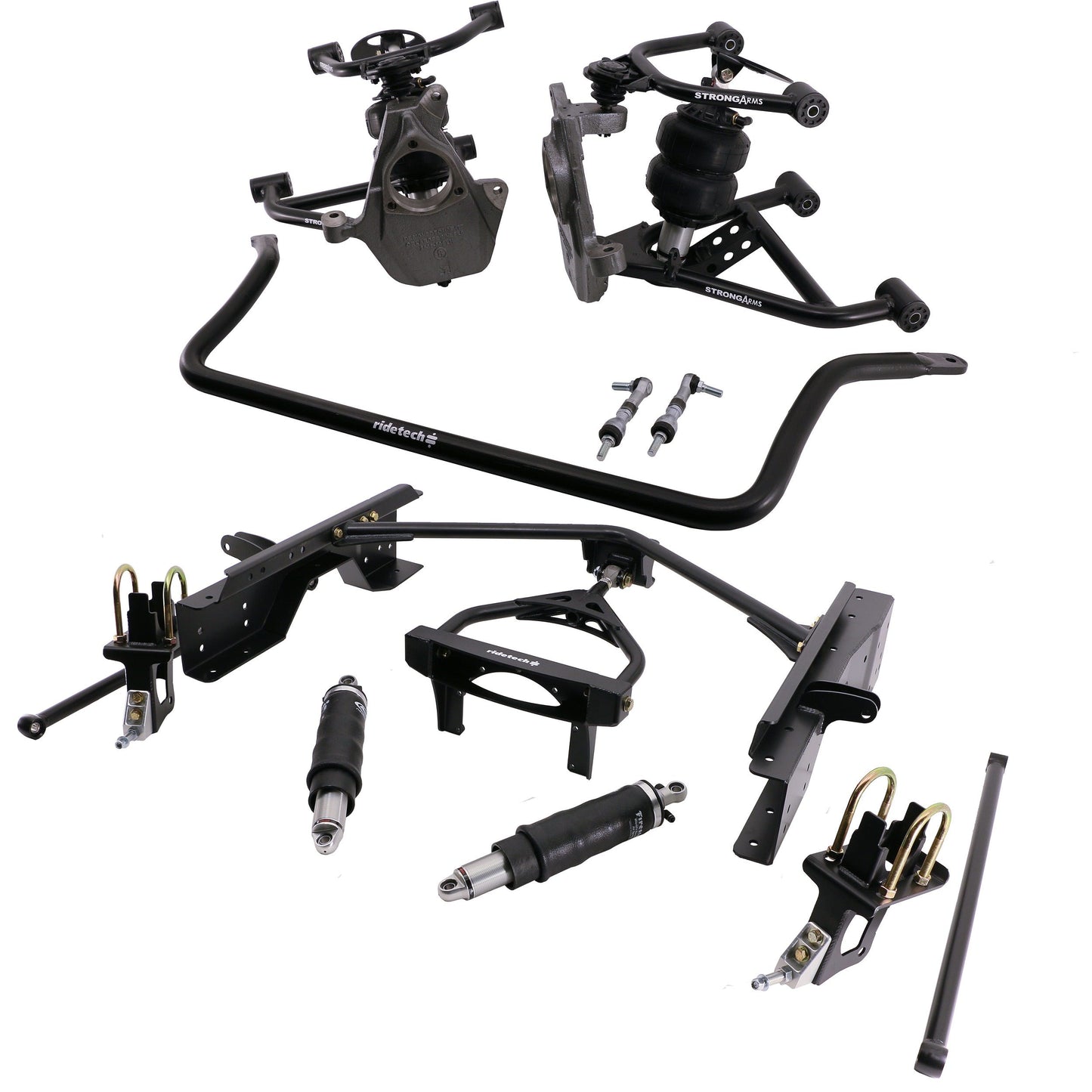

1999-2006 Silverado | Front and Rear Air Suspension - TQ Triple Adjustable

Air Suspension System for 1999-2006 Silverado & Sierra 1500 2WD.???? (2007 Classic). ????Includes front & rear HQ Series Shockwaves, front upper & lower StrongArms, Bolt-On 4 Link, drop spindles, and front sway bar.????????

• Offers a ride height that is approximately 4" lower than stock in the front and 6" in the rear.???? ????Fully deflated will net an additional 3" drop.


• HQ Series Shockwaves????utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.???? They are rebound adjustable and come standard with a 1,000,0001 Mile Warranty.????


• Upper StrongArms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.???? Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.???? ????


• Lower StrongArms feature a double sheer lower shock mount for increased strength.???? We have also dropped the lower shock mount to increase suspension travel and????altered the length to create more camber adjustment.????????Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.???? ????????


• Front MuscleBar is included to reduce body roll and includes the PosiLink and links that provide immediate engagement between the chassis and control arms.????


• Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump-steer.???? Fits 17" or larger wheels.????????????????


• Bolt-On 4-Link greatly improves traction, handling and ride quality.???? Installation does not require any welding or major modifications to the bed floor.????????Includes patent-pending R-Joint rod ends to eliminate binding and noise.



  • Includes patent-pending R-Joint rod ends to eliminate binding and noise.


  • Optimized anti-squat, roll center, and pinion angle migration for dramatic improvements in handling and traction.


  • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.????


  • Designed for simple installation with minimal OEM rivet removal.????





???? ???? ???? ???? ???? ???? ????NOTE *** To complete this Air Suspension system please choose from one of our????Compressor Systems????

???? ???? ???? ???? ???? ???? ????NOTE *** Designed to fit 2wd trucks with independent front suspension.

Upgrades:

• ????TQ Series Shocks-????The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual-stage (High Speed & Low Speed) compression adjustment. ???? High-speed adjustment allows tuning for impact harshness and low-speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course, and drag strip.???? Read More
