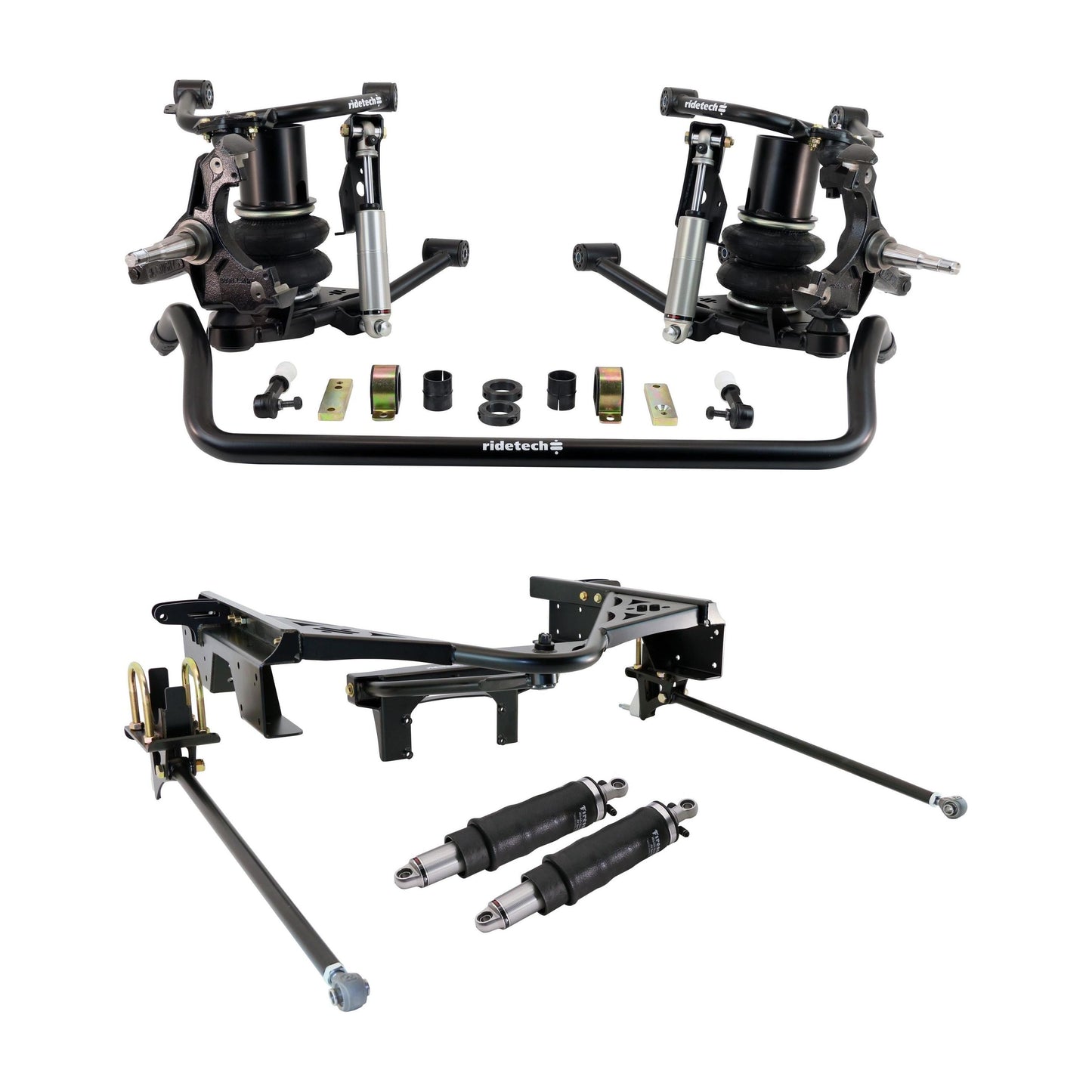

Complete RideTech Air Ride Suspension System Fits 1988-98 Chevy C1500

Complete RideTech Air Ride Suspension System
Fits?ÿ1988-1998 Chevy/GMC C1500

This Air Suspension System is the perfect choice for 1988-1998 Chevy & GMC C1500 truck owners! Enjoy modern drivability and show-stopping style with this complete package ƒ?? complete with front upper and lower tubular control arms, CoolRide air ride springs with HQ Series shocks, front sway bar, drop spindles, rear Wishbone with C-Notches and Shockwaves ƒ?? so you don't have to guess what components to buy.

Fits:
1988-98 Chevy C1500 Two Wheel Drive Trucks
1992-98 GMC C1500 Two Wheel Drive Trucks

• Offers a ride height that is approximately 4in lower than stock in the front and 6in in the rear. Fully deflated will net an additional 3in drop.
• Front CoolRide air ride setup includes HQ Series Shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a mono tube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.
• Upper Tubular Control Arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
• Lower Tubular Control Arms feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
• Front MuscleBar Sway Bar is included to reduce body roll and includes the delrin liners to minimize suspension bind.
• Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer. (These spindles will increase the track width by .25in per side.)
• Bolt On 3-Link greatly improves traction, handling and ride quality. Installation does not require the any welding or major modifications to the bed floor. Includes patent pending R-Joint rod ends to eliminate binding and noise.
  • Includes patent pending R-Joint rod ends to eliminate binding and noise.
  • Wishbone upper link replaces panhard bar for zero lateral movement during suspension travel allowing extremely tight wheel/tire fitment.
  • Optimized anti-squat, instant center and pinion angle migration for dramatic improvements in handling and traction.
  • Bolt-on C-Notch reinforces OEM frame rails and feature integrated suspension mounts.
  • Designed for simple installation with minimal OEM rivet removal.
