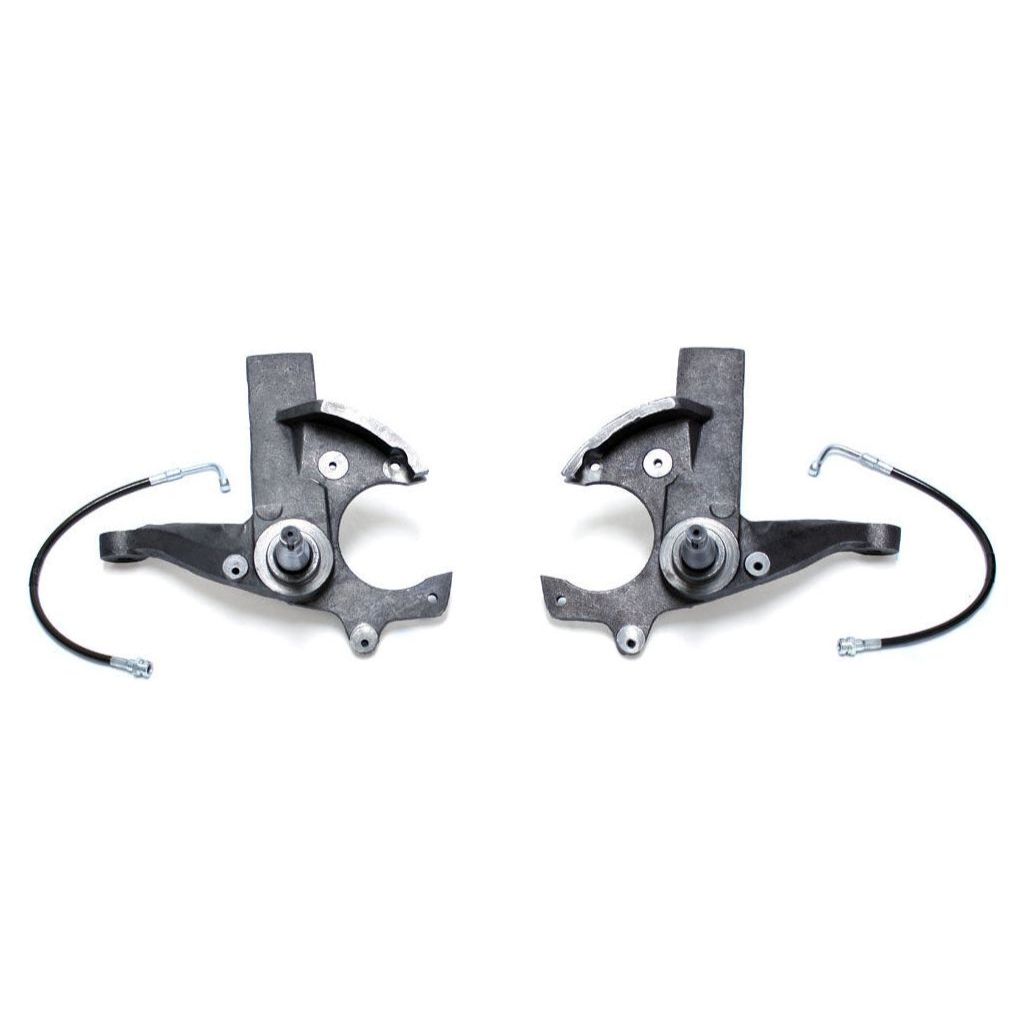

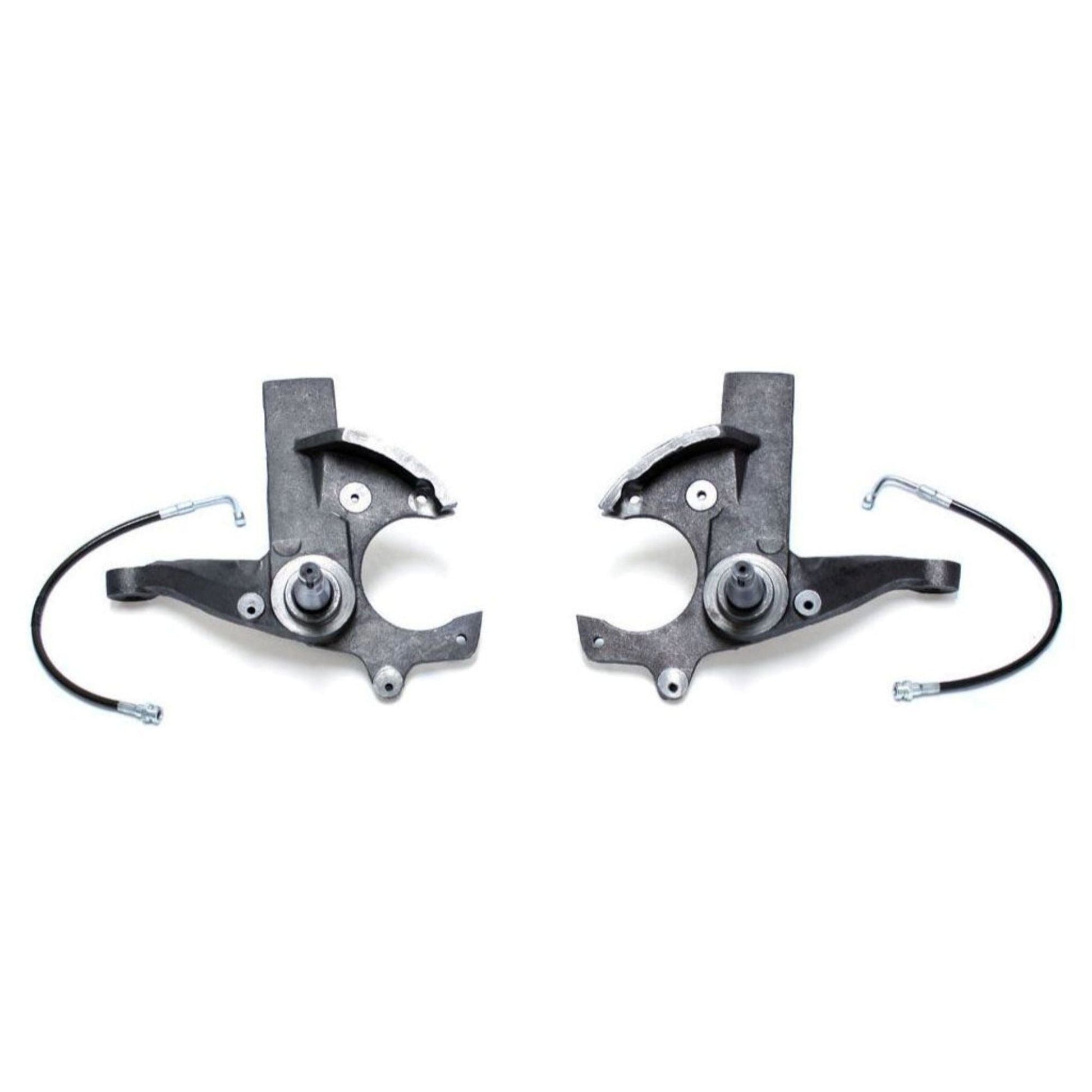

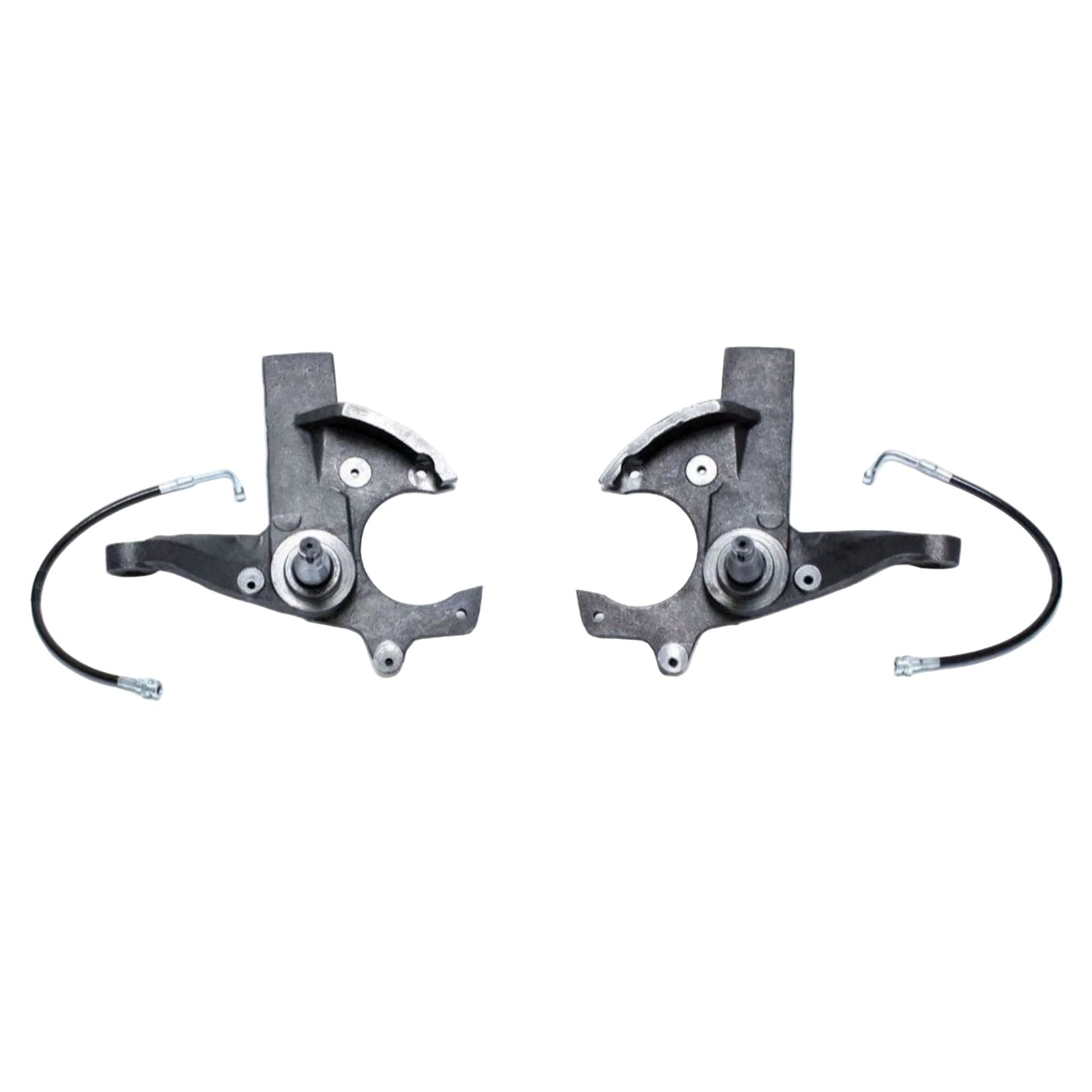

MaxTrac 700130 3" Lift Spindles for 1982-2004 S10/S15/Sonoma 2WD

Get 3 Inches of Front Lift with Heavy-Duty Spindles

Raise the front of your 1982–2004 Chevy S10, GMC S15, or GMC Sonoma 2WD with the MaxTrac 700130 3" Lift Spindles. Made from heavy-duty ductile steel and finished with a black E-coating, these lift spindles provide 3 inches of front lift and include extended brake lines to accommodate the increased suspension height. With the proper wheel setup, they provide clearance for up to 30x9.50 tires.

Key Features

3" Front Lift

Provides approximately 3 inches of front suspension lift for increased height, tire clearance, and a more aggressive mini-truck stance.

Ductile Steel Construction

Manufactured from heavy-duty ductile steel for the strength required in suspension and steering applications.

Extended Brake Lines Included

Matched extended brake lines are supplied with the spindles to accommodate the additional front suspension height.

Black E-Coated Finish

The protective black E-coating helps resist corrosion, moisture, and exposure to road debris.

Clears Up to 30" Tires

Designed to clear up to 30x9.50 tires on 7–8" wide wheels when the required wheel specifications are followed.

What's Included

3" driver-side lift spindle
3" passenger-side lift spindle
Extended brake lines

Vehicle Fitment

Fits

1982–2004 Chevrolet S10 2WD
1982–1990 GMC S15 2WD
1991–2004 GMC Sonoma 2WD

Important Notes

Requires 15" wheels or larger with 3.75" backspacing or less.
Clears up to 30x9.50 tires on 7–8" wide wheels.
Fender trimming may be required depending on wheel and tire combination.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 700130
UPC: 738283445804
Product Type: Front Lift Spindles
Kit Type: Lift/Level
Front Lift: 3 Inches
Position: Front
Drivetrain: 2WD
Maximum Tire Size: 30x9.50
Recommended Wheel Width: 7–8 Inches
Minimum Wheel Size: 15 Inches
Material: Ductile Steel
Finish: E-Coating
Color: Black
Sold As: Pair
Weight: 54 lbs
Dimensions: 15 x 13 x 12 in
Country of Origin: China

Why Choose MaxTrac 700130?

The MaxTrac 700130 provides a straightforward spindle-based solution for adding 3 inches of front lift to classic GM S-Series mini trucks. Heavy-duty ductile steel construction, corrosion-resistant E-coating, and included extended brake lines make this a complete front lift spindle package.

Perfect For

Chevy S10 2WD builds
GMC S15 and Sonoma 2WD
Lifted mini trucks
30-inch tire setups
Custom street trucks
S-Series suspension upgrades
