MaxTrac K880132 3" Lift Kit for 1982-2004 S10/S15/Sonoma 2WD

Add Height and Tire Clearance to Your Classic Mini Truck

Transform your 1982–2004 Chevy S10, GMC S15, or GMC Sonoma 2WD with the MaxTrac K880132 3" Lift Kit. This complete suspension package combines 3-inch front lift spindles with 1-inch rear lift shackles, extended brake lines, and matched MaxTrac front and rear shocks. The setup adds an aggressive lifted stance while providing clearance for up to 30x9.50 tires with the proper wheel combination.

Key Features

3" Front Lift Spindles

Heavy-duty lift spindles raise the front approximately 3 inches, providing additional ground and tire clearance.

1" Rear Lift Shackles

Included rear shackles provide approximately 1 inch of lift to complement the increased front ride height.

Extended Front Brake Lines

Extended brake lines are included to accommodate the increased suspension height.

Front & Rear MaxTrac Shocks

Includes two 1300SL-1 front shocks and two 2400LL-3 rear shocks for a complete matched suspension package.

Clears Up to 30" Tires

Designed to clear up to 30x9.50 tires on 7–8" wide wheels when the required wheel specifications are followed.

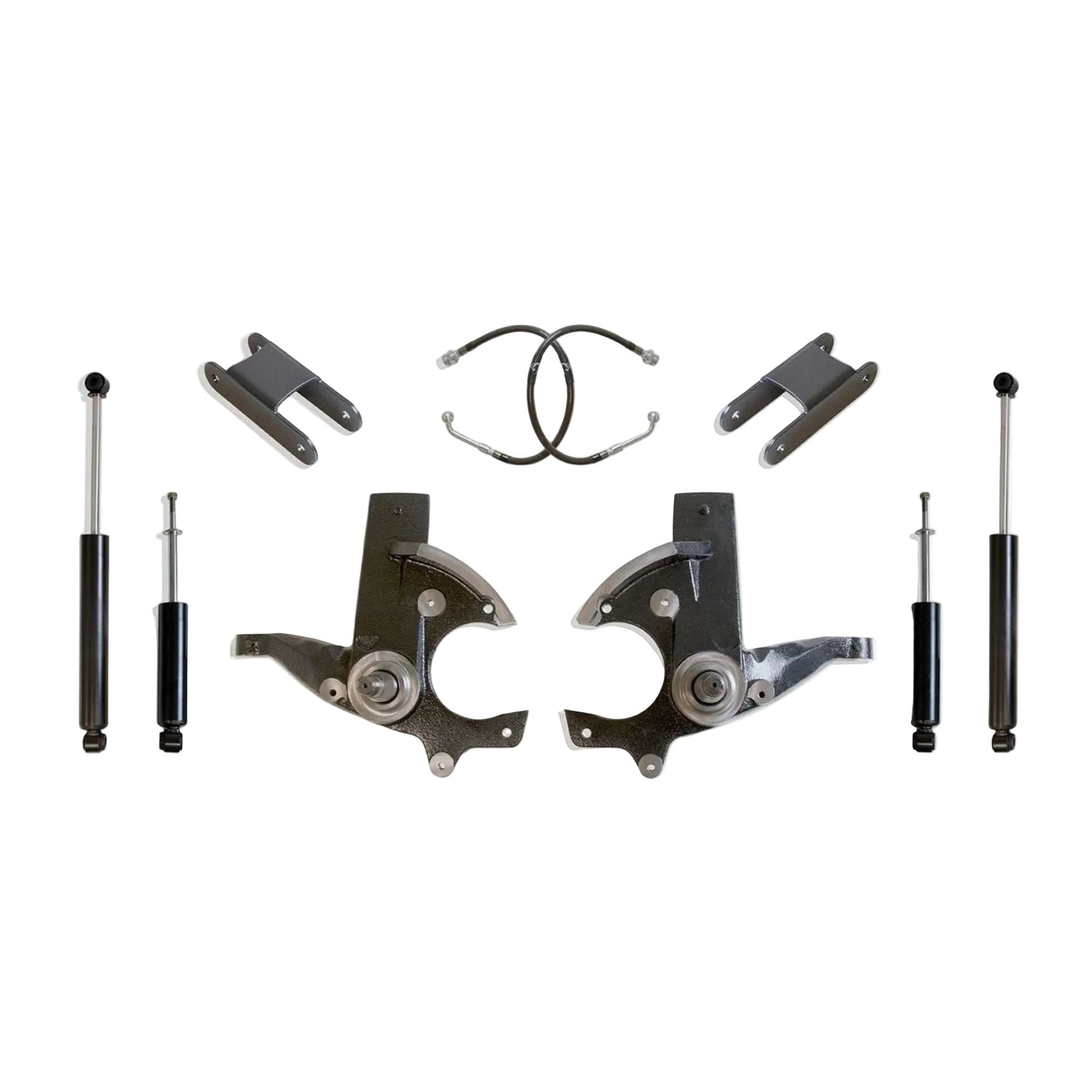

What's Included

3" front lift spindles
Extended brake lines
Rear lift shackles
MaxTrac 1300SL-1 front shocks (Qty. 2)
MaxTrac 2400LL-3 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

1982–2004 Chevrolet S10 2WD
1982–1990 GMC S15 2WD
1991–2004 GMC Sonoma 2WD

Important Notes

Requires 15" wheels or larger with 3.75" backspacing or less.
Clears up to 30x9.50 tires on 7–8" wide wheels.
Fender trimming may be required depending on wheel and tire combination.
Does not fit 1998+ Chevrolet Blazer or GMC Jimmy models.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside MaxTrac recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K880132
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift/Level
Front Lift: 3 Inches
Rear Lift: 1 Inch
Drivetrain: 2WD
Front Components: Lift Spindles
Rear Components: Lift Shackles
Front Shocks: 1300SL-1 (Qty. 2)
Rear Shocks: 2400LL-3 (Qty. 2)
Maximum Tire Size: 30x9.50
Recommended Wheel Width: 7–8 Inches
Minimum Wheel Size: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 79 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K880132?

The K880132 provides the major components needed to lift a classic S10, S15, or Sonoma in one package. Lift spindles handle the 3-inch front increase, while rear shackles, extended brake lines, and matched MaxTrac shocks complete the setup for a clean lifted mini-truck stance.

Perfect For

1982–2004 Chevy S10 2WD
GMC S15 and Sonoma 2WD
Lifted mini-truck builds
30-inch tire setups
Street truck projects
Custom S-Series suspension builds
