Give Your Squarebody C10 a Low 2.5/5 Stance

Bring your 1973–1987 Chevy or GMC C10 2WD down with a more aggressive street look using the MaxTrac KS331135 2.5/5 drop kit. This setup delivers a clean 2.5" front and 5" rear drop, giving your classic truck that proper lowered stance while keeping it comfortable to drive.

Lowering your C10 improves more than just appearance. It helps reduce center of gravity, which leads to better handling, stability, and control, all while maintaining a smooth, comfortable ride quality with the included matched shocks.

Up front, drop spindles handle the 2.5-inch drop while preserving suspension geometry. In the rear, a 5" flip kit provides a deeper drop, while shock angle correctors and MaxTrac rear shocks ensure proper suspension movement and long-term reliability.

Constructed from heavy-duty steel with a durable powder-coated finish, this kit is built for long-lasting performance. It’s a complete solution for getting your squarebody sitting right without sacrificing drivability.

Fitment
1973-1987 Chevy C10 2WD (Gas, 10-bolt rear axle)
1973-1987 GMC C10 2WD (Gas, 10-bolt rear axle)

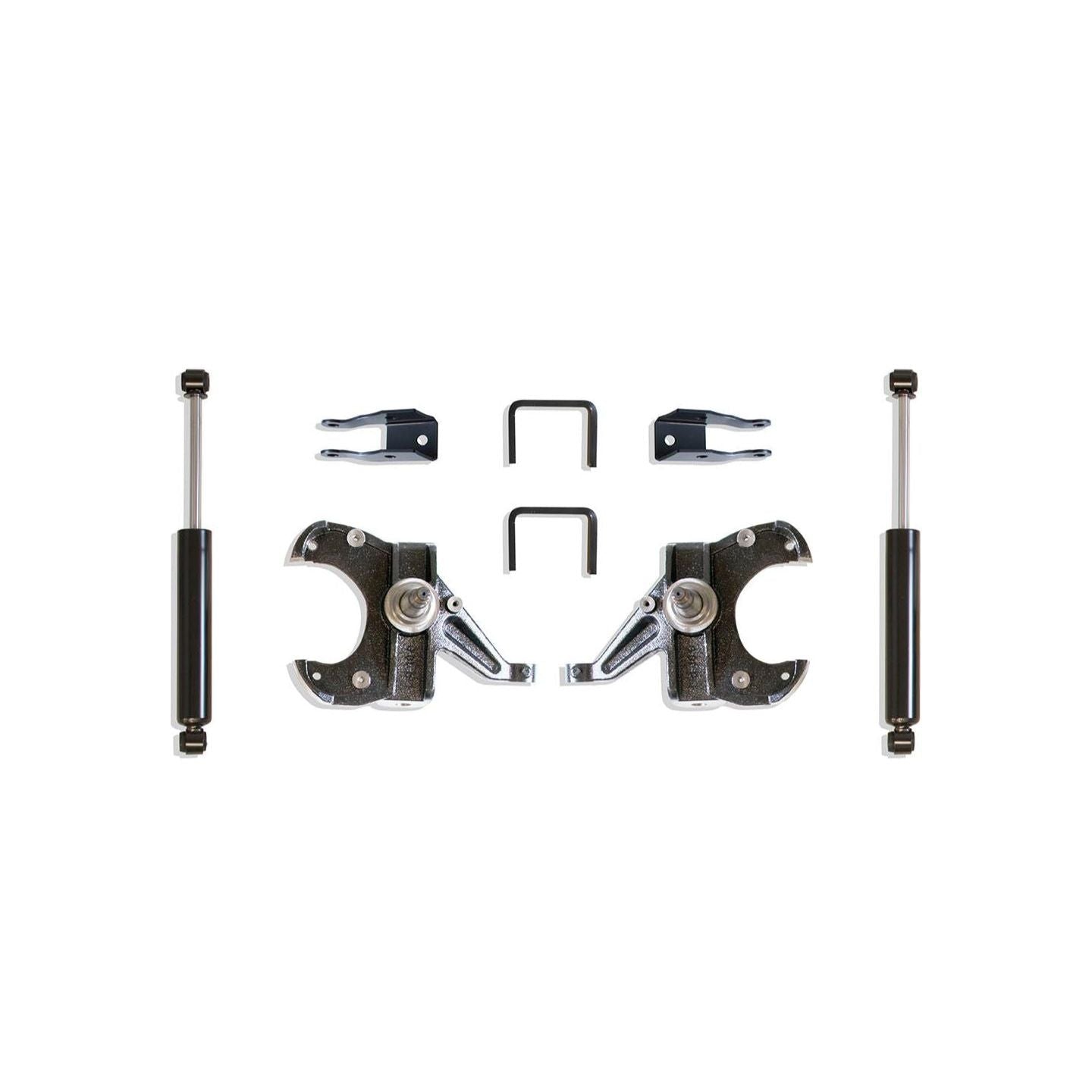

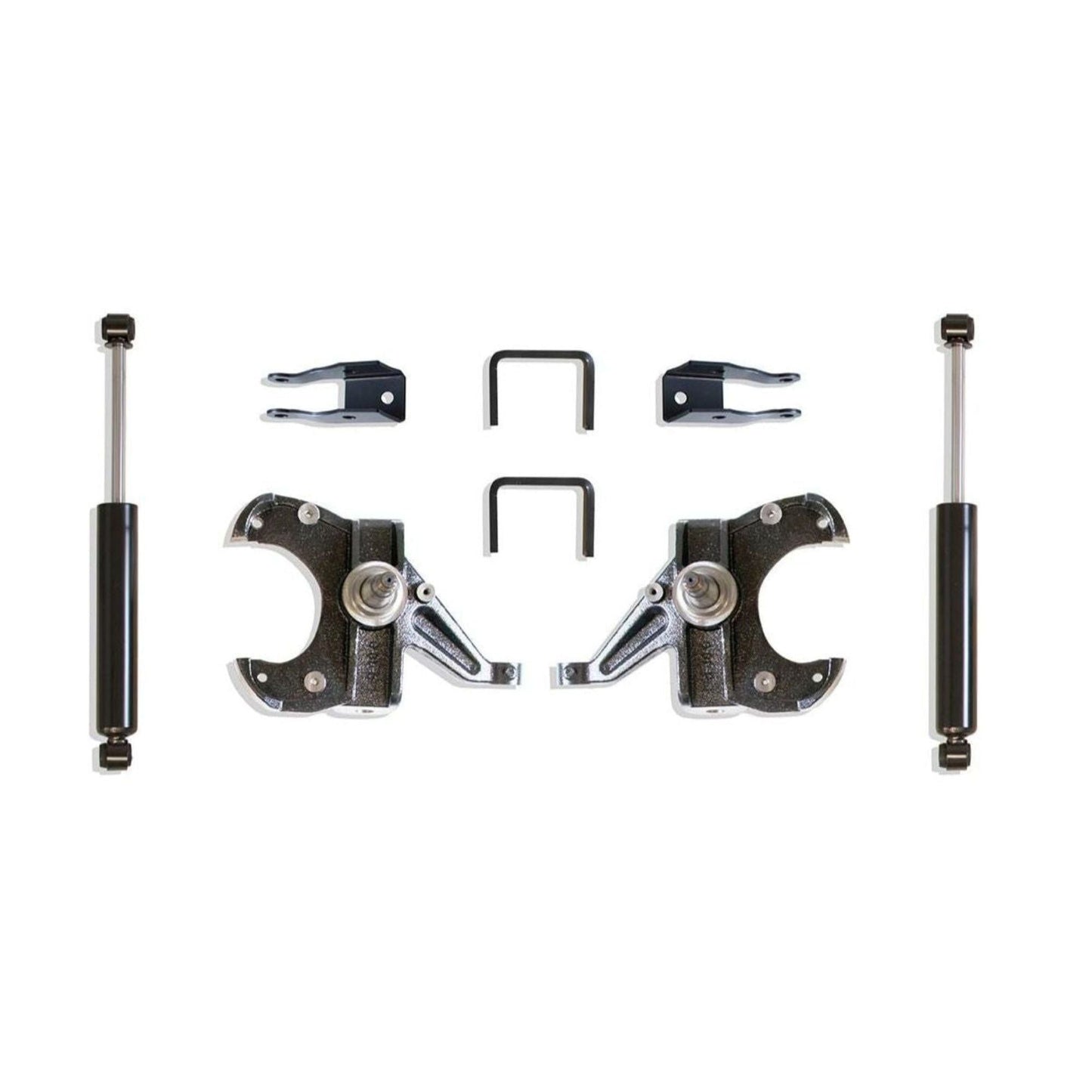

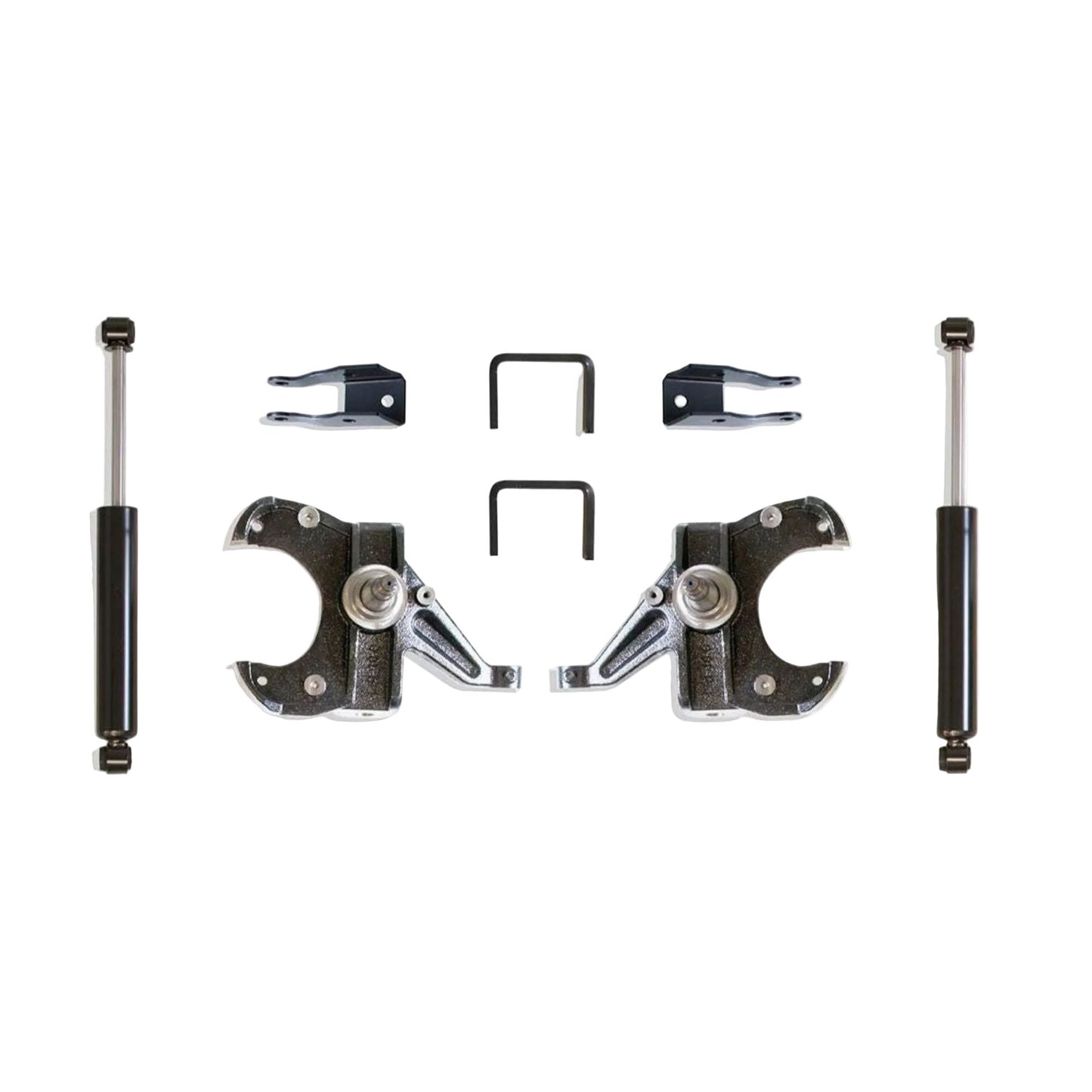

What’s Included
2.5" front drop spindles (101125)
Rear 5" flip kit (301150)
Shock angle correctors (401100)
Rear shocks (2000LL-4 x2)
Installation hardware

Features / Benefits
Provides a 2.5 inch front and 5 inch rear drop for an aggressive lowered stance
Improves handling, stability, and overall drivability
Maintains comfortable ride quality with included rear shocks
Includes shock angle correctors for proper suspension geometry
Spindles and flip kit deliver a consistent, balanced drop
Built from heavy-duty powder-coated steel for durability
Designed specifically for 10-bolt rear axle C10 models

Important Notes
Must select correct front brake rotor thickness (1 inch or 1.25 inch)
Fits 10-bolt rear axle models only
Does not fit 12-bolt or 14-bolt axle trucks
Front shocks not included
Rear shocks are sold individually if purchased separately (order qty 2)
Not recommended for wheels wider than 9 inches or under 4.5 inch backspacing
