MaxTrac KS331134 2.5"/4" Lowering Kit for 1973-1987 Chevy C10 2WD

Get the Classic Squarebody Stance with a 2.5/4 Drop

Lower your 1973–1987 Chevrolet C10 2WD with the MaxTrac KS331134 2.5"/4" Lowering Kit. This spindle-based suspension package delivers approximately 2.5 inches of front drop and 4 inches of rear drop, giving your squarebody a noticeably lower street-truck stance.

The front uses lowering spindles, while rear hangers and shackles provide the 4-inch drop. Shock angle correctors and a pair of MaxTrac rear shocks complete the rear suspension setup.

Key Features

2.5" Front Spindle Drop

Lowering spindles provide approximately 2.5 inches of front drop for a substantial stance change without using lowering coils.

4" Rear Hanger & Shackle Drop

Rear hangers and shackles work together to lower the back approximately 4 inches for a balanced front-to-rear appearance.

Shock Angle Correctors Included

Included rear shock angle correctors help reposition the shocks to accommodate the altered suspension geometry.

MaxTrac Rear Shocks

Includes two MaxTrac 2000LL-4 rear shocks matched for the lowered rear suspension.

Designed for 10-Bolt Rear Axles

This kit is specifically designed for C10 trucks equipped with a 10-bolt rear axle.

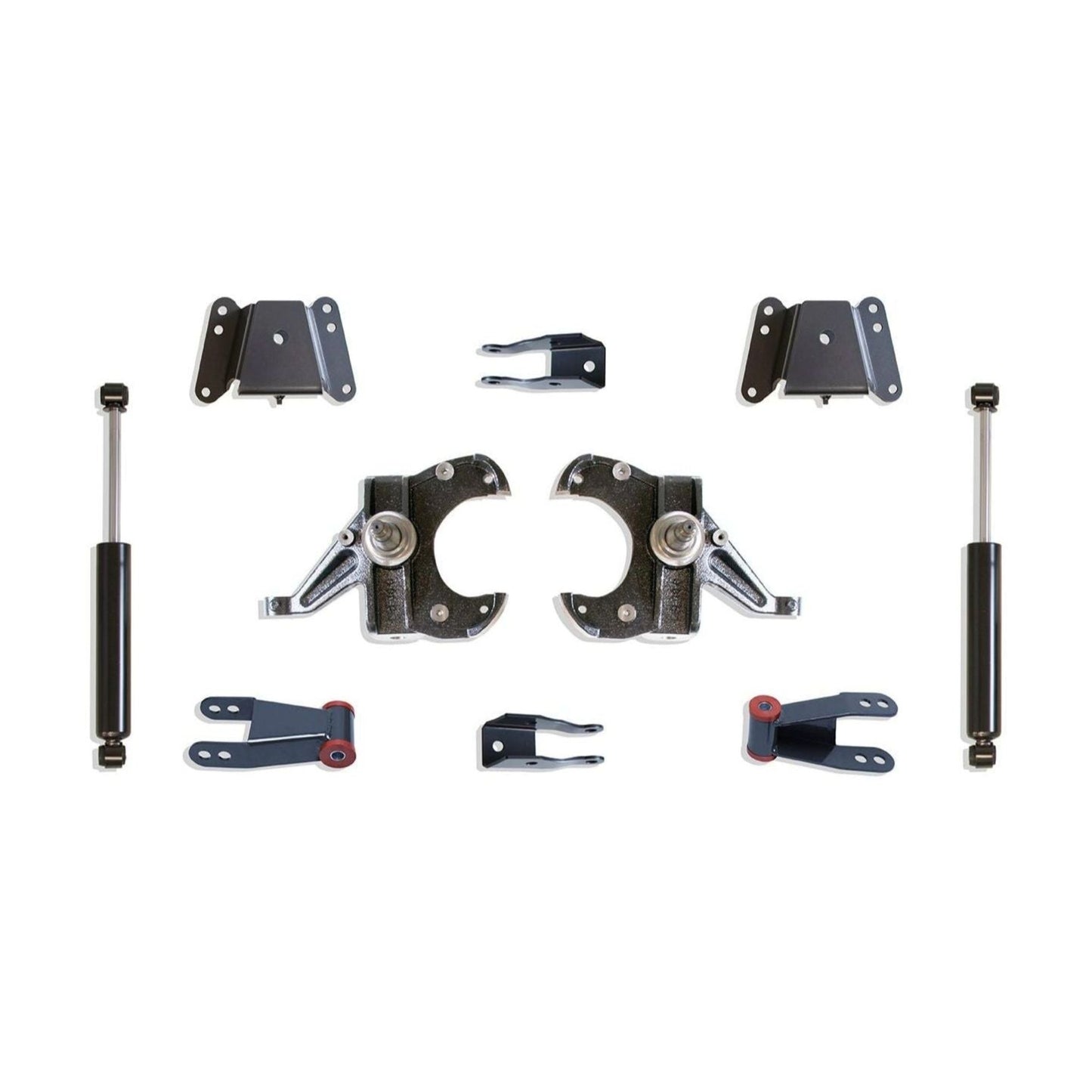

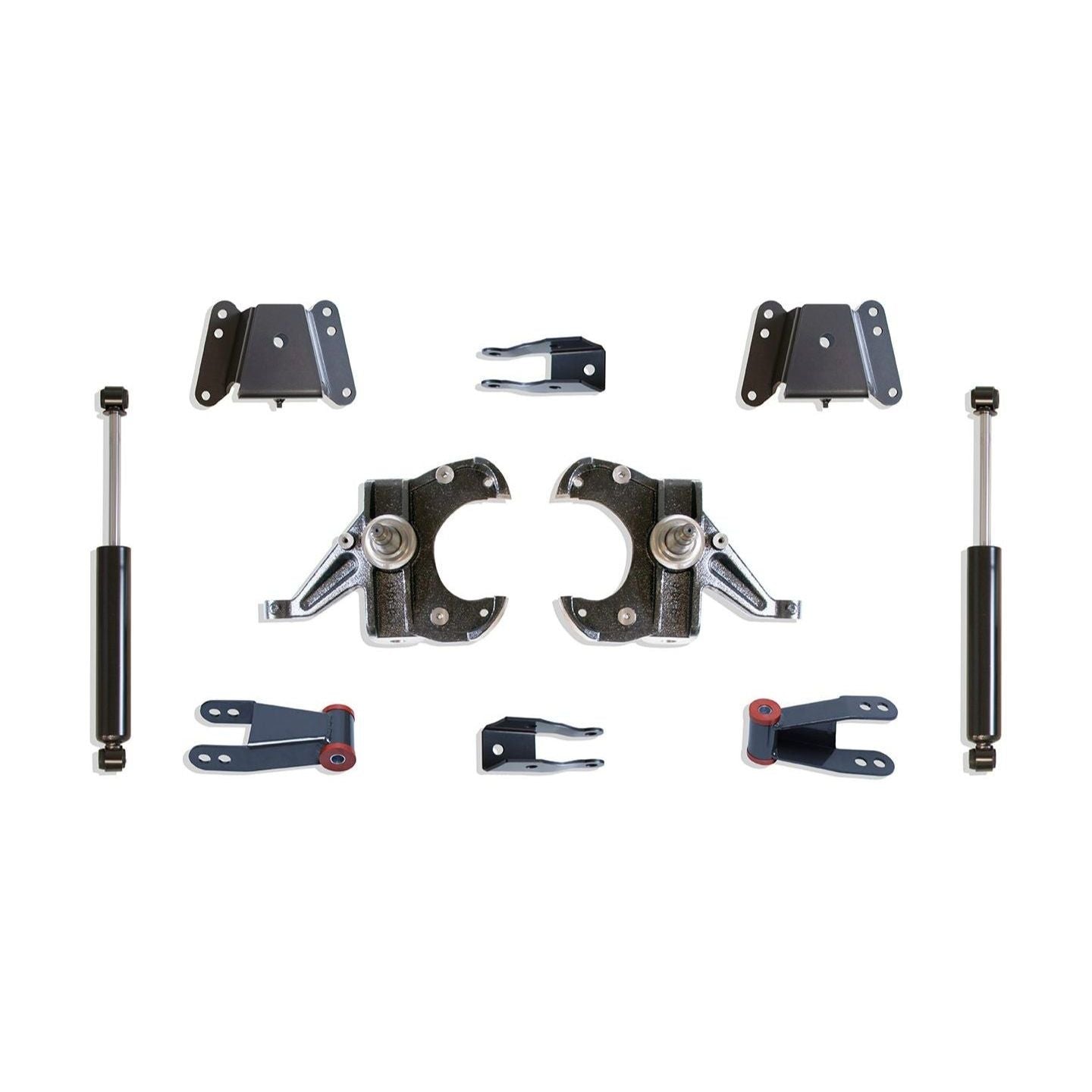

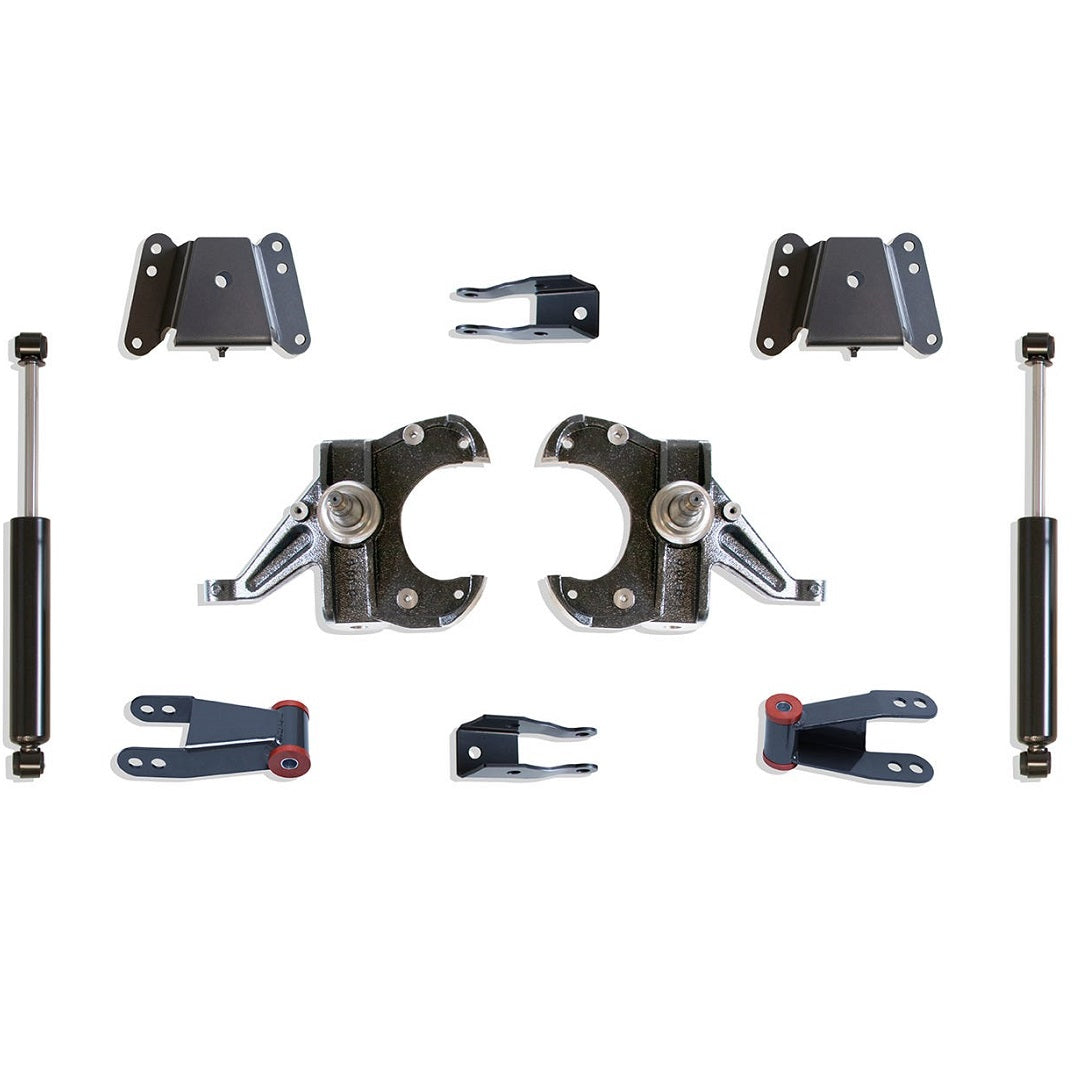

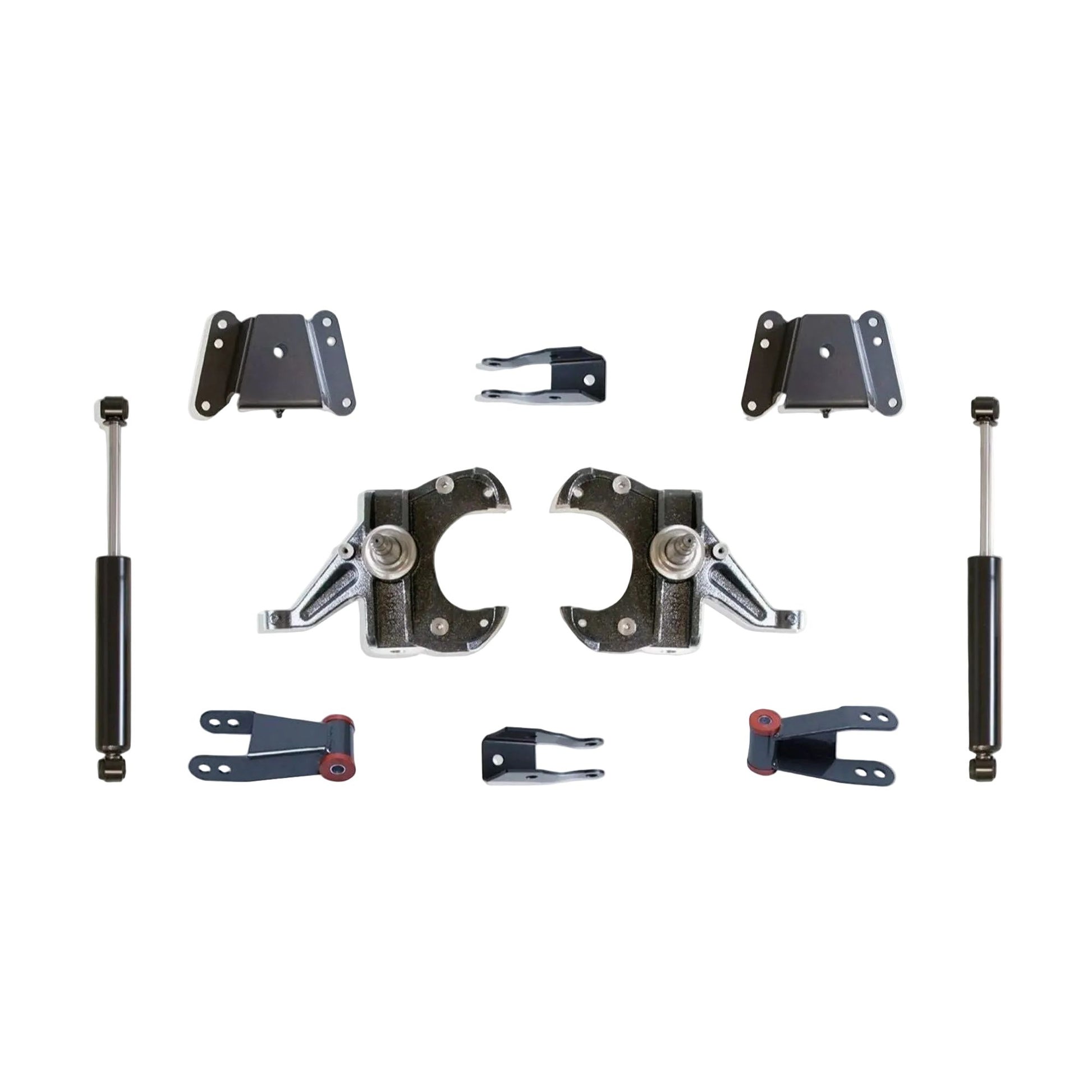

What's Included

Front lowering spindles
Rear lowering hangers
Rear lowering shackles
Shock angle correctors
MaxTrac 2000LL-4 rear shocks (Qty. 2)

Vehicle Fitment

Fits

1973–1987 Chevrolet C10
2WD models
10-bolt rear axle applications

Important Notes

Kit does not include front shocks.
Fits models equipped with a 10-bolt rear axle only.
Does not fit trucks equipped with 12-bolt rear axles.
Does not fit trucks equipped with 14-bolt rear axles.
When ordering rear shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac Suspension does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KS331134
UPC: N/A
Product Type: Suspension Lowering Kit
Kit Type: Lower
Front Drop: 2.5 Inches
Rear Drop: 4 Inches
Drivetrain: 2WD
Rear Axle: 10-Bolt
Front Lowering Method: Spindles
Rear Lowering Method: Hangers & Shackles
Front Shocks: Not Included
Rear Shocks: 2000LL-4 (Qty. 2)
Shock Angle Correctors: Included
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 81 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac KS331134?

For C10 owners who prefer a spindle-based front drop, the KS331134 combines a 2.5-inch front reduction with a 4-inch rear drop. The included hangers, shackles, shock angle correctors, and rear MaxTrac shocks create a coordinated package specifically for squarebody trucks with a 10-bolt rear axle.

Perfect For

1973–1987 Chevy C10
Squarebody 2WD trucks
10-bolt rear axle applications
2.5/4 drop builds
Classic street trucks
Spindle lowering projects
